Product Overview

Description


ET3801-150B,-30 to 150 Celsius Dry Block Temperature Calibrator



ET3801

Product Overview

This product is easy to carry, easy to use, fast and reliable temperature efficiency, widely used in machinery, chemical industry, food, medicine and other industries. The problem of slow temperature rise and slow temperature rise is common in the existing dry test furnace in China, which leads to a long time for users to calibrate each time. The latest generation of dry well furnace of our company adopts the most advanced heating principle design in the world. It has the characteristics of fast temperature rise, fast temperature rise and fast temperature drop, which greatly improves the existing calibration efficiency.

Through reliable high precision temperature control circuit and high precision sensor, the precision is higher than that of other domestic manufacturers, and the technology has reached international standards. The first worldwide touching operation, simple and fast to use.

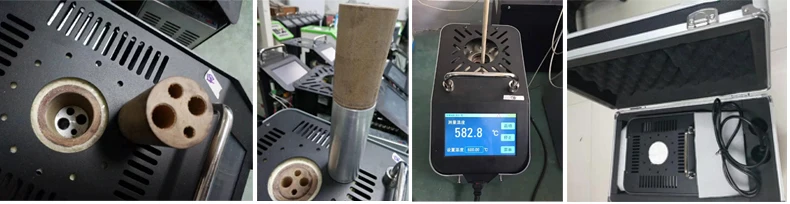

ET3801 details.jpg

Function & Benefits
  • 5 inch TFTLCD touch screen
  • Various types of insertion tube
  • Can be customized according to the special needs
  • Horizontal temperature and vertical temperature field
  • Fast cooling and easy to set
Specifications



ModelET3801-150AET3801-150BET3801-150C
Temperature Range-20~150°C-30~150°C-45~150°C
Heating Time30~100: 20min;
30~150: 40min		30~100: 20min;
30~150: 40min		30~100: 20min;
30~150: 40min
Display Accuracy≤±0.1°C≤±0.1°C≤±0.1°C
Stability≤±0.02°C≤±0.02°C≤±0.02°C
Immersion Depth160mm160mm160mm
Insert OD Dimensions36mm32mm32mm
Multihole4 holes:
Φ6mm,Φ8mm
Φ10mm,Φ12mm		4 holes:
Φ6mm,Φ8mm
Φ8mm,Φ10mm		4 holes:
Φ6mm,Φ8mm
Φ8mm,Φ10mm
Axial Uniformitybottom up 30mm,the deviation is not more than 1°C
Radial Uniformity≤±0.05°C≤±0.05°C≤±0.05°C
Max. Power300W300W300W
Temperature Unit°C or °F
Control Accuracy0.10%
Display Resolution0.01°C
Communication InterfaceUSB Device (optional)
LanguageChinese, English
Power Supply220v± 10% ,45-60hz ,or 110v± 10%(optional)
Operating Conditions0°C to 50°C, 0% to 95% RH (non-condensing)
Dimension310mm*190mm*340mm
Weight(Net)13kg

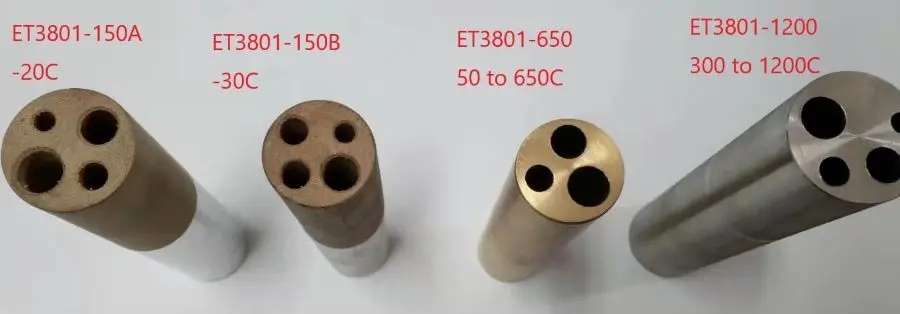

Optional Immerse:



Immerse Optional
