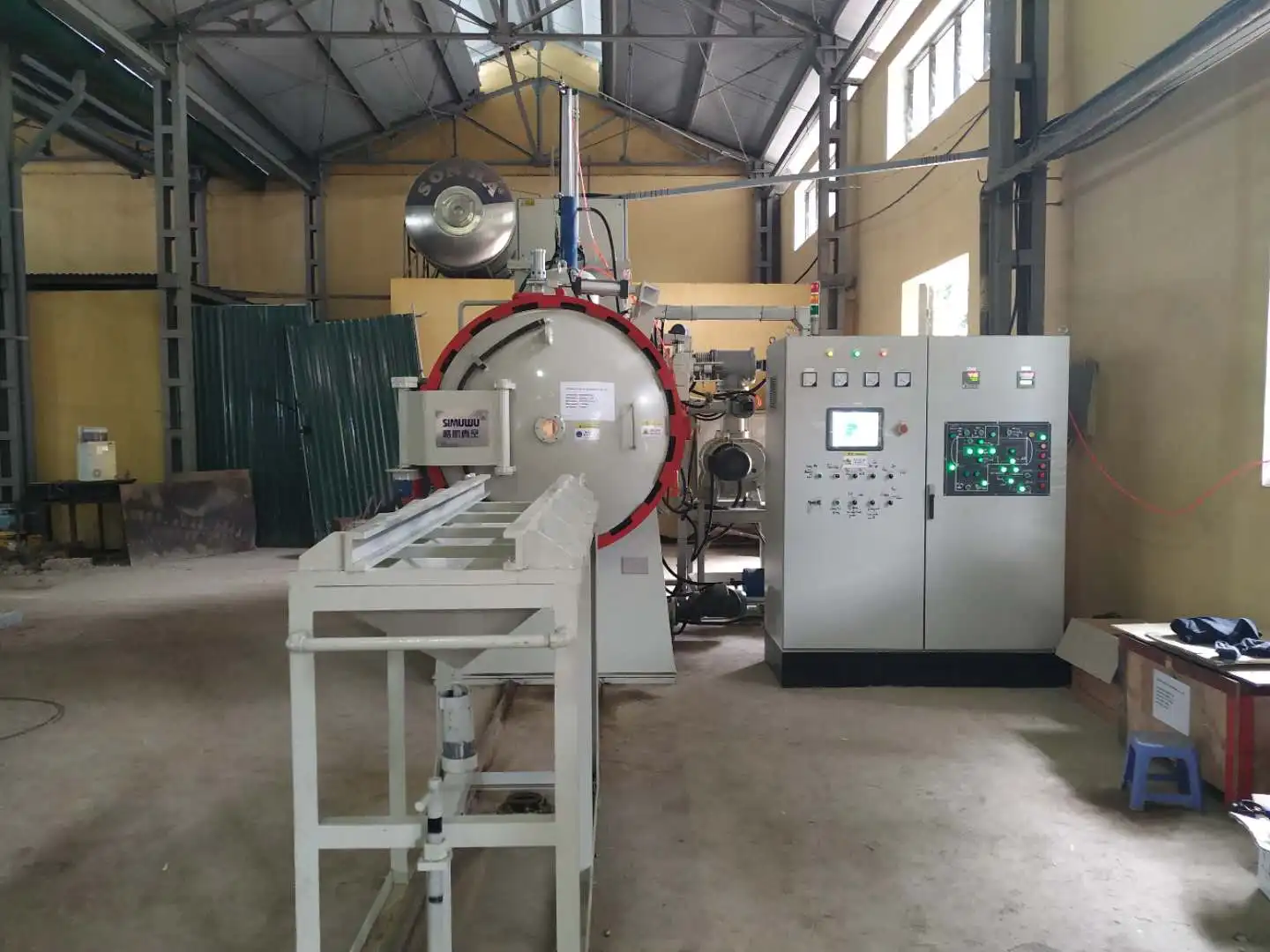

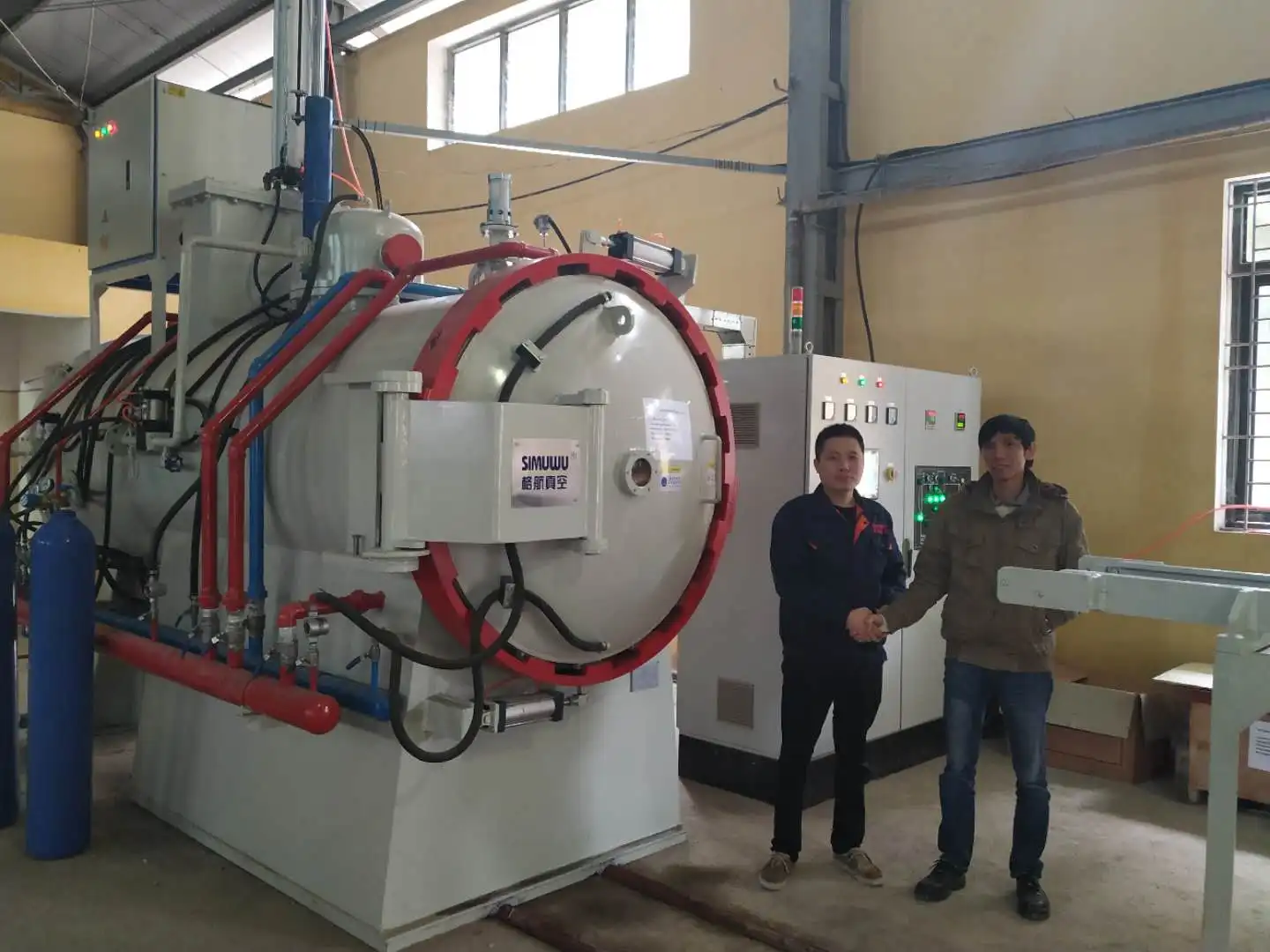

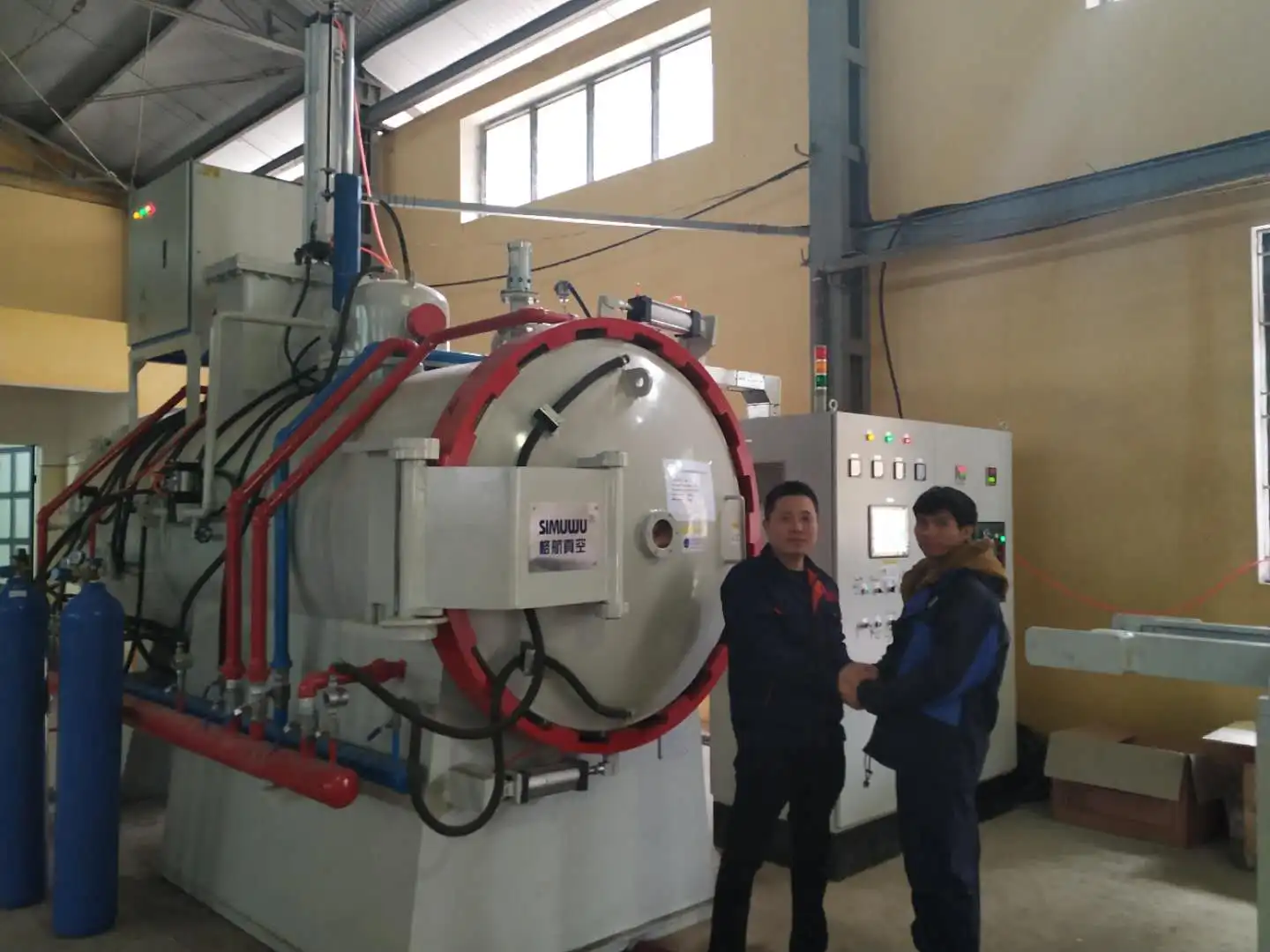

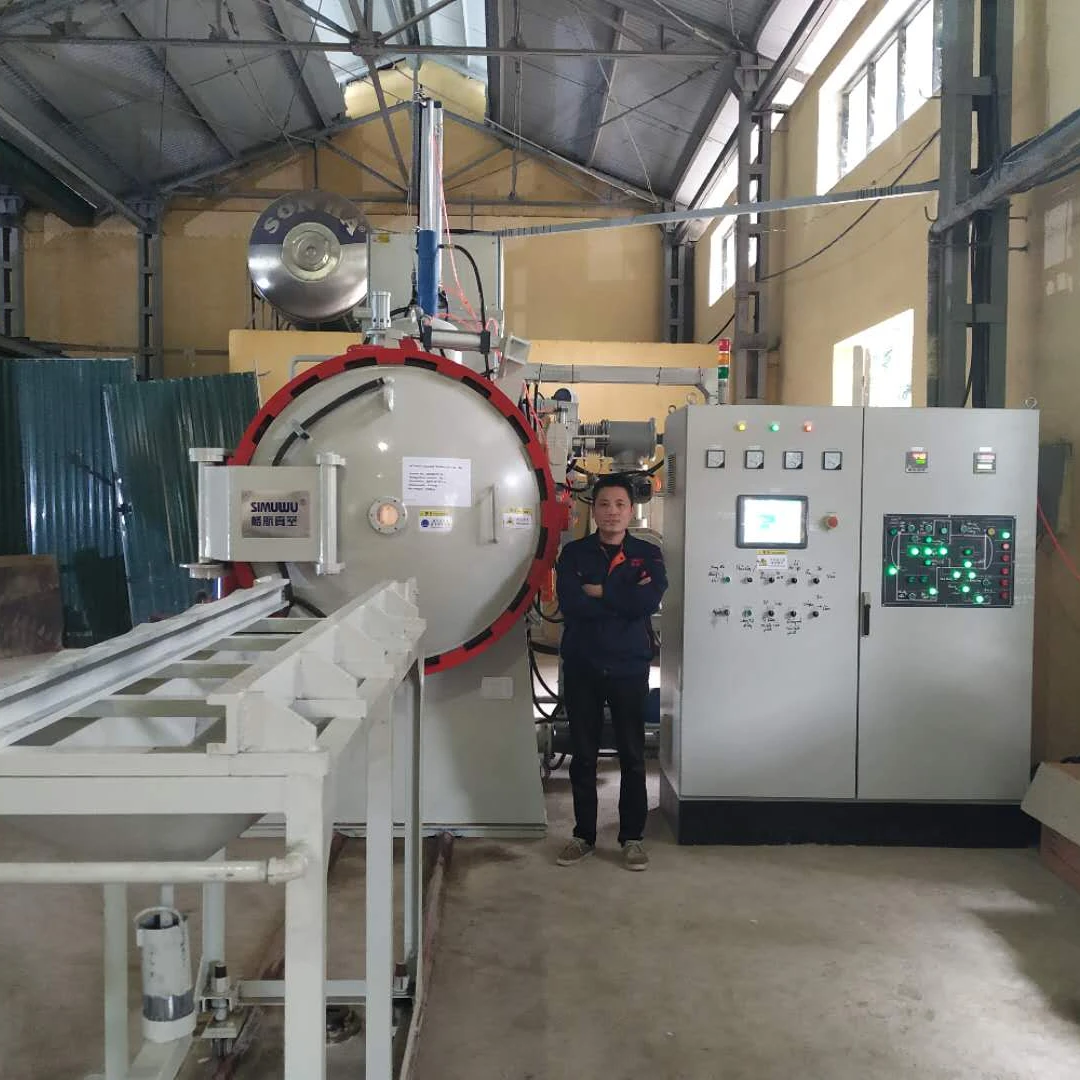

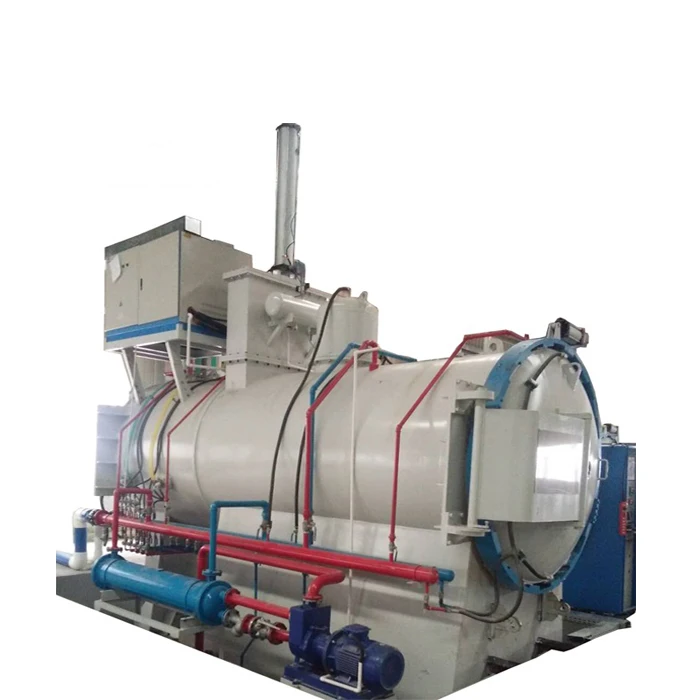

100Cr6 vacuum oil quenching hardening heat treatment furnace 8812
- Category: Industrial Furnace >>>
- Supplier: Shanghai Gehang Vacuum Technology Co. Ltd.
Share on (62343604895):
Product Overview
Description
100Cr6 Vacuum Oil Quenching Hardening Heat Treatment Furnace
Product Description
Vacuum Technology is the Basis for Process Innovation in Heat Treatment.
Heat Treatment is the process in which metallic/steel parts are exposed completely or partially to time-temperature sequences in order to change the mechanical and/or corrosion properties. There are numerous application areas, e.g.:
• Annealing • Hardening • Tempering • Aging • Case hardening
To achieve a higher strength of the material, better wear resistance or to improve the corrosion behaviour of the components.All of these processes need a temperature up to 1.000 °C and higher as well as especially developed furnaces to achieve such ranges.
Name | Parameter |
vacuum heat treatment furnace (hardening, annealing, tempering, quenching) | steel heat treatment |
Model | Horizontal / Vertical |
Ultimate vacuum | Custom made |
Pressure rising rate | 0.5pa/h ( adjustable ) |
Max temperature | Custom made |
Temperature uniformity | ±3℃ / ±5℃ |
Heating power | Custom made |
Temperature control method | Intelligent programmable temp controller |
Control method | PLC auto/manual interlock protection |
Max gas charging pressure (absolute pressure) | Custom made |
Specifications
Main Technical Data of Vacuum Oil Quenching Furnace | ||||||
Models | Effective working dimension (mm) | Max temperature (C) | Ultimate pressure (pa) | Pressure rising rate (pa/h) | Temperature uniformity (C) | Loading capacity (kg) |
VOGQ-224 | 250x250x400 | 500-1300 | 4x10-1 | 0.5 | ±5 | 50 |
VOGQ-335 | 300x300x500 | 500-1300 | 4x10-1 | 0.5 | ±5 | 100 |
VOGQ-446 | 400x450x600 | 500-1300 | 4x10-1 | 0.5 | ±5 | 200 |
VOGQ-558 | 500x500x800 | 500-1300 | 4x10-1 | 0.5 | ±5 | 300 |
VOGQ-669 | 600x600x900 | 500-1300 | 4x10-1 | 0.5 | ±5 | 500 |
VOGQ-7710 | 700x700x1000 | 500-1300 | 4x10-1 | 0.5 | ±5 | 800 |
VOGQ-8812 | 800x800x1200 | 500-1300 | 4x10-1 | 0.5 | ±5 | 1200 |
VOGQ-V0711 | Φ700x1100 | 500-1300 | 4x10-1 | 0.5 | ±5 | 800 |
VOGQ- x | custom made | custom made | custom made | custom made | custom made | custom made |

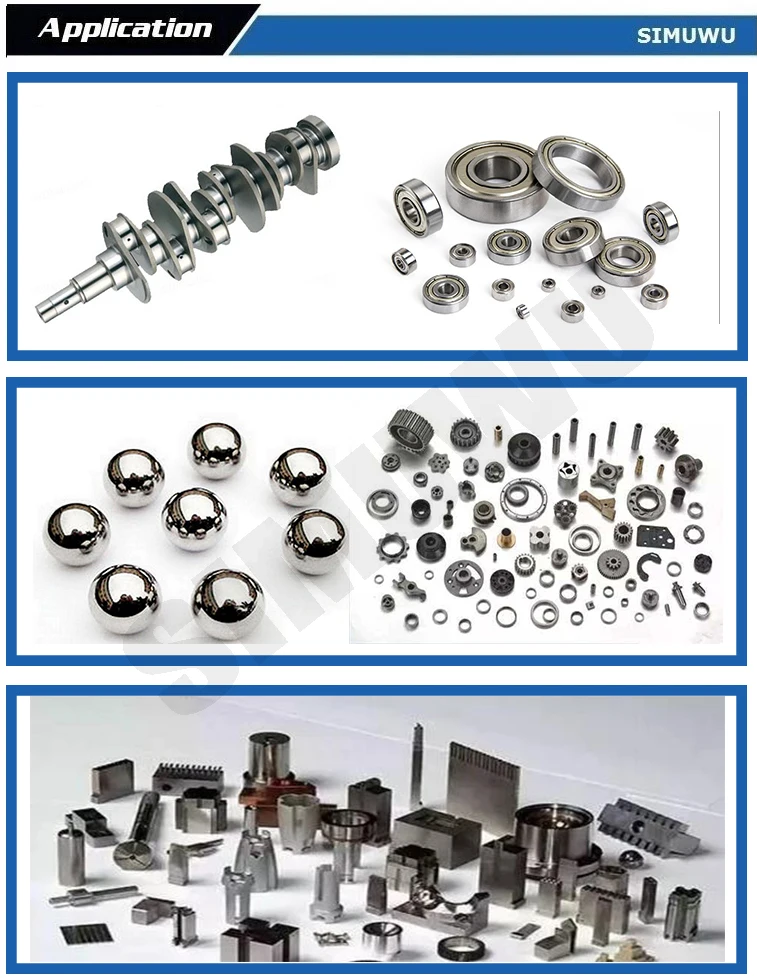

Application
Application fields: Die steel, stainless steel, gear, high speed steel, tool steel and so on.
