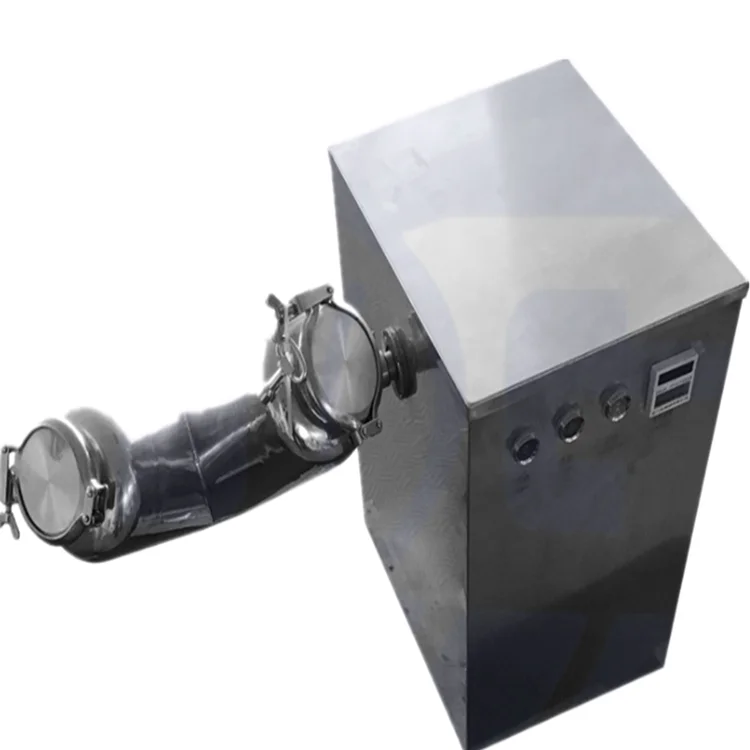

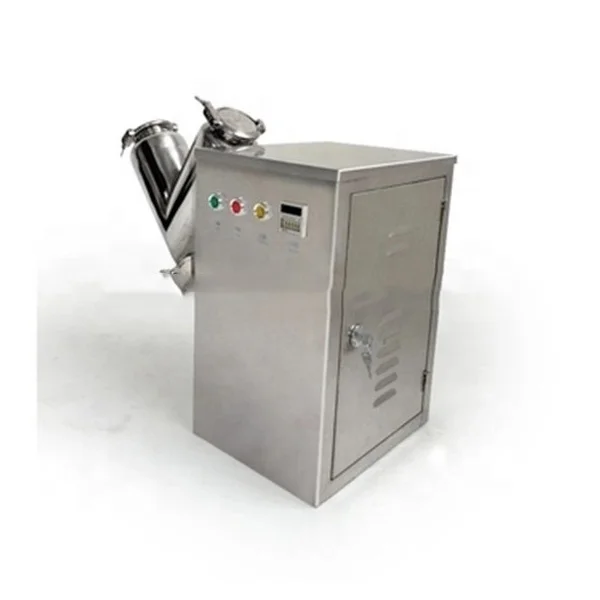

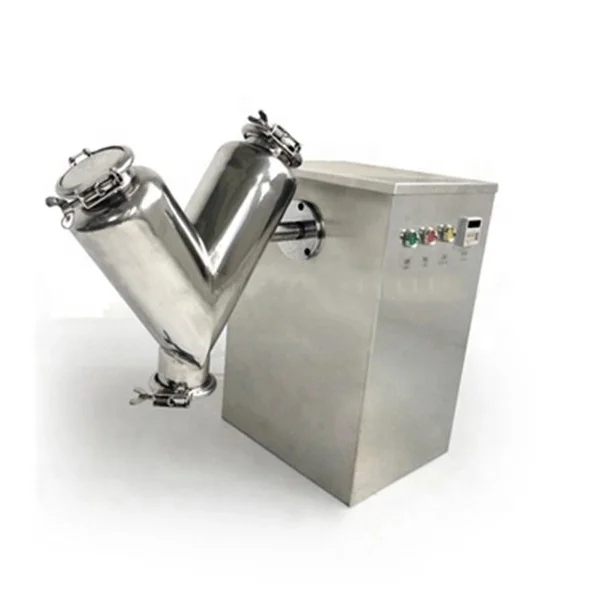

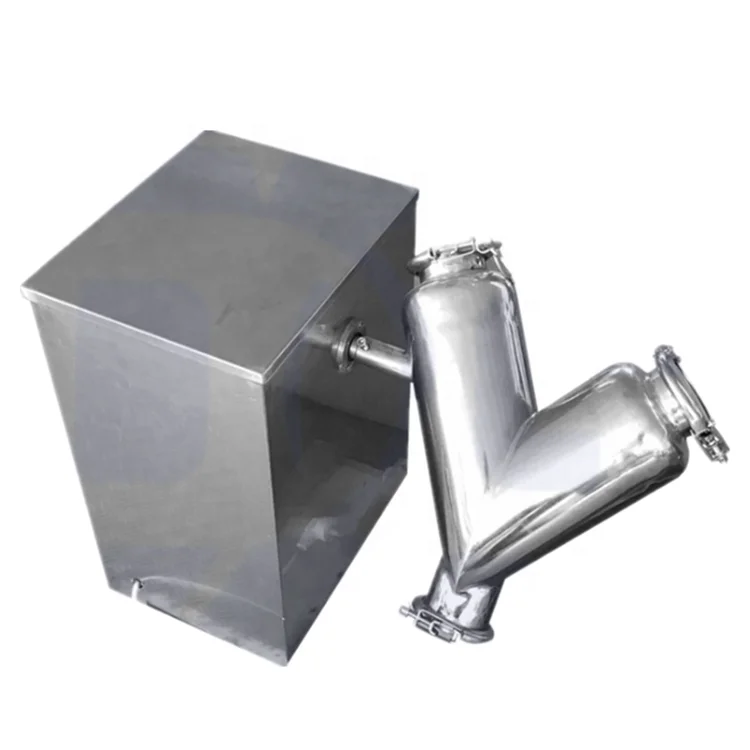

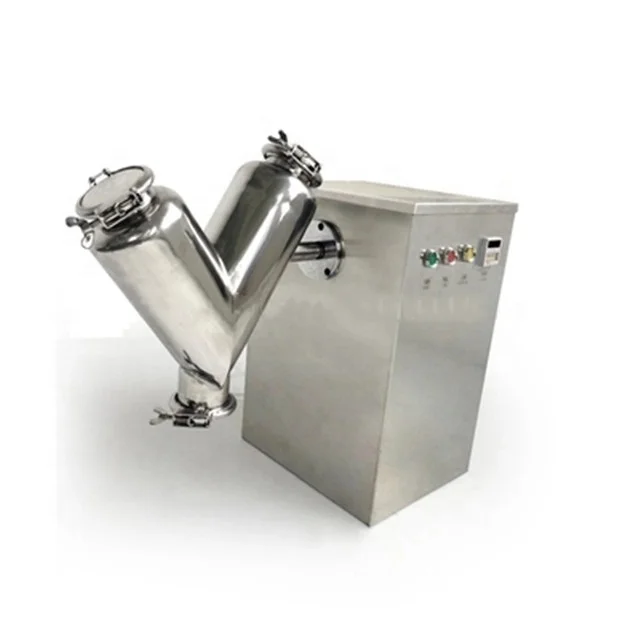

V 5 lab powder mixer ribbon blender powder mixer tobacco powder mixer
- Category: >>>
- Supplier: Shenzhen Yason General Machinery Co. Ltd.
Share on (62343972026):
Product Overview
Description
Product Description
1) V-type benders are commonly used in pharmaceutical, nutriceutical, chemical,food and related industries to mix dried powder and granules.
2) It consists of two VH of different or same altitudes, and throughmechanical transmission, the materials in these shells are made to moveback and forth, crossed over and rotate 360º to achieving ultimateuniform mixing.
3) V-type Blenders are rugged in designed andconstruction, 304 S.S. (optional 316L) mirror polished of inner andouter shell to meet the GMP Standard.
4) We offer the most affordableVH-Blenders in the marketplace from laboratory to large scale productionbatch.
5) We used heavy duty industrial Motors & Drives for all 3-Phase V-type and intensifier bar. Available OMRON Safety SensorGates for all V-type blenders.
6) Available Variable Speed Control on VH and I-Bar.
Product Parameters
Mode | V-5 | V-8 | V-14 | V-20 | V-30 |
Full volume | 5L | 8L | 14L | 20L | 30L |
Suitable capacity | 2L | 3L | 5.5L | 8L | 12L |
Size | 560*270*560mm | 660*300*630mm | 900*380*900mm | 1090*340*885mm | 1280*360*1055mm |
Inlet diameter | 76mm | 76mm | 108mm | 133mm | 133mm |
Outlet diameter | 76mm | 76mm | 76mm | 76mm | 76mm |
Cylinder speed | 24r/min | 24r/min | 20r/min | 20r/min | 20r/min |
Power | 0.25/0.55KW | 0.25/0.55KW | 0.37/0.55KW | 0.55/1.1KW | 0.55/1.1KW |
Features
1) Compact structure,operation simple,maintenance convenience.
2) The materials of tube adopts the stainless steel,both the inside wall and outside wall mirror polished,easy to wash,meet the GMP standard.
3) The machine adopts V form asymmetric material tube to compound,having no dead angle,no accumulation of materials,high speed,and short mixing time,high uniform mixing.
4) Circulate steady,have no noise.
5) Operate with electrical control,it can set mixing time to realize automatic stop.
Detailed Images

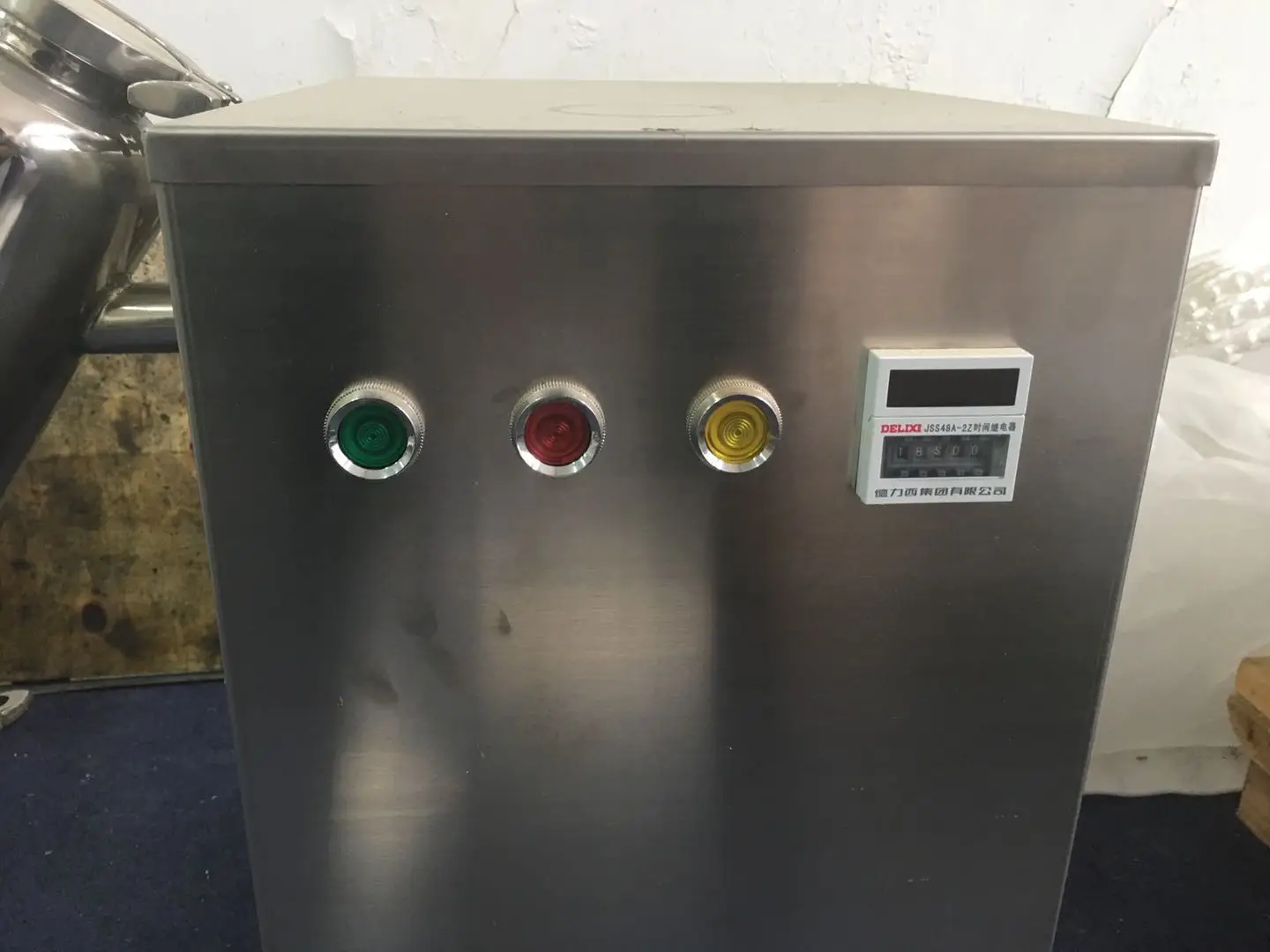

Switch button
The button is installed in a reasonable position, the design is simple and convenient, and the work efficiency is greatly improve.
Time Relay
Can be operated regularly, easy to understand.
Inlet
The two materials are imported, the locking bolts are loosened, the sealing cover is removed, the material is loaded, the sealing cover is closed, and the bolts are locked, and the utility model can be used. The amount of feed should not exceed the specified volume.
Outlet
After the mixing is finished, the starting handle of the discharge valve is operated downward to make the material flow out.
