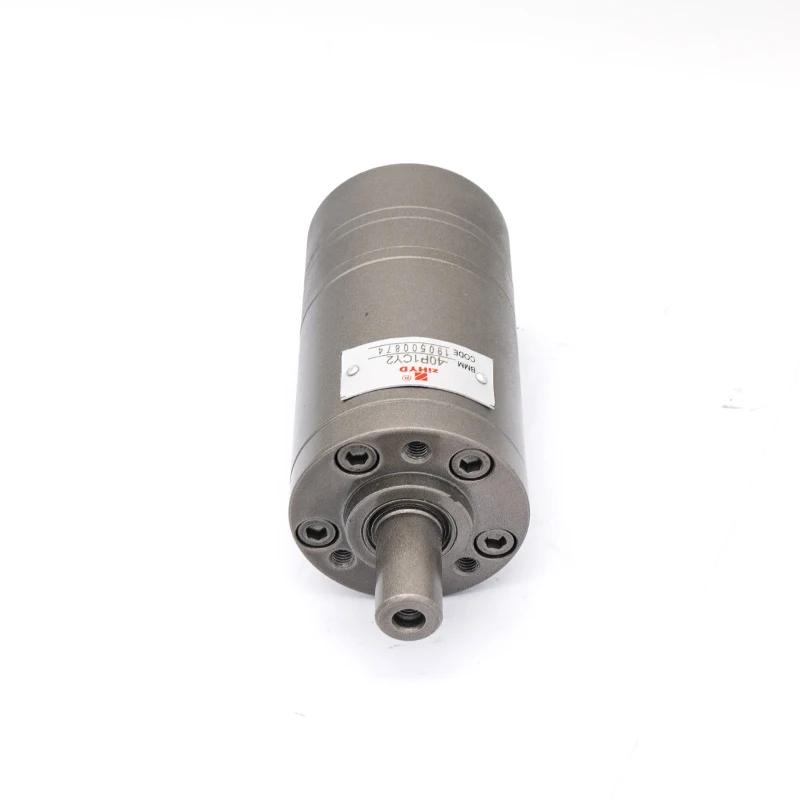

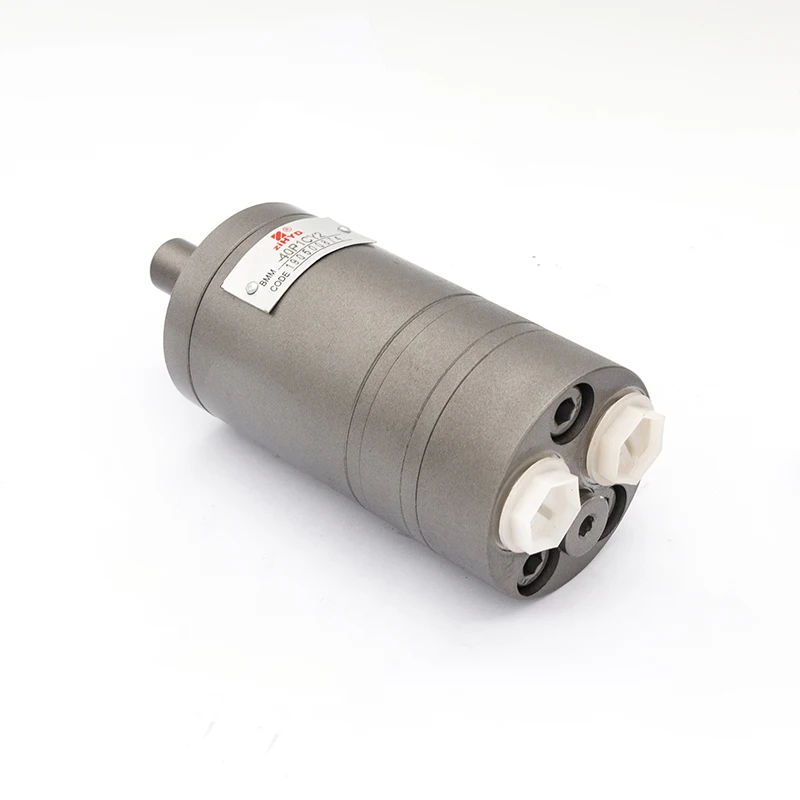

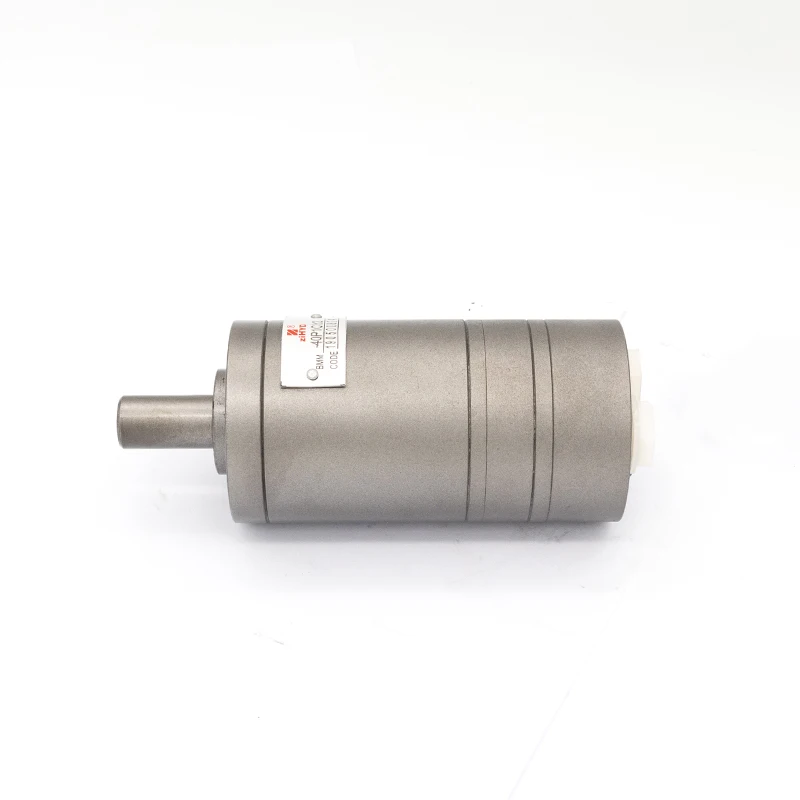

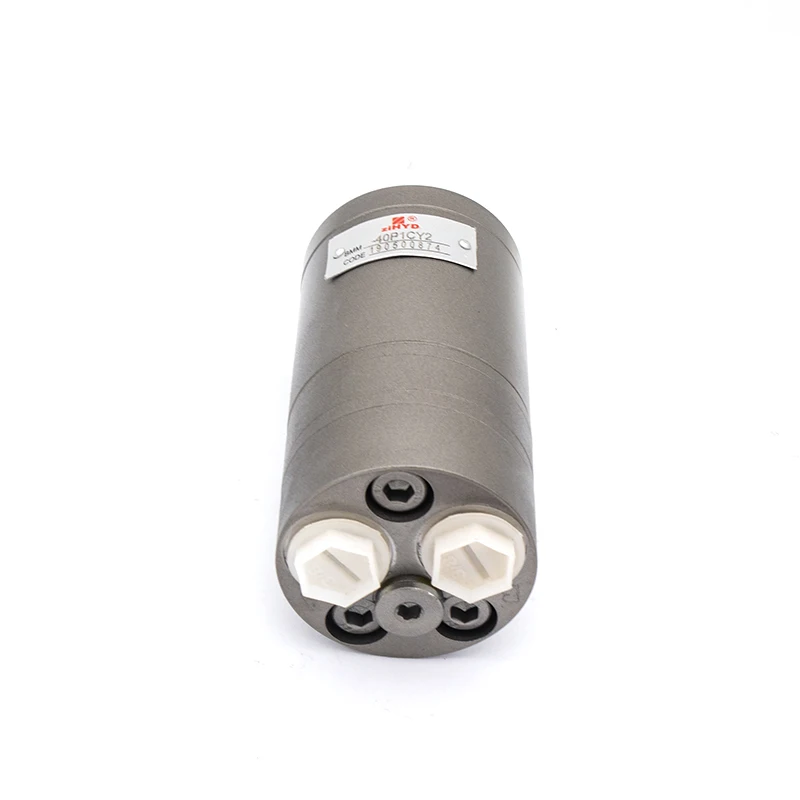

ZIHYD/THOTH OMM Mini Orbital Hydraulic motor for dan foss

Product Overview

Description

TYPE		BMM-8	BMM-12.5	BMM-20	BMM-32	BMM-40	BMM-50
Displcement (ml/r)		8.2	12.9	19.9	31.6	39.8	50.3
Max.Pressure. Drop (Mpa)	cont.	10	10	10	10	9	7
	int.	14	14	14	14	14	14
	peak.	20	20	20	16	16	16
Max. torque (N.Mm)	cont.	11	16	25	40	45	46
	int.	15	23	35	57	70	88
	peak.	21	33	51	64	82	100
Max. Speed (cont.)(r/min)		1950	1550	1005	630	500	395
Max. Flow (cont.)(L/min)		16	20	20	20	20	20
Max. Output. Power (cont.)(Kw)		1.8	2.4	2.4	2.4	2.2	1.8
Weight(kg)		1.9	2	2.1	2.2	2.3	2.4
