1700 C 1800C high temperature box muffle furnace mosi2 high purity
- Category: >>>
- Supplier: Zhengzhou,Mingxin,Electric,Heating,Material,Co.,Ltd.
Share on:
Product Overview
Description
1700 C 1800C high temperature box muffle furnace mosi2 high purity
1800C Mosi2 heating element 1550C silicon carbide heating element
1.Iroduction for MoSi2 heating element
Mosi2 heating element is a special product combined metal and ceramics. So it has the characteristics of silicon and molybdenum.
| Advantage | |
| 1 | High purity |
| 2 | High temperature resistance |
| 3 | Energy-saving |
| 4 | Chemical stability |
| 5 | Long life |
| 6 | Easy maintenance |
| 7 | Easy installation |
| 8 | Oxygen-resistance under high temperature |
| 9 | With a small expansion coefficient not easily deformed |
There are 1700C 1800C 1900C models

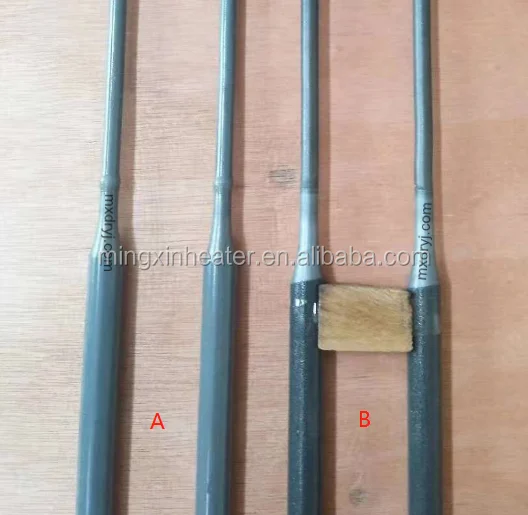

Which one is 1800C? Can you guess? A or B?
Contact us directly now!
Click here for more information

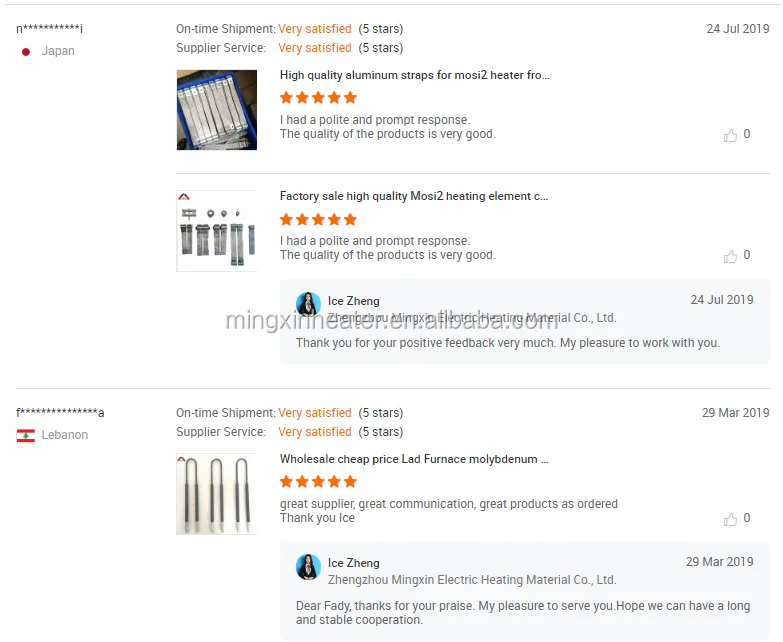

2.Feedback for MoSi2 heating element
3.Marks for MoSi2 heating element
When you enquiry, please tell us the following data
D1: Diameter of Hot Zone(mm)
D2: Diameter of Cold Zone(mm)
Le: Length of Hot Zone(mm)
Lu: Length of Cold Zone(mm)
A: Shank Spacing(mm)
4.Product Parameters
Oxygen-resistance under high temperature: in oxidizing atmosphere, a layer of compact quartz protective film is formed on the surface of element owing to the high temperature combustion, which prevent Mosi2 from oxidizing more. When the element temperature is higher than 1700 °C, the film becomes melting. It’s not suitable for long time use in the temperature range of 400-700°C, otherwise, the element will be powdering for the strong oxidation under low temperature.
| Physical properties of Mosi2 heating element | ||||
| Volume Density | Bend Strength | Porosity Rate | Water Absortion | Hot Extensiblity |
| 5.5-5.6g/cm³ | 15-25kg/cm³ | 7.4% | 1.2% | 4% |

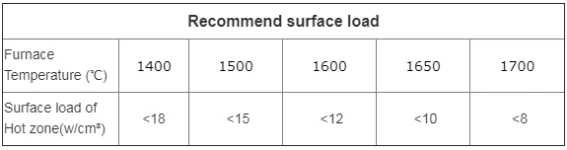

5.Max. temp for MoSi2 heating element

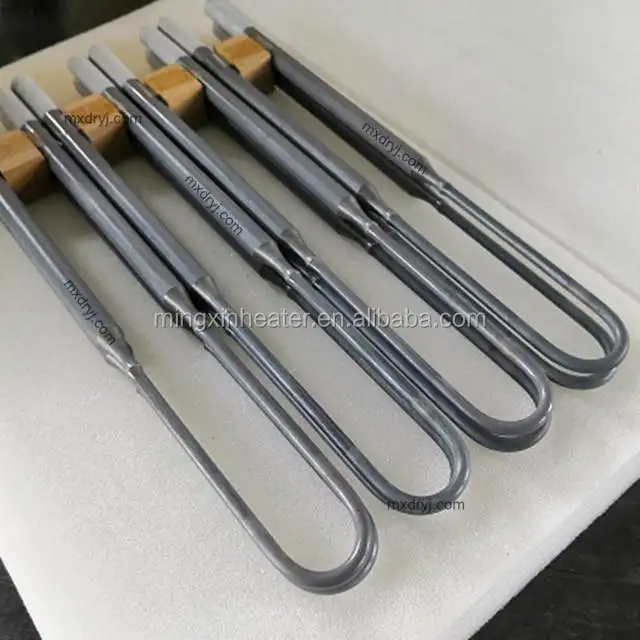

6.Details for MoSi2 heating element
7.Notice for using MoSi2 heating element
It should be pointed out that element cannot be used for rather long time in 500-700°C, or it will be powdered owing to the strong oxidizing action in low temperature.
8.Accessories for using MoSi2 heating element
It consists 1 piece of clamp and 2 pieces of straps
9.Package for MoSi2 heating element
Packaging Details: Packed with sponge and box case, and then put it into wooden case.
Port: Qingdao, Shandong
Lead Time: Shipped in 10 days after payment Transportation: Most by air.
