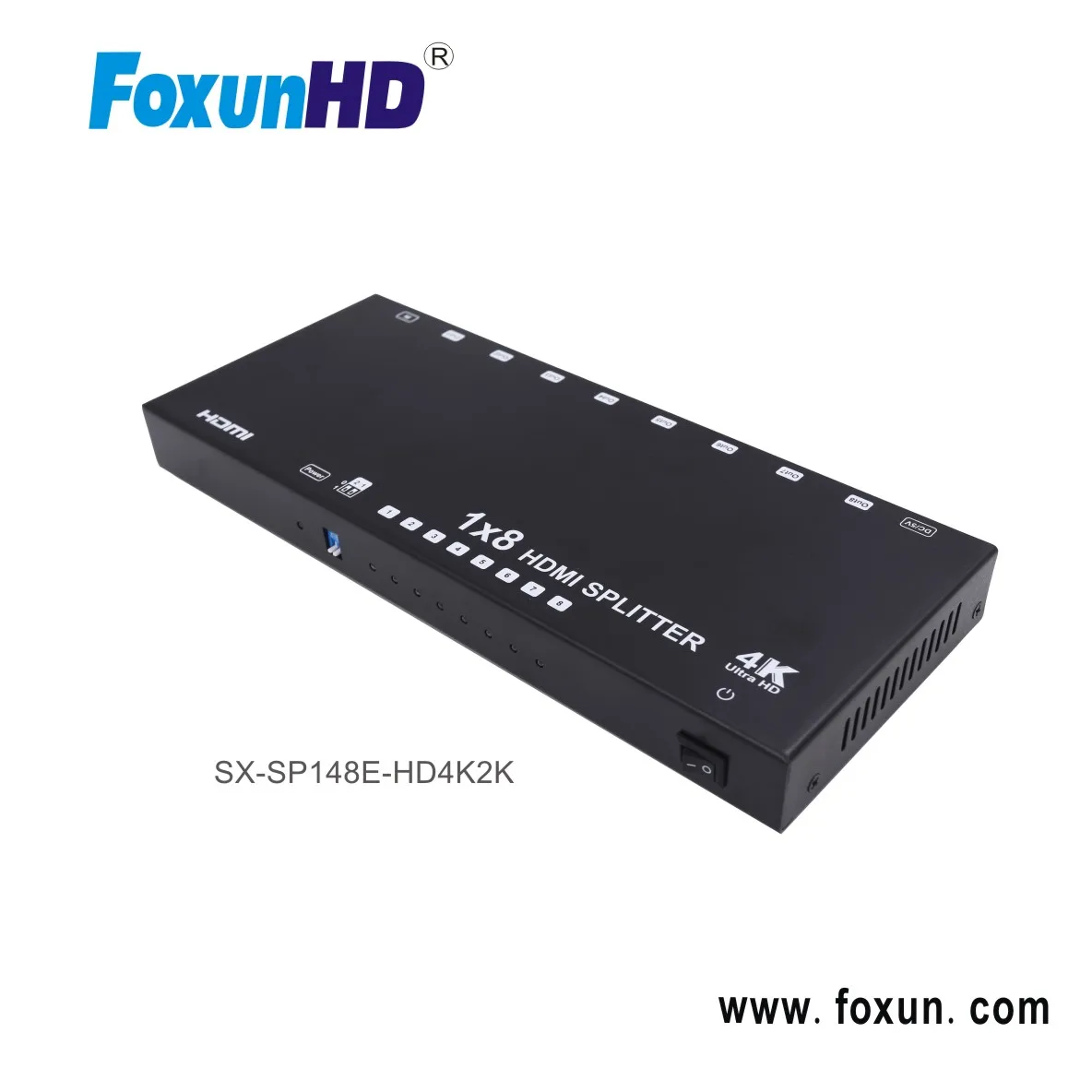

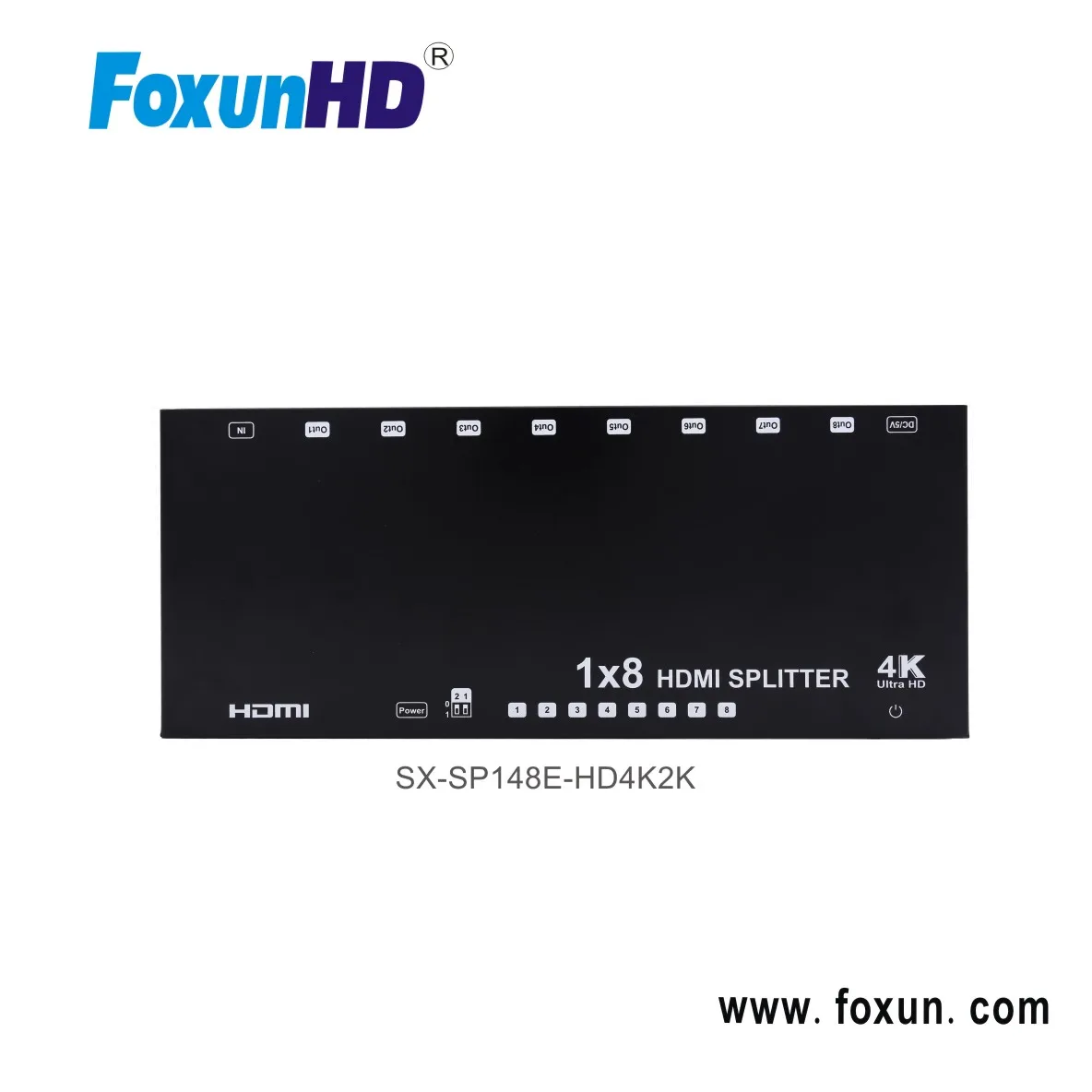

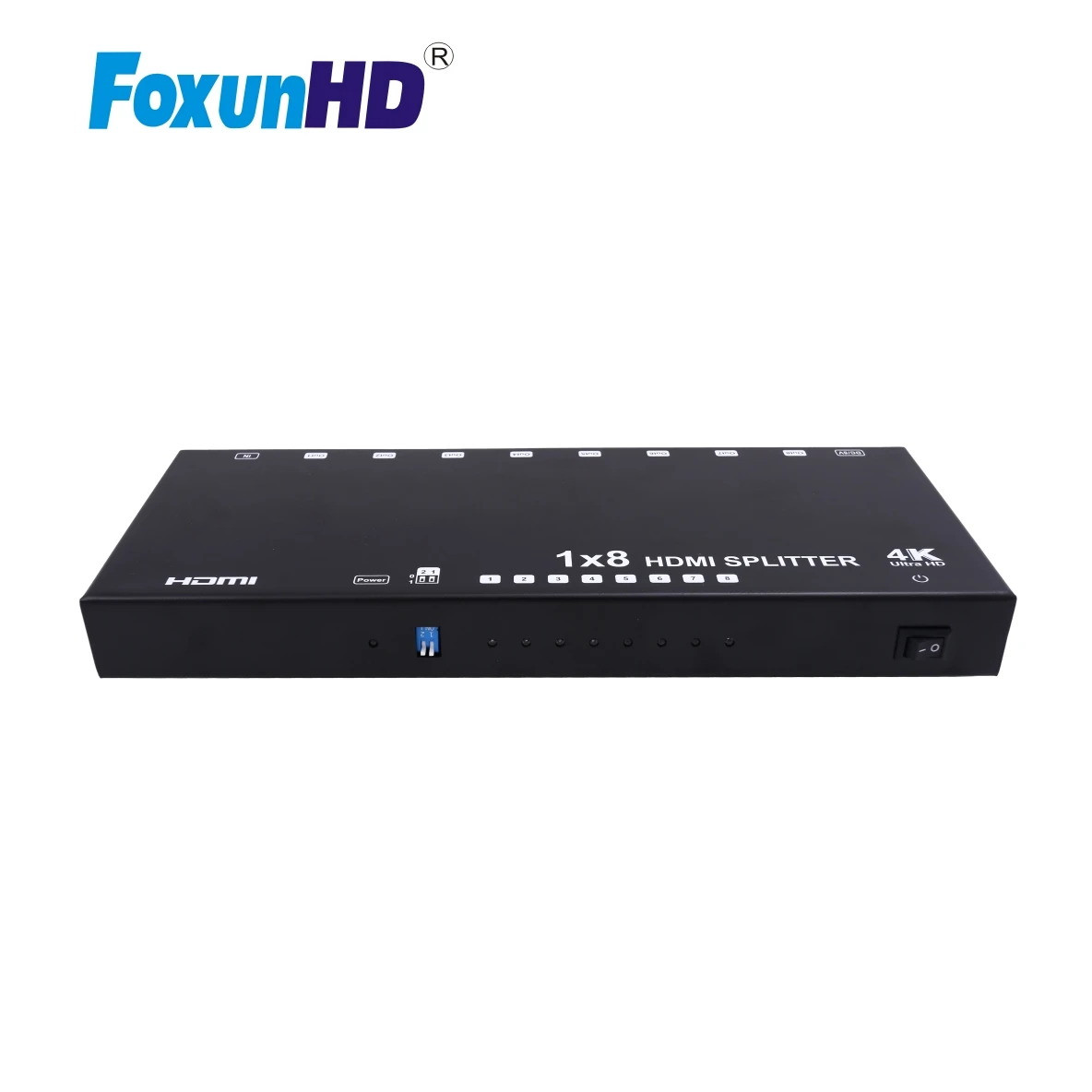

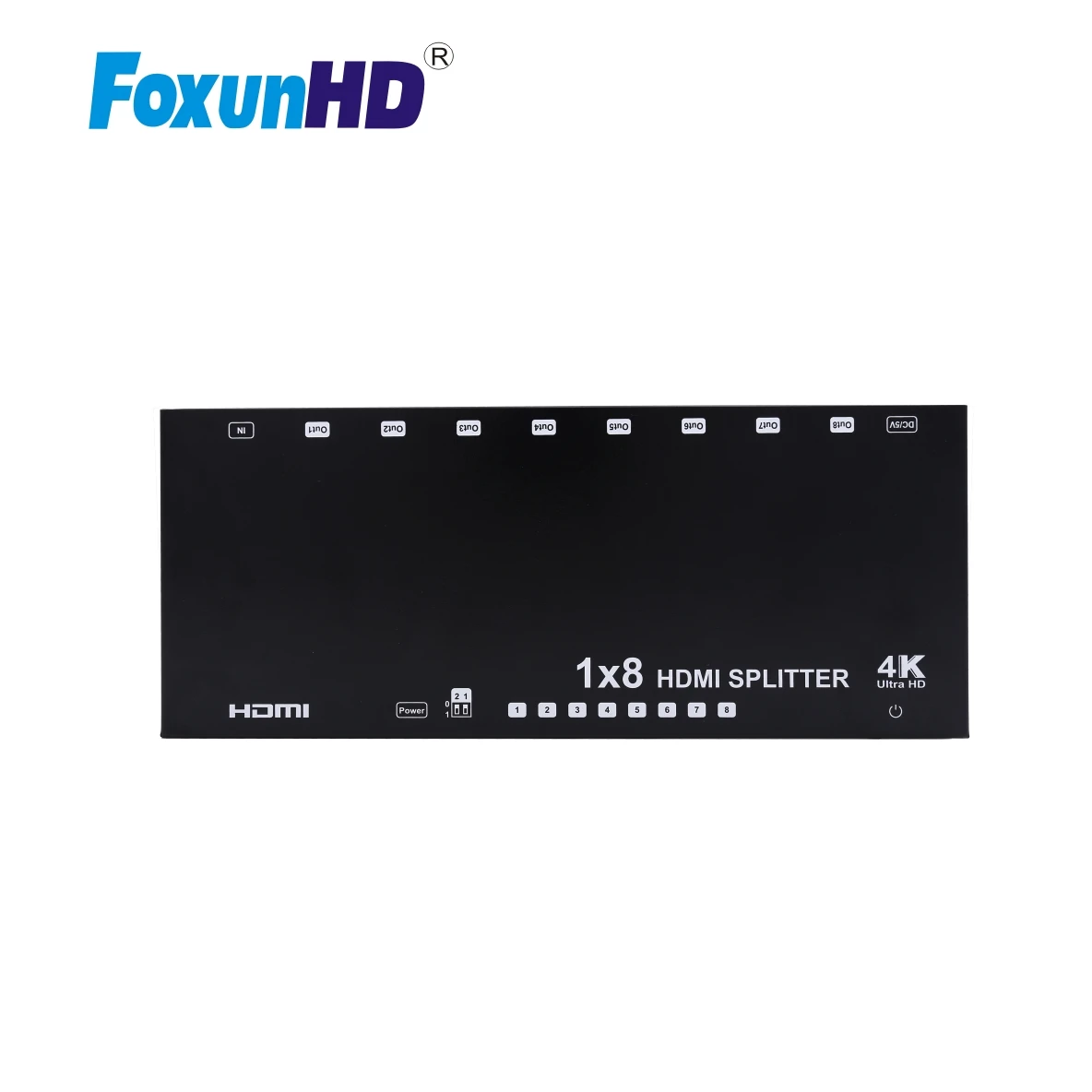

SX SP148E HD4K2K,Support 3D, 4k@60hz YUV 4:2:0, HDCP1.4,EDID with 1x8 HDMI splitter home theatre system

Share on (62344097487):


Price:

Quantity:


Product Overview

Description



Product Description


Product name
HDMI splitter 1x4
Model
SX-SP148E-HD4k2k
Resolution
4k@60hz YUV 4:2:0
Support
HDCP Compliant.
Warranty
2 years, all of our products have tested before shippment to ensure 99% is good products


3D, 4k@60hz YUV 4:2:0, HDCP1.4,EDID with 1x8 HDMI splitter
1). Distribute 1 Ultra HD source to 8 Ultra HD displays
2). Support resolution up to Ultra HD 4Kx2K(3840x2160 @60Hz YUV 4:2:0)
3). Compatible with LPCM 7.1, Dolby TrueHD, Dolby Digital plus,DTS-HD master audio
4). With 2 Bit DIP switch to select from 4 kinds of EDID models
5). Supports four kinds of EDID handling abilities: mixed EDID, copy EDID, default
1080p output, default 4Kx2K output.
6). Support bandwidth up to 10.2 Gbps
7). Support deep color 36 bit
8). Support 3D
9). HDCP Compliant
10). DC 5V 1A power supply
11). Size: 270x110x27.5mm





Product Paramenters


Operating Temperature Range
-5 to +35℃(+23 to +95℉ )
Operating Humidity Range
5 to 90%RH (No Condensation)
Bandwidth frequency
10.2Gbps
Input ports
1xHDMI(female)
Output ports
8xHDMI outputs(female)
Resolution outputs
up to 4Kx2K(3840x2160@60Hz YUV 4:2:0)
Dimensions(LxWxH)
270x110x27.5mm
Power consumption
3W(MAX)
Transmission Distance
15m(Maximum)over standard HDMI cable/26AWG
Net Weight
840g

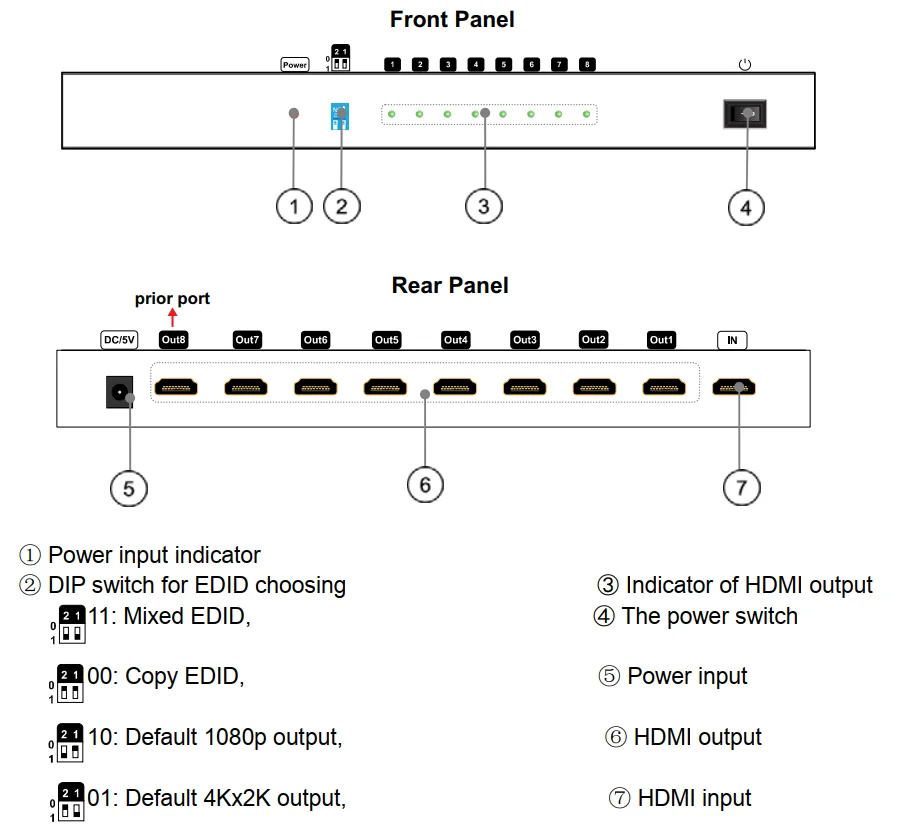

Hardware Description




CONNECT AND OPERATE
1) Connect the HDMI input source to input port of HDMI splitter.
2) Connect the HDMI splitter output ports to the displays.
3) Power on splitter, source and displays




Packing & Delivery


PACKING CONTENTS
1) 1x HDMI Splitter
2) 1x 5V/1A DC Adapter
3) 1x User Manua
