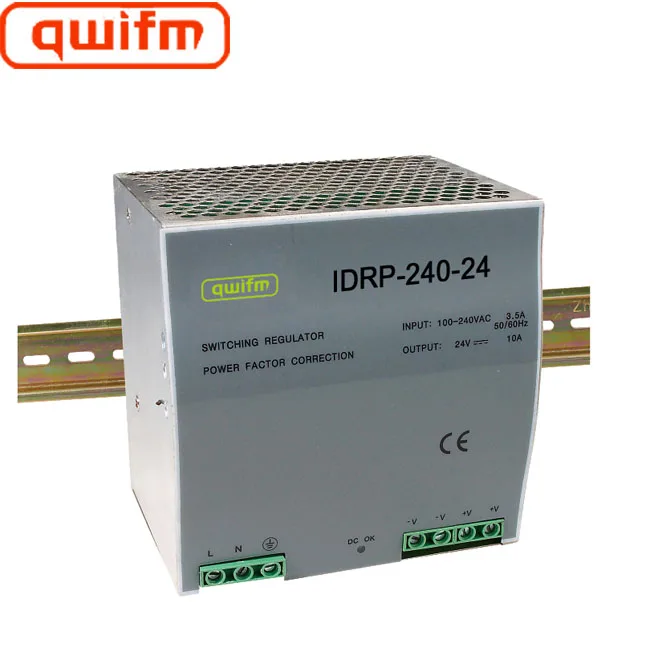

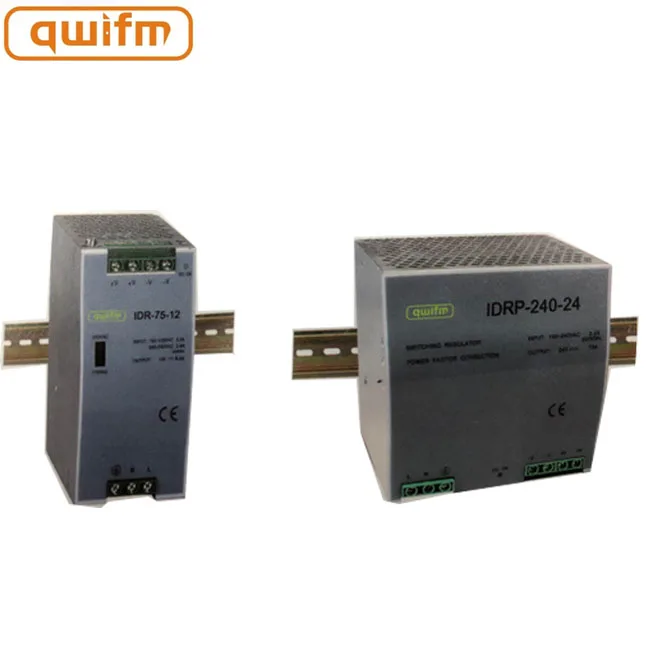

Factory Price Single Output High Performance 240W 24V Switching Power Supply
- Category: >>>
- Supplier: Shanghai Nature Beyond Electric Technology Co. Ltd.
Share on (62344102201):
Product Overview
Description
Product Description
Advantage
1. Small size, rail mounting, convenient and lightweight.
2. Full range of AC input, self-cooling and heat dissipation.
3. Installed in the rail bracket TS35/7.5 or 15
3. High cost performance, with overcurrent, overvoltage, short circuit protection
4. Rail switch power supply 2 years warranty period
Product Recommended
Specification
| Model number | IDRP-240-24 | IDRP-240-48 |
| Output | 24V 0~10A | 48V 0~5A |
| Universl AC input/Full range | ||
| Installed on DIN rail TS 35/7.5 or 15 | ||
| Protections:short circuit/over load/over voltage/over temp. | ||
| Approvals:CE | ||
| LED indicating the working state | ||
| Cooling by free air convection | ||
| 100% full load burn-in test | ||
| 2-years warranty | ||
| AC input voltage range:85-264VAC | ||
| AC inrush current:Cold start,30A t 115VAC,50A at 230VAC | ||
| DC adjustment range:24~28/48-53V | ||
| Over-load protection:105~150% shutdown current,automatically resume | ||
| Over-voltage protection:30~36V/54~60V for output shutdown and restart | ||
| Setup,rise,hold up time:800ms,40ms,20ms at full load and 230VAC | ||
| Withstand voltage:I/P-O/P:3KVAC,I/P-FG:1.5KVAC,0/P-FG:0.5KVAC in 1 minute | ||
| Working temperature:-10℃~50℃ | ||
| Connection:I/P:3 poles O/P:Din type screw terminals with 4 poles | ||
| Weight/Packing:1.2KG,12PCS/15.5KG/1.2CURT | ||
