Fully functional, which has combined both the plate and profile processing. This system integrated the most convenient switching function of material and cutter, the design of double slotting cutter and double bending tools can easily deal with stainless steel, galvanized sheet, aluminum plate and aluminum profile and other materials processing. Now the machine is the highest rate of return on investment in the market.

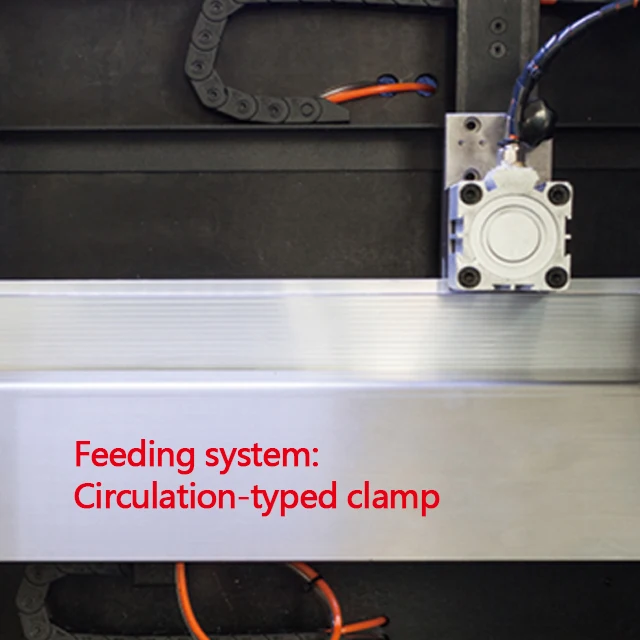

Feeding System
Circulation-typed clamp feeding system

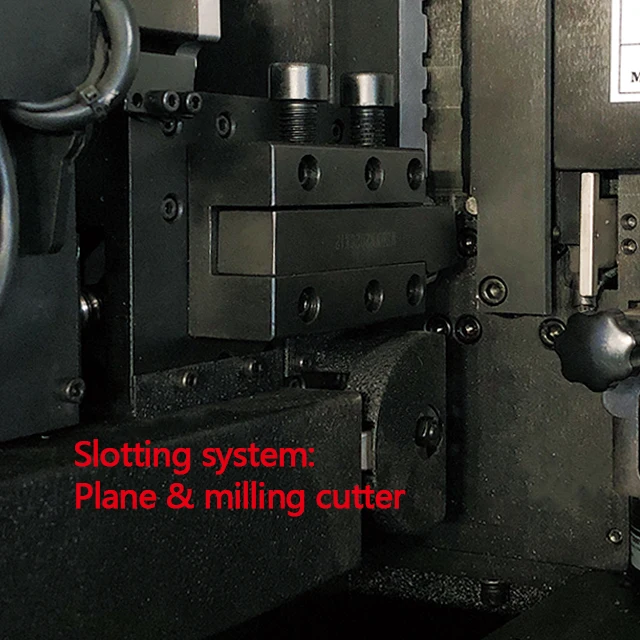

Slotting System
Planer cutter and milling cutter double drive slotted system

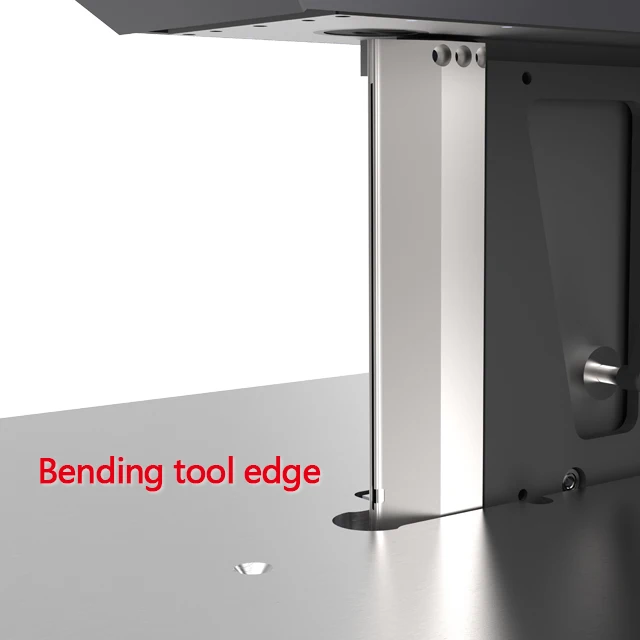

Double knife alternating bending system,according to the change of internal and external arc,automatically switch to bend the bending tool,reverse bending tool automatic income tools library,to avoid the phenomenon of intervention bending tools forming angle,for small arc of the small angle of the molding performance is very good.Under the same platform have the processing ability of profile,plate and profile processing without the need to replace the hardware.
Main Features
Double cutter double drive slotting system,Planer cutter and milling cutter of combination configuration,The system is based on the processing of different materials to drive the slotting tool,no manual intervention tool switching procedure.
Main Features

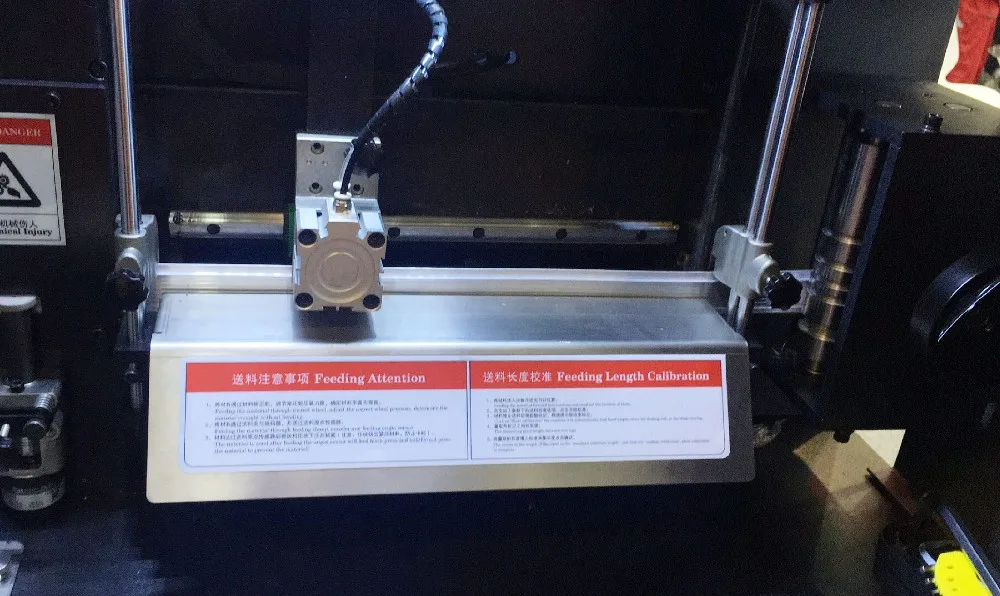

Circulation-typed feeding system,Rapid and sensitive, continuous response.The pressure can be adjusted according to the change of material, which can avoid the occurrence of indentation and sliding material.The setting of the double feeding support avoids the change of feeding track, and ensures the smooth input of the material.It can quarantee materials stably feeding and can save 40cm materials avoid wasting.
Main Features
1.For the same graphics processing the consistency achieved to 99% For the batch words producing even more advantages.
2.Min. bending angle achieve R6.
3.Perfectly match with laser welding machine.
4.High degree of Forming ,It can match with the panel which produced by all kinds of cutting equipment and the matching degree is more than 90%.

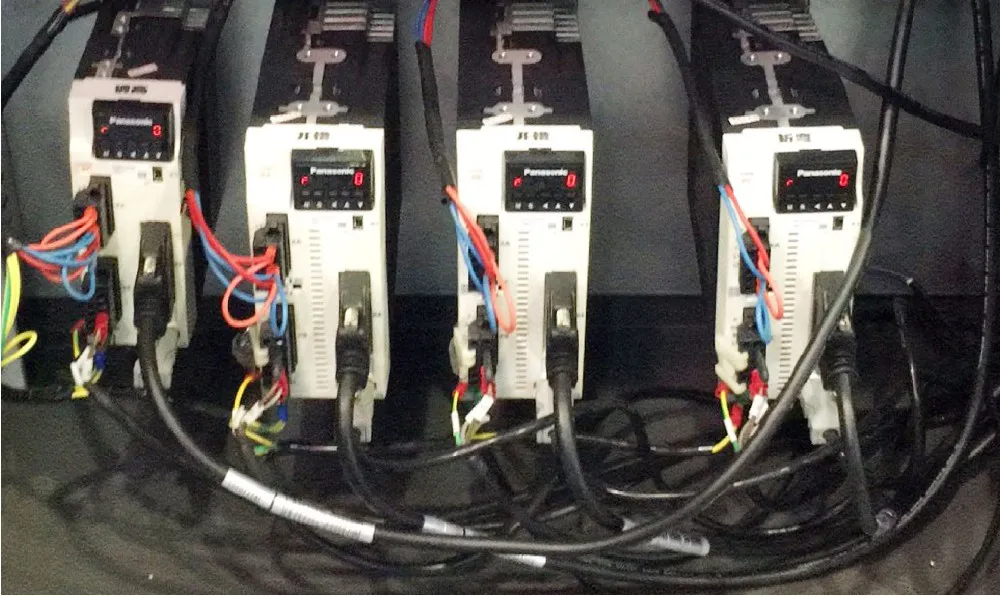

5. AT2 have full servo that 4 pcs Panasonic Servo.
6. AT2 have Lift feeding cabinet
Main Features
board card,U-KEY,data expansion line, USB flash disk ,warranty card，bending tool adjusting picture ,mouse pad,2 Power lines, 1VGA line,hexagon wrench, hardware tool, Insurance,mini cutter
* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
2670 (L) * 950 (W) * 1730 (D)
Weight
0.5 T
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Requirements
Computer
To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration requirements: XP system or window7 32-bit system, and requires a PCI card slot to install the control card.
File Format
The software of bending machine is self-developed. Import file format supports .dxf.Plt We recommend using Coredraw or adobe illustrator tocomplete the file after the export file to.Dxf.Plt format. Then open the operating software, select the document.
Pump
The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.
