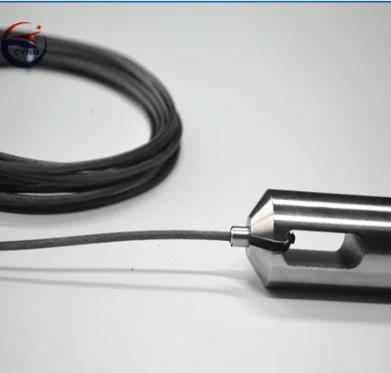

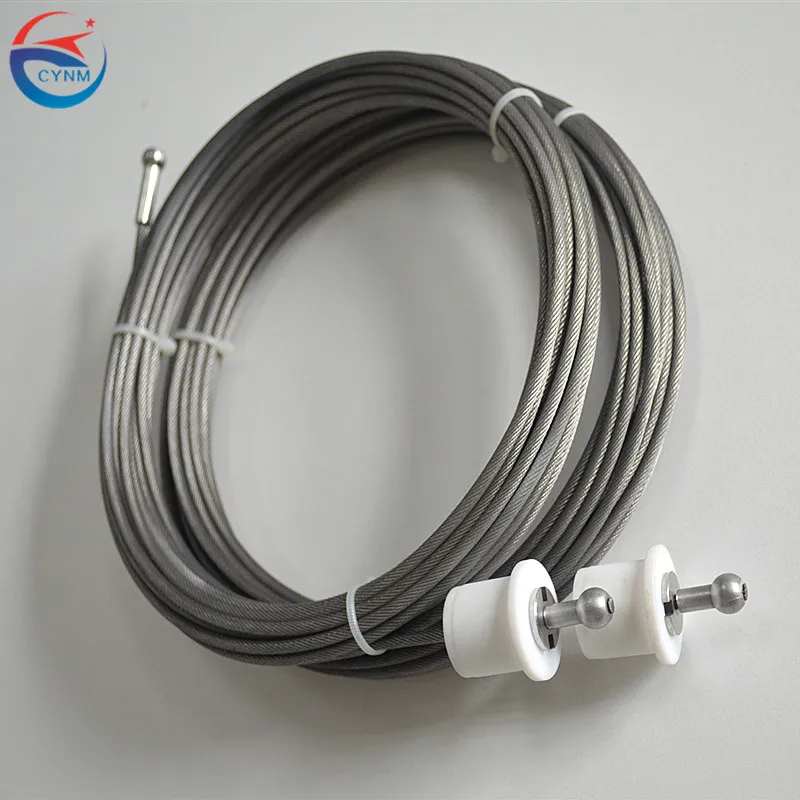

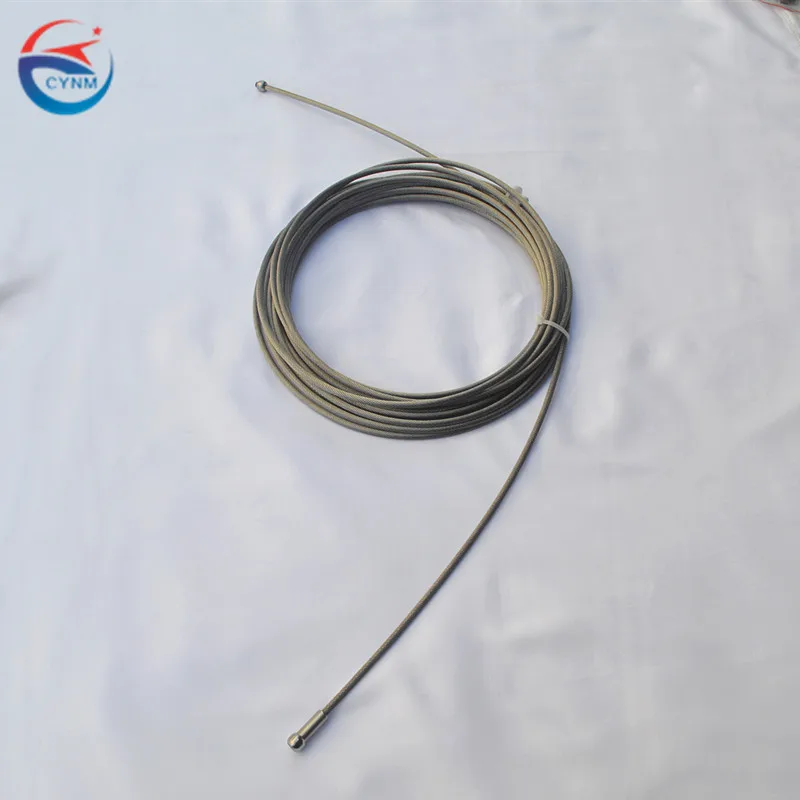

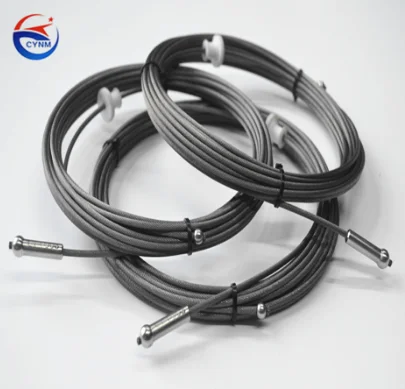

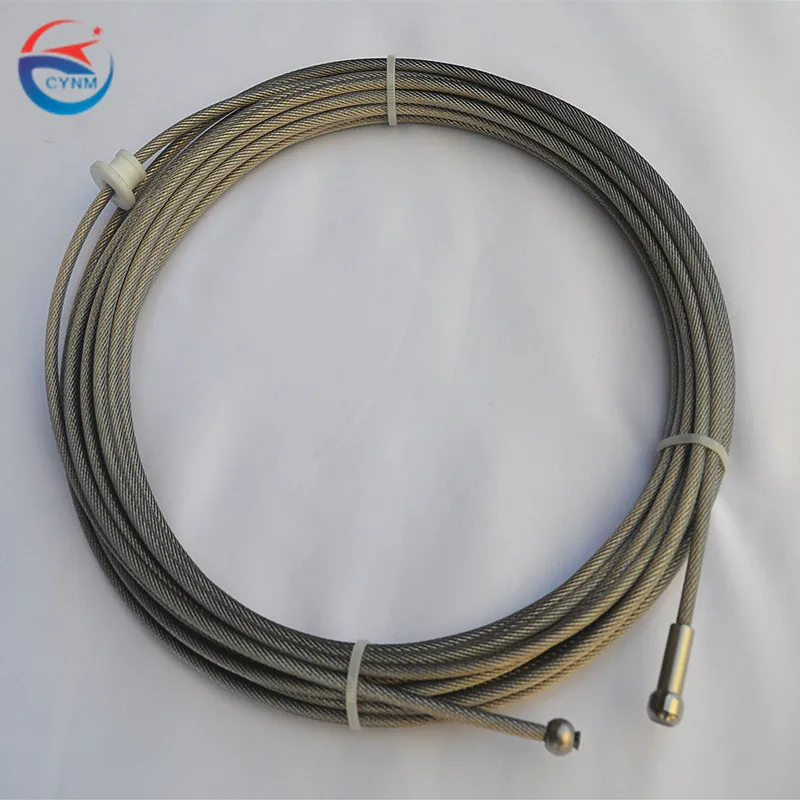

long life high quality Tungsten wire rope tungsten cable
- Category: >>>
- Supplier: Baoji Chengyi Non-Ferrous Metals Co. Ltd.
Share on (62344315806):
Product Overview
Description
Product Description
Tungsten seed cable
Specifications: 2.5mm,φ3mm,φ3.5mm,φ4mm,φ4.5mm,φ5mm
Product structure : 19*7
Characteristic: High temperature resistance, wear resistance
Tungsten wrie rope plays and important role in the CZ system of Single Crystal puller. Tungsten wire-Molybdenum hammer-Seed chuck-see rod-Silicon rod is a whole set of the hot zone system.
The requirments for the weight bearing range of tungsten rope as follows:
Wire diameter(mm) | Cutting off force at Normal temperature(N) | Hihg temperature experience value(N) | Safety coefficient 1.15 | Hig temperature normal use bearing（N） |
φ3.0 | 8243.4 | 2473 | 2843.9 | ≤2470 |
φ3.5 | 11352.1 | 3405.6 | 3916 | ≤3400 |
φ4.0 | 14160.0 | 4248.0 | 4885.2 | ≤4300 |
φ4.5 | 17000.0 | 5100.0 | 5865.0 | ≤5100 |
φ5.0 | 21500.0 | 6450.0 | 7417.5 | ≤6450 |

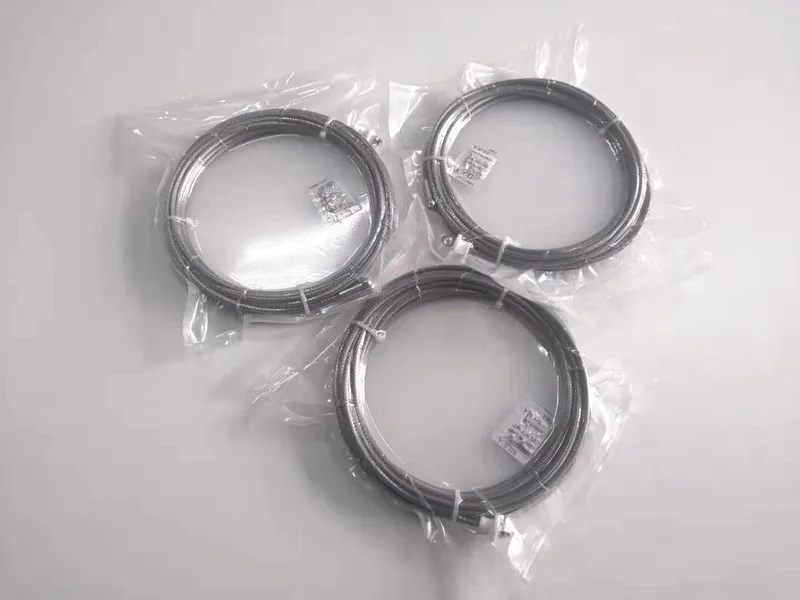

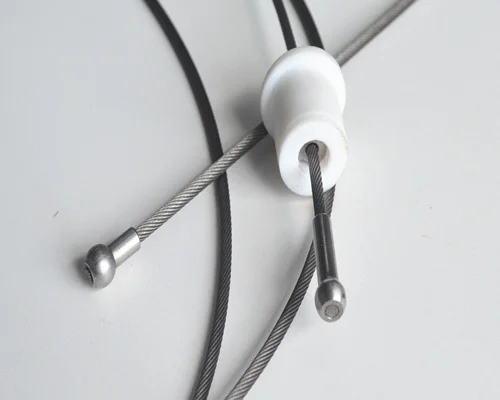

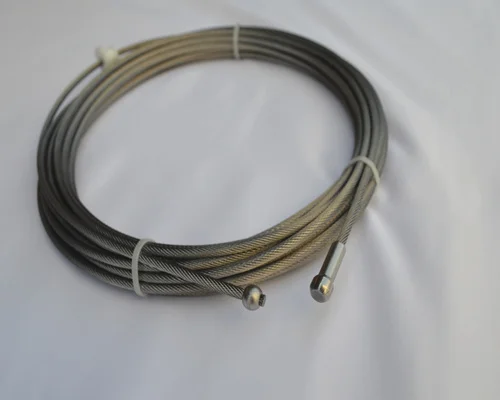

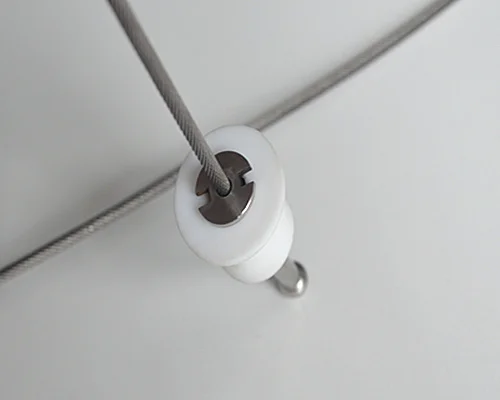

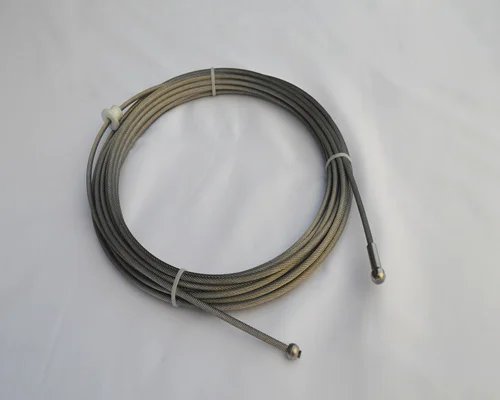

Products Show
Packing & Delivery

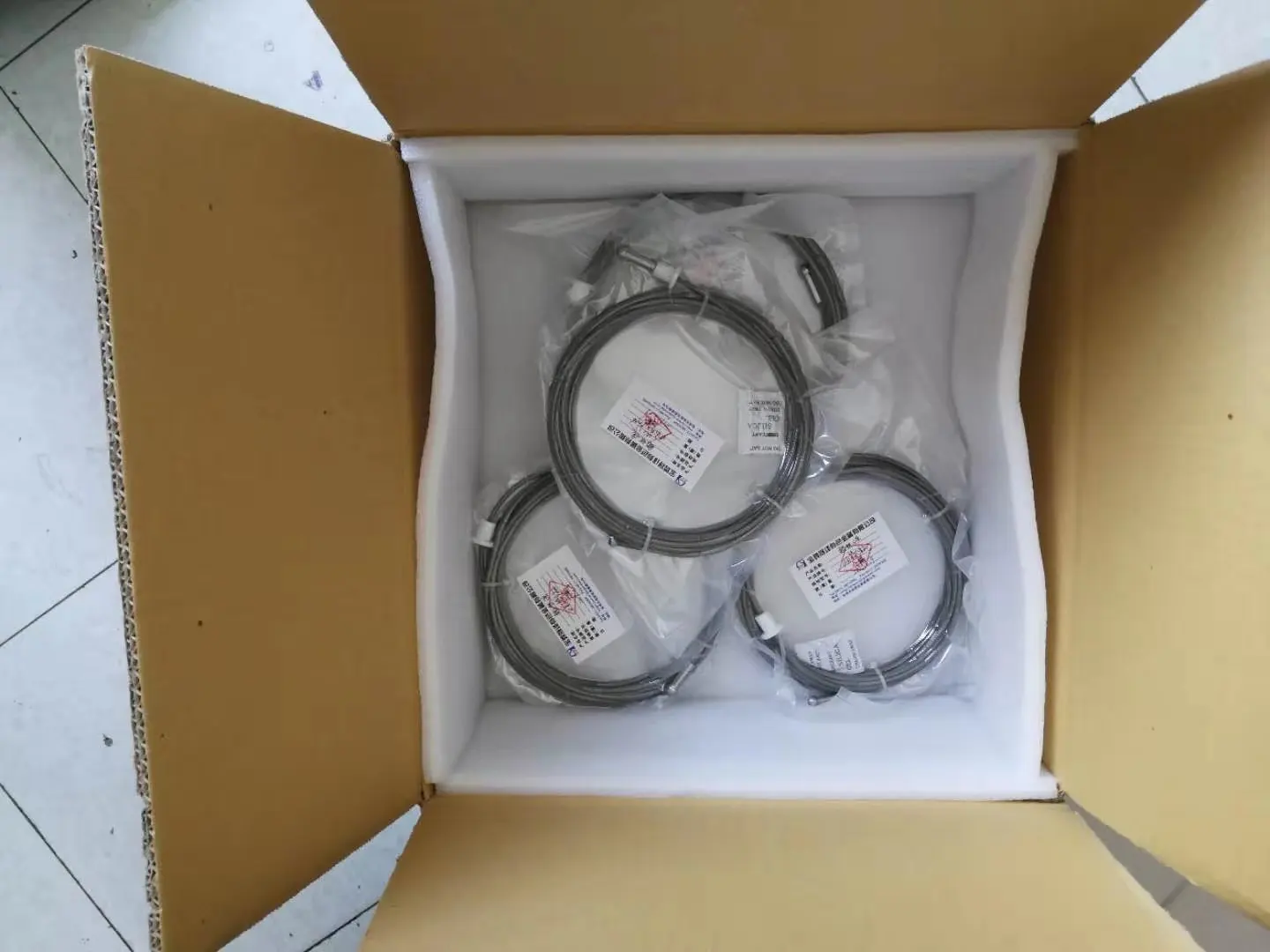

Packing Details : Soft foam protected, then put in wooden case well packed
Freight time: 4~7days
