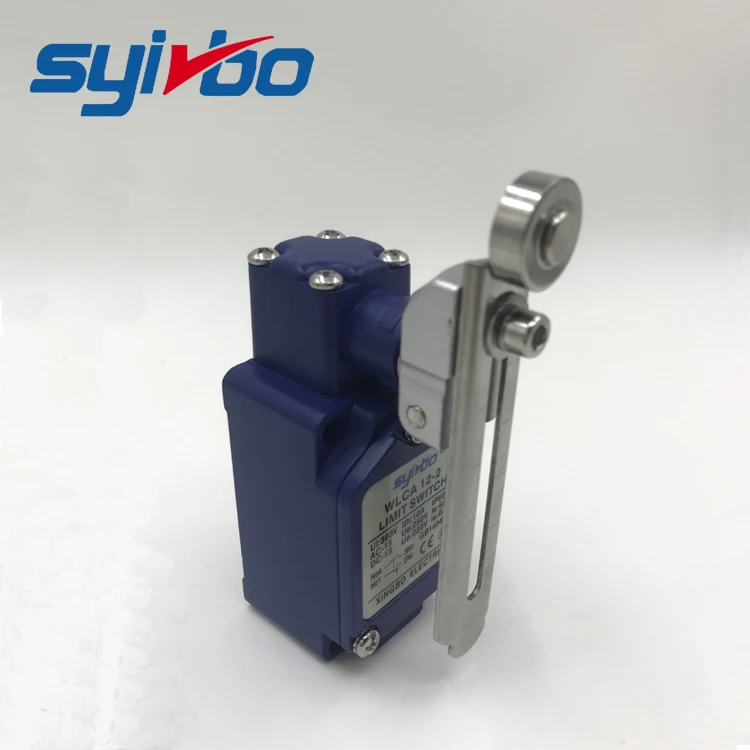

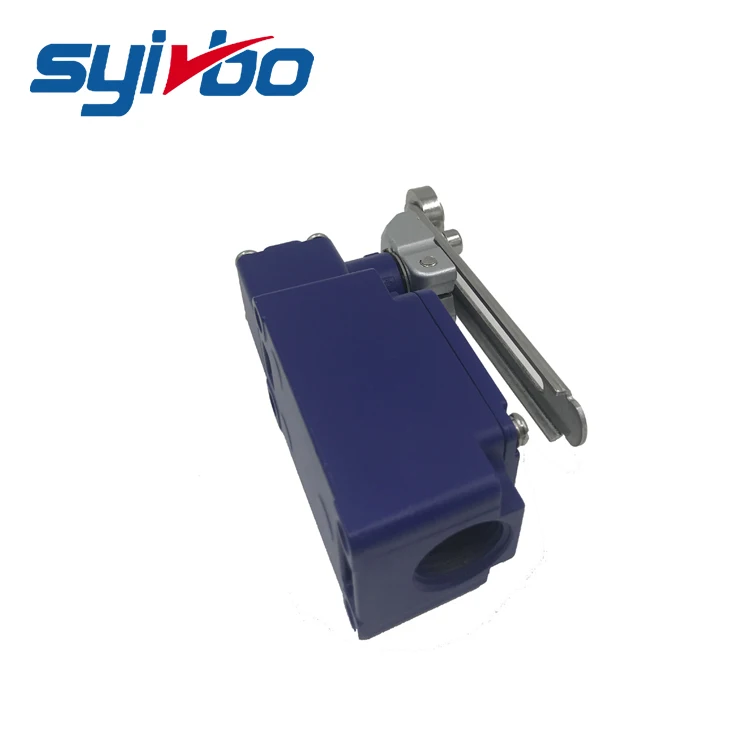

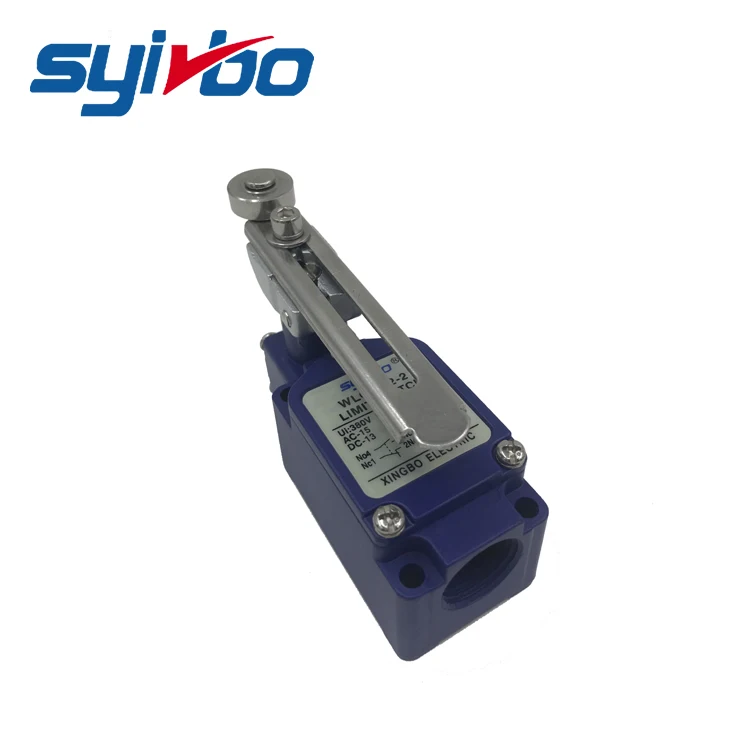

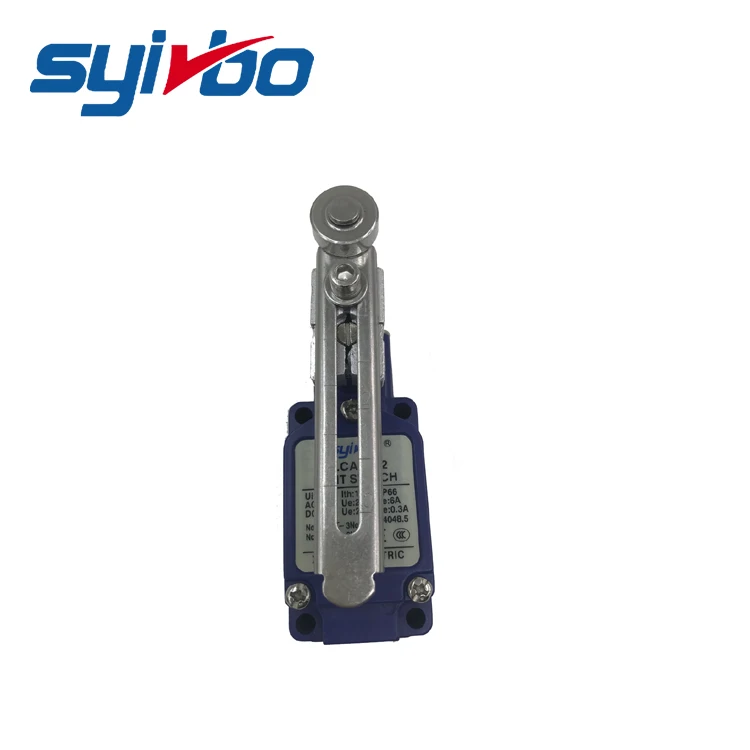

Surface anodized Corrosion Resistant Double circuit adjustable roller action snap limitswitch

Rated voltage

Non-inductive Load(A)

Inductive Load(A)

Resistance Load

Lamp Load

Inductive Load

Motor Load

NC

NO

NC

NO

NC

NO

NC

NO

125VAC

10

3

10

5

2.0

250VAC

5

2

5

3

1.0

480VAC

3

1.5

3

1.5

0.8

600VAC

1

1

1

1

0.5

8VDC

10

6

10

6

14VDC

10

6

10

6

30VDC

6

4

6

4

125VDC

0.8

0.2

0.8

0.2

250VDC

0.4

0.1

0.4

0.1

Operation speed

1mm-2m/s

Operating frequency

Mechanical: 120 operations/minute Electrical: 30 operations/minute

Contact resistance

15MΩ Max. (initial value)

Insulation resistance

100MΩ min. (at 500VDC)

Dielectric strength

1000VAC, 50/60Hz for 1 minute between terminals of the same polarity

1500VAC. 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts

1500VAC, 50/60Hz for 1 minute between each terminal and ground

Vibration

10-55Hz, 1.5mm double amplitude

Shock

Mechanical durable: 1,000m/ Sec² (about 100G’ S)

Malfunction: 300m/ Sec² (about 30G’ S)

Ambient temperature

-10℃- 80 ℃ (with no icing)

Humidity

95% RH

Life

Mechanical: 15,000,000 operations above (under rated OT)

Electrical: 500,000 operations above

Weight

Approx. 275g (WLCA2-2)

Protection

IEC specification: IP66

Models

WLCA32-41

WLD

WLNJ-2

WLNJ-30

WLD1

WLD3

OF(Max.)

1200g

2720g

120g

80g

2720g

2720g

RF(Min.)

-

910g

-

-

910g

910g

PT(Max.)

55°

1.7mm

28mm

28mm

1.7mm

1.7mm

OT(Min.)

35°

6.4mm

-

-

5.6mm

5.6mm

MD(Max.)

-

1mm

-

-

1mm

1mm

TF(Max.)

-

-

-

-

2720g

TT(Min.)

OP:90±10°

OP:34±2.8MM

-

-

6.5±0.8mm

9±0.8mm

Models

WLCA2-2

WLD2

WLNJ

WLNJ-S2

WLCA12-2

WLCL

OF(Max.)

1360g

2720g

150g

29g

1360g

142g

RF(Min.)

227g

910g

-

-

227g

28g

PT(Max.)

20°

1.7mm

28mm

28mm

20°

20°

OT(Min.)

30°

5.6mm

-

-

30°

30°

MD(Max.)

12°

1mm

-

-

12°

12°

TF(Max.)

2720g

-

-

-

200g

200g

TT(Min.)

50°

6.5±0.8mm

-

-

50°

50°
