4.7 Inch 320x240 Lcd Module 8 Bit Parallel Greyscale Lcd Module 320240 Stn Blue Monochrome Display 16x2
4.7 Inch 320x240 Lcd Module 8 Bit Parallel Greyscale Lcd Module 320240 Stn Blue Monochrome Display 16x2
4.7 Inch 320x240 Lcd Module 8 Bit Parallel Greyscale Lcd Module 320240 Stn Blue Monochrome Display 16x2
4.7 Inch 320x240 Lcd Module 8 Bit Parallel Greyscale Lcd Module 320240 Stn Blue Monochrome Display 16x2
4.7 Inch 320x240 Lcd Module 8 Bit Parallel Greyscale Lcd Module 320240 Stn Blue Monochrome Display 16x2
4.7 Inch 320x240 Lcd Module 8 Bit Parallel Greyscale Lcd Module 320240 Stn Blue Monochrome Display 16x2

4.7 Inch 320x240 Lcd Module 8 Bit Parallel Greyscale Lcd Module 320240 Stn Blue Monochrome Display 16x2

Share on (62344538527):


Price:US$ 31.40 - US$ 37.30

Quantity:


Product Overview

Description



Product Description






Resolution
320X240 dots

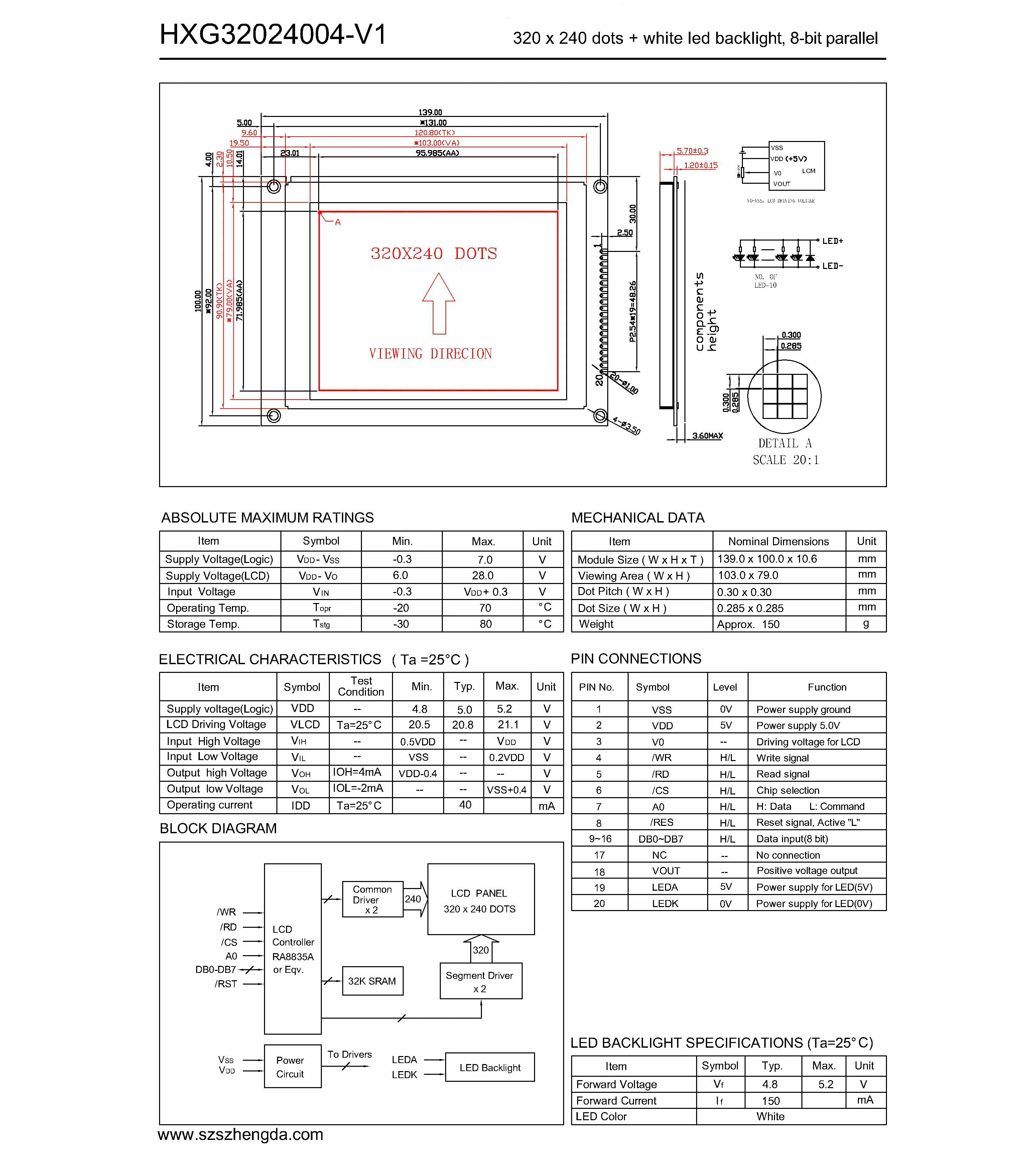

Model No.
HXG32024004-V1

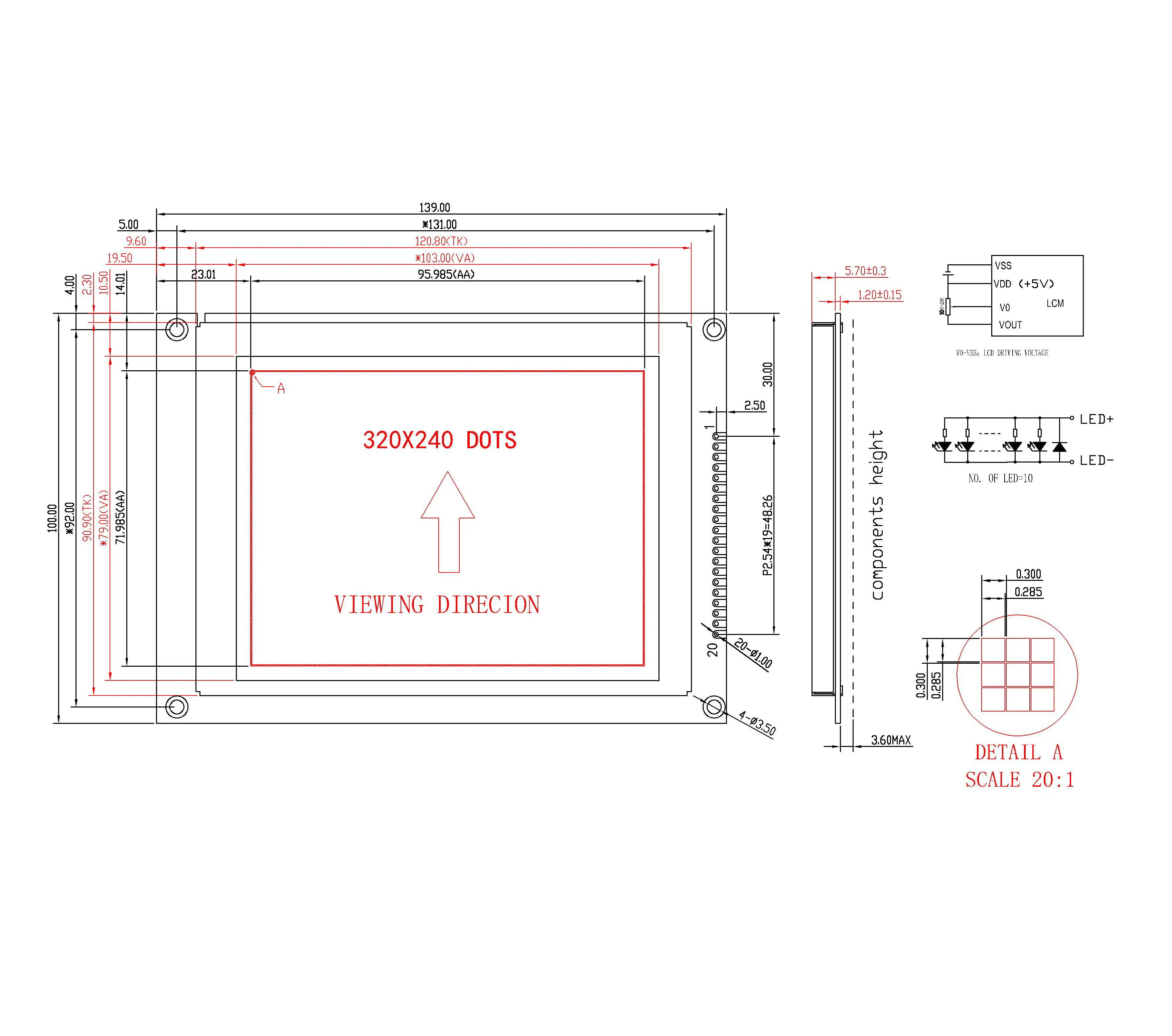

Outline Dimension
139.0X100.0X10.6mm
Viewing Area
103.0X79.0mm
Dot Size
0.285X0.285mm
Dot Pitch
0.30X0.30mm
Display Mode
STN blue, FSTN white, FSTN back
Viewing Direction
6:00
Interface Type

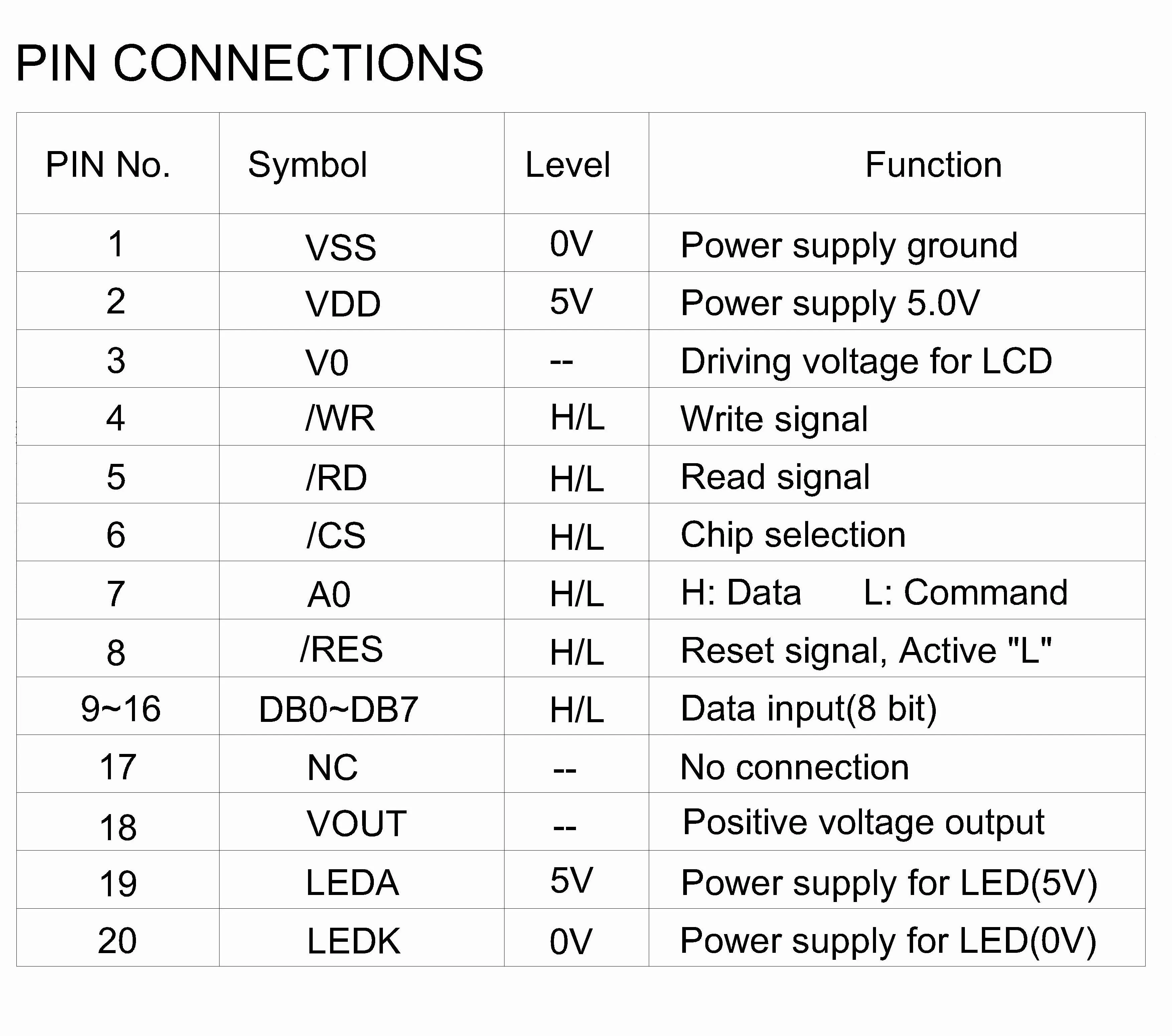

8 bit paralllel, 20Pin DIP type
Controller
RA8835A or EQV.
Power supply VDD
5.0V
Backlight
LED white
Weight
150g


Details Images








Product packaging




Related Products




HXG32024001-V1
5.7 inch 320X240 graphic LCD module
HXG32024002-V1
5.7 inch 320X240 4bit parallel LCD module


HXG32024005-V1
HXG32024006-V1


HXG32024007-V1
HXG32024008-V1


HXG32024003-V1
5.7 inch 320X240 4 bit parallel FSTN LCD module


Production Process


LCD panel process line


LCD panel process line


LCD module process line


QC experiments


QC experiments
