brand new hydraulic miniature excavator loader, backhoe loader

Share on (62344586704):


Price:

Quantity:


Product Overview

Description

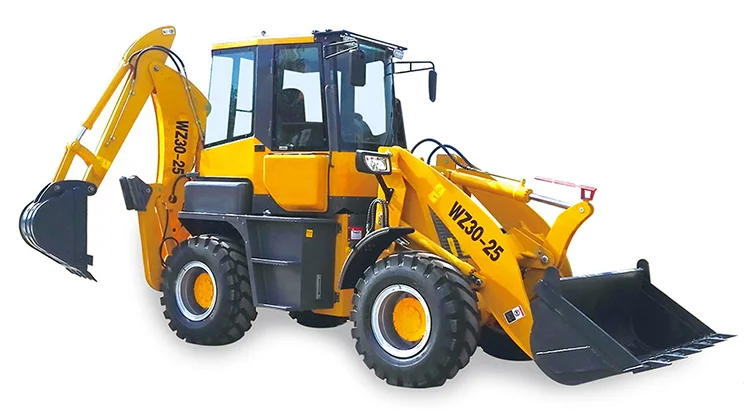

brand new hydraulic miniature excavator loader, backhoe loaderww.png

Product Description

1.Good cost performance: Adopting full hydraulic transmission, it can bring the  power of engine into full play amply. Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission. It enables the loader working efficiency and easy maintenance

2.High productient to work in confined places.

4.Safe and reliable: Single-line air-assisted brake system.

5.Going-through capability: The rear axle can swing around the center hanger frame, improved the going-through capability of the whole machine.

6.Operation comfort: Continuously variable transmission, full hydraulic steering system steady and reliablevity: Perfectly designed to enable the machine have super lifting force and automatic leveling at high position.3,Good capability in climbing the slope:

4-wheel driven, strong driving power.

3.Operation flexible: Center-point frame articulated and small turning radius makes it conveni






Technical parameters



SPECIFICATIONS FOR WZ45-16 BACKHOE LOADER

 Engine

Standard/Option

XiChai 4DW91, Xinchai A498BT1

(Euro III Emission)

 Power

Kw/rpm

37/2300, 36.8/2400

 Operating Weight

kg

5200

 Rated Loading

kg

1600

 Loading Bucket Capacity

0.6

 Backhoe Bucket Capacity

0.2

 Min. Turning Radius

mm

4800

 Max. Speed

Km/h

30

 Min. Ground Clerance

mm

270

 Max. Climbing Ability

°

25

 Max. Raise Height

mm

3700

 Max. Dumping Height

mm

2700

 Min. Dumping Distance

mm

1000

 Max. Digging Depth

mm

3400

 Max.Digging Height

mm

4600

 Type of tyre



20.5/70-16

Detailed images
