The gear cutting machine is equipped with a knife rest fast-moving device and automatically stopping device when finishing cutting, so the machine is not only widely used in gear cutting, and easy to operate, also could be multi-machine management.

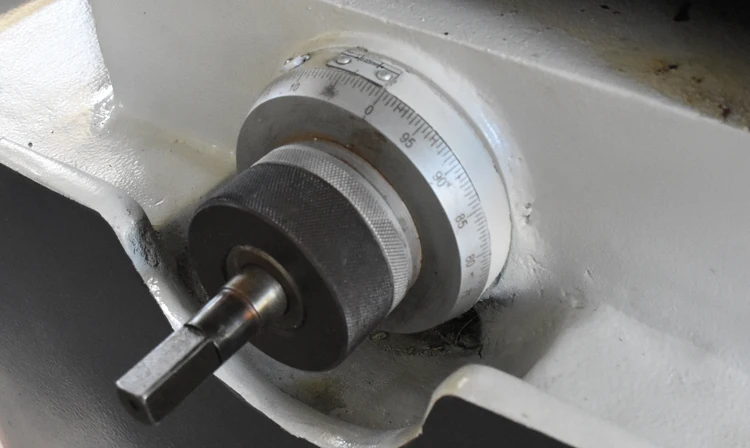

Details Display
Main technical parameters
Y3150-3
Max working module
steel (mm)
5
Cast iron(mm)
6
Max diameter cutting straight Spur gear
with column (mm)
350
without column (mm)
500
Max diameter cutting Cylindrical helical gear
Rotation angle 30°
370mm
Rotation angle45°
250mm
Max vertical travel of hob (mm)
260
Max length of cutting (mm)
240
Distance from hob spindle to worktable surface (mm)
Max(mm)
320
Min(it is 30 mm when the distance from hob spindle to worktable surface less than 85mm) mm
25
Minimum distance from worktable surface to hob spindle axis (mm)
170
The changeable Diameter of hob spindle(mm)
22 27 32
Max diameter of hob (mm)
120
Diameter of workingtable hole (mm)
60
Diameter of worktable mandrel (mm)
30
Speed of Hob main spindle
Grade
8
Range (r/min)
50-275
The vertical feed of hob
0.24-4.25 mm/r
Main motor power
3 kw
Main motor speed
1430 r/min
Pump motor power
0.125 kw
Pump motor speed
2790 r/min
Net weight (inclusive all standard accessories)
2600 kg
Size(L*W*H)mm
1825*935*1730
