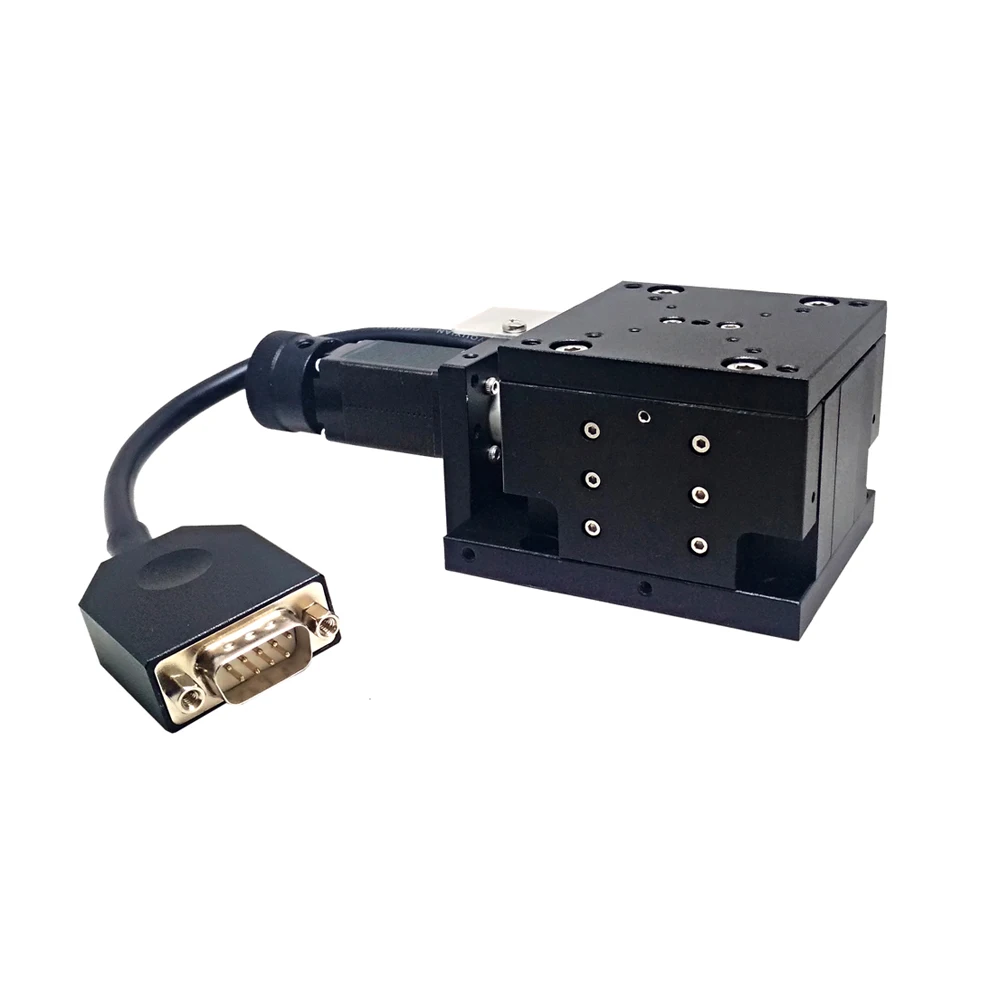

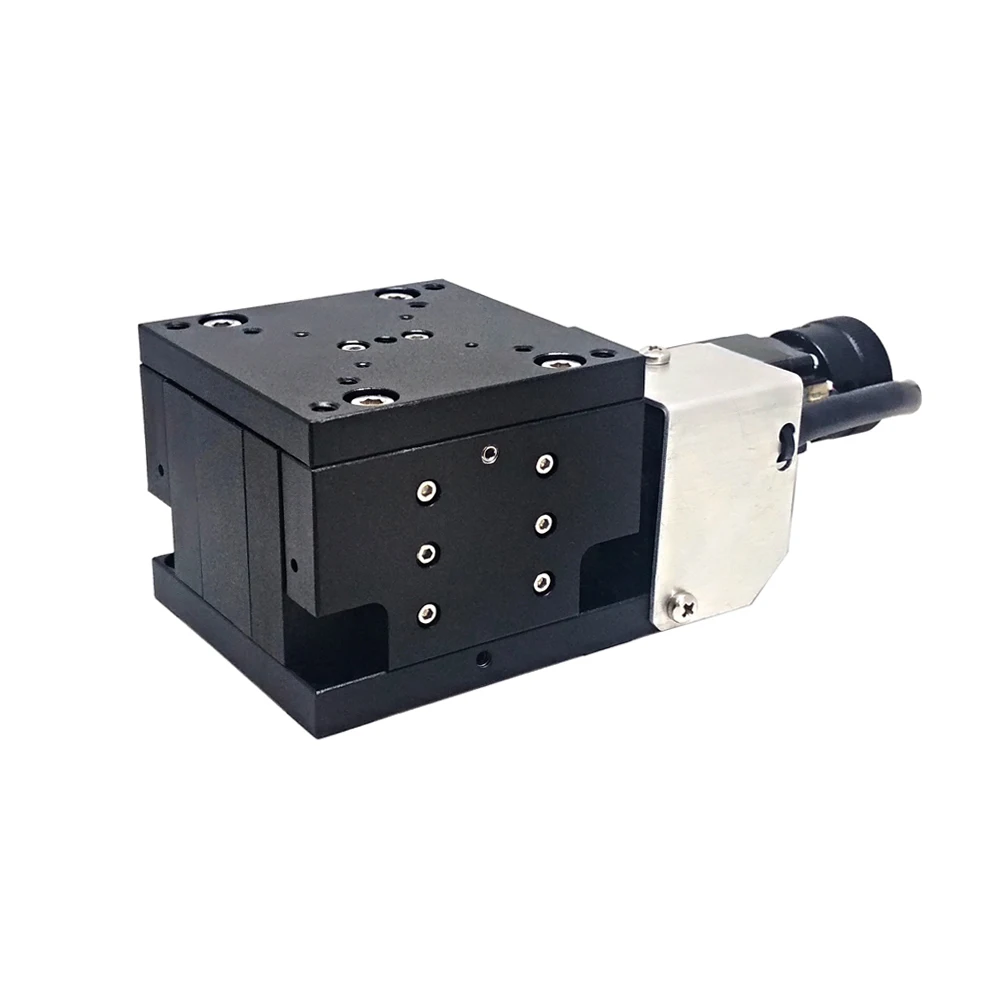

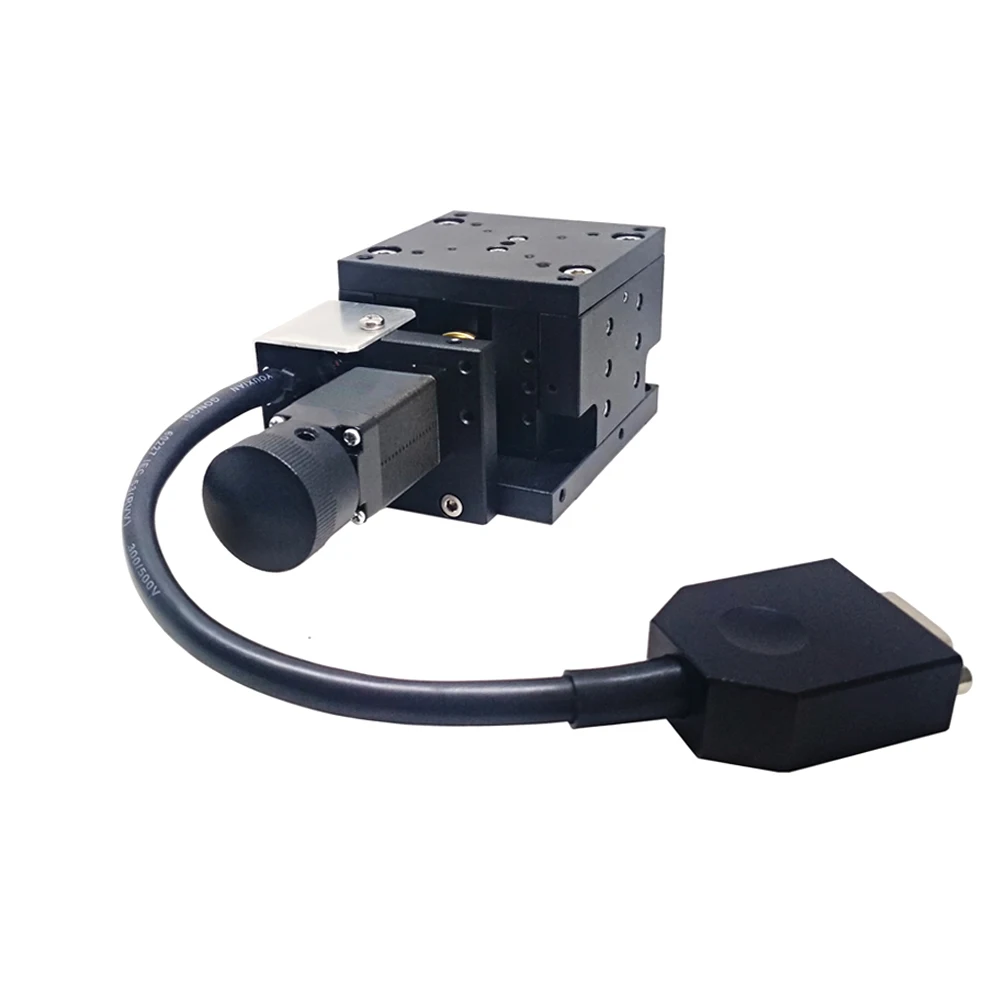

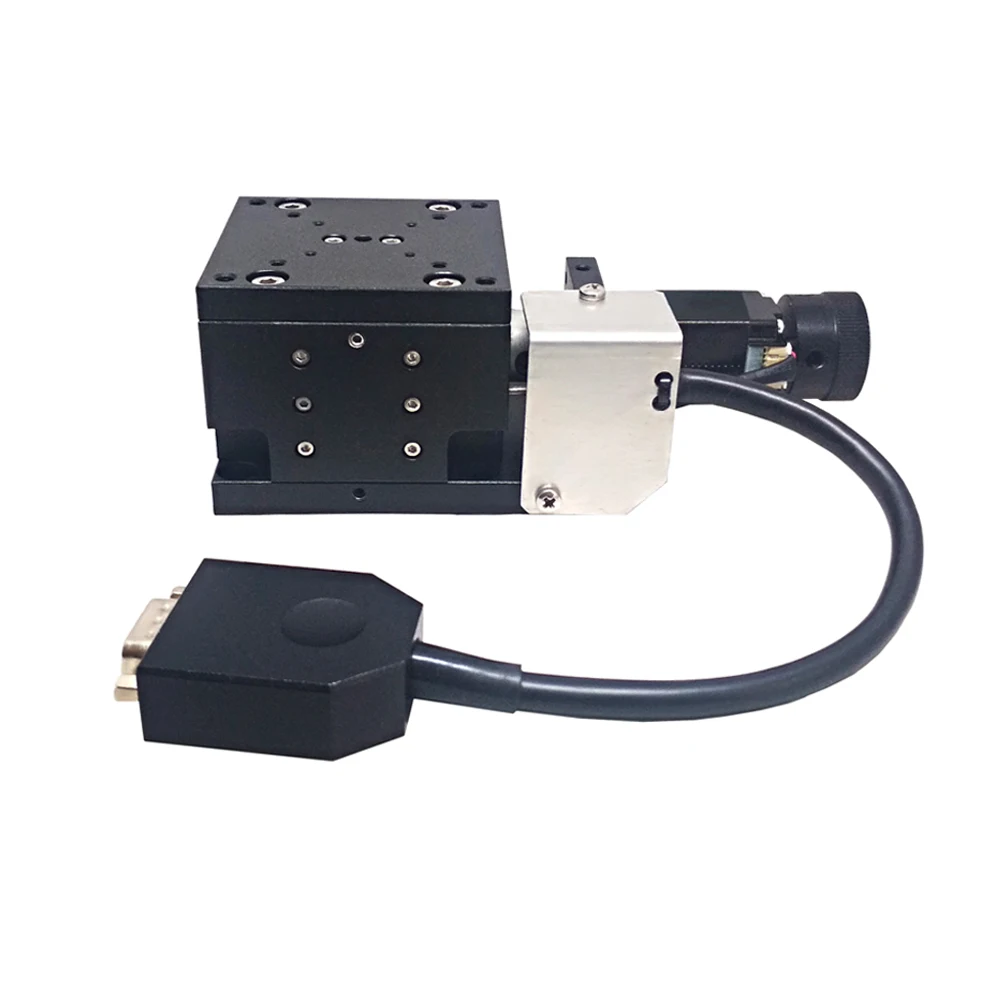

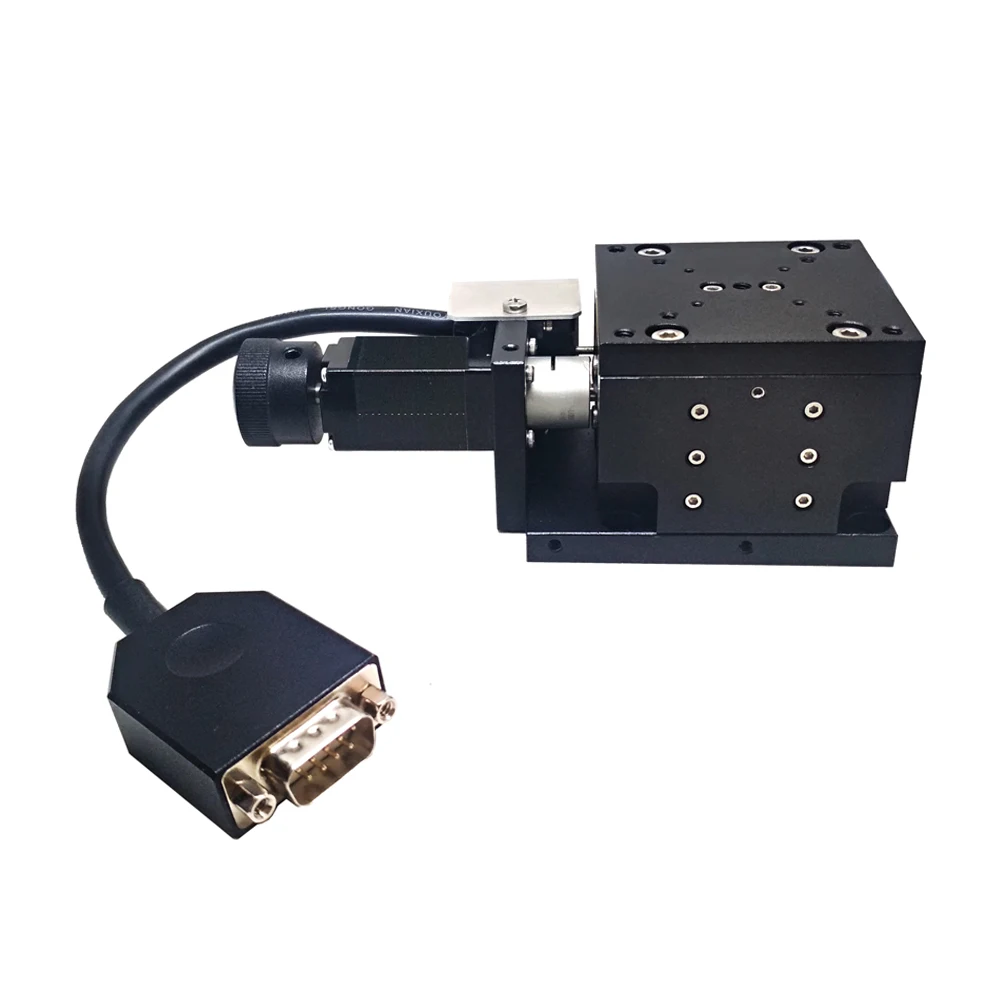

PT GD40 Electric Elevator Motorized Lab Jack

Model

PT-GD40

Platform Size

40×40mm

Lifting stroke

6mm

Transmission mode

1/2 wedge, grinding screw, pitch 1 mm

Guide form

Precision cross roller guide

Main material

High Strength Aviation Aluminum (6061)

Surface treatment of main materials

Black Anodic Oxidation

Instrument weight

0.3Kg

Center load

2.5Kg

Resolution 8 subdivision/step

0.000625mm/0.005mm

Mix speed

5mm/sec

Accuracy of one-way positioning

≤50μm

Repeated positioning accuracy

≤20μm

Gap clearance

≤10μm

Surface runout

≤30μm

Motor type

Double Out Shaft 20 Stepper Motor

Stepping angle of motor

1.8°

Rated working current

1A

supply voltage

24V±10%

Joint

DB9 needle connector

Limit switch

Photoelectric switch
