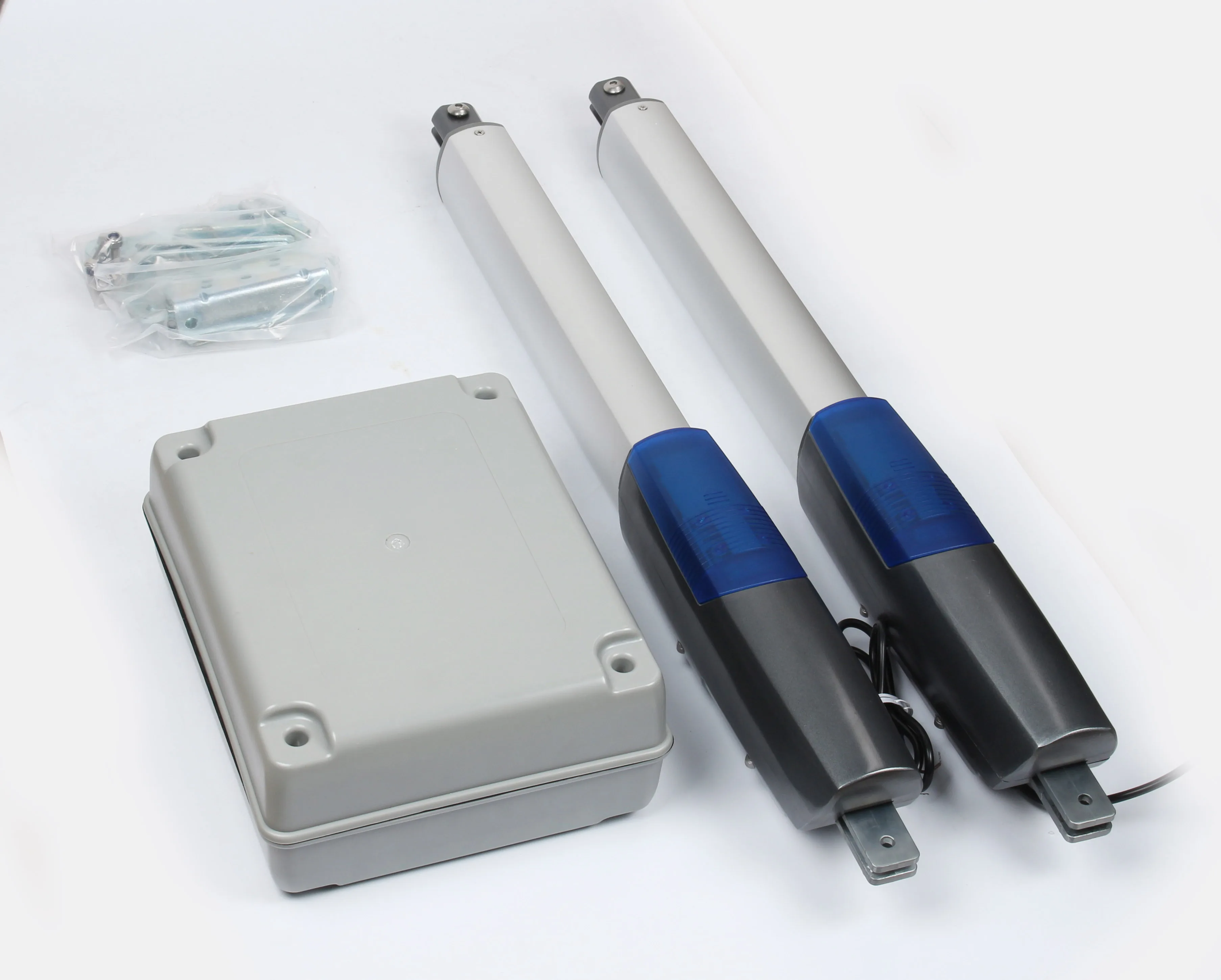

DC 24V With Release Key Automatic Swing Gate Opener Electric Gate Opener
- Category: >>>
- Supplier: Shenzhen Eazylift Technology Co. Ltd.
Share on (62344658759):
Product Overview
Description
DC24V Screw Type With Release Key Electric Automatic Swing Gate Opener
| Type: | Swing gate opener |
| Driving method: | Screw drives piston type |
| Operating Voltage: | DC24V for normal speed |
| Operating Voltage: | DC12V for cushioning speed |
| Max.Output power: | 80W per driver |
| Max.piston stroke: | 30cm |
| Max.piston speed: | 3cm/sec |
| Operating cycle: | 10second per 90(approx) |
| Max. single-leaf weight: | 300kg per wing |
| Max. single-leaf length: | 2.1m |
| DSPS device: | Electronic timing tracker |
| Backup battery: | 12V /(5.2 or 7.0AH) |
| Safety security: | Infrared sensor(optional) |
| Power supply: | AC110V,60Hz/220V,50Hz |
| Remote control: | Frequency 433.92Mhz; rolling code |
| Temperature: | -20°C~80°C |
| Protection Class: | IP54 |
Packaging details
Carton size: 81*52*16.5 CM ; 1 set/carton
neutral packaging
Gross weight: 22kg
