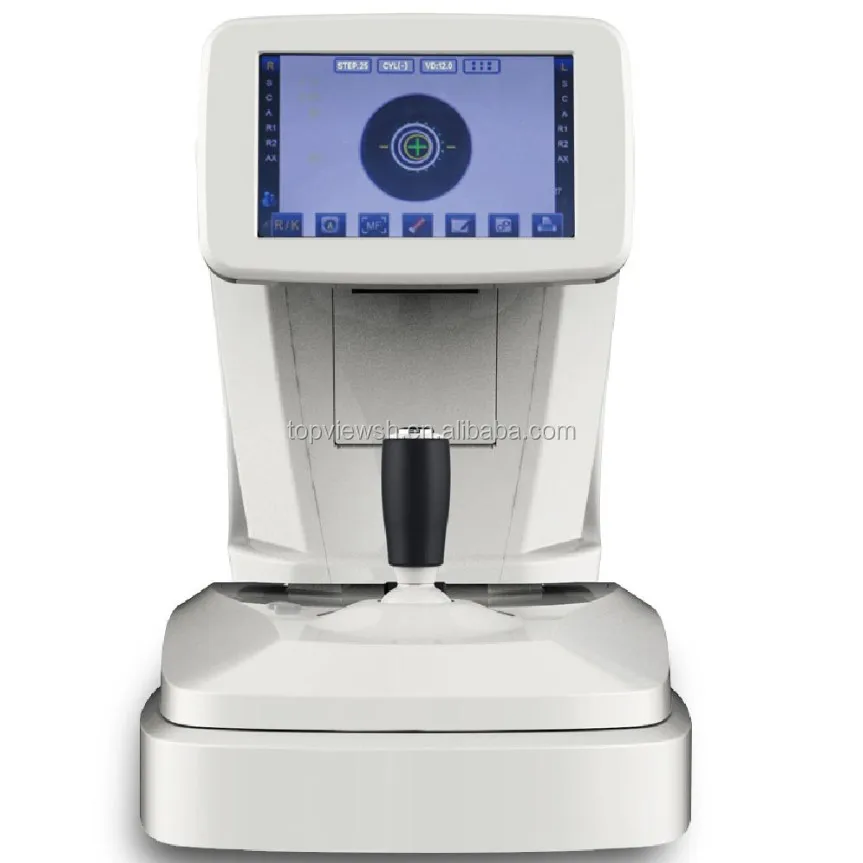

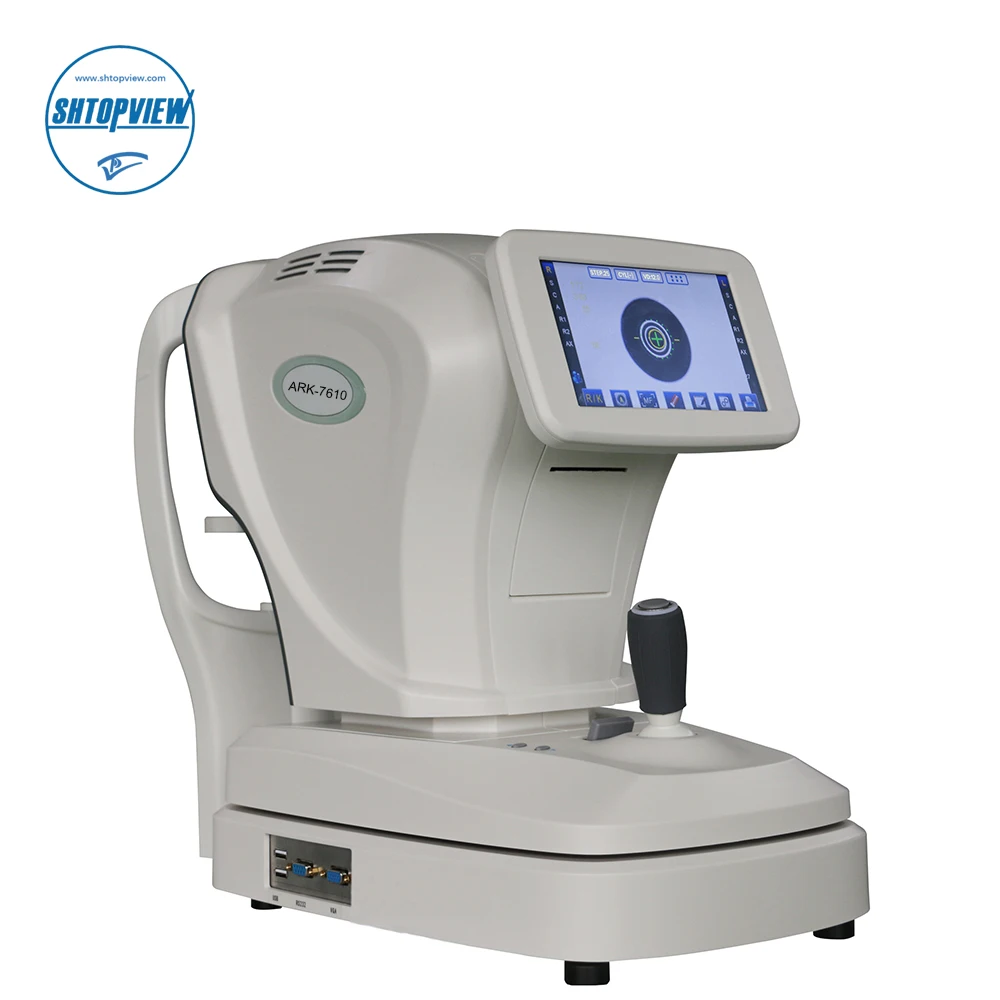

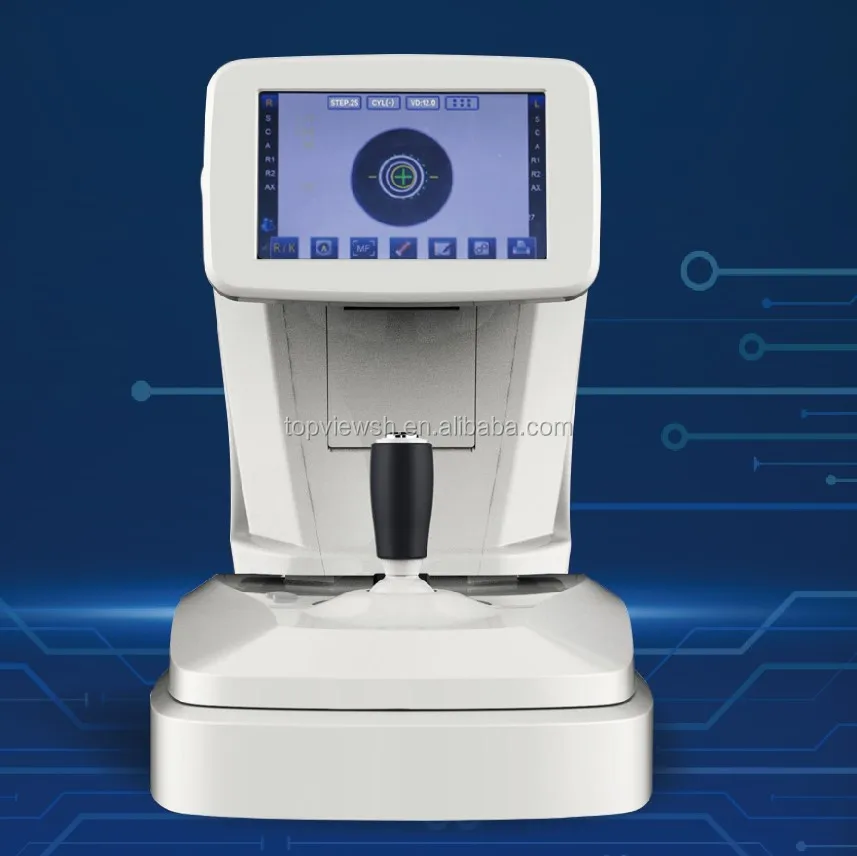

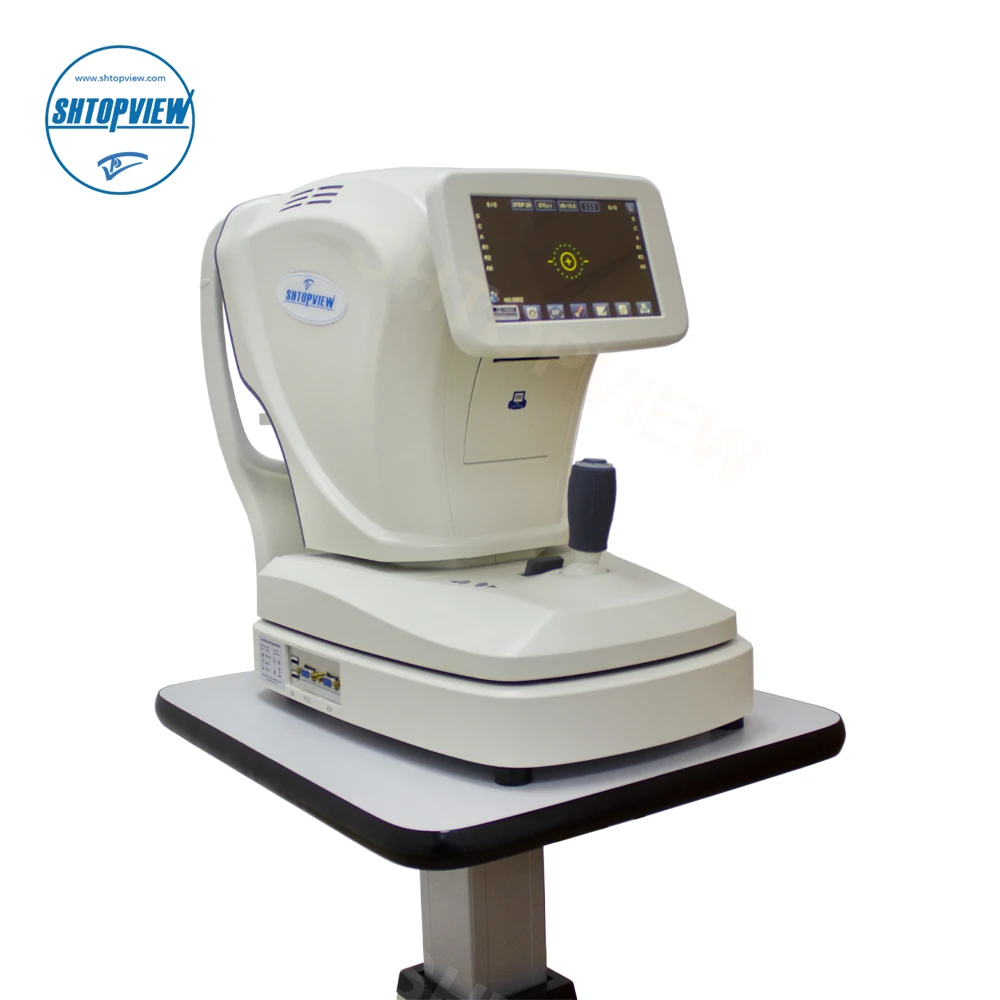

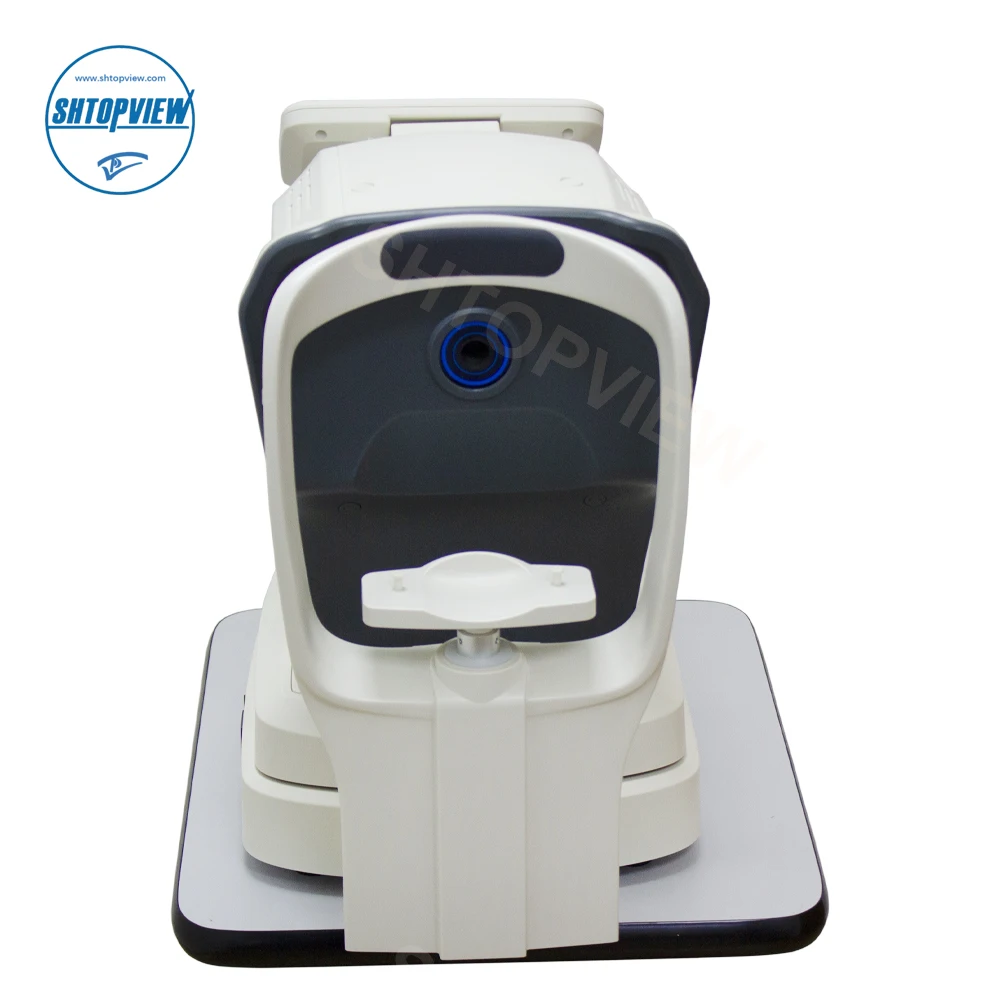

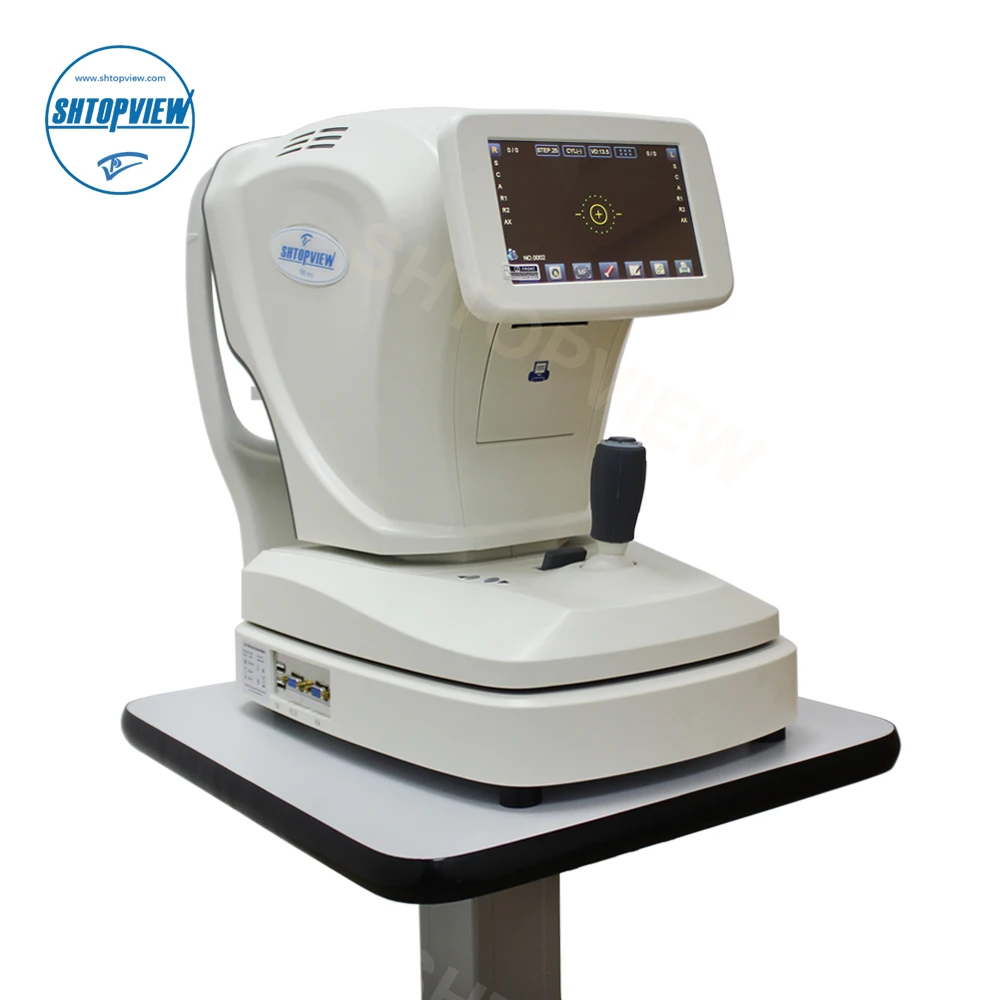

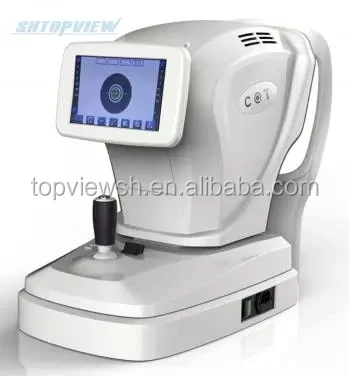

Optical auto refractometer with keratometer ARK 7610 for sale

1.TECHNICAL INDEXES:

New optical system, unique imaging impression
Hartman imaging analyzing and processing technology, accurate measurment result touch screen, can move front and back freely

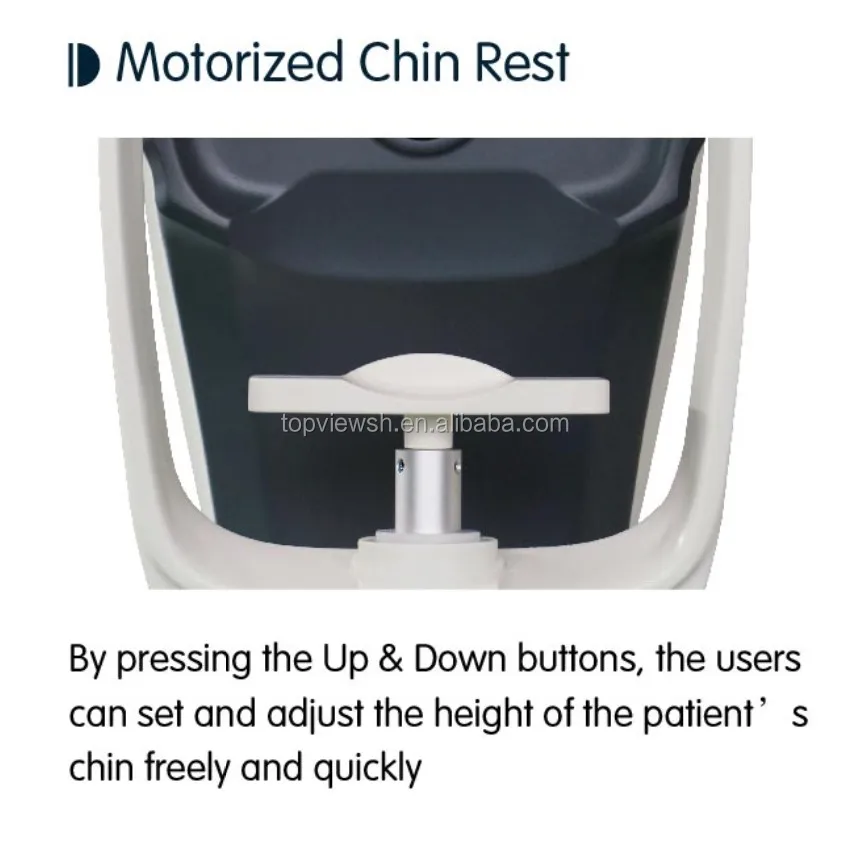

Motorized chinrest
Vertex Distance(VD): 0.0, 12.0, 13.75, 15.0
SPH: -30.000~+25.000 ( VD= 12mm, 0.01 , 0.06, 0.12, 0.25 Unit)
CYL: 0.000~ ± 10.000 (0 06, 0.12, 0.25 Unit )
Axis(AX): 1 . ~ 180 . ( 1 . Unit )
Cylinder Form  : , +,  ±
Puiple Distαnce(PD): 10~86mm
Minimum Pupil Diameter: 2.0mm
Pupil Diameter: 2.00-8.00mm
Measuring Light Ene ( gy: <30L) w ( Insure measuring safety )
Radius of Curvature: 5.0~10.0mm ( 0 01 mm Unit )
Corneal Power: 33.000~67.000
( In case that the corneal equivalent refractive powe ( is 1.3375 )
Corneal As↑igmatism: 0.000~ 15.000 ( 0.060/0 120/0 250 Unit )

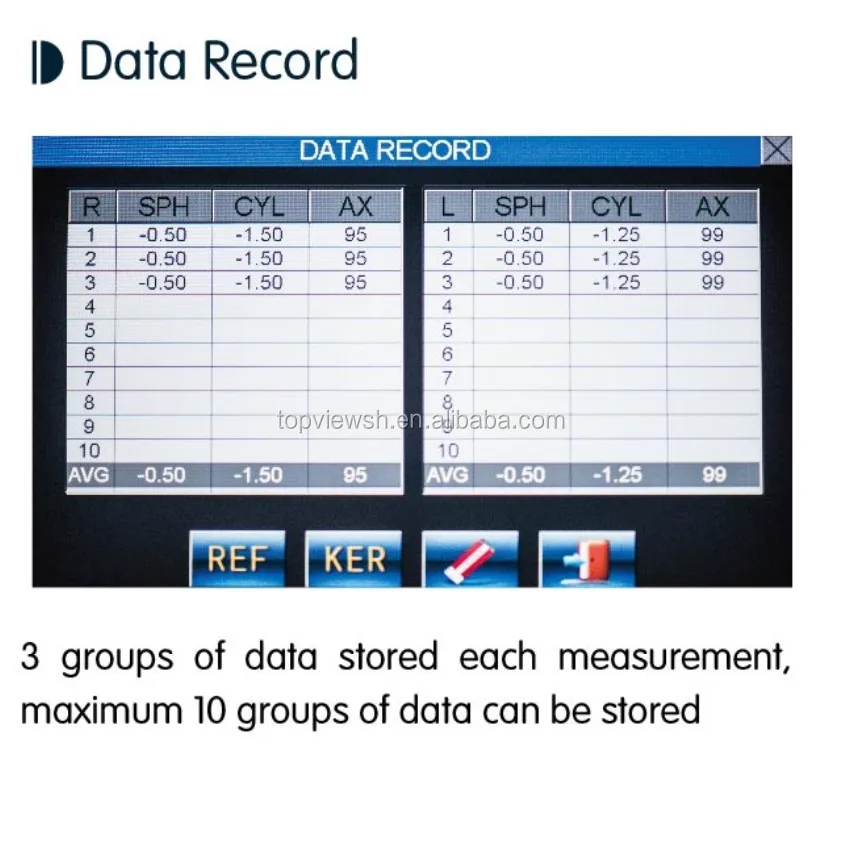

Dαta Storing: Each 10 measured values of left eyes and right eyes
Axis: 1 . ~ 180 .
Chart: Auto fog
Monitor: SHARP 7" TFT LCO touch screen (Angle of view adjustable)
Built-in Printer: 57mm thermal printer, auto paper-cutting
Electrical Powe : AC 100~250V, 50/6οHz
NW: 22kg
GW: 26.5kg
Dimensions(packing): (L)680mm X (W)400mm×(H)640mm

2. Other Performance Parameters

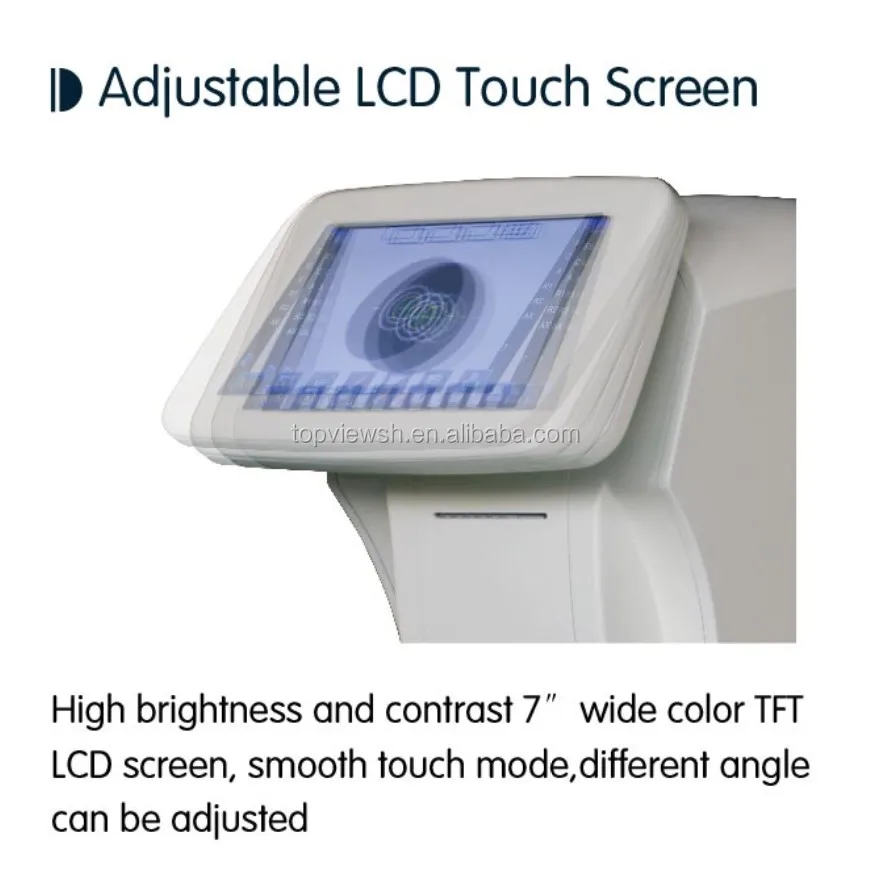

2.1 7″TFT touch screen (angle adjustable)
2.2 Printer: 57mm thermal printer, auto paper cutting
2.3 Measuring Light Energy

2.4 Measuring Time: <0.5s
2.5 Minimum 2.0mm pupil can be measured.

The application of cloud and mist chart technology allows the patients’ eyes to look at the internal targets in a natural and comfortable situation and make the measurement more accurate
2.6 Auto tracking, auto focusing and auto measuring of end of measurement (partial model)
2.7 Electrical Power: AC100 ~ 250V, 50/60Hz

3.FUNCTIONS OFTHE MAJOR COMPONENTS

LCD Screen: Monitor for measurement display

Height Adjustment Mark: The eyes’ height position of the patients

Printer Cover: Press the coverto openor close Measure Button: Performing the measurement by pressing after focusing

Joystick: Adjust the focus by moving it left / right, up / down, forward / backward Stage Fixing Lever: Lock thesliding body

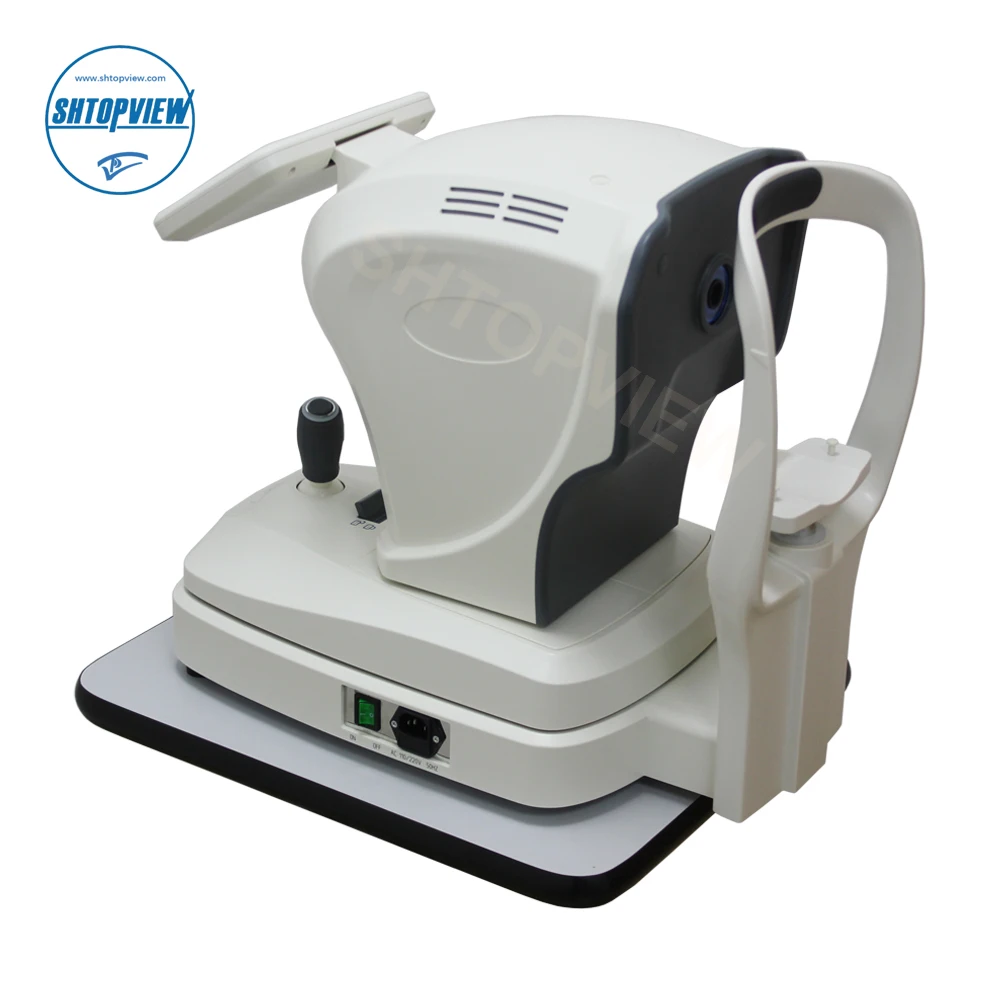

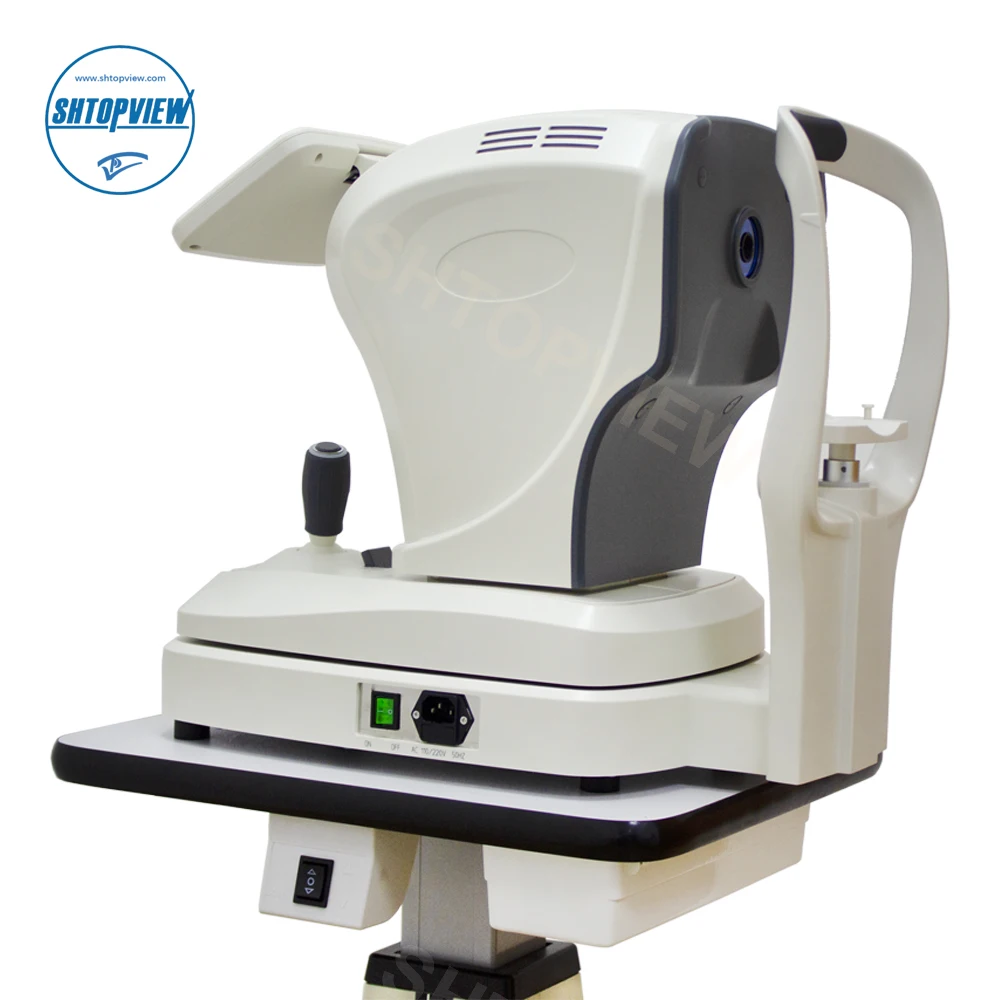

Power Switch/Socket: AC power on / off with indicator light / AC power inlet (fuse F5AL 250V inside)

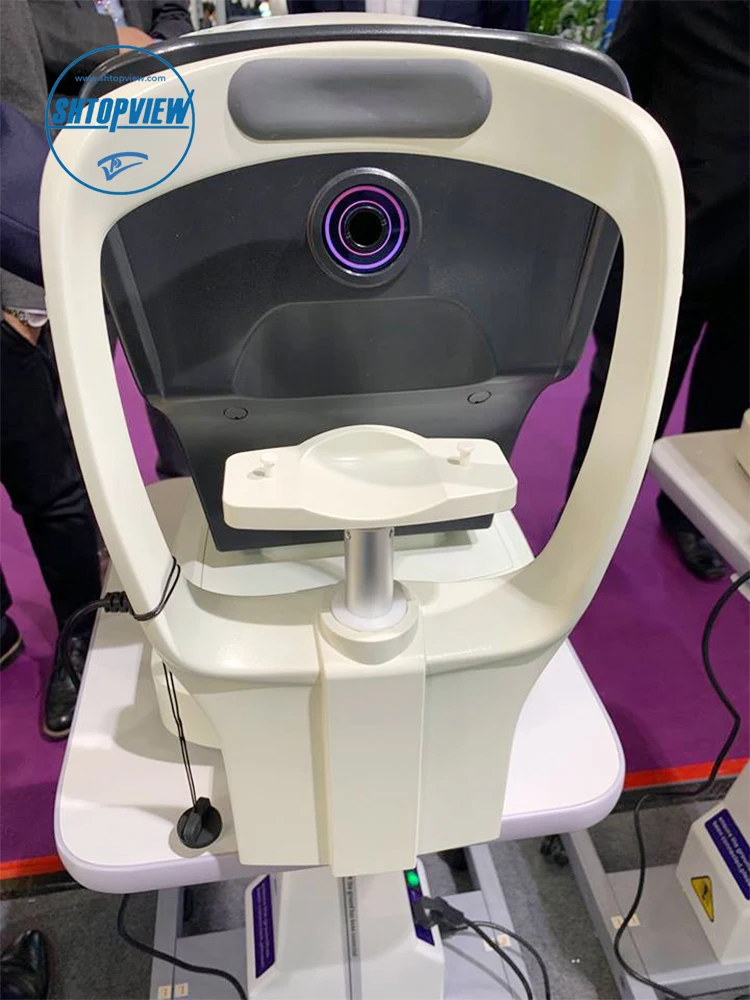

Rubber Feet: Support and adjust the instrument horizontal Chinrest Up/Down Button: Adjust the height of the chinrest

Data Interface: USB \\ RS232 interface to be connected with other equipments (This refractometer and the automatic phoroptor serials connected should comply with the related electrical requirements in IEC60601-1-1-2000)

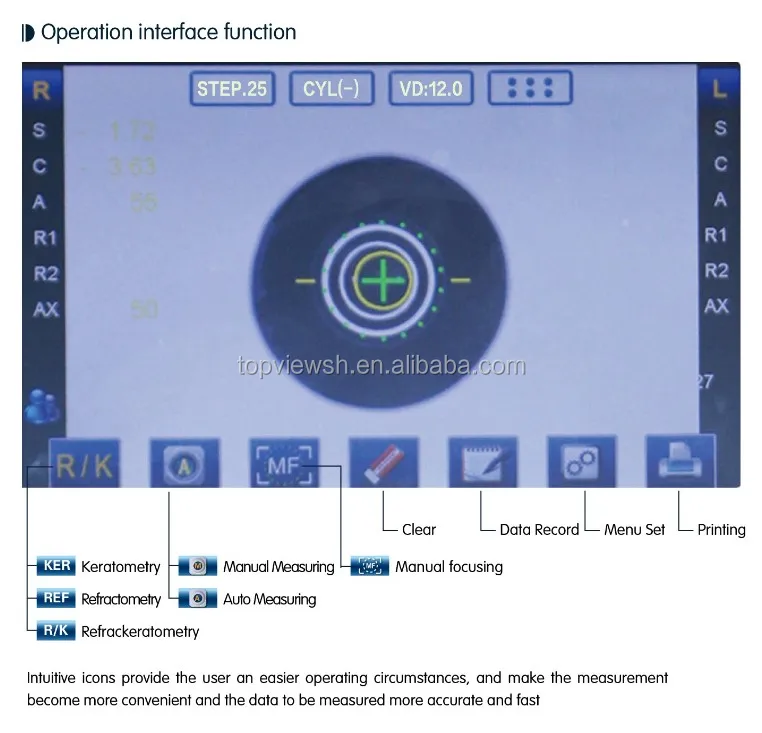

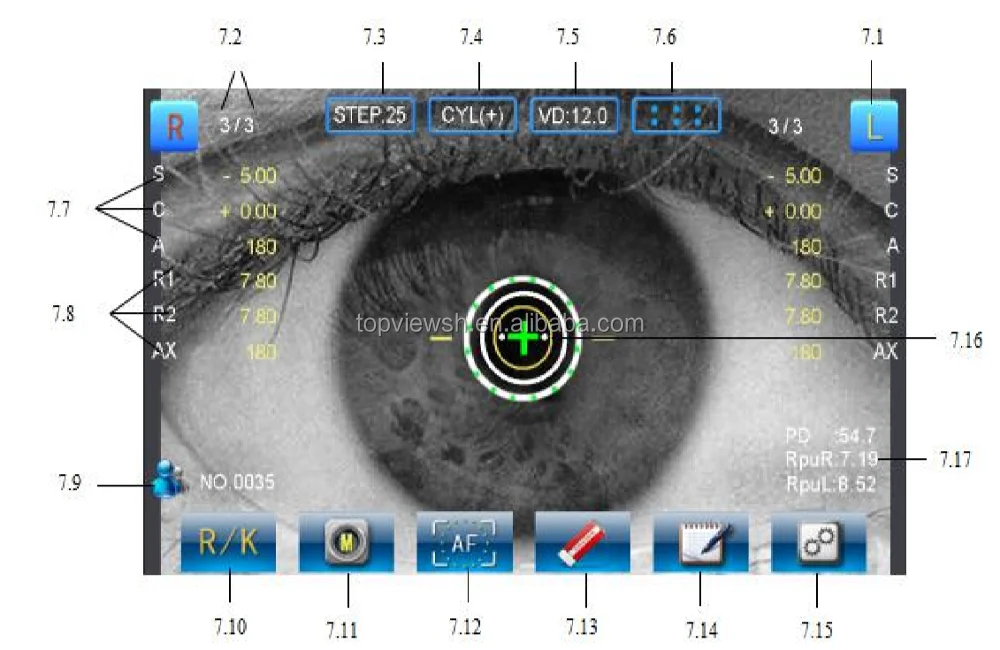

7.1 L/R Sign: Flashing sign indicates the current measured eye
7.2 The number of power/corneal parameters measured
7.3 Step selection (shortcut key)
7.4 Astigmatism symbol selection (shortcut key)
7.5 VD selection (shortcut key)
7.6 PD value display
7.7 Power display
7.8 Corneal value display
7.9 Adult//child mode selection
7.10 Measurement mode selection
7.11 Auto/manual measurement selection (partial model)
7.12 Auto/manual tracking and focusing selection (partial model)
7.13 Data clear key
7.14 Data record check

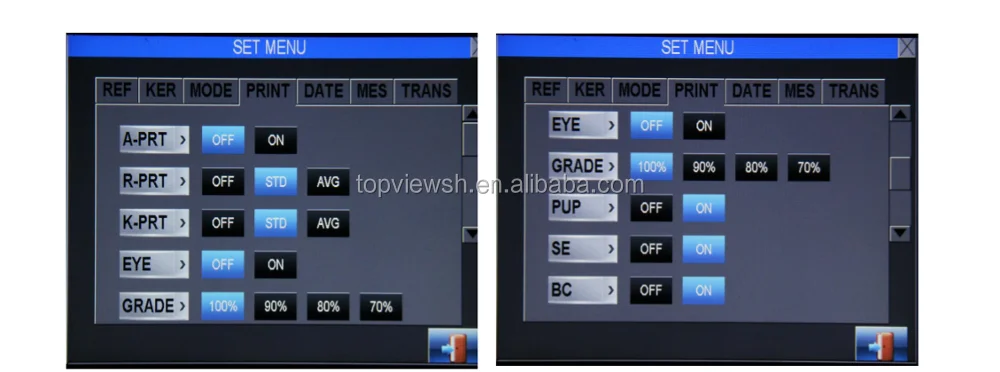

7.15 Menu set
7.16 Pupil alignment target
7.17 Left/right eye pupil diameter

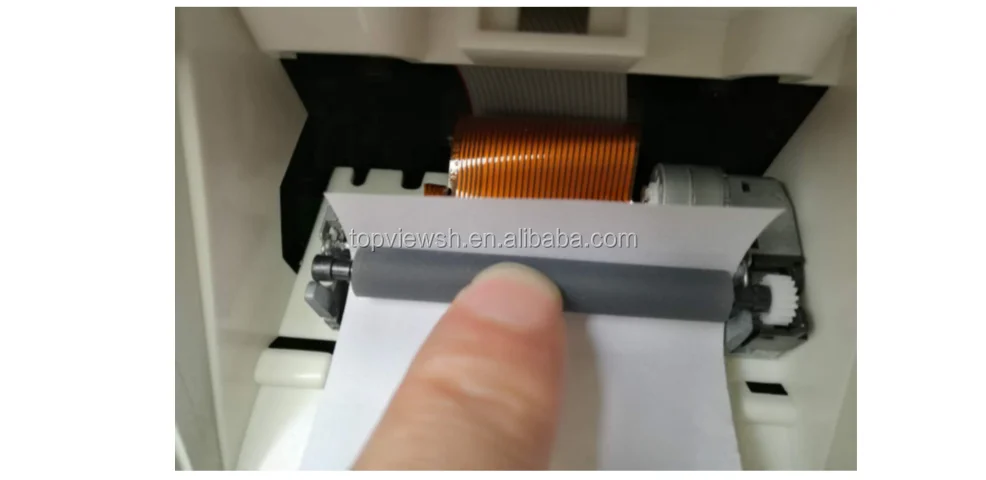

How to install the printing paper:

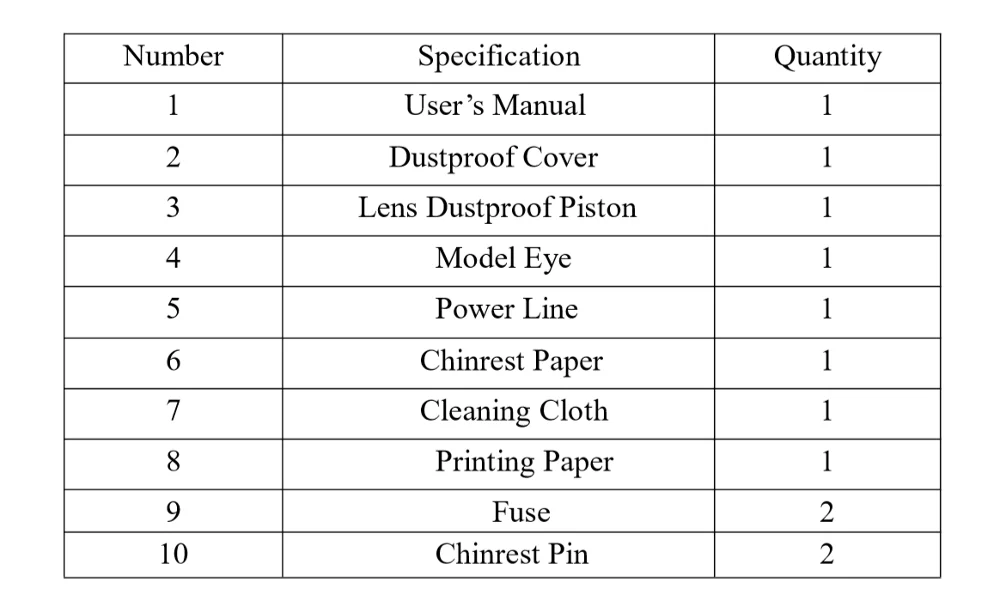

ENCLOSURE ACCESSORIES
