Машина для литья под давлением робот с косым рычагом
- Category: >>>
- Supplier: Jugetek Co. Ltd.
Share on (62344786174):
Product Overview
Description
Product Description
MANIPULATOR FOR HORIZONTAL INJECTION MOLDING MACHINE
W2 series is suitable for all types of horizontal 30-280T shot on the molding machine finished and remove the nozzle.
W2 series is suitable for all types of horizontal 30-280T shot on the molding machine finished and remove the nozzle.
There are upper and lower arm single formula W255R / W257R / W255C and double-cut type W258R, up and down, Stubbs, spin out,
screwed adopt pneumatic drive, fast, efficient, cost-effective mechanical arm.
Mounting machine robot can increase productivity (10-30%), lower defect rate of products to ensure the safety of operators, reduce
manpower and accurately control the output to reduce waste.
FOB Shanghai, Delivery Date: 15 working days after payment
screwed adopt pneumatic drive, fast, efficient, cost-effective mechanical arm.
Mounting machine robot can increase productivity (10-30%), lower defect rate of products to ensure the safety of operators, reduce
manpower and accurately control the output to reduce waste.
FOB Shanghai, Delivery Date: 15 working days after payment
echnical parameters W257R
Repeatability: ± 0.1
The empty cycle period is less than or equal to 3.8S
Applicable model (ton) 50-200
Upper and lower stroke (mm) 0-650
Traveling distance (mm) 0-125
Rotation angle (deg) 45-90
Angle of rotation (deg) 90
Maximum load (including a rule) (kg) 0.5
The fastest in-mold take-out time (sec) is 0.8
Maximum empty cycle time (sec) 2.9
Maximum air consumption (L) * g 9
Working pressure (bar) 4-6

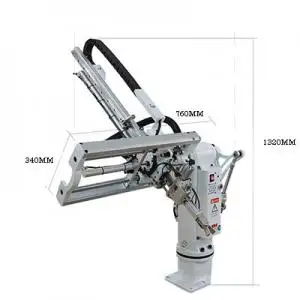

Overall dimensions (W * D * H) (mm) 340 * 760 * 1320
Note: The machine voltage specifications for the 1Ф, 100-240V, 50 / 60Hz
Repeatability: ± 0.1
The empty cycle period is less than or equal to 3.8S
Applicable model (ton) 50-200
Upper and lower stroke (mm) 0-650
Traveling distance (mm) 0-125
Rotation angle (deg) 45-90
Angle of rotation (deg) 90
Maximum load (including a rule) (kg) 0.5
The fastest in-mold take-out time (sec) is 0.8
Maximum empty cycle time (sec) 2.9
Maximum air consumption (L) * g 9
Working pressure (bar) 4-6
Overall dimensions (W * D * H) (mm) 340 * 760 * 1320
Note: The machine voltage specifications for the 1Ф, 100-240V, 50 / 60Hz
Configuration instructions
Name Type
Electrical appliances
1. Control system WDK
2. Cable Japan KURAMO
3.Power Switch Taiwan MW
4. Sensor switch Taiwan CHICIC
Transmission category
1, linear slide Japan THK Taiwan PMI
2, the slider Japan THK, Taiwan PMI
3, bearing Japan NSK
Pneumatic category
1, the cylinder Fast - reading connector
3, two points combination Japan SMC
4, the speed control valve Japan SMC Taiwan ISA
5, the trachea Taiwan ISA
6, hydraulic buffer Taiwan AC
7, the electromagnetic valve Taiwan Mindman Taiwan ATC
Ref. HS CODE: 8428904000 OR 8428909090
Name Type
Electrical appliances
1. Control system WDK
2. Cable Japan KURAMO
3.Power Switch Taiwan MW
4. Sensor switch Taiwan CHICIC
Transmission category
1, linear slide Japan THK Taiwan PMI
2, the slider Japan THK, Taiwan PMI
3, bearing Japan NSK
Pneumatic category
1, the cylinder Fast - reading connector
3, two points combination Japan SMC
4, the speed control valve Japan SMC Taiwan ISA
5, the trachea Taiwan ISA
6, hydraulic buffer Taiwan AC
7, the electromagnetic valve Taiwan Mindman Taiwan ATC
Ref. HS CODE: 8428904000 OR 8428909090
Related Products
Packing&Shipping
Company Introduction
Jugetek (shanghai)Co.,Ltd is a Chinese company established in 2003.We are the leader in the manufacturing of the world hardware
industry.Our company is mainly engaged in production and development of timing belt,timing pulley and guide rails for stepper
motors, as well as production and trading companies for 3D printer accessories.And the products are marketed in Amercia,Janpan and
Singapore etc,more than 30cities in the country.
