mini backhoe with accessories / 4WD backhoe loader hydraulic pump loader backhoe tyre
Product Description
1.Good cost performance: Adopting full hydraulic transmission, it can bring the power of engine into full play amply. Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission. It enables the loader working efficiency and easy maintenance
2.High productient to work in confined places.
3.Safe and reliable: Single-line air-assisted brake system.
4.Going-through capability: The rear axle can swing around the center hanger frame, improved the going-through capability of the whole machine.
5.Operation comfort: Continuously variable transmission, full hydraulic steering system steady and reliablevity: Perfectly designed to enable the machine have super lifting force and automatic leveling at high position.3,Good capability in climbing the slope:
4-wheel driven, strong driving power.
6.Operation flexible: Center-point frame articulated and small turning radius makes it conveni

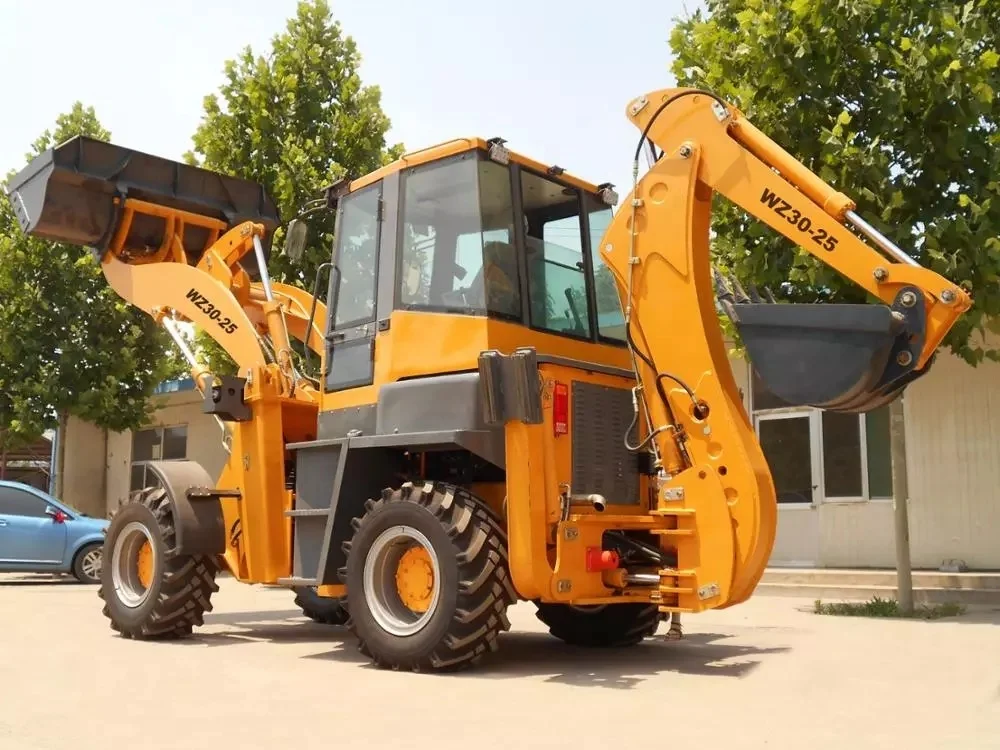

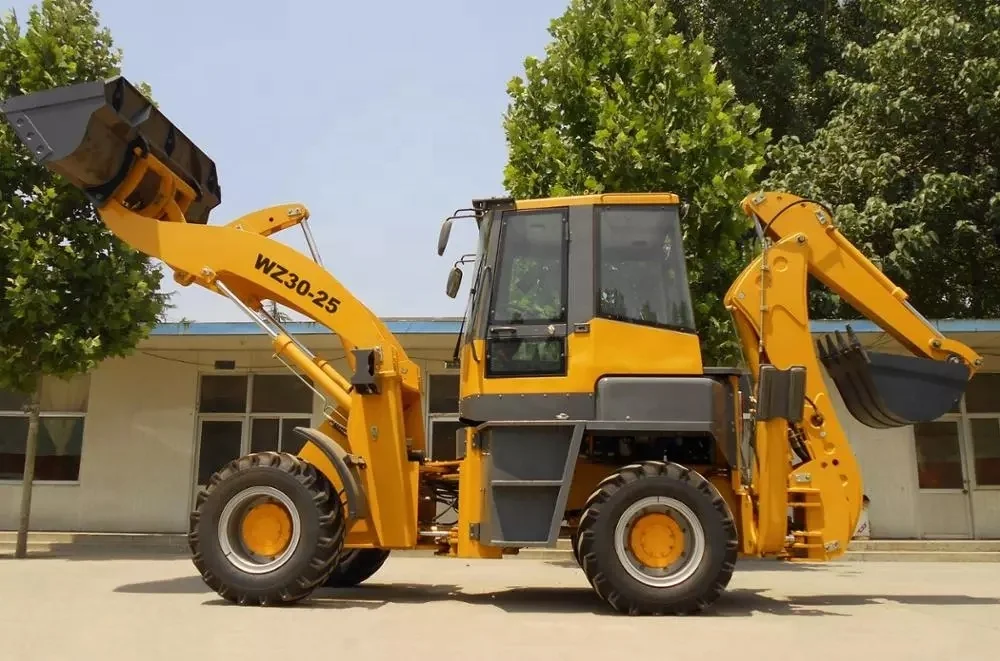

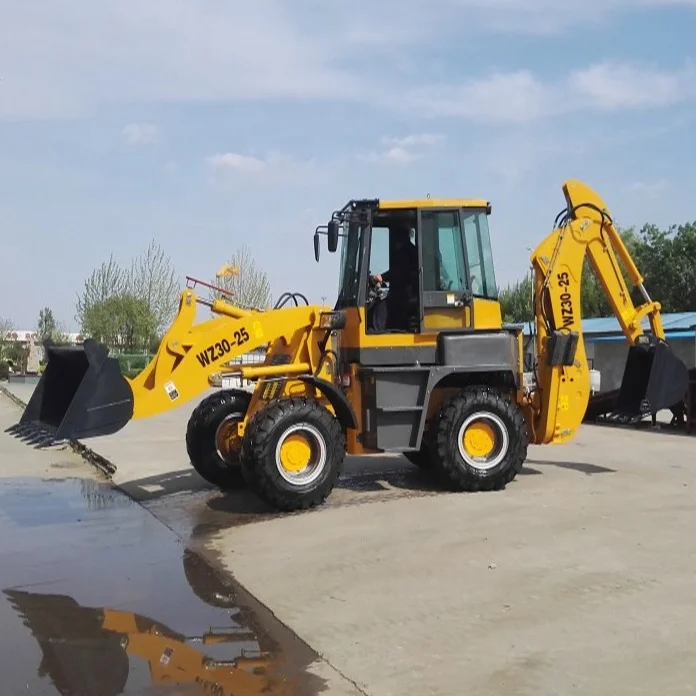

SPECIFICATIONS FOR WZ30-25 BACKHOE LOADER
Engine
Standard/Option
YuChai, Cummins
Power
Kw
85,74
Operating Weight
kg
7000
Rated Loading
kg
2500
Loading Bucket Capacity
m³
1.0
Backhoe Bucket Capacity
m³
0.3
Min. Turning Radius
mm
5200
Max. Raise Height
mm
4500
Max. Dumping Height
mm
3500
Min. Dumping Distance
mm
1000
Max. Digging Depth
mm
4050
Max.Digging Height
mm
5000
Type of tyre
16/70-20
Our Services
1-Spare parts supply: We have our own spare parts departments and warehouse.We can satisfy your demand within
2-7 days.
2- After-sale:
We have our own overseas after-sales engineering team,can give our customer the best servies to avoid your trouble back at home.
3 - warranty
1 year warranty from the date of receiving the equipment
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.
4- packing
one set by one20GP (cab disassembled to fit the height of container, Triangle wood and 10mm wire fixed.)
