VTF2011 Fuel Turbine Flow Meter
- Category: >>>
- Supplier: Xian Votesen Electronic Technology Co. Ltd.
Share on (62345078810):
Product Overview
Description
Product Description
Product Feature

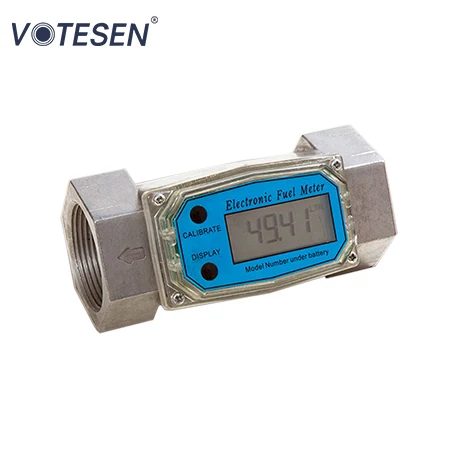

VTF2011 Electronic Turbine Flow Meter produce With high accuracy, durable life, small volume, It mainly used to transfer light oil such as diesel, gasoline.The module design can be used with output module, sensor and long-distance transfers.
Flow meter adopts low power cpu core,Turbine sensor signal generated by the amplified pulse is conveyed to the CPU, CPU operation in accordance with the flow coefficient value will flow to a 5 digits on lcd display, LCD reading range of 0.01~99999.
This electronic turbine flow meter has modular design, high accuracy, compact size and stable performance. It is easy to replace and maintain internal components. The model designed can be used in conjunction with output module, sensor and remote transmitter. It works with two pieces of 1.5V common batteries.
Product Parameters
Product Name | Electronic Turbine Flowmeter | ||||
Applicable Medium | Diesel, Gasoline, Kerosene, Methanol, Water | ||||
Product Material | Stainless Steel Turbine, Aluminum Alloy Body Surface | ||||
Installation Method | Thread | ||||

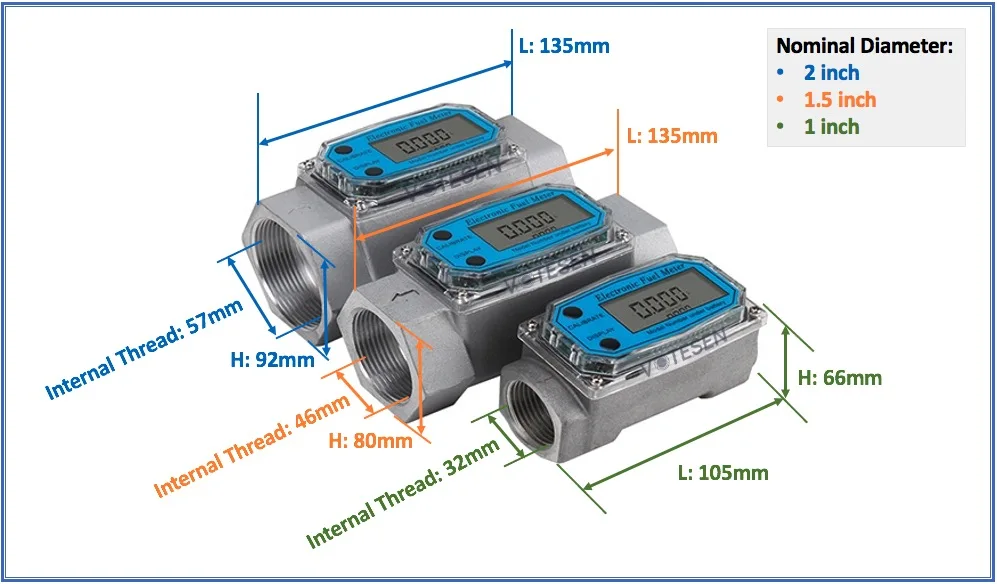

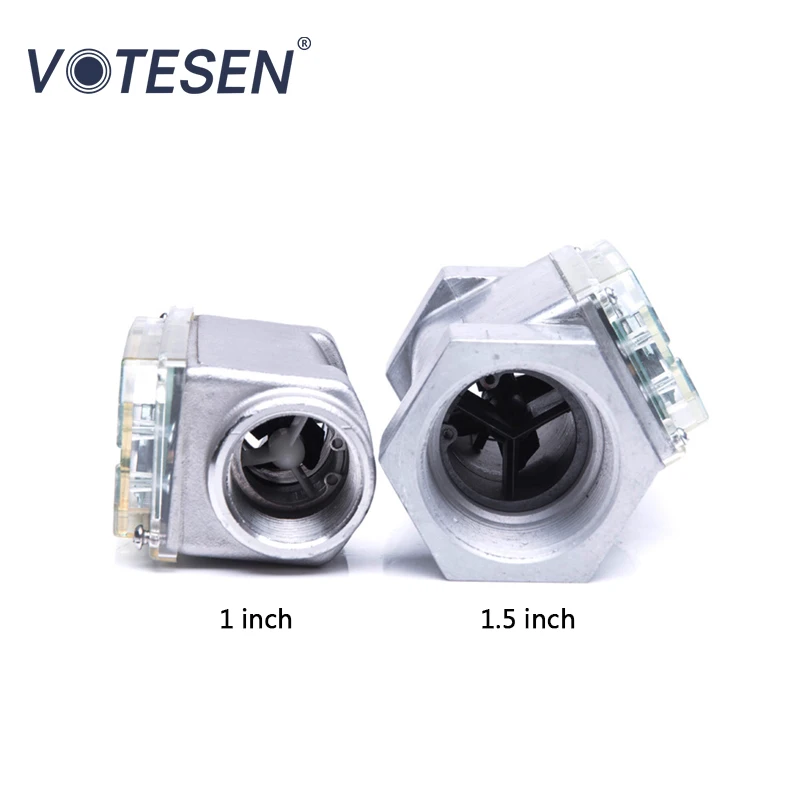

Nominal Diameter | 3/4, 1 inch | 1.5 inch | 2 inch | ||
Minimum Flow Rate | 10L/min | 40L/min | 60L/min | ||
Maximum Flow Rate | 100L/min | 280L/min | 500L/min | ||
Measurement Accuracy | ± 1% | ± 1% | ± 1% | ||
Maximum Working Pressure | 20 BAR | 20 BAR | 20 BAR | ||
Single Counting Range | 9999.9 | 9999.9 | 9999.9 | ||
Accumulative Counting Range | 999999 | 999999 | 999999 | ||
Hot Selling Products
Product Packaging & Shipping
Company Profile
About Us
XI'AN VOTESEN ELECTRONIC TECHNOLOGY CO.,LTD located in XI'AN CITY, one of the three major sensor industry based in China. We have more than 10 years experience in sensor industry. We are not only the product manufactory, but also a professional technical support team which we can accommodate customer various requirements. We also accept OEM/ODM production order.
Votesen is committed to produce high-quality sensor and measurement instruments. Our mature and advanced production technology ensure your project safety, stable and long lasting operation. Our ultimate goal is to ensure and control the quality of our products in line with the industry standard quality. Our products have been sold to over 40 countries like Australia, USA, Canada, Mexico, Netherland, Germany, Russia, Poland, Korea, India etc.
With Votesen, you will always harvest the best price, passion service and professional guidance. We supply 7*24 hours professional service and your satisfaction is always our priority.
