10L pesticides spray drone UAV /aircraft/drone sprayer/agricultural spraying drone helicopter
- Category: >>>
- Supplier: Shandong Joyance Intelligence Technology Co. Ltd.
Share on (62345201236):
Product Overview
Description
Product Description
10L pesticides spray drone UAV /aircraft/drone sprayer/agricultural spraying drone helicopter
Agriculture Drone Applications.
JOYANCE agriculture sprayer drones have been widely used for crop protection, mosquito control, and public disinfection. Plantations: rice, corn, sugar cane, soybean, flower, coffee, vegetables, fruit trees.
Chemical/fertilizer use: liquid pesticide, herbicide, solid fertilizer/granule fertilizer, fungicide, insecticides,seed, etc.
Chemical/fertilizer use: liquid pesticide, herbicide, solid fertilizer/granule fertilizer, fungicide, insecticides,seed, etc.
Specification
Item/Model | JT10L-606 | JT15L-606 | JT16L-606QC | JT20L-606 |
Pesticide load | 10 Liters | 15 Liters | 16 liters | 20 liters |
Self weight | 10.5 KG | 13.5 KG | 17 kg | 18.5 kg |
Take-off weight | 22 KG | 31 KG | 40 kg | 44 kg |
Fly time | 10-15 Min | 10-15 Min | 10~15 min | 10~15 min |
Spray efficiency | 5-6 Hectares/hour | 7-8 Hectares/hour | 8~10 hectares/hour | 9~11 hectares/hour |
Spray width | 4-6 m | 6-7 m | 6~7 m | 7~8 m |
Spray speed | 0~8 m/s | 0~8 m/s | 0~8 m/s | 0~8 m/s |
Nozzle | 2 centrifugal nozzles | 2 centrifugal nozzles | 4 High pressure nozzles | 4 centrifugal nozzles |
Battery | 2 pcs 6S 17000 mAh | 2 pcs 6S 17000 mAh | 1 pc 12S 22000 mAh | 2 pcs 6S 23000 mAh |
Flying radius | 1000 m | 1000 m | 1000 m | 1000 m |
Spray flow | 1~1.5 L/Min | 2~2.5 L/Min | 2~ 2.5 L/min | 2.5~ 3 L/min |
Flying height | 0~30 M | 0~30 M | 0~30 m | 0~30 m |
Work temperature | –10~70 ℃ | –10~70 ℃ | –10~70 ℃ | –10~70 ℃ |
Work humidity conditions | 0-90% | 0-90% | 0-90% | 0-90% |
Wind resistance | 10 m/s | 10 m/s | 10 m/s | 10 m/s |
Spread size (m) | W1.3 *L1.3 * H0.45 | W1.8 *L1.8 * H0.48 | 1.8 *1.8 * 0.7 m | 1.95 *1.95 * 0.57 m |
Folded size (m) | W0.6 * L0.6 *H0.51 | W0.7 * L0.7 *H0.63 | 0.95 * 1.05 *0.7 m | 0.7 * 0.7 *0.8 m |
Package size/ weight | 73*67*65 cm / 50 kg | 75*75*81 cm / 70kg | 120*100*79 cm / 70 kg | 75*85*95 cm / 80 kg |
Other Drones
10L JT10L-606QC
Sprayer and Thermal Fogger 2 in 1 drone for pesticide spraying and pest/mosquito control
16L JT16L-606QC
Quick Coupler/Detachable 16L Agriculture Sprayer Drone
15L JT15L-606
Sprayer and Spreader 2 in 1 drone for pesticide spraying and seed/granule fertilizer spreading

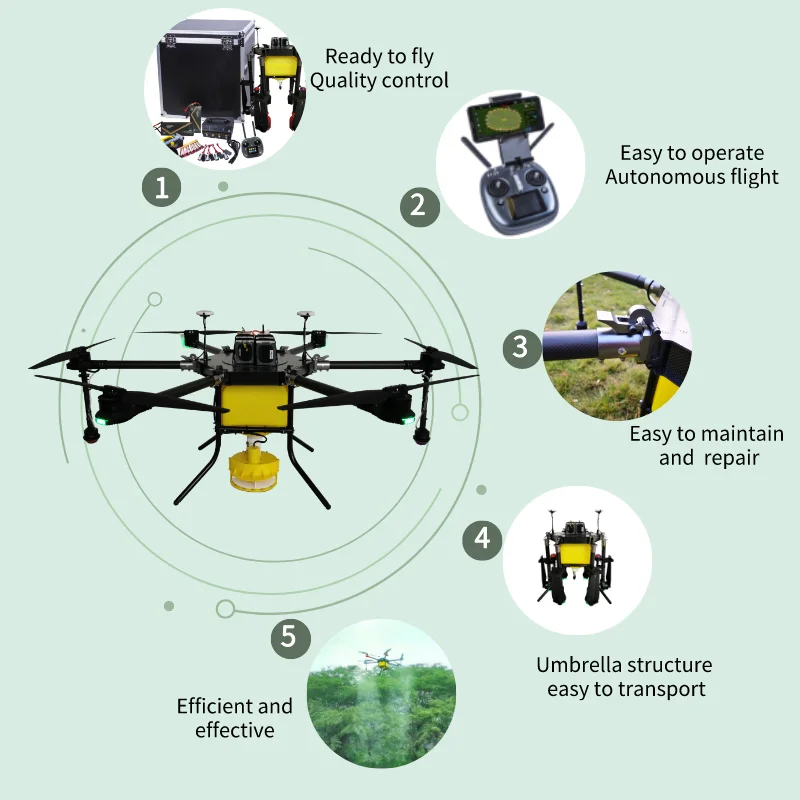

Product Feature
Brushless Motor
Waterproof & Dustproof
Waterproof level IP67
Heavy-duty
With self-cooling system
Work continuously for 12 hours/day
Waterproof & Dustproof
Waterproof level IP67
Heavy-duty
With self-cooling system
Work continuously for 12 hours/day
Centrifugal nozzle
Droplet diameter of 50~200um
Better atomization effect
Better penetration
Spray more evenly
Not easy to be blocked
Aviation aluminum folding joint
Light and durable
Carbon fiber drone arm with diameter 40mm, thickness 2.0mm
Suitable for heavy duty work
Long service life
Long service life
Carbon fiber propeller
Foldable during transport
FOC integrated power system
Granular spreader can be installed Spreading seed/solid fertilizer/granule
Carbon fiber main board
Strong and stable

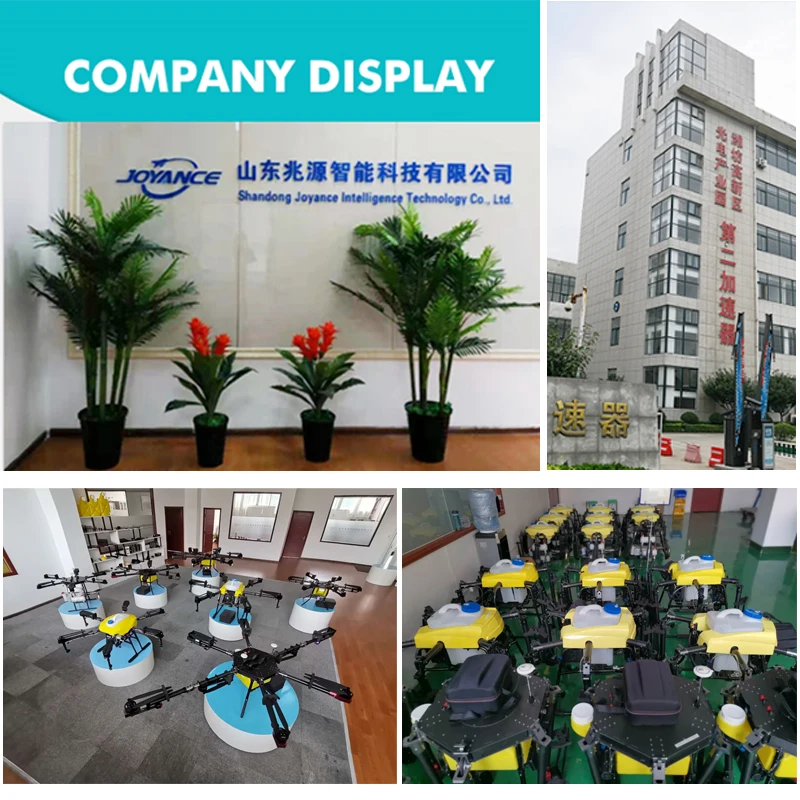

Company Profile
Shandong Joyance Intelligence Technology Co., Ltd. is the professional & leading manufacturer of agriculture sprayer drone in China, with 9 years of R&D experience, obtained the CE & FCC & RoHS certification & 12 national patents on 7 models, having 65 different countries users. We have various models of 10L, 15L, 16L and 20L drone sprayer.

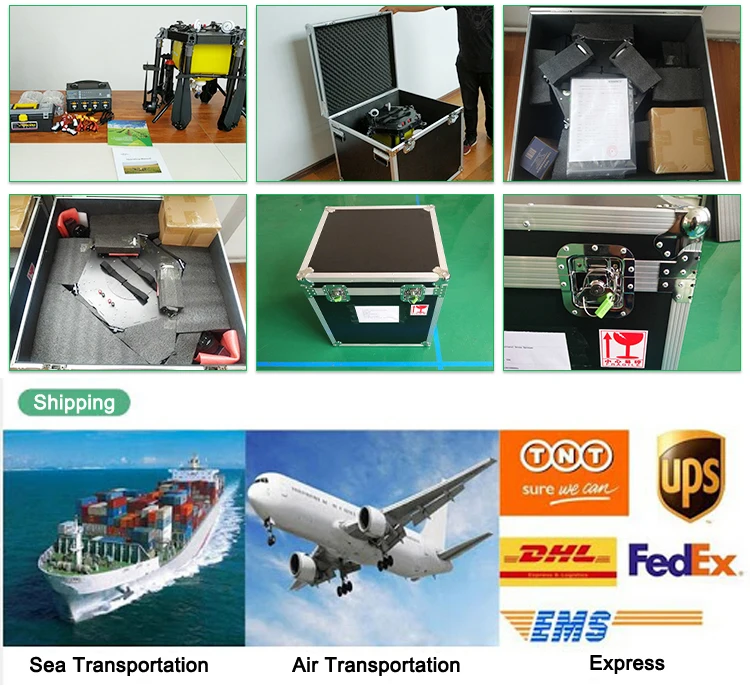

Packing & Delivery
FAQ
