HBFL best price concrete steel reinforce welded wire mesh making machine manufacture
Product Description
A. BASIC TECHNICAL PARAMETER
Wire rod | 5-12mm |
Mesh panel width | 2.0m |
Mesh panel length | 4.0m |
Mesh opening size | 100-300mm |
Welding frequency | 50-70times/min |
Transformer KVA water cooling | 125KVA*11sets |
Voltage | 380v |
Current frequency | 50hz |

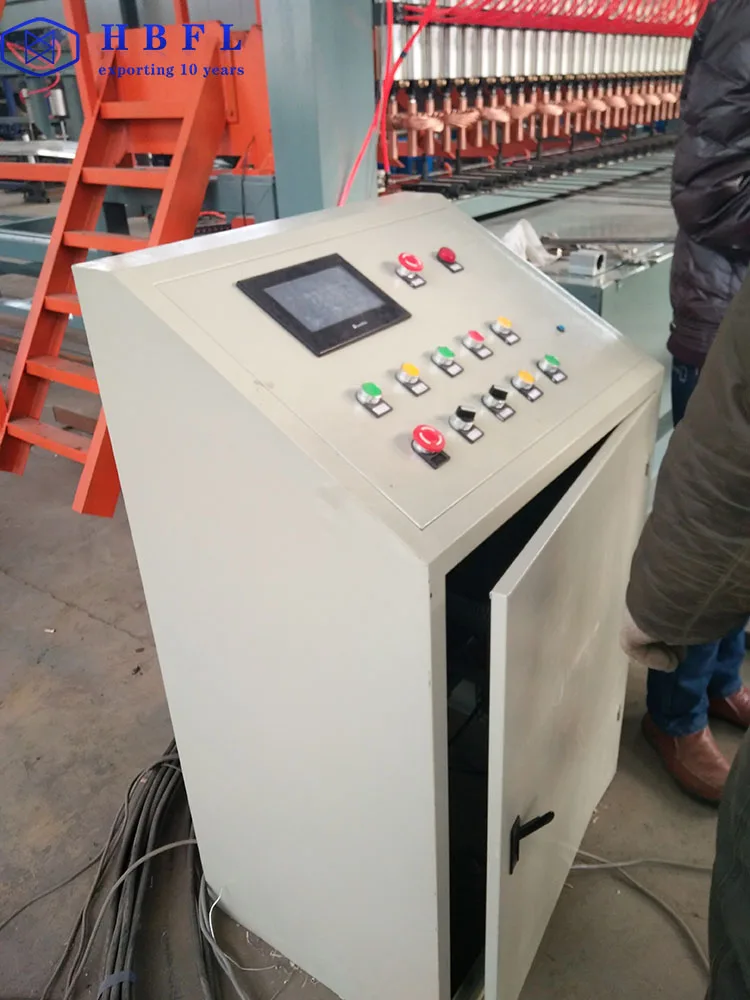

Control system | PLC totally touch screen |

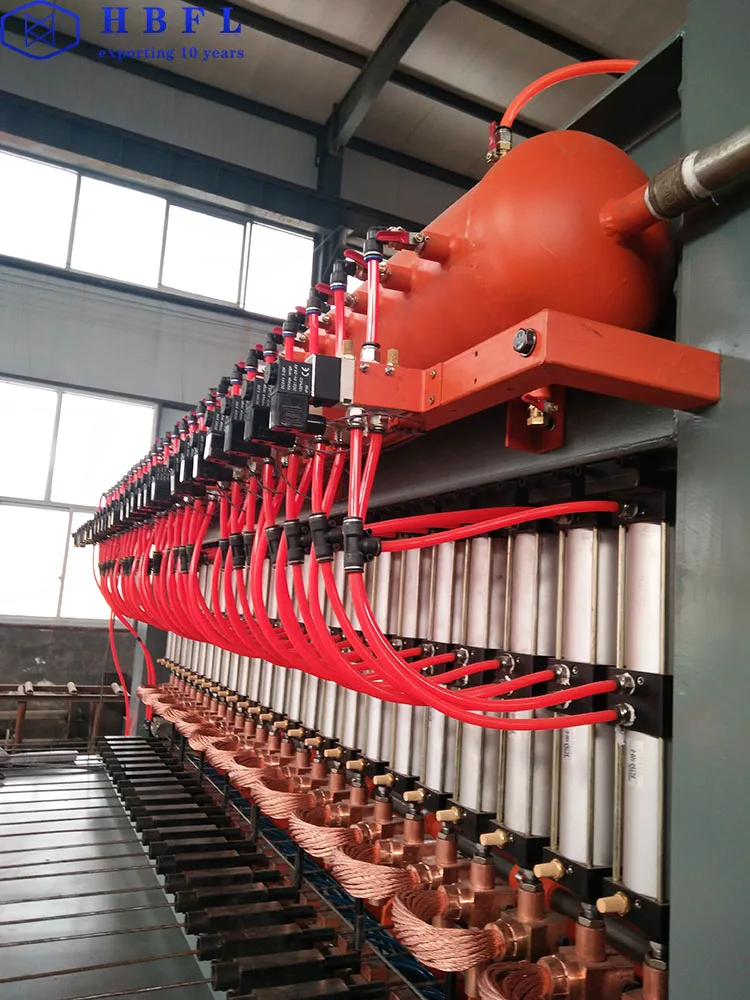

Welding type | Pneumatic |
Mesh panel Stretch type | Servo motor |
wire feeding type | Pre-straightening & cutting |

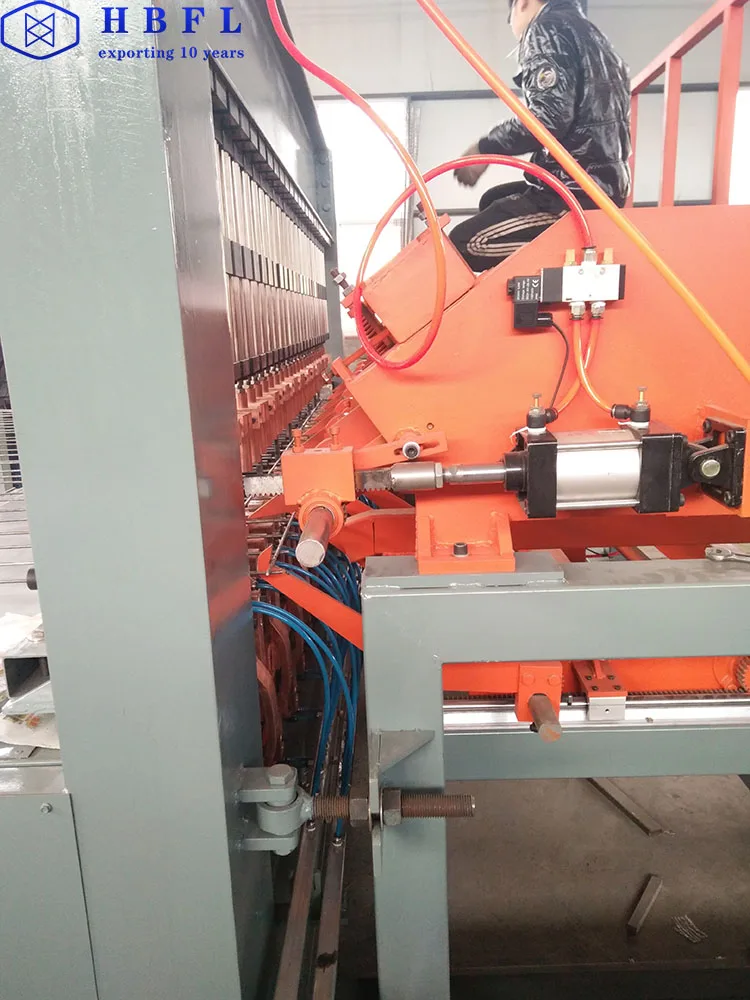

Cross wire hopper feeder | 1 ton |
Trolley power | 3.5KWservo motor +Precision reducer |
Seine runway | rack gear |
Seine car | Pneumatic opening and closing (noise reduction, precise return) |
Outside dimension(length*width*height) | 20*3.2*1.9m |
Weight | 8tons |

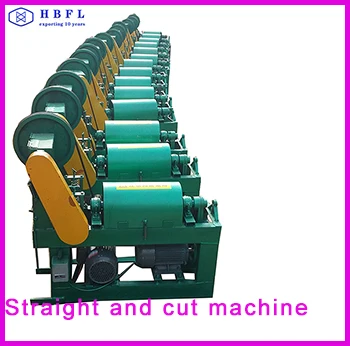

Wire straightening and cutting machine | 2sets |
B.WORKING CONDITION
Item | Working condition |
Three-phase power 380V50HZ, distance from main control cabinet ≤50 meters, power supply voltage fluctuation ≤±5% | |
The control voltage | DC24V |
The power supply capacity | 1500KVA |
Three times welding main transformer power | 250-500KVA |
Single-phase load area of power line | The copper wire is 120 square |
The surrounding environment | Temperature 0 ~ 40℃, air relative humidity (25℃) ≤90% |
The cooling system | Clean, neutral to slightly alkaline (PH=7 ~ 8) water, flow 5.12m3/h, inlet temperature 25 ~ 30℃, inlet pressure 0.15 ~ 0.3mpa, cooling capacity of 29kw |

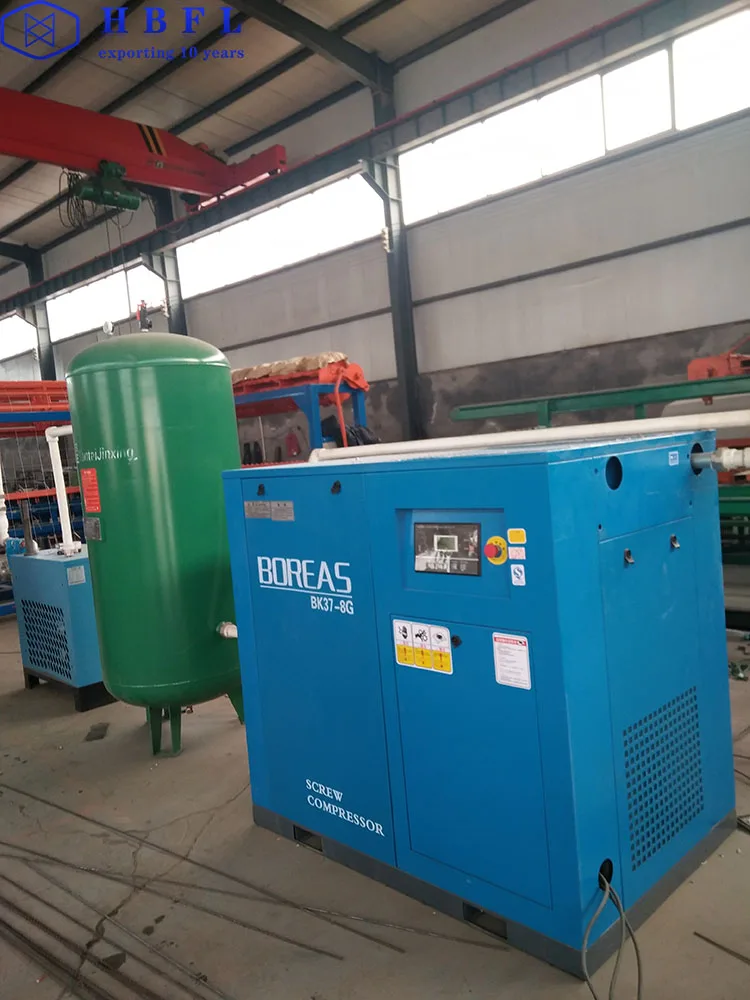

Air supply requirements | The working pressure is 0.6mpa and the flow is about 130 m3/h |

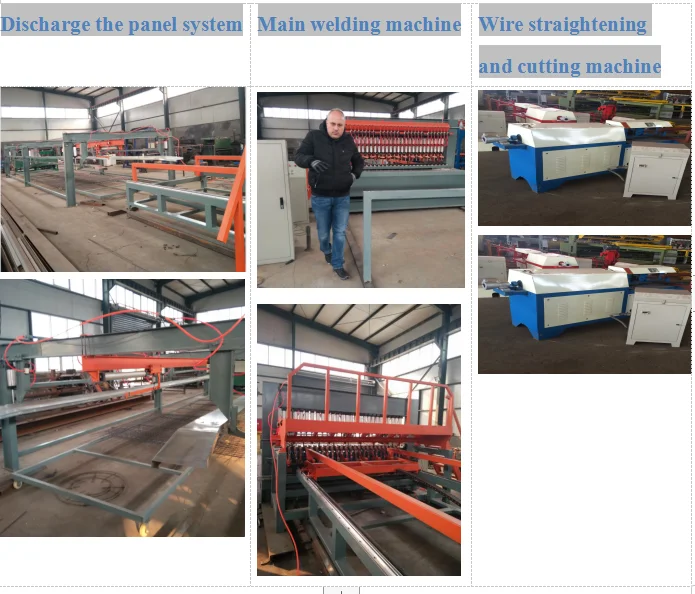

C.PICTURES OF THE PRODUCTION LINE

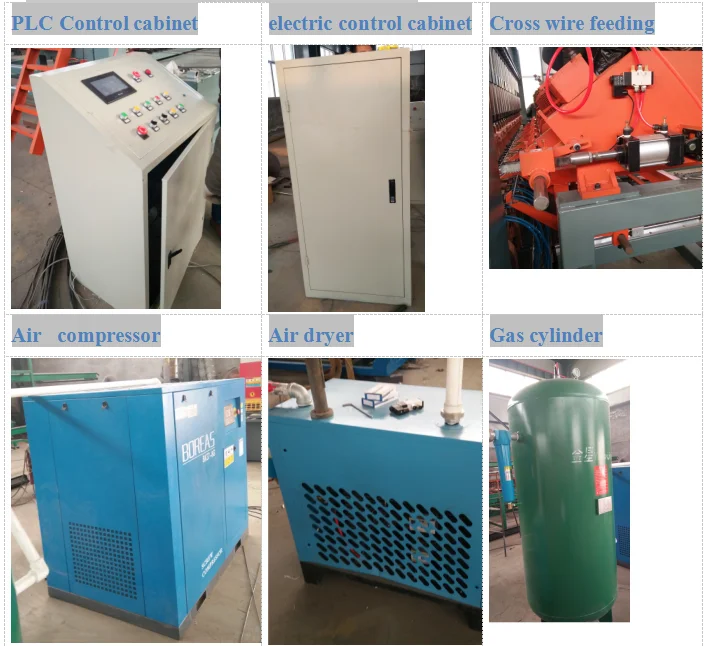

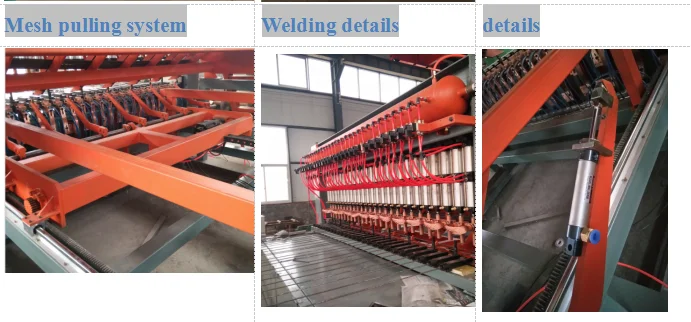

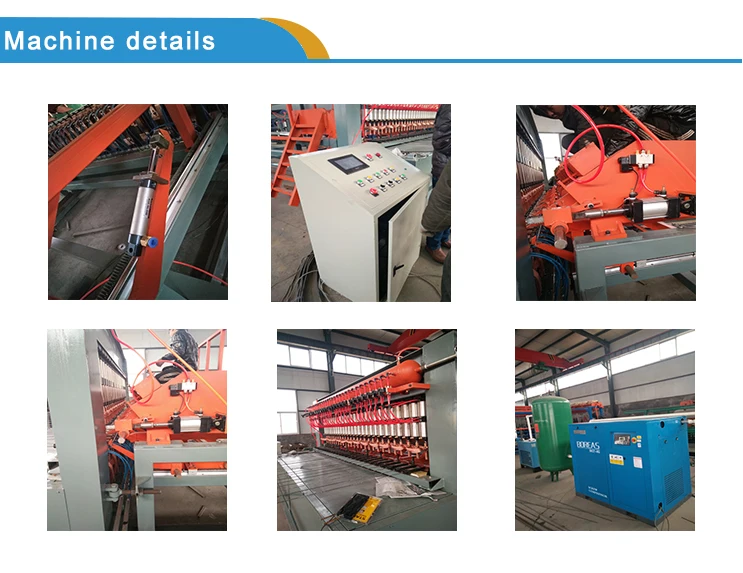

D.ONE SET INCLUDING AND DETAILS
