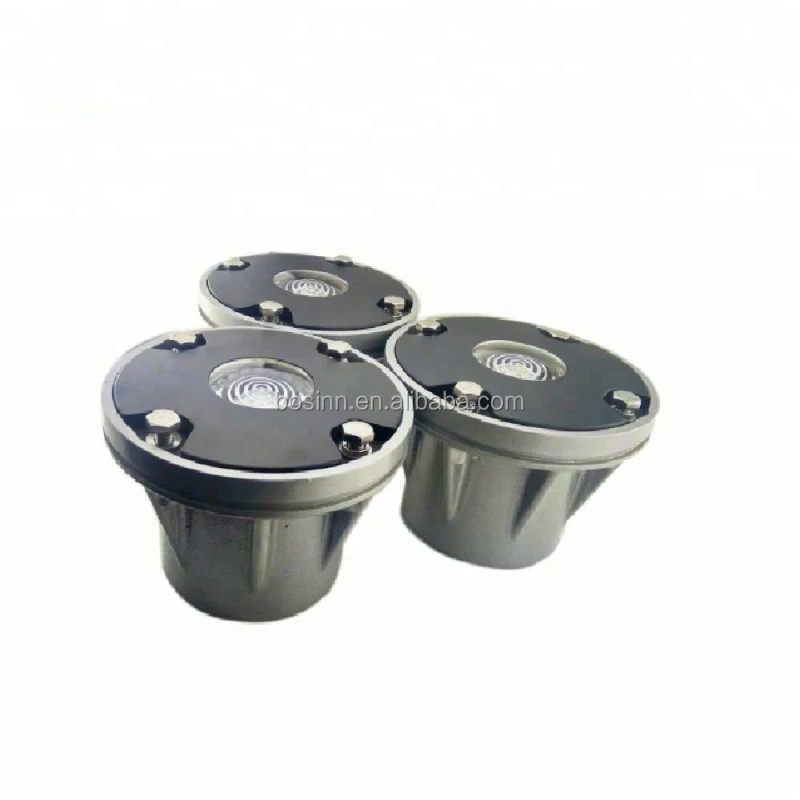

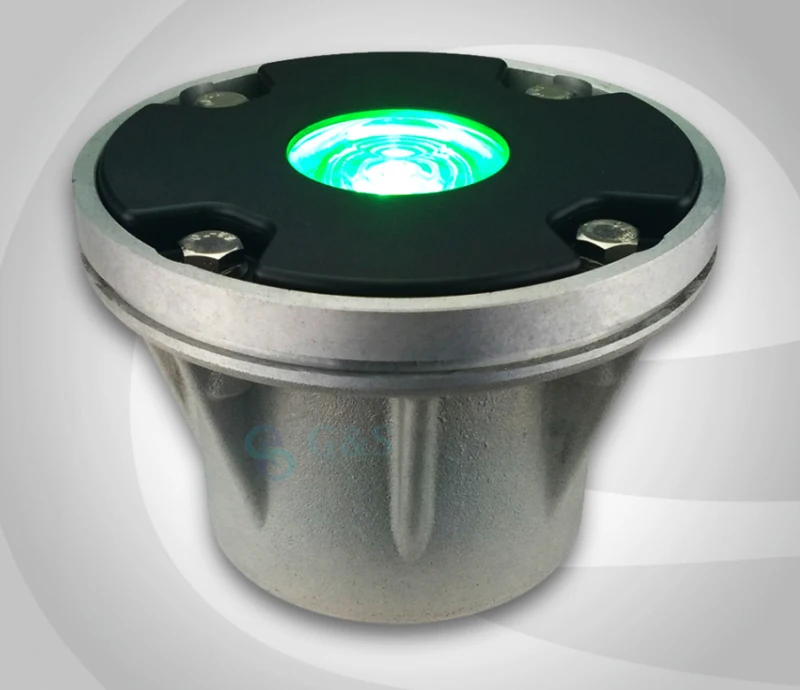

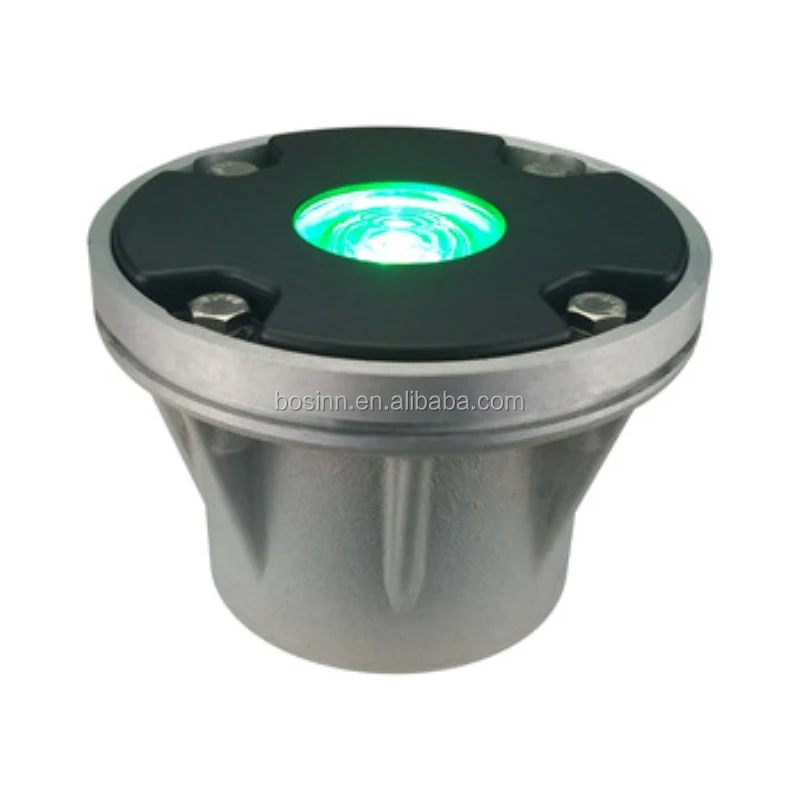

Steady lighting Helideck/Helipad airport Perimeter Inset led runway light for Aviation Obstruction Lights
Item Name | Helipad Obstruction Lighting Heliport Light Aviation Lamp |
Specification | Operating voltage : AC85V~220V/6.6A Power consumption ≤10W Light Intensity 25cd Light Source Lifespan 100,000 Hours Emitting Color : White/Green/Red/Yellow etc. single color lighting as customized Ingress Protection IP68 Environment humidity 0~100% Altitude ≤4500 Wind Load 80m/s Operating temperature -55℃~65℃ |
Application | parking apron,roof, deck board, armor plate,etc. |

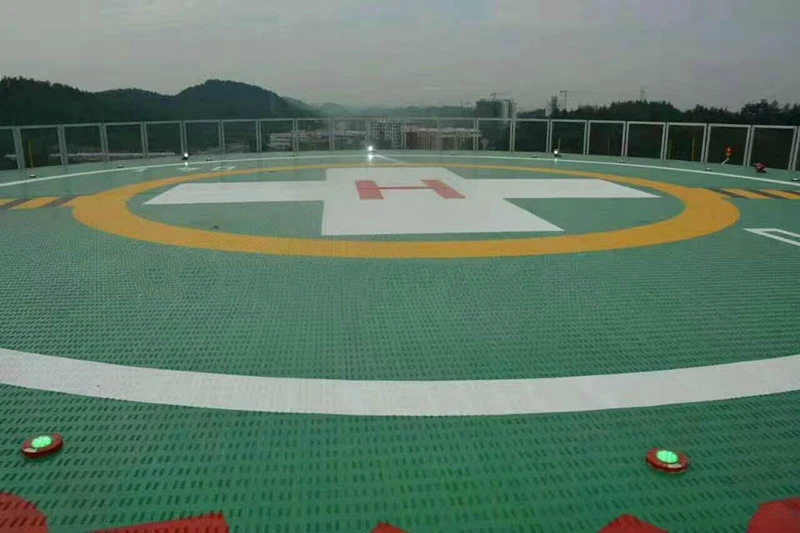

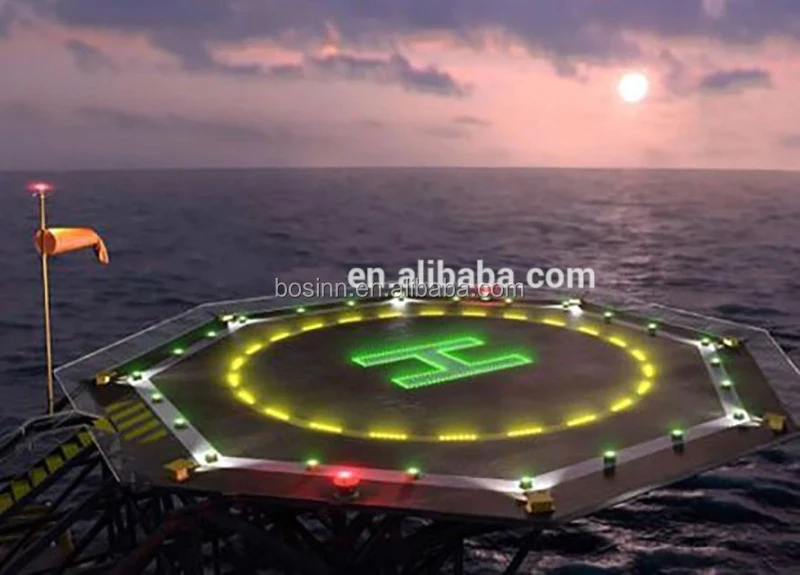

Heliport Inset light is always be installed at locations where the lights are frequently knocked down by aircraft or maintenance vehicles. It could be used as Aiming point light, perimeter light of FATO(Final approach and take-off areas), TLOF (Touchdown and lift-off areas), taxiway, runway, flight path Lighting, etc. The emitting color is green or yellow.
Compliance:
1. ICAO Annex 14 Volume Heliports 5.3.
2. Power supply available in AC(110-240V AC), DC48V
Features:
1. LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light.
2. Power supply available in AC(110-240 VAC), DC 48V.
3. Pressure resistance lens allowed the vehicles go through on light.

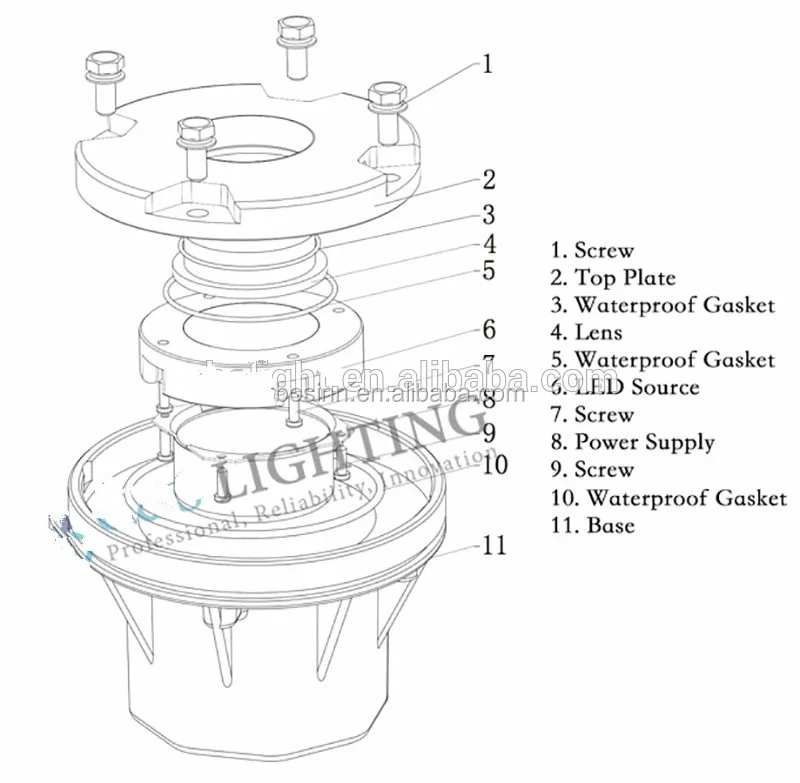

4. Die-casting aluminum covered by hard anodizing layer have good corrosion protection and load bearing.
5. IP68 waterproof ensure light work fine underground
Specification:
| Model NO.: | AO-HP-IL1 |
| Light Source | high intensity LED |
| Available Colors | Green & Orange |
| Intensity(cd) | ≥100cd |
| Flash Characteristics | Steady burning |
| Operation Mode | 24 hours operation |
| LED Life Experience(hours) | >100,000 |
| Operating Voltage | AC220V, AC120V, DC48V |
| Power(W) | 7W |
| Body Material | Aluminum alloy |

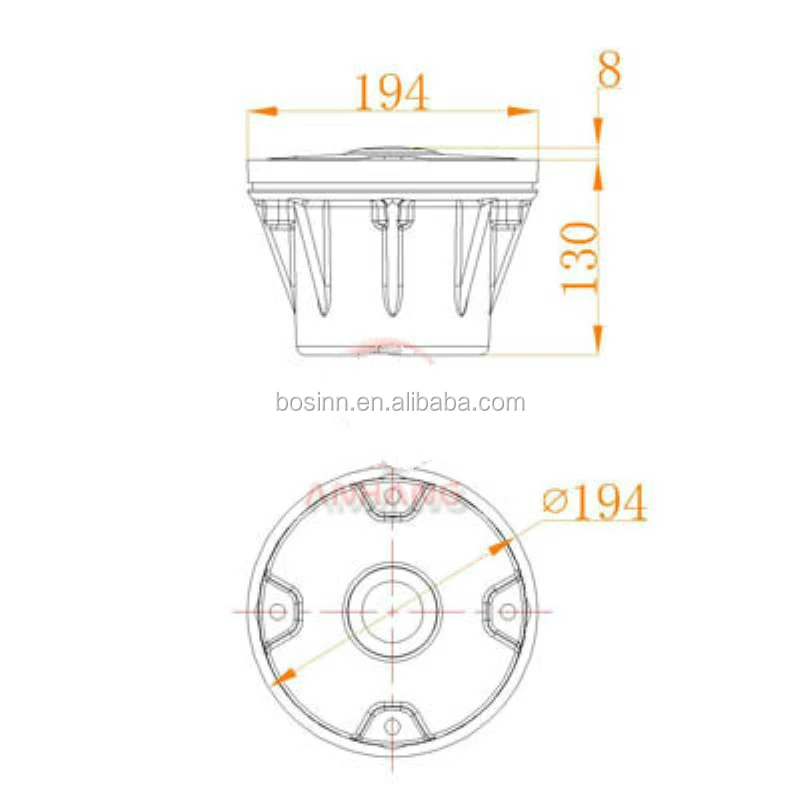

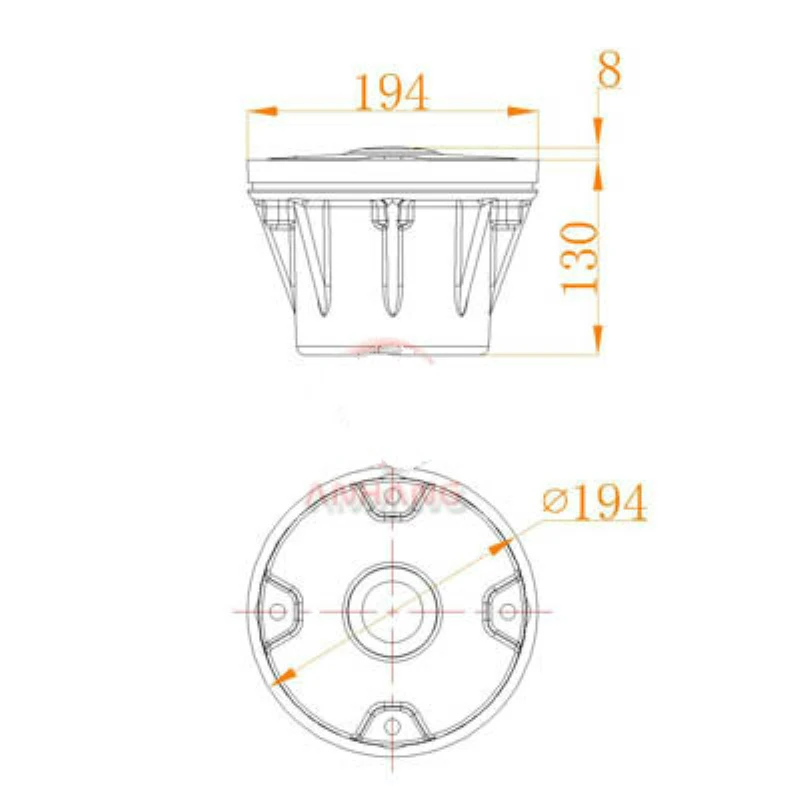

| Cutout size | ¢199mm×140mm |
| Dimension(mm) | ¢194mm(D)×138mm(H) |
| Weight(kg) | 4.5KG |
| Product Life | 5 years Plus |
| Ambient Temperature(ºC) | -55ºC~+70ºC |
| Humidity | 0%-100% |
| Wind Speed | 80m/s |
| IP grade | IP68 |
| Life time | >5 years |

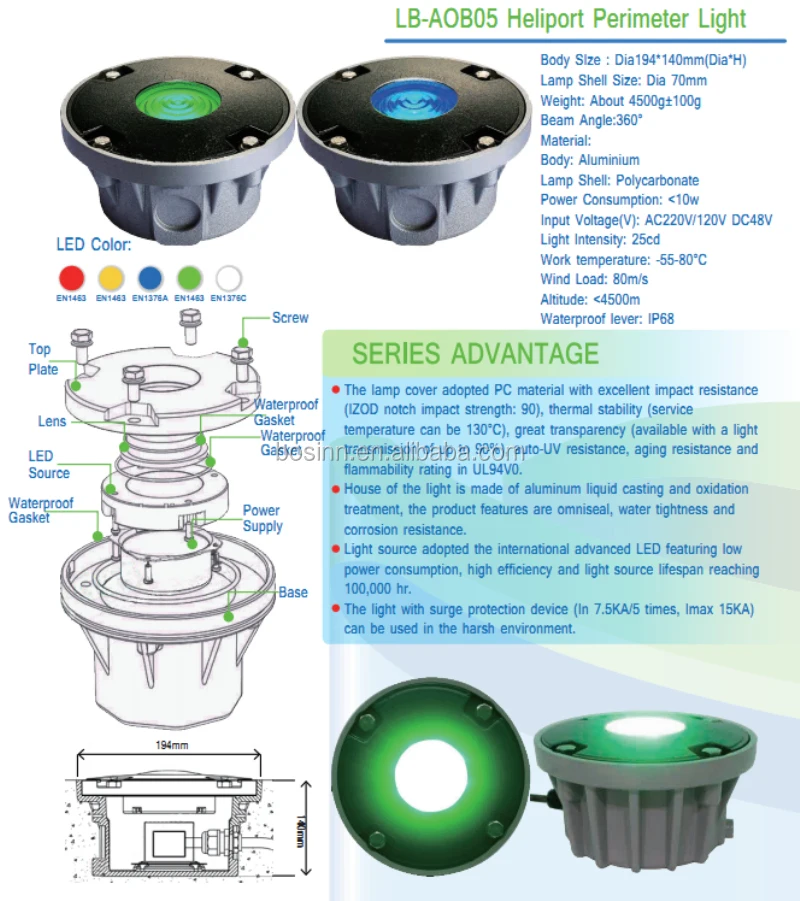

• The lamp cover adopts PC material with excellent impact resistance (IZOD notch impact strength: 90),
thermal stability (service temperature can be 130℃), great transparency (available with a light transmission
of up to 90%), auto-UV resistance, aging resistance and flammability rating in UL94V0.
• The house of the light adopts aluminum alloy, the product features are light weight, water tightness, seismic
and corrosion resistance.
• Light source adopts the international advanced LED featuring low power consumption, high efficiency and light
source lifespan reaching 100,000 hr..
• The light with surge protection device (In 7.5KA/5 times, Imax 15KA) can be used in the harsh environment. .
• Integral structure, protection lever of IP65.
• Ignitability rate UL-94V0, fit for all kinds of industrial situation.
• Could choose controller to control the synchronous switch function
