4 inch 4K H.265 IP CVBS AHD CVI TVI 5 IN 1 HD CCTV Camera Tester

LCD

Item series

                                 IPC-1800ADH Plus

Display

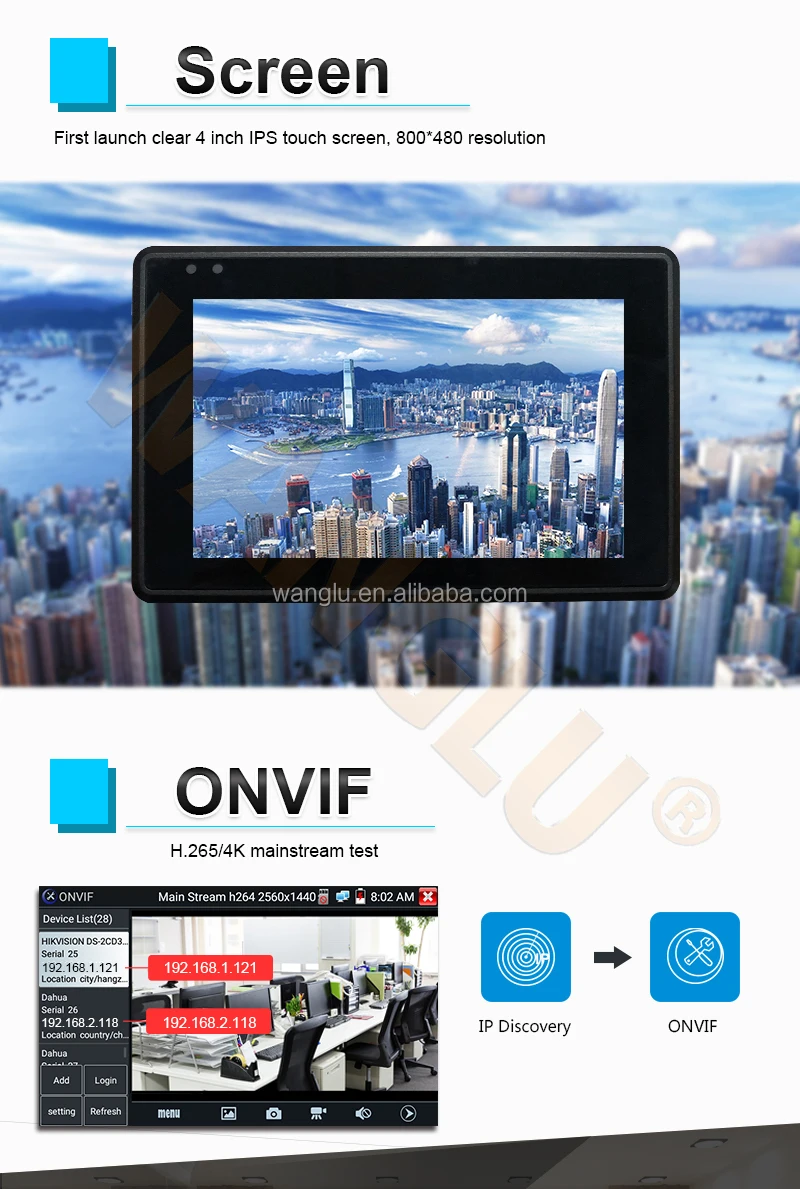

New 4 inch IPS touch screen , 800*480 resolution

  Video Mode

     CVBS

1 channel BNC input, NTSC/PAL (Auto adapt)

PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

IP camera test

4K/H.265/H.264

IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK

Rapid Video

Auto view the video, create testing report

Hik test tool

pressing just one key to activate TVI5.0 camera , Image test, can modify the user name, password and IP parameters

DH est tool

activate Dahua camera, modify the user name, password and IP parameters

Coaxial HD test

8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu

8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control /call OSD menu

8MP AHD test, 3840 x 2160P 15 FPS, UTC control /call OSD menu

Zoom Image

Zoom, Screen snapshot, record, save, view, record and play back

12V/3A power

Output DC12V/3A power out, supply temporarily power for the camera

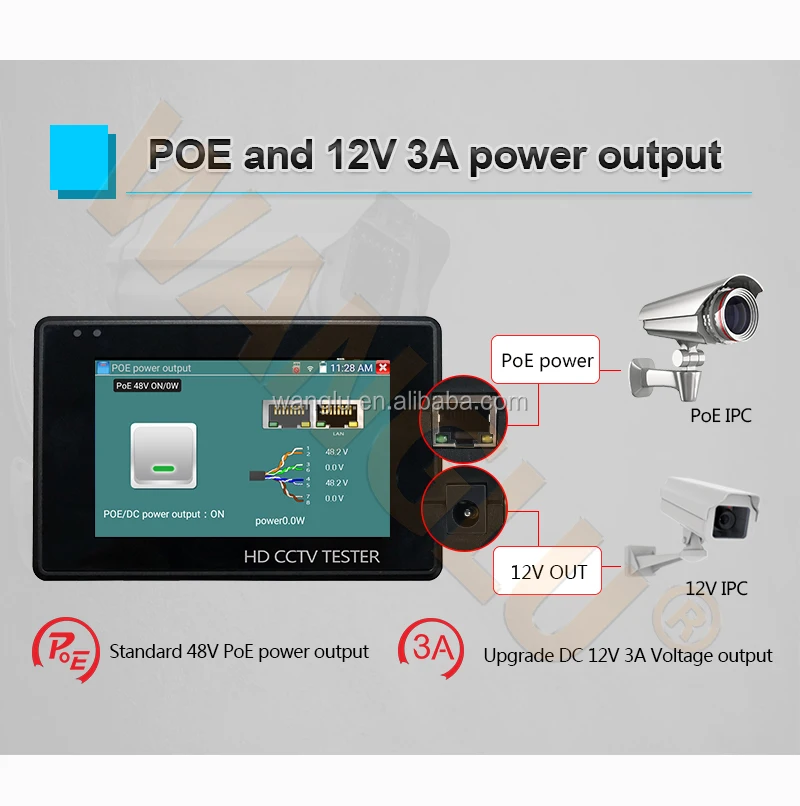

Power output

PoE power output

48V PoE power output, max power 25.5W

Network test

Link monitor, port flashing, Ping test

Audio test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

Data monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal

Drop-down menu

You can select PoE power switch, IP setting, CVBS, LAN info, etc in any interface

External power supply

DC 12V/1A

Battery

Built-in 7.4V Lithium polymer battery , 2400mAh

Rechargeable

After charging 4~5 hours, normal working time 8 hours

Operation setting

OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc

Auto off

1-30 (mins)

Working Temperature

-10℃---+50℃

Working Humidity

30%-90%

Dimension/Weight

126mm x 83mm x 33mm / 0.32kg
