Screw Electric Air Blower 160kw 150kPa Water lubrication Oil Free Double

Product Overview

Description

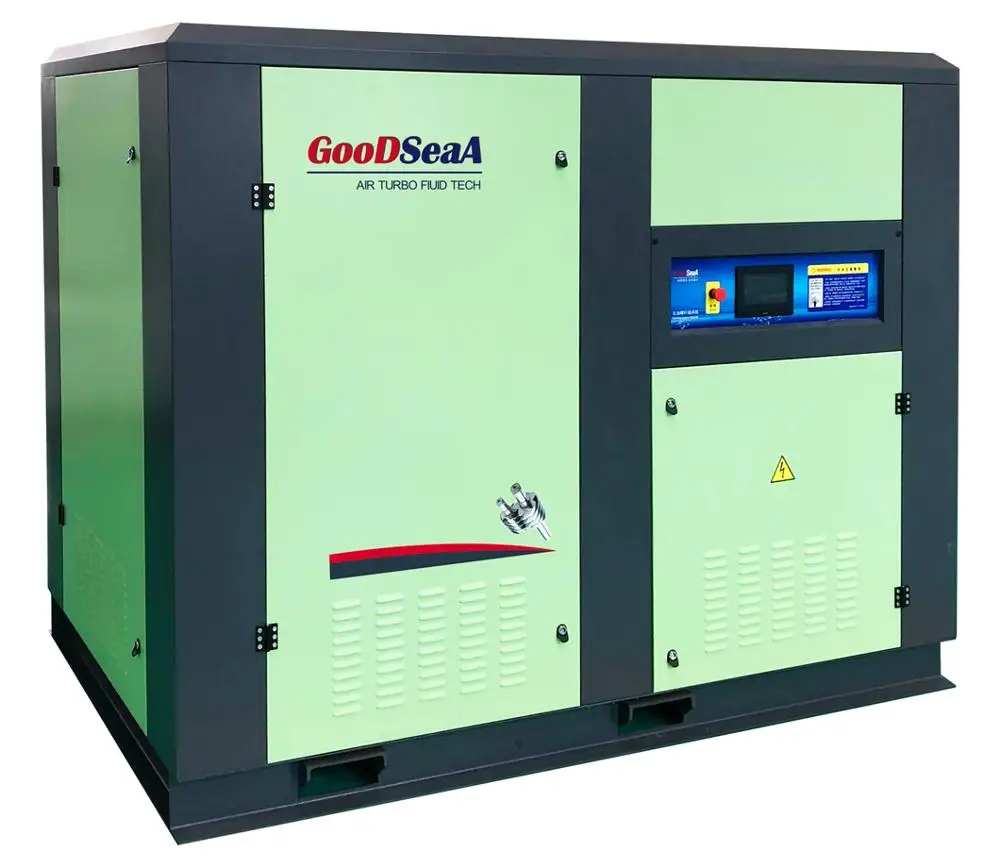

Screw Air Blower

1. Introduction of LG Series Screw Type Air Blower


Screw air blower is belong to displacement blower, it is widely used in sewage treatment, desulfurization and oxidation, pneumatic conveying and other fields. In aeration field, the screw air blower can automatically adjust it's pressure according to the change of water depth, while maintaining stable flow rate, which is suitable for medium&small air volume needs and harsh environment working conditions.With the characteristics of wide working pressure adjustment range, strong dust resistance, high efficiency and stability, can start-stop frequently and high cost performance, the screw air blower is the most economical blower for the reform of the Roots Blower.

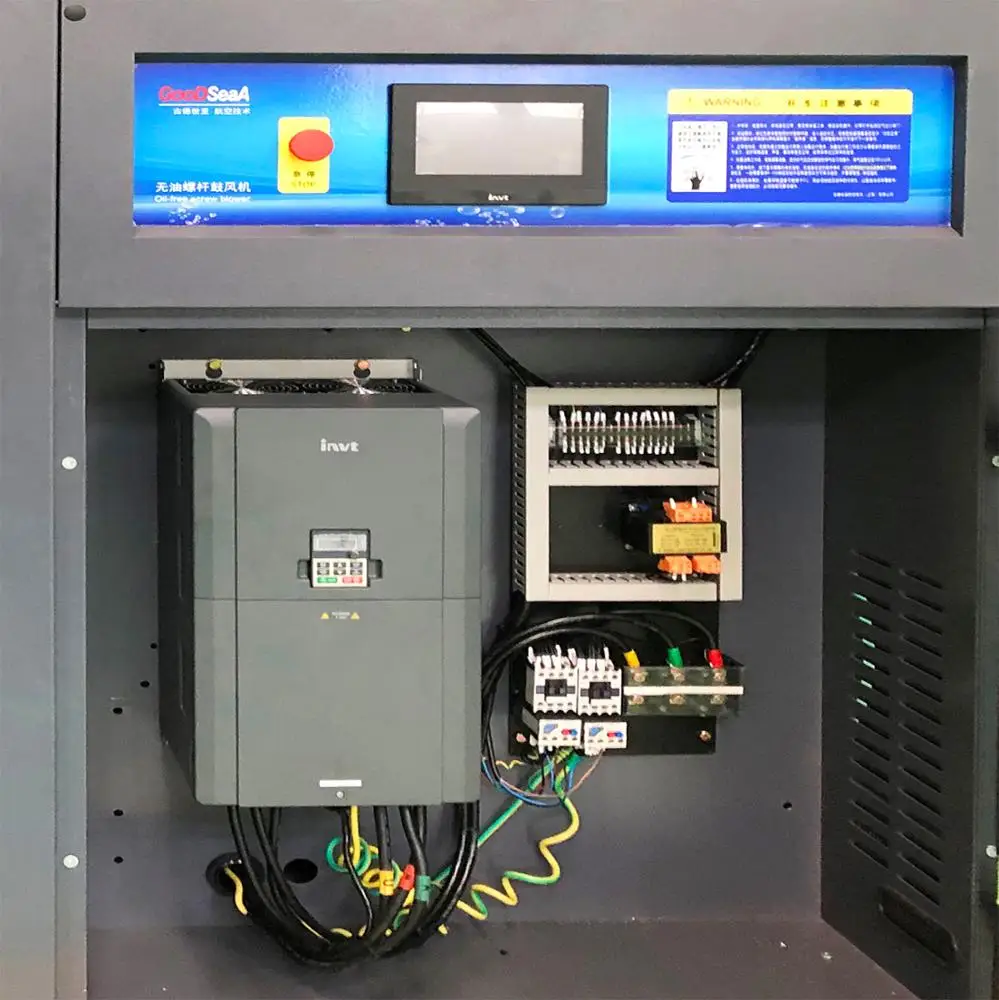

Intelligent Control
*Real-time obtain the operation information
*Monitor power consumption and loading/unloading characteristics
*Reset-able the parameters according to the demand of air management
*Display and view the preset status of each parameter
*Check history records and display maintenance warning

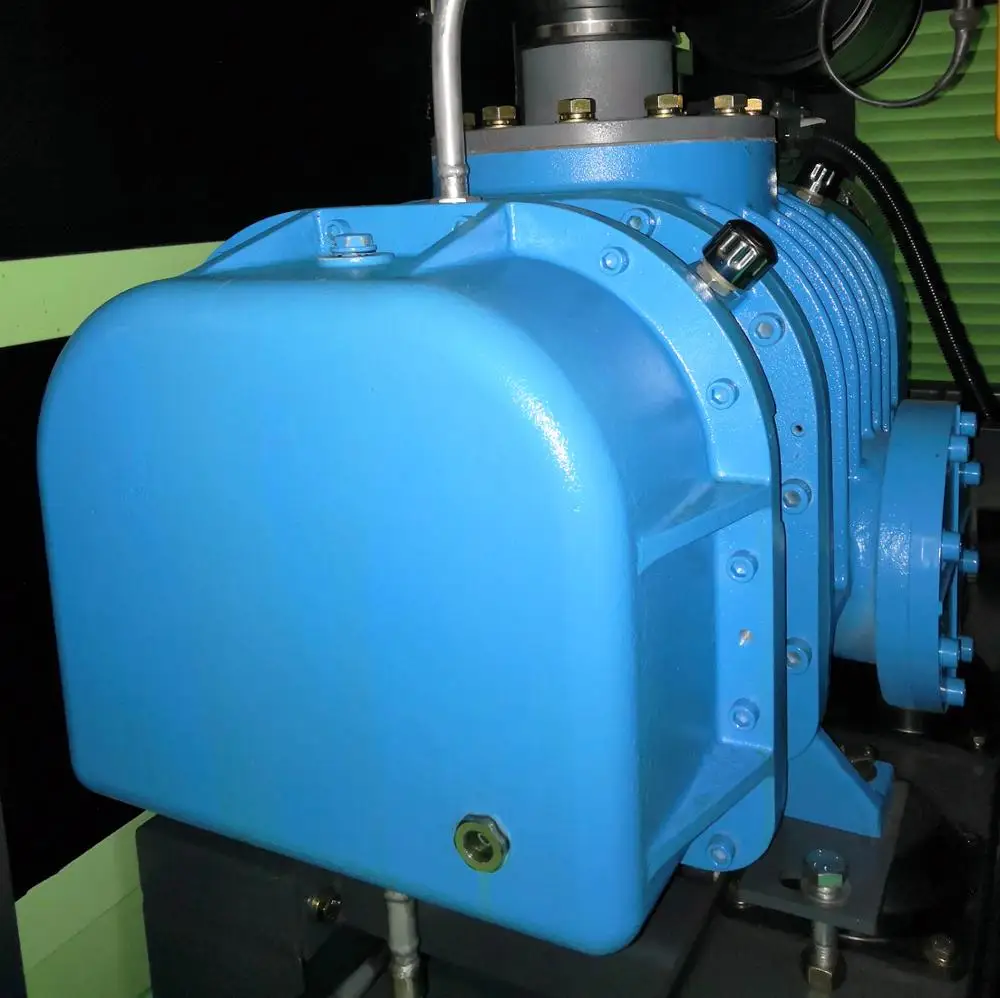

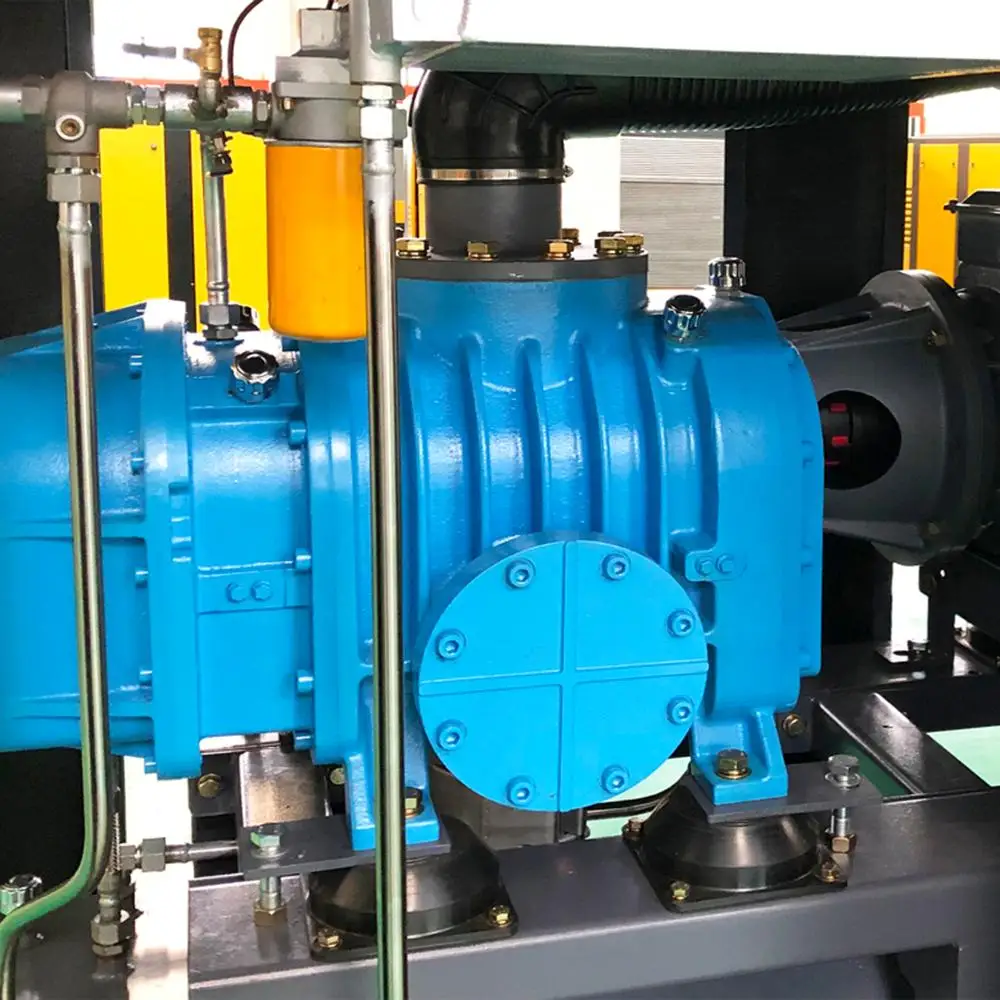

The screw air blower adopts dry type twin-screw oil-free compressor airend, which is composed of high-efficiency motor, gear box, air intake filter, silencer, cooler and intelligent control system. It can realize local and remote control. The integrated box structure is convenient for installation and maintenance.


2. Specifications

MODEL	POWER KW	PRESSURE kPa	AIR FLOW M3/min	OUTLET CONNECTION	DIMENSION L*W*Hmm	WEIGHT Kg
LG22-04 LG22-06 LG22-08	22	40 60 80	25 16 15	DN150	2100*1100*1600	2000
LG30-06 LG30-08 LG30-10	30	60 80 100	25 21 15	DN150	2100*1100*1600	2200
LG37-04 LG37-08 LG37-10 LG37-12 LG37-15	37	40 80 100 120 150	36 25 21 16 15	DN150	2300*1300*1900	2300
LG45-06 LG45-10 LG45-12	45	60 100 120	36 25 24	DN150	2300*1300*2000	2500

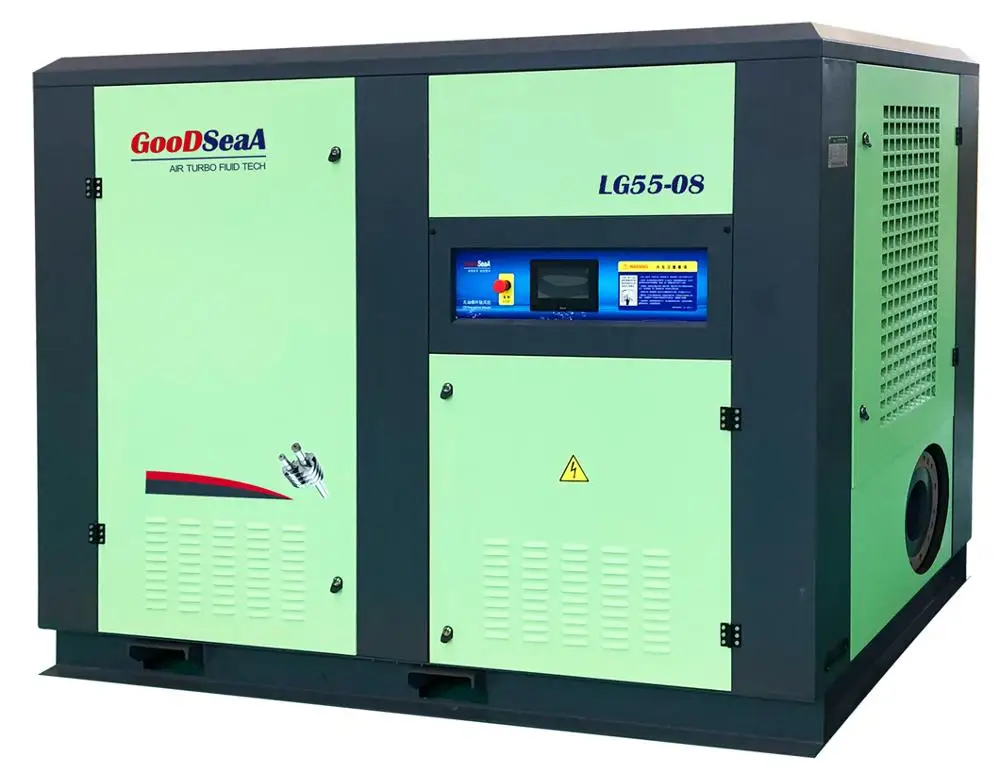

LG55-04 LG55-06 LG55-15	55	40 60 150	58 43 24	DN200	3000*1700*2300	2900
				DN150
LG75-06 LG75-08 LG75-10 LG75-12	75	60 80 100 120	58 49 42 34	DN200	3000*1700*2300	3300
LG90-04 LG90-06 LG90-08 LG90-10 LG90-12 LG90-15	90	40 60 80 100 120 150	89 76 58 56 47 34	DN250	3000*1900*2400	4300
				DN200	3000*1700*2300	3600
LG110-04 LG110-06 LG110-08 LG110-10 LG110-12 LG110-15	110	40 60 80 100 120 150	98 88 75 64 56 48	DN300	3000*1900*2400	4400
				DN250
				DN200	3000*1700*2300	3700
LG132-08 LG132-10 LG132-12 LG132-15	132	80 100 120 150	88 75 64 56	DN300	3000*1900*2400	4500
				DN250	3000*1700*2300	3800
LG160-12 LG160-15	160	120 150	86 63	DN300	3000*1900*2400	4600
LG180-12 LG180-15	180	120 150	90 73	DN300	3000*1900*2400	4700

(The inlet volume flow is defined as the standard state for the design of blower: Suction air temperature is 20ºC  and 1atm)

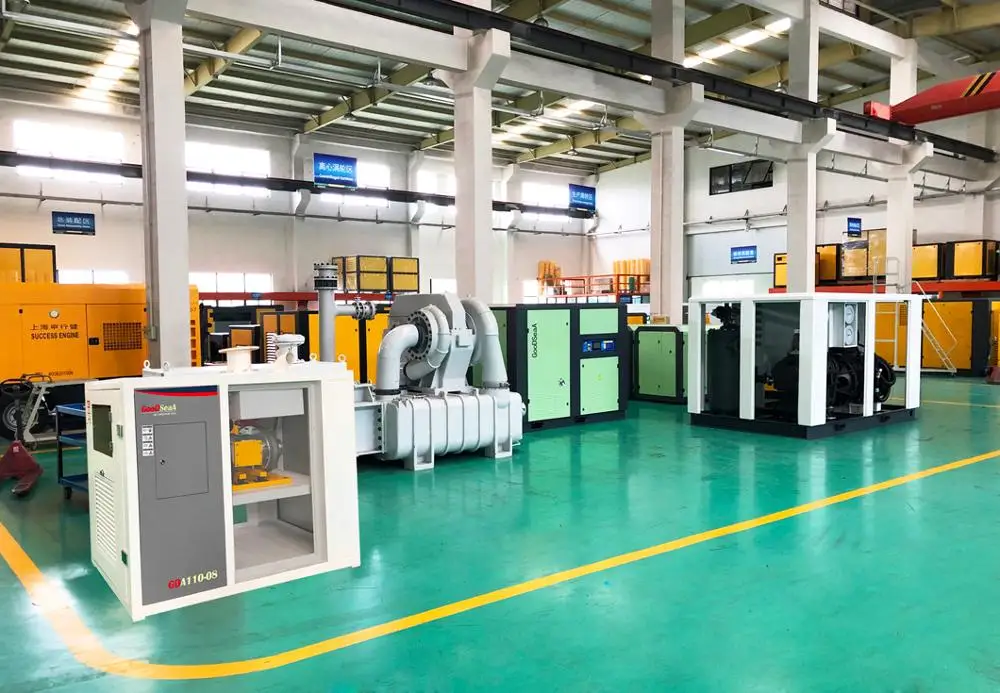

3. Factory Introduction
GoodSeaA Design & Manufacturing base is located in Songjiang Area, Shanghai,it is a high-tech enterprise and was born to improve the "power efficiency ratio" and "quality reliability" of turbomachinery in China national civil energy field.




GooDSeaA rely on top-lever compressor enterprise resource advantages,hand with domestic aviation professional colleges and universities, turbo machinery professional colleges and levitation bearing research institute,gather Chinese top aviation power and turbo machinery technicians, uses high-level advanced tools, software and laboratory equipment,, specializing in the field of civil turbo machinery field, to create products that can meet "aviation power" and "military quality", like centrifugal compressors, centrifugal fans, centrifugal vacuum pumps, centrifugal levitation air blower, oil-free screw air blower, water-lubricant oil-free screw compressor and other high-tech products.



GooDSeaA aims to be the R&D leader and products&solution provider in the field of civil turbo machinery, and committed to be the leader company in the field of aviation energy power technology and levitation bearing technology.

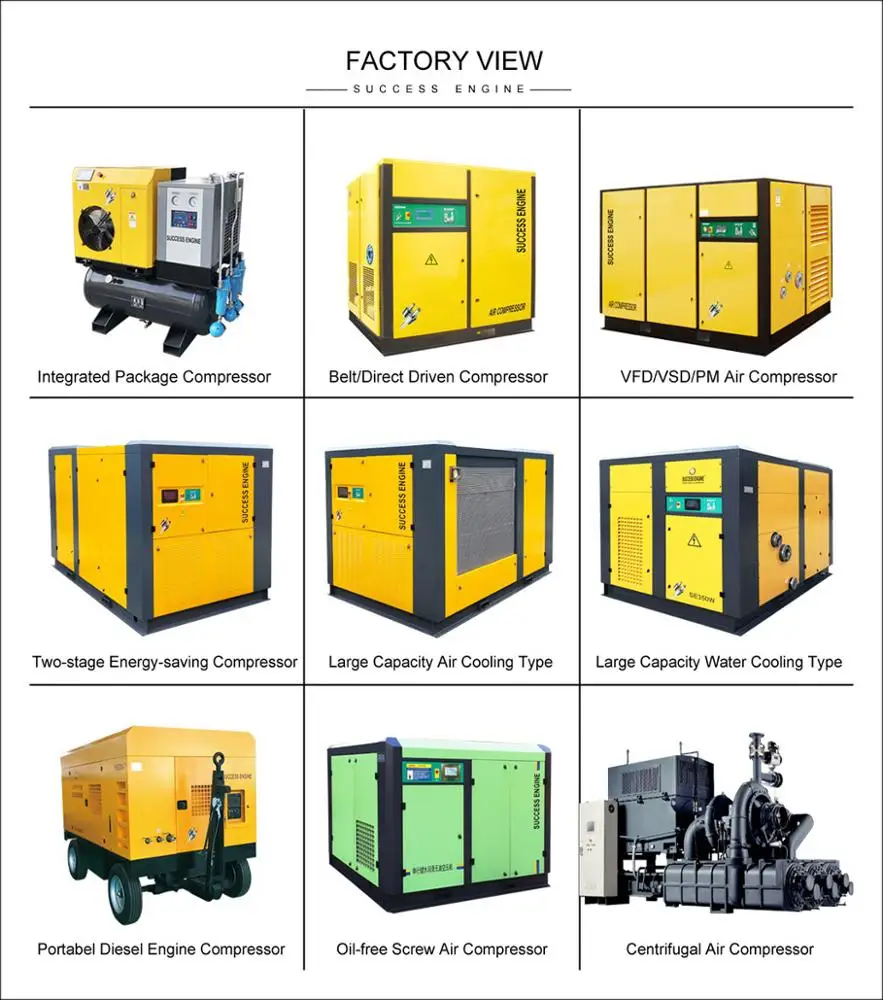

4.Other Product Category






5. Company Certificate





6. Packing & Shipment



7. Support & RFQ

Q: Are you a factory or trading company?

A: We are manufacturer established in 2004.



Q: Where is your company and factory located? How can I visit you?

A: Our overseas sales center is located in No.666,Xinbo Road, Maogang Industry Zone, Songjiang, Shanghai, China(201606). It takes about one hour from Shanghai Pudong airport or Hongqiao Airport. We warmly welcome all our clients from home or abroad to visit us!



Q: What is the difference between SUCCESS ENGINE  and GooDSeaA?

A: SUCCESS ENGINE is the mother company, GooDSeaA is sub-company and focus on centrifugal air compressor, vacuum pump, air blower.

Q: What is your after-sale service?

A: The guarantee period is 12 months from the date of the installation or 15 months from the day of delivery. We will take full responsibilities for the charges caused by the defects during the guarantee period.
