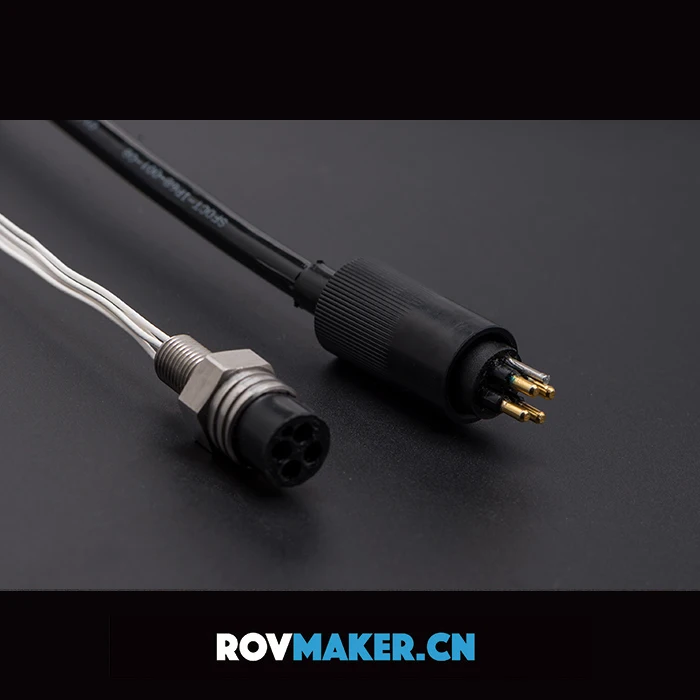

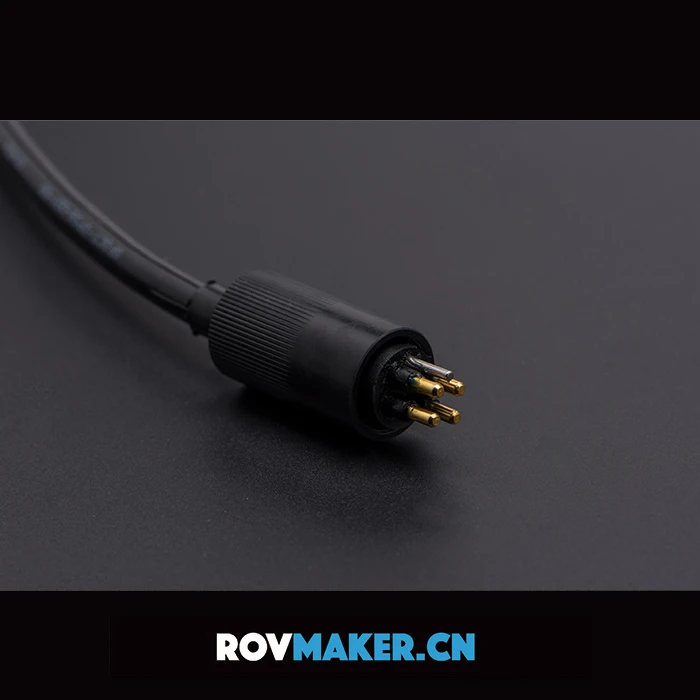

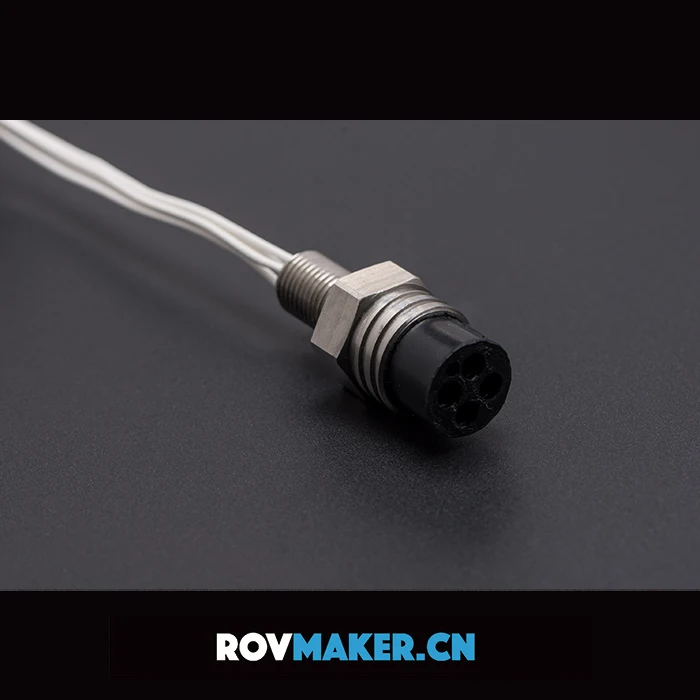

Rovmaker Underwater Electrical Wet-mate Connectors of Ip 68 Waterproof Marine Wire BNC Connector
PRODUCT TECHNICAL FEATURES
2. High seawater corrosion resistant stainless steel shell material.
3. Standard pin and hole position distribution, 7/16"-20 UNF tail thread, can be exchanged with different brands of the same model.
PRODUCT SPECIFICATION
STRUCTURE | MATERIALS AND SPECIFICATIONS |
Main | The seawater corrodes stainless steel |
Install screw | 7/16-20 UNF thread length is 15/19mm |
Socket head | Neoprene (special mixing rubber for underwater connector) |
Contact Pin | Gold-plated copper alloy, American standard pin |
Positioning pin | 303 stainless steel (2 needle Ø 3.2, 3/4 needle Ø 2, 5/6/8 needle don't need) |
O-rings | Nitrile rubber, the imported o-rings, parker 2-014, Ø 12.42 x 1.78 |
Locking lid | Polyformaldehyde resin (POM) |
Cable plug body | Special polyether |
Install line | Teflflon, silver-plated pure copper. |
End cap | Neoprene (special mixing rubber for underwater connector) |
Cable plug | Pressure-resistant seawater special cable. |
______________________________________________________________________________________________________________________
TECHNICAL PERFORMANCE
ITEM | RATING VALUE |
Depth | 0~1000 meters |
Voltage | 300V (resistance to voltage is greater than 1500V 60s) |
Working current | 2A~16A |
Insulation resistance | > 1000 m Ω (room temperature) |
Wet insertion frequency | > 500 times |
Working temperature | (-4~60)°C |

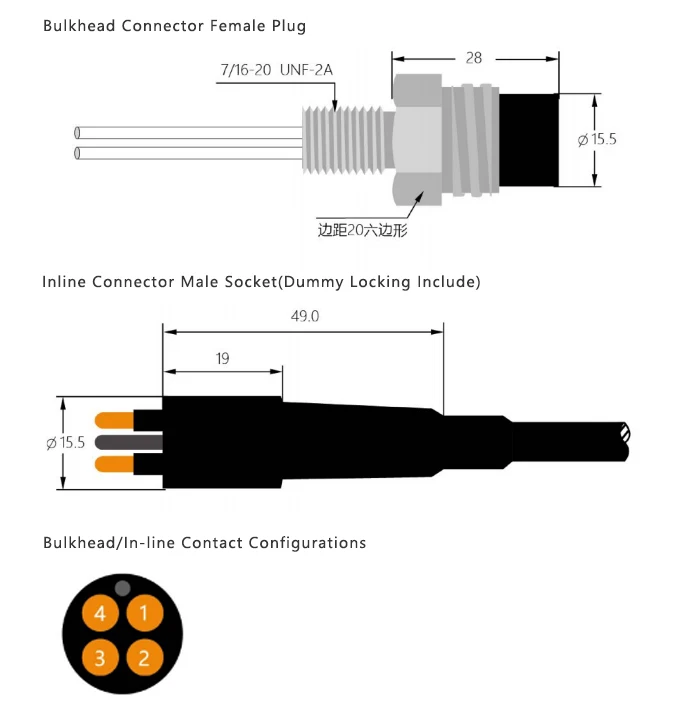

DIMENSIONED DETAILS
PRECAUTIONS
* Always apply grease before mating.
* Disconnect by pulling straight, not at an angle.
* Disconnect by pulling straight, not at an angle.
* Do not pull on the cable and avoid sharp bends at cable entry.
* When using a bulkhead connector, ensure that there are no angular loads.
* All kinds of connectors should not be exposed to extended periods of heat or direct sunlight.
* When using a bulkhead connector, ensure that there are no angular loads.
* All kinds of connectors should not be exposed to extended periods of heat or direct sunlight.
* Connectors must be greased with Molykote 44 Medium(recommended brand) before every mating.
* A layer of grease corresponding to minimum 1/10 of socket depth should be applied to the female connector.
* The inner edge of all sockets should be completely covered, and a thin transparent layer of grease left visible on the face of the connector.
* After greasing, fully mate the male and female connector in order to secure optimal distribution of grease on pins and in sockets.
* To confifirm that grease has been suffificiently applied, de-mate and check for grease on every male pin. Then re-mate the connector.
* Connectors must be greased with Molykote 44 Medium(recommended brand) before every mating.
* A layer of grease corresponding to approximately 1/3 of socket depth should be applied to the female connector.
* All sockets should be completely sealed, and a transparent layer of grease left visible on the face of the connector.
* After greasing, fully mate the male and female connector and remove any excess grease from the connector joint.
Cleaning
* General cleaning and removal of any accumulated sand or mud on a connector should be performed using spray based contact cleaner (isopropyl alcohol).
* New grease must be applied again prior to mating.
Use of loctite
For locking metallic connectors, the use of Loctite 243 is recommended.
INSTALLATION REQUIREMENTS
1. End surface roughness requirements Ra1.6 in the diameter of the screw hole around 25mm when threaded hole installation.
2. Hole diameter should be between Ø 11.2 ~ Ø11.4 mm and roughness requires Ra1.6 in the diameter of the screw hole around 25mm when through-hole installation.
3. Before installing ,make sure to apply a thin layer of silicone oil to the o-ring, not too thick.

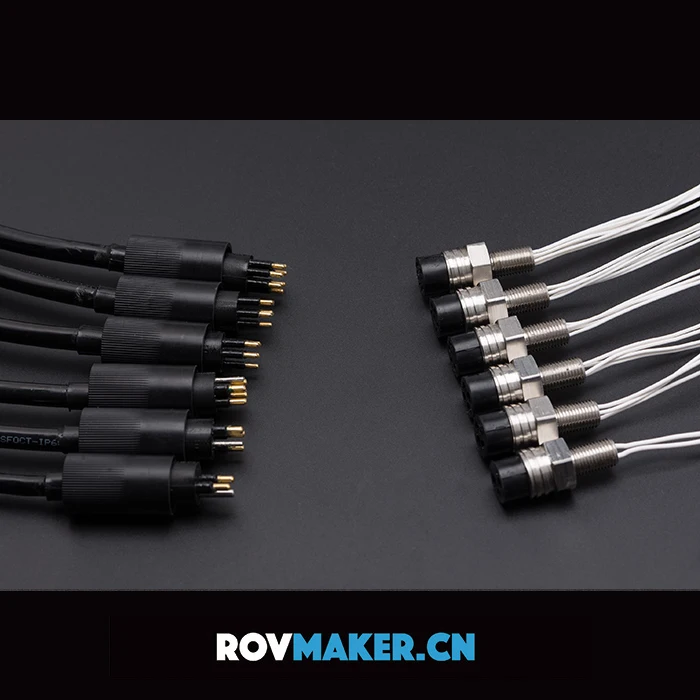

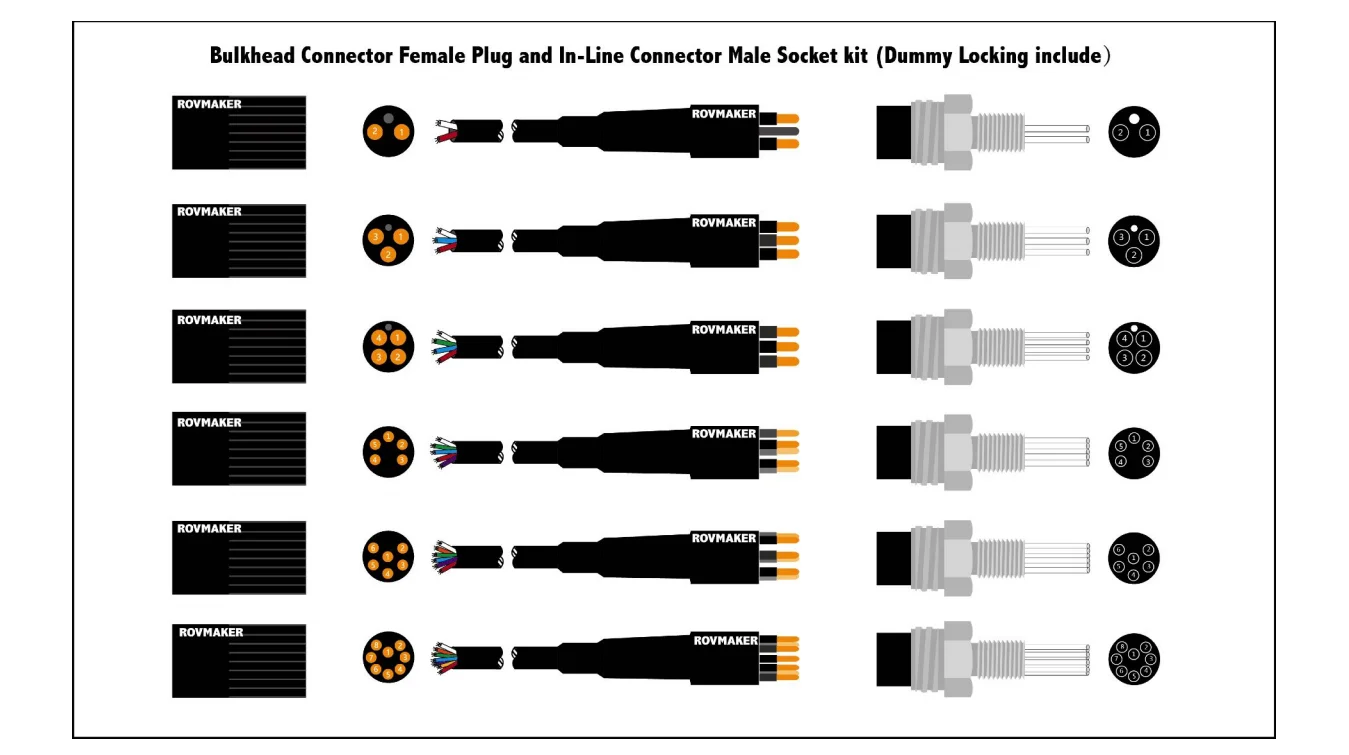

MORE PINS
PRODUCTION
PACKAGING DELIVERY
Each Kit Contents
- Bulkhead connector female plug (4pin) * 1
Packaging
- Special Carton for International Logistics
Shipping
- We provide the following express
- Bulkhead connector female plug (4pin) * 1
- Inline connector male socket (4pin) * 1
- Dummy locking * 1
- Dummy locking * 1
Packaging
- Special Carton for International Logistics
Shipping
- We provide the following express
