Product Description


Rack type APF active power filter

APF active power harmonic filtersZDDQ Series APF is connected in parallel with non-linear loads, and uses one set of current transformers (CT) to detect the load current. It calculates each order harmonic current by FFT algorithms in its DSP microchips, and then generates a compensating current with the same amplitude but opposite phase angles to the detected harmonic current, which cancels out the original load harmonics.The ZDDQ series APF not only eliminates harmonic current from the load side, but it also mitigates harmonic voltage caused by harmonic currents. The APF system can also improve power factor (PF) and correct load imbalances in the power system.





AHF Structure
ZDDQ Series APF has a modular design. Usually active power filter system consists of one or several APF modules and an optional Liquid Crystal Monitor & Control Panel (LCM). Each APF module is an independent harmonic filtering system, and users can change the harmonic filtering system rating by adding or removing APF modules.According to the mounting type, ZDDQ series APF can be divided into Modular APF and Wall-mounted APF.

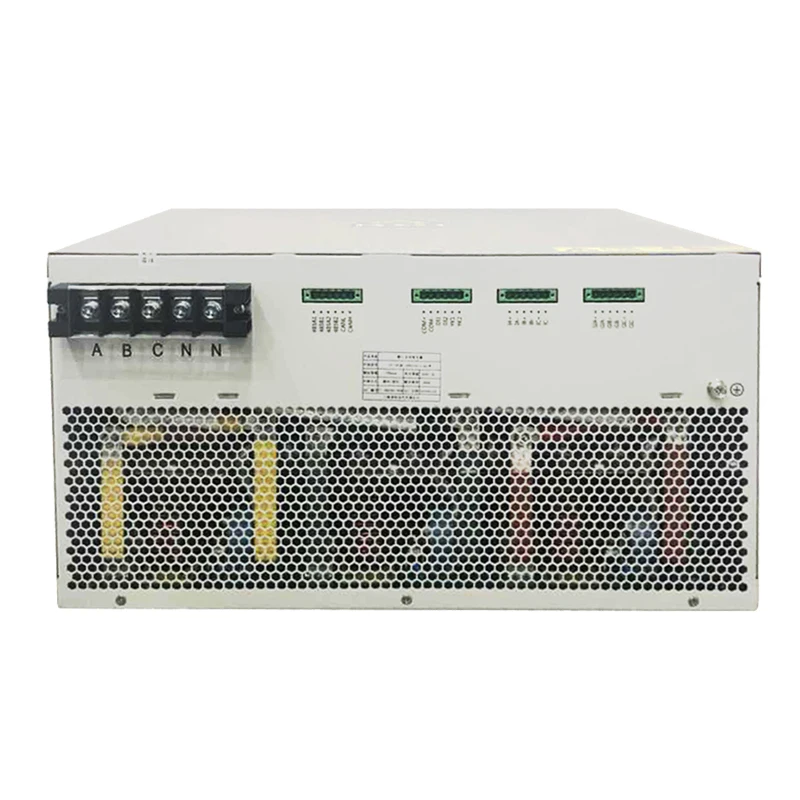

Wall Mounted AHF Module

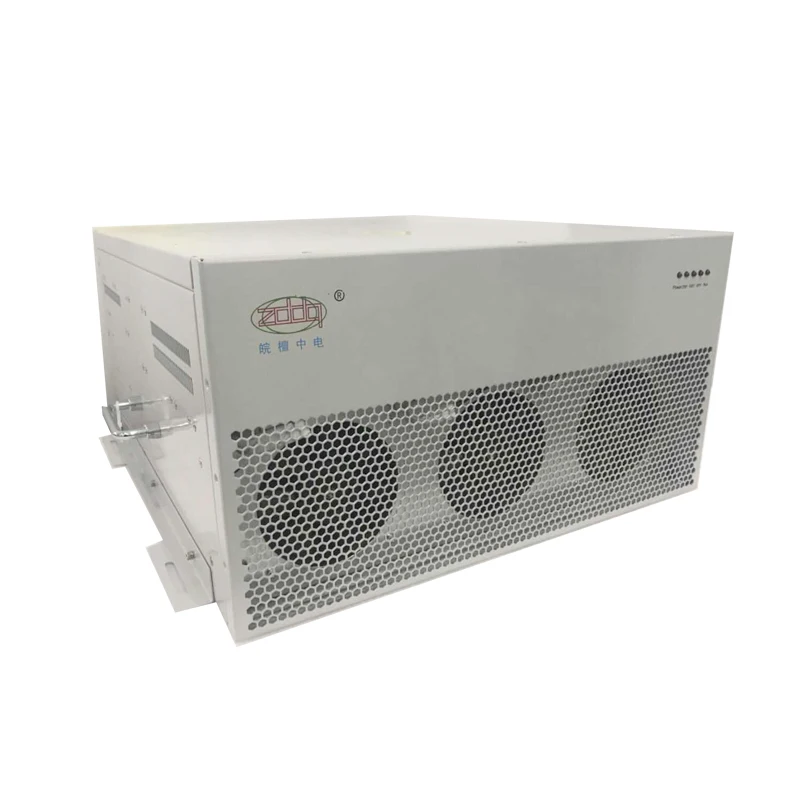

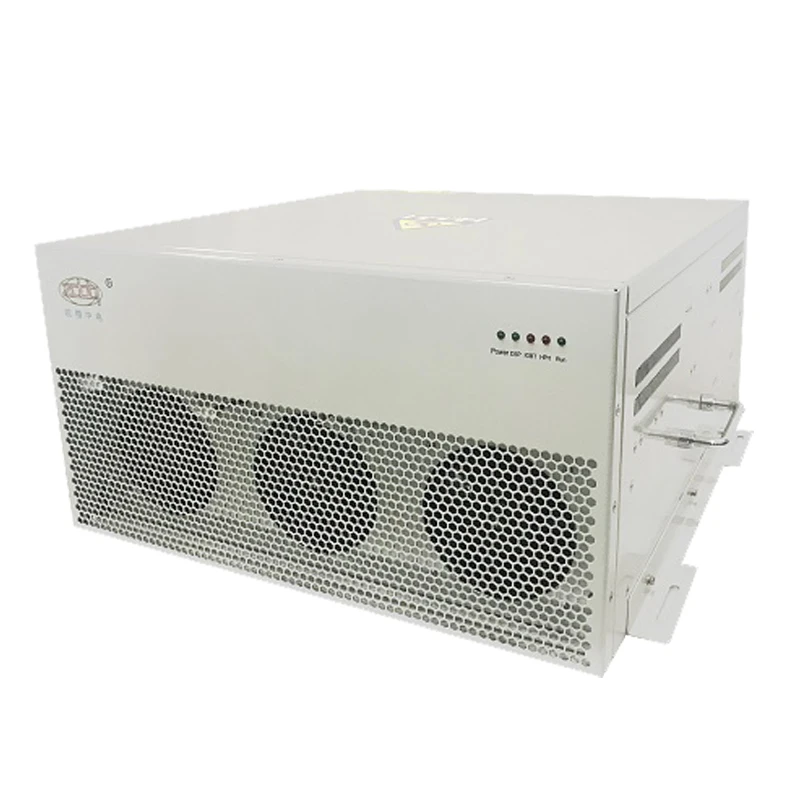

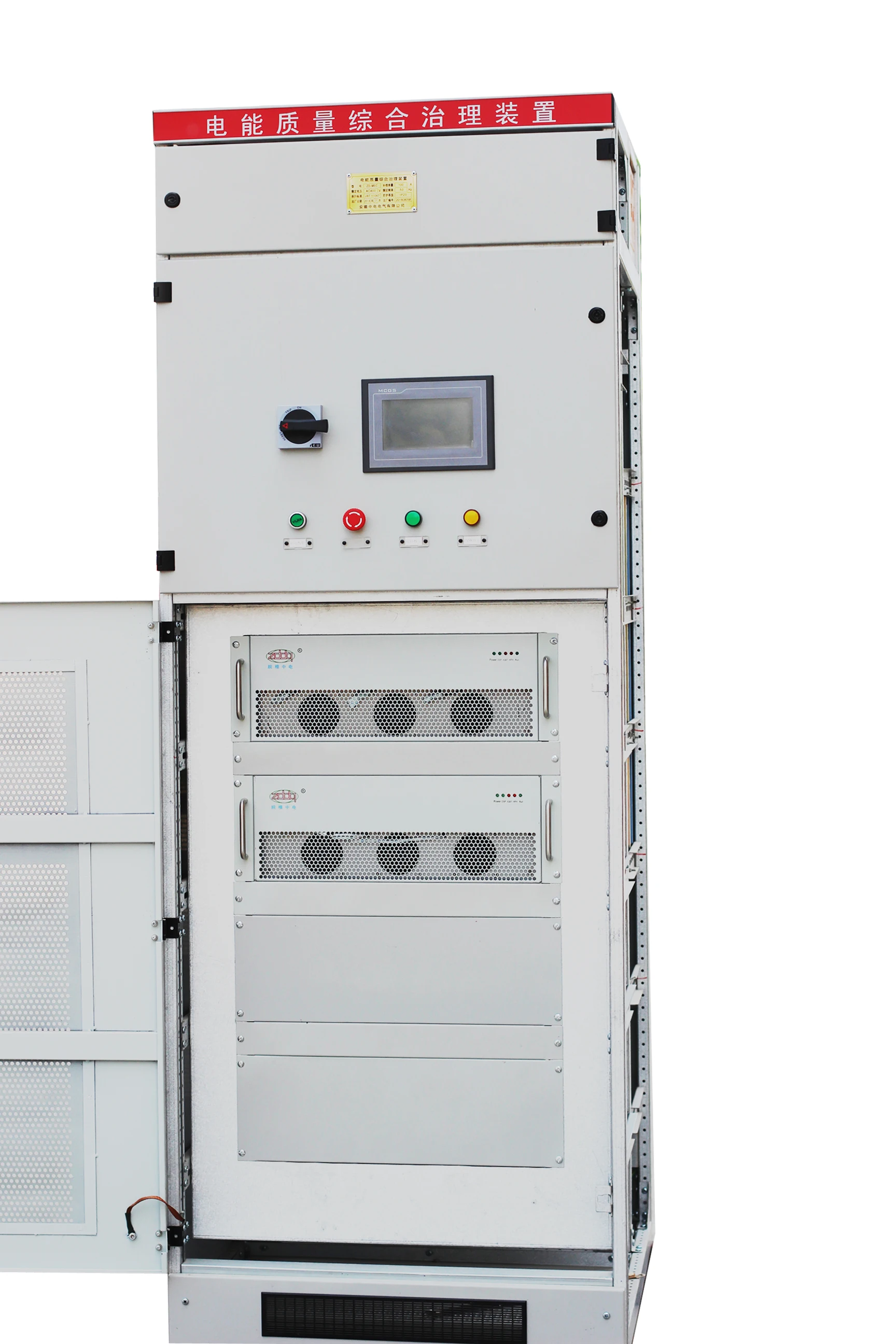

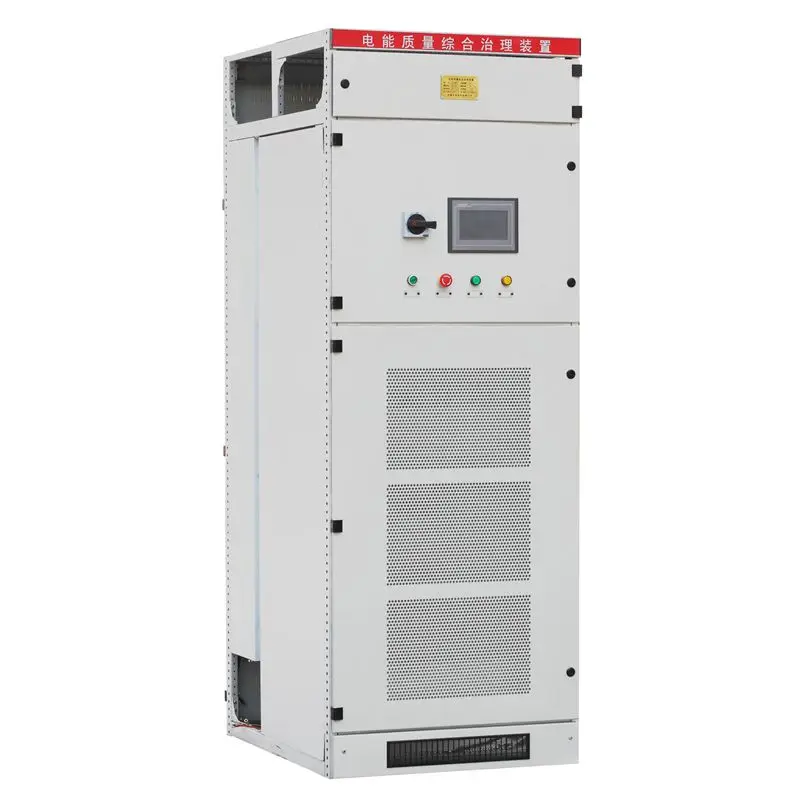

Rack Type Active Harmonic Filter Panel










Electrical properties
Rated voltage
AC, low voltage
Operating frequency
50Hz/60Hz
Electrical connection
Three-phase four-wire
Filter range
2~50-order harmonics (the order can be chosen)
Filtering control effeciency
Harmonic filtering rate ≥85%; THDi<5% after systematic control
Compensation current of each cabinet
30~600A
Compensation mode
Including: Harmonic compensation, reactive compensation, and three-phase load unbalance compensation function; one or more compensation modes could be set.
Three-phase unbalance compensation effect
The degree of unbalance of three-phase active current of the system is less than 5% after compensation within the rated capacity.
Response time
<7ms
Active loss of system
<3%
Output current limit
Automatically limited within 100% of rated capacity to output
Number of units connected in parallel
≤10 units (single CT)
MTBT
>100,000 hours

Control characteristics
Controller
IGBT
Control algorithm
Self-adaptive control algorithm
Communication mode
Adopt Modbus remote communication protocol; communication interface adopts RS485 and CAN bus, supporting mobile phone APP operation.

Structural characteristics
Level of protection
IP20
Noise
<60db (<45db during low-speed operation)
Installation method
Module embedded installation

Environmental requirements
Ambient temperature
-20~55℃
Relative humidity
Maximum 95%, without condensation
Altitude above sea level
≤1,500m at rated capacity;


Design Scheme


Data Required For Design1.Rated voltage of power system
2.Total volume of harmonic needed for compensation within power system
3.Compensation capacity required by power system
4. Installment requirements and cable arrangement




Features


AHF power quality analysis and solution equipment

◆High harmonic filtering rate: Up to 98%.

◆Multifunctional: Harmonic, reactive power and imbalance compensation.

◆Dynamic Excellent imbalance correction: Both negative and zero sequence, mitigates neutral current.

◆Wide input voltage & frequency range, adapts to tough electrical environments.

◆Low thermal loss (≤3% of rated APF kVA), efficiency ≥ 97%.

◆High stability: Infinite impedance to grid, avoids harmonic resonance problems.

◆Flexible application: Modular design, embedded in standard or customized cabinet.

◆Complete protection: Grid Over/Under voltage, APF over current, over temperature, and more. All faults are recorded in the event log, which is convenient for failure analysis.


Our Service


Improve power quality, power solution expert.
◆High/Low voltage reactive power compensation device
◆High/Low voltage Active power harmonic filter
◆SVG reactive power compensation Device
◆Static Var Generator Module/APF(AHF)Module
◆Hybrid Reactive power compensation device(SVG+TSC, SVG+ Compound switch)
◆Comprehensive Reactive power compensation Device(SVG+APF)
◆Switchgear
◆Over Voltage protection Device
◆Electrical Instruments



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

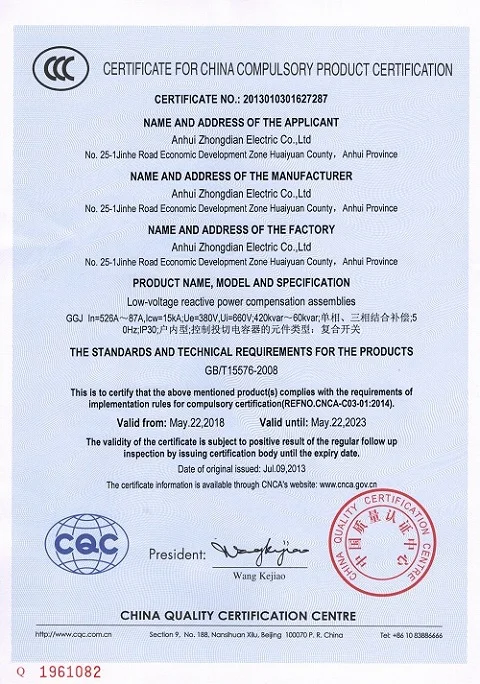

Certifications




Why choose us


1. One-stop supplier globally.
2. Nearly 20 years professional experiences in electrical appliance industry.
3. Professional online technology support for perfecting your power energy solution free.
4. Experienced sales service,oompetive price.
5. Reliable quality and warranty assurance: 12 month or more
5. Whatever big or small order, we can provide you one-to-one service.
6. Based on mutural benefit,creat  win-win business and long relationship .

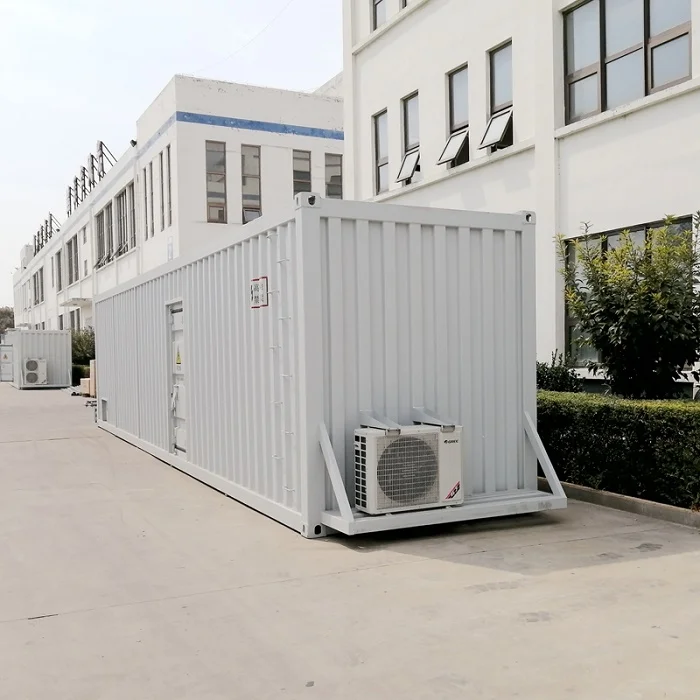

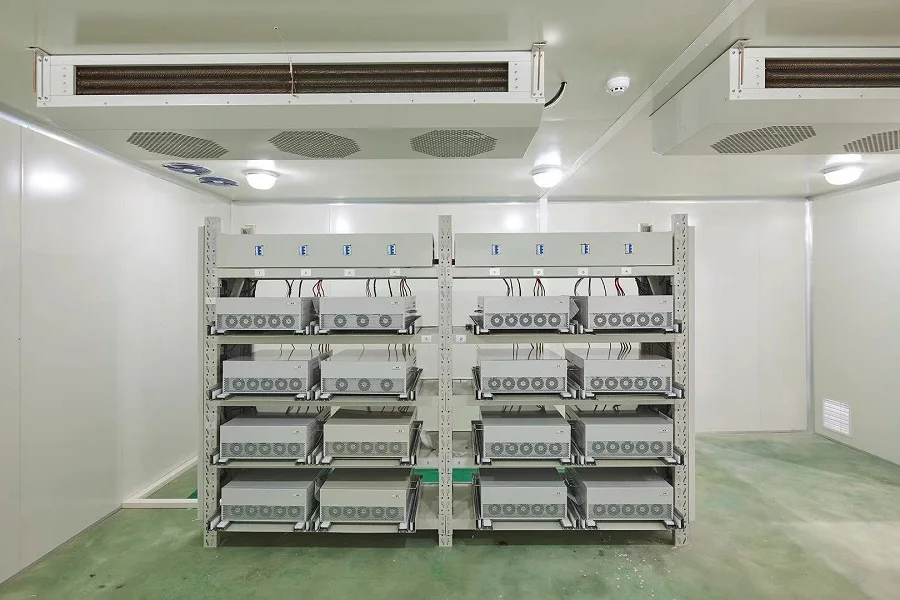

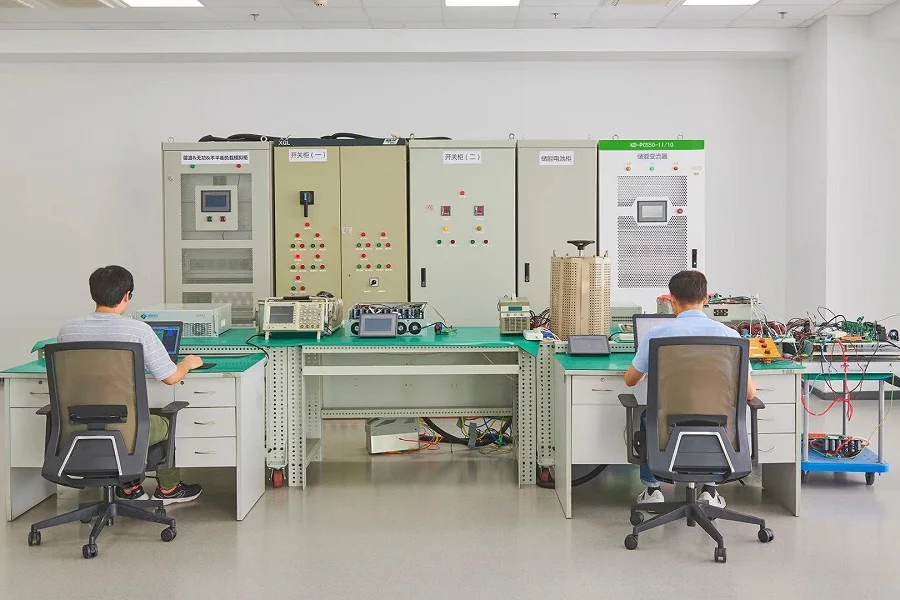

Factory
