DPB 320 Flat plate medical tablet blister packing machine
- Category: Blister Packaging Machines >>>
- Supplier: Shenzhen Nuoya Pharmaceutical Equipment Co. Ltd.
Share on (62345688413):
Product Overview
Description

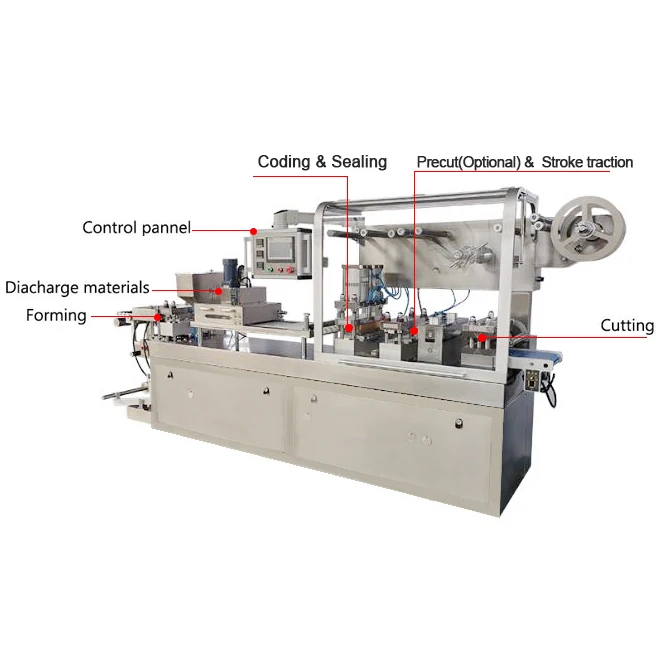

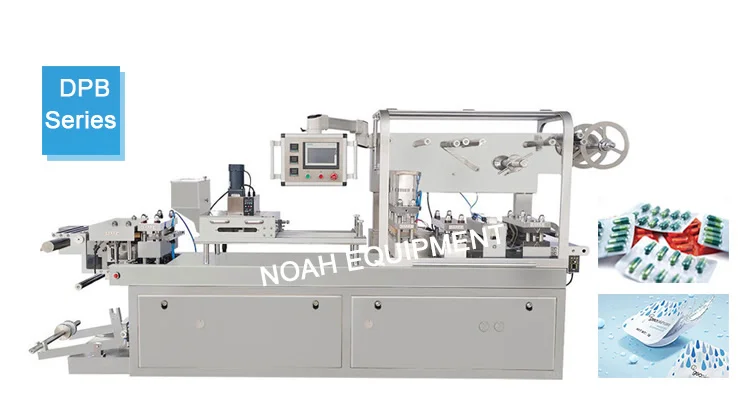

DPB-320 Flat-plate medical tablet blister packing machine
Products Description

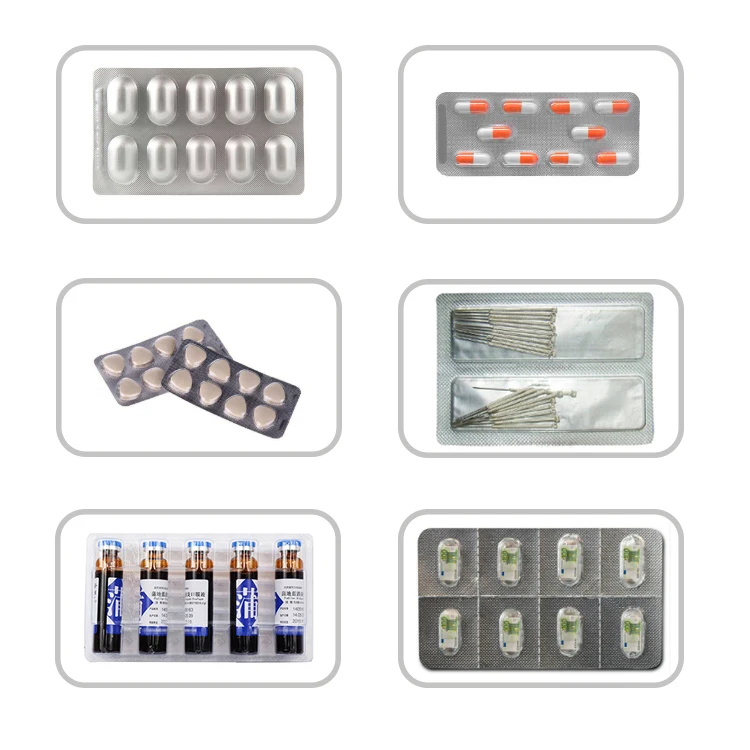

Our machine is a latest high-precision medicine packing machine in current pharmacy industry. it is widely used for packing capsule, tablet, honey pills in pharmaceutical industry, for milk tablet, candy, chocolate in food industry. it is also widely used in electron or hardware industry as all kind of shapes of ALU-ALU, ALU-Plastic, paper-plastic combined sealing packing.
Applications:
1.The key electric appliance of this machine adapts PLC processor, temperature modular, touch screen to operate.
2.It can be equipped with cursor device etc. as customer's requirement.
3.Forming, sealing, slitting etc. parts are all could be adjust freely on the track with triangle string and flat string,
strongapplicability.
4.Stroke can be adjust freely, widely used, ease of operation, stable running.
Applications:
1.The key electric appliance of this machine adapts PLC processor, temperature modular, touch screen to operate.
2.It can be equipped with cursor device etc. as customer's requirement.
3.Forming, sealing, slitting etc. parts are all could be adjust freely on the track with triangle string and flat string,
strongapplicability.
4.Stroke can be adjust freely, widely used, ease of operation, stable running.
Model | DPB-320 | |||
Cutting Frequency(times/min) | 20-50 times/min | |||
Capacity (strip/h) | 15000 strip/h (standard blister sheet 80*57) | |||
Max shaping areas and depth(mm) | 320*160*26mm | |||
Stroke(mm) | 20-120(can be manufactured as user's requirements) | |||
Standard Sheet(mm) | 80*57, 80*35, 95*65, 105*42, 105*55mm(can be manufactured as user's requirements) | |||
Air Pressure(kw) | 0.5-0.7 Mpa 0.2m3/min | |||
Total power | 380V/220V 50Hz 8kw | |||
Pressure(kw) | 1.5 kw | |||
PVC hard pieces(mm) | 0.15-0.5*320 | |||
PTP Aluminum Foil(mm) | 0.02-0.035*250 | |||
Dialysis Paper(mm) | 50-100g*320 | |||
Mould Cooling | tap water or recycled water | |||
Overall Dimensions(mm) | 2910*820*1600mm | |||
weight | 2200kg |
