CNCHK-7 is perfect for the professional foam producers, except the 2 sides margin, there is no need to waste other sides, as it can cut continuously.
Weight(T)
2.0
8Full Power
10KW,380V,50HZ
Size(mm)
2100*3200*2000
Max foam size(mm)
∞*2300*1300
Blade size(mm)
2500*3*0.5
Servo system(r/min)
2400-2800
Max cutting Speed(m/min)
0-6.3
Admissible error(mm）
±0.5
Min cutting size(mm)
5
Technical Data
Weight(T)
2.0
Type of CNC
Industrial computer
Full Power
8KW,380V,50HZ
Display
LCD
Size(mm)
2100×3200×2000
Controlling module
Motion controlling card
Max foam size(mm)
∝×2300×1300
Operation system
Window 2000 or above
Blade size(mm)
2500×3×0.5
Programmable axis
X,Y,Z,φ
Servo system(r/min)
2400-2800
Step motor torque(N.M)
20
Max cutting Speed(m/min)
0-6.3
Min cutting radius(mm)
10
Admissible error(mm)
±0.5
Self-test system
Installed
Min cutting size(mm)
5
Blade alert
Installed

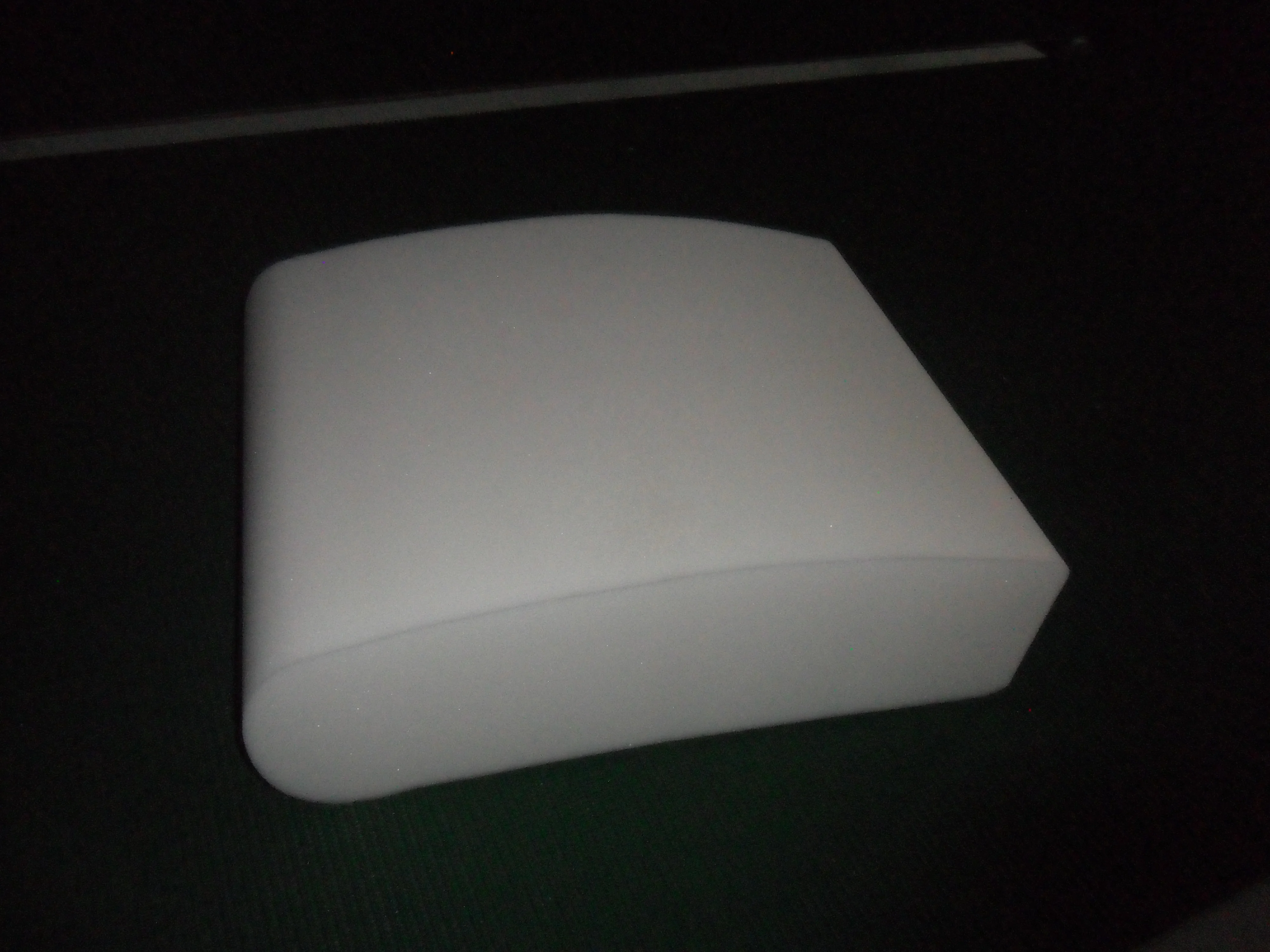

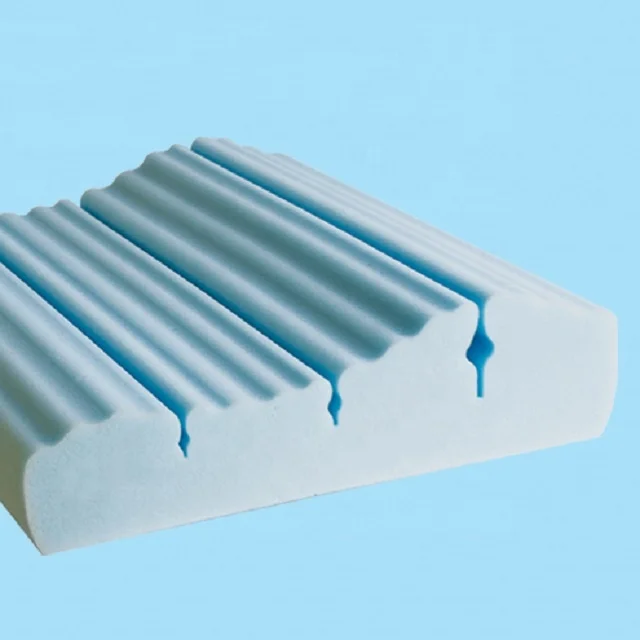

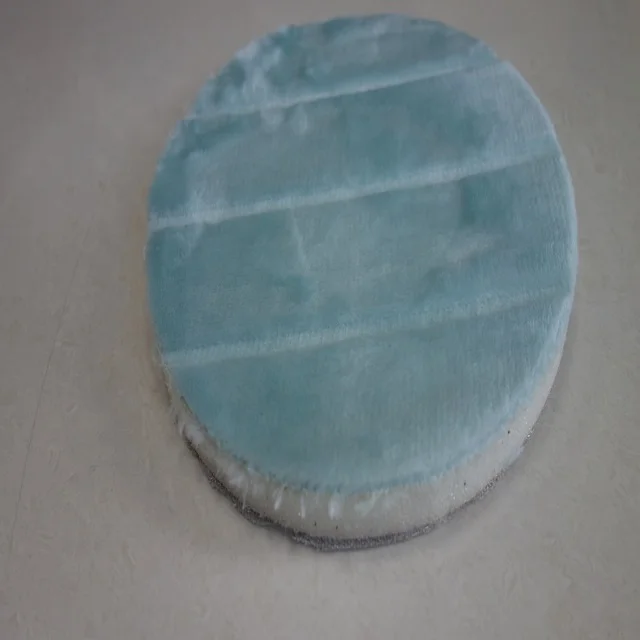

Detailed Images

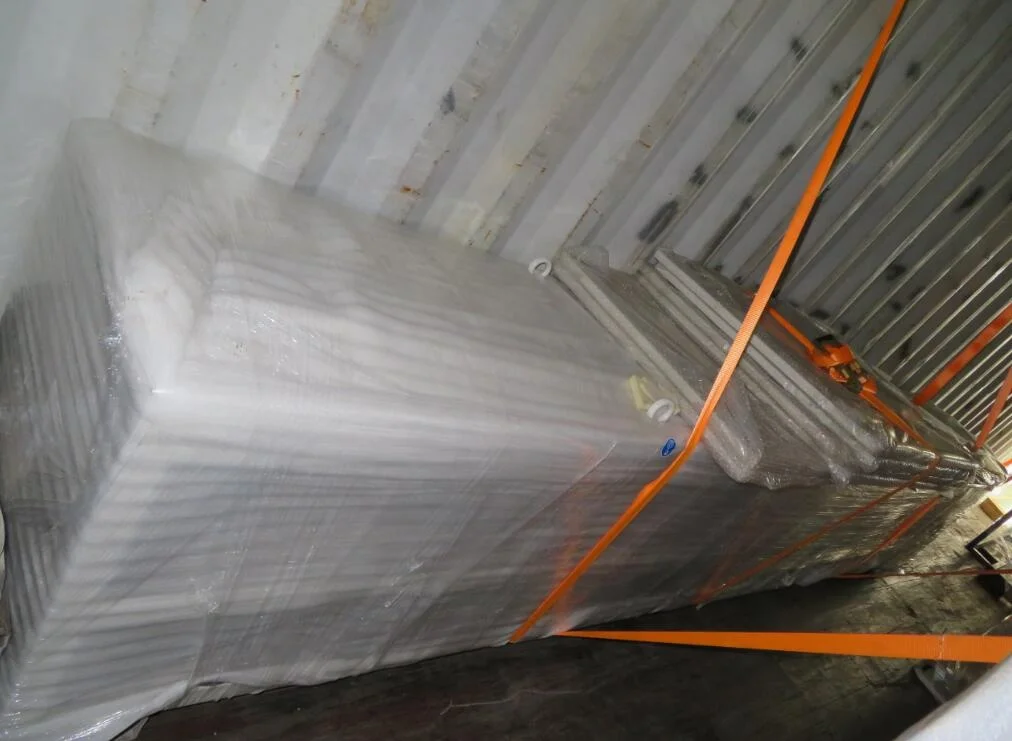

Packing&Shipping

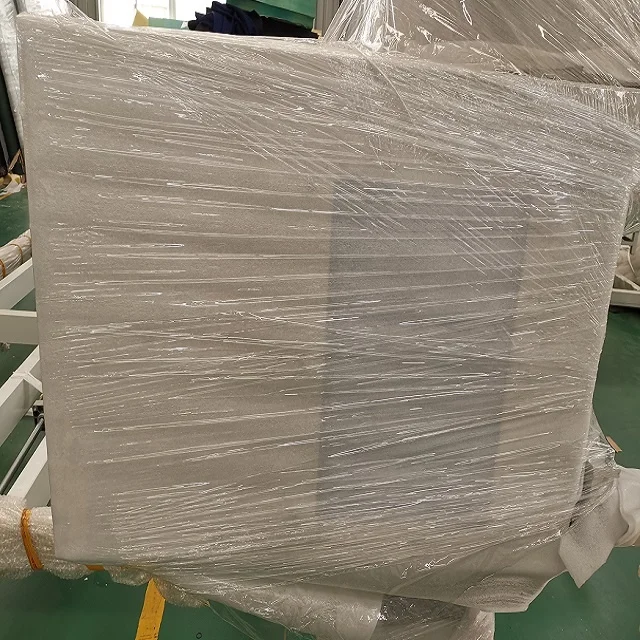

Packaging Details:Protective film + Corrugated paper + Metal frame+Wooden case.
Related Products
Company Introduction
Nantong Healthcare Machinery Co., Ltd was founded in 2007, specializing in research, design and manufacture of CNC contour cutting equipment. It is one of the first professional companies to do extensive research and development to produce Oscillating blade foam cutting machinery for the professional foam conversion. Due to the continues improvement of our existing equipment as well as new development of state of the art machinery, Nantong Healthcare Machinery Co., Ltd has won numerous national patents for their innovative ideas. Healthcare CNC cutting machines are valued by our international customers of whom many are at the top of their industry in foam conversion. Since it was introduced in the market in 2007 the number of customers has grown rapidly and it has been the number 1 selling equipment for 10 consecutive years. The Oscillating Blade and Continuous Blade Machines incorporate exceptional engineering design that provides for smooth, fast and efficient processing of blocks (regular foam, memory foam, latex and very hard foam) in minutes. All the machines are designed to require only one operator eliminating additional manpower. Operators all over the world appreciate the ease and usability of the Healthcare Software. Most existing files can be easily and quickly converted to DXF files making them suitable for processing foam blocks. Their System Cut Check will monitor and correct the load on the servo motors by checking for phase errors. The program will be automatically corrected adding life to the motors and increasing blade life.
