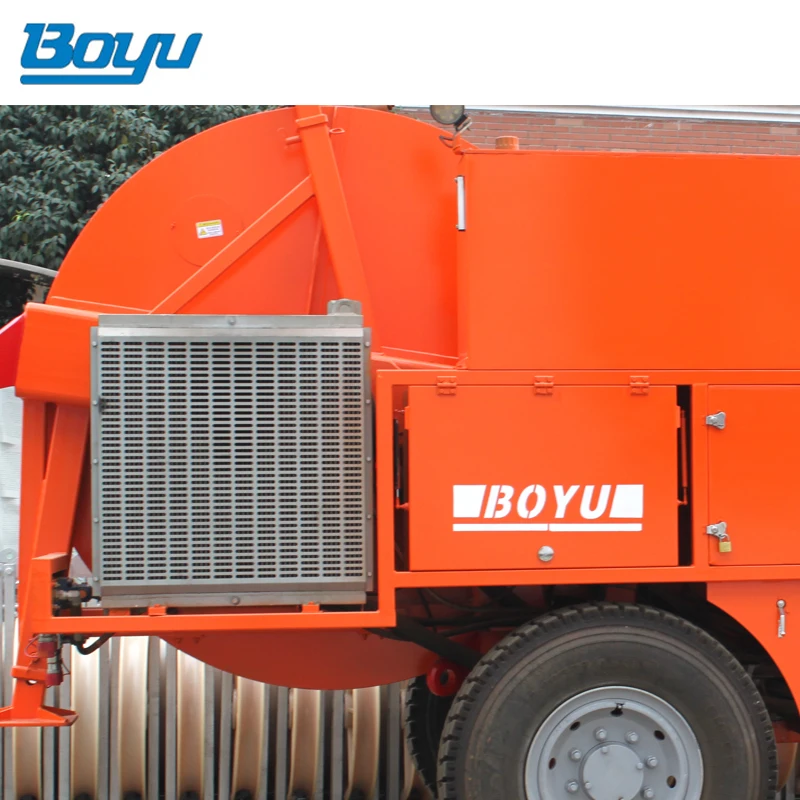

Cable Tensioners Stringing Equipment Hydraulic Conductor Tensioner
Product Description

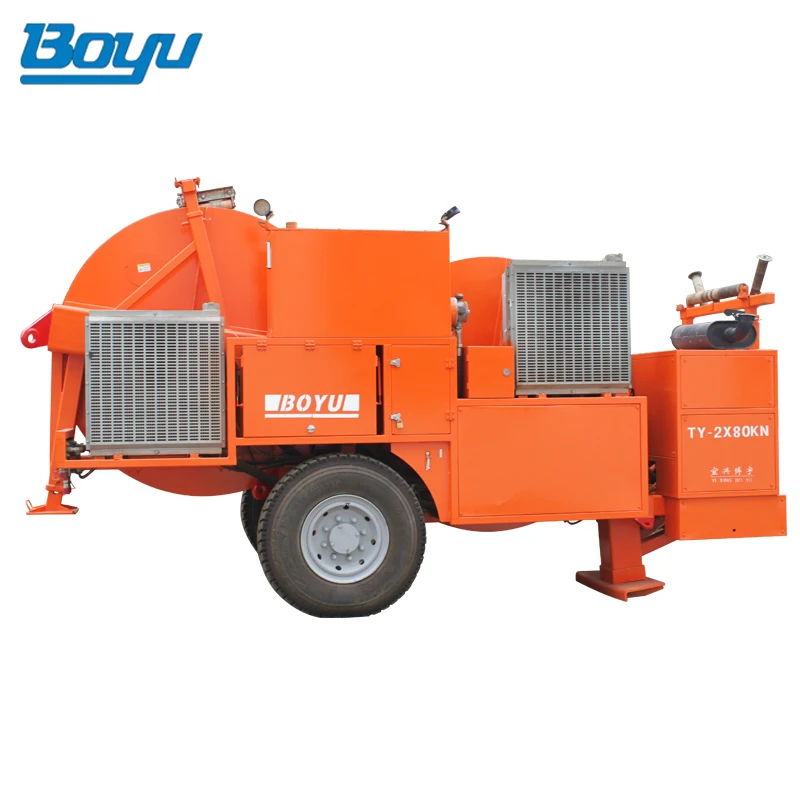

TY2x80 Hydraulic Tensioner
The machine allows for the tension stringing of twin-bundle conductor of 1000mm2 in flat lands; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Performance
- Max tension: 2x100kN / 1x200kN
- Rated tension: 2x80kN / 1x160kN
- Speed at max tension: 2.5km/h
- Max feeding speed: 5km/h
- Pull at max speed: 2x40kN/1x80kN
- Max reverse pulling force: 2x40kN/1x80kN
- Max reverse pulling speed: 3km/h
Characteristics
- Bull-wheel diameter: 1850mm
- Groove number: 2x6
- Max conductor diameter: 48.75mm
- Total weight: 10000kg
- Overall dimension (length*width*height):5520×2280×2850mm
Main configuration
- Engine: Cummins
- Hydraulic pump: German Rexroth/Dnish Danfoss
- Main motor: German Rexroth/French Leduc
- Speed reducer: German Rexroth
- Hydraulic meter: German WIKA
- Operating handle: German Rexroth
Engine
- Diesel: 97kw(130hp)
- Cooling system: Water
- Electrical system: 24V
Hydraulic Transmission
- The machine can realize step less speed.
- The machine is provided with tension presetting system.
Configuration
- 2 negative self-acting hydraulic brakes
- 2 hydraulic dynamometers
- Hydraulic oil cooling system
- 2 digital meter counters
- 2 digital speed meters
- Control instruments for hydraulic system and diesel engine
- Rigid axle for towing at max speed of 30km/h with mechanical parking brake
- Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
- Grounding connection point
Additional Devices
- Lighting system for the trailer

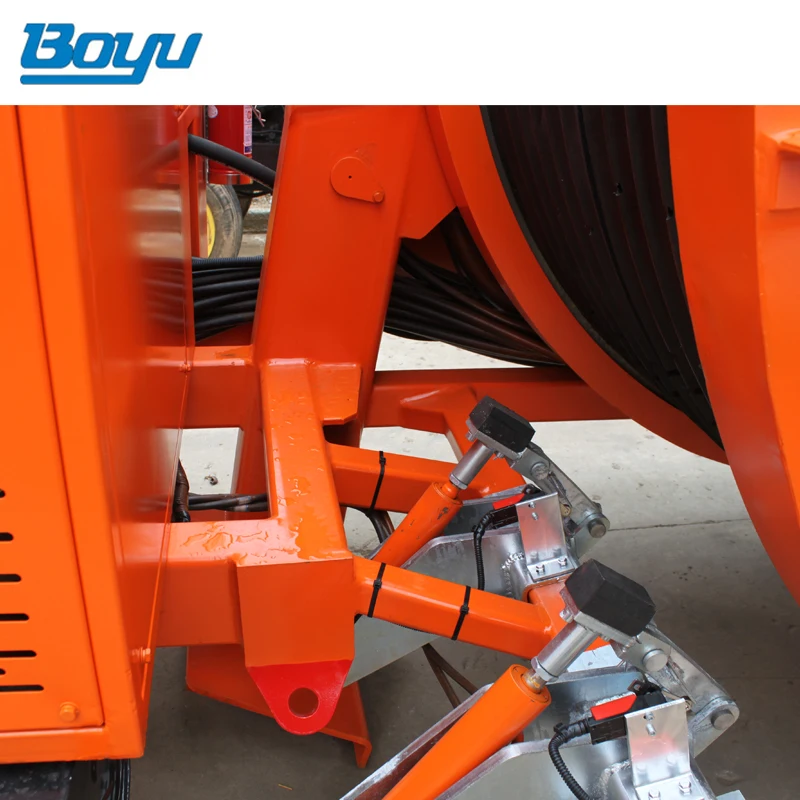

- 2 hydraulic rope/conductor clamp(extra charge)
- Swivel guide rope roller
- Trailer for towing at max speed of 30 km/h
- Digital speed and meter counter
- Air brake system for the trailer

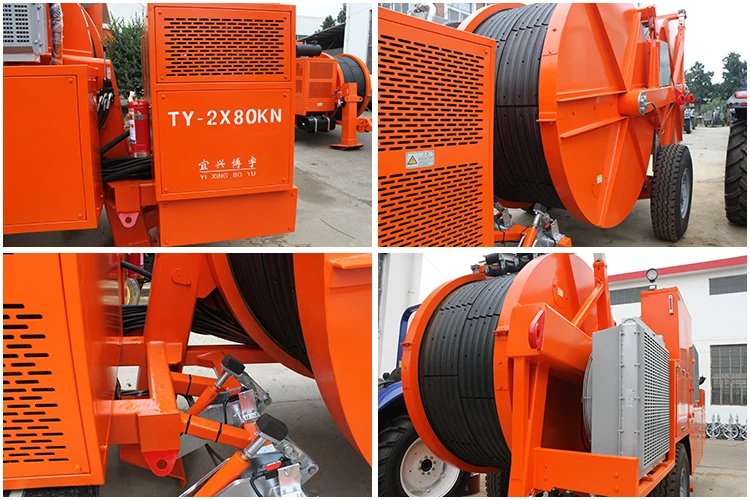

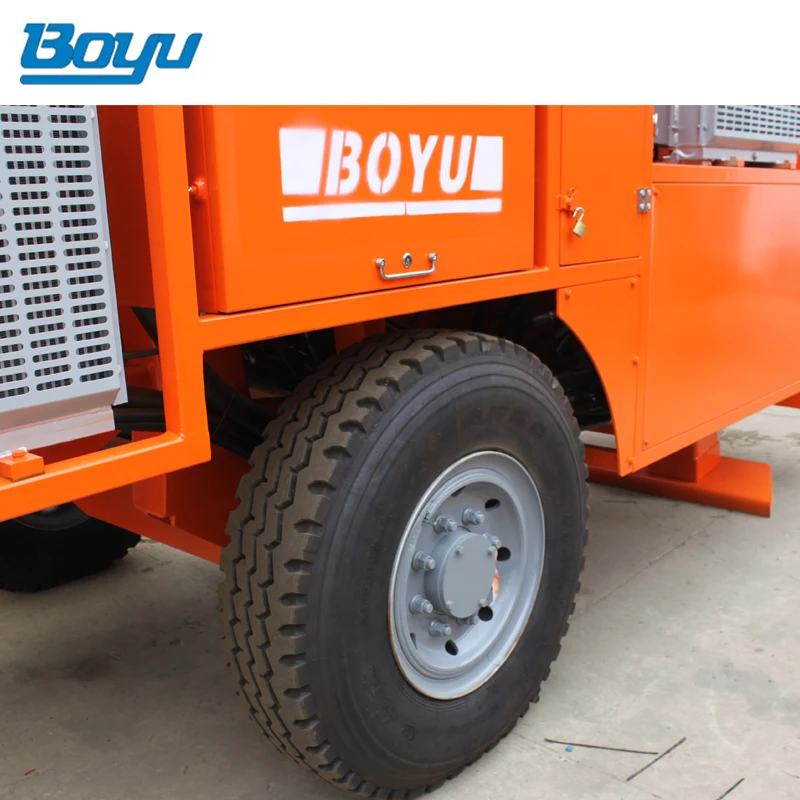

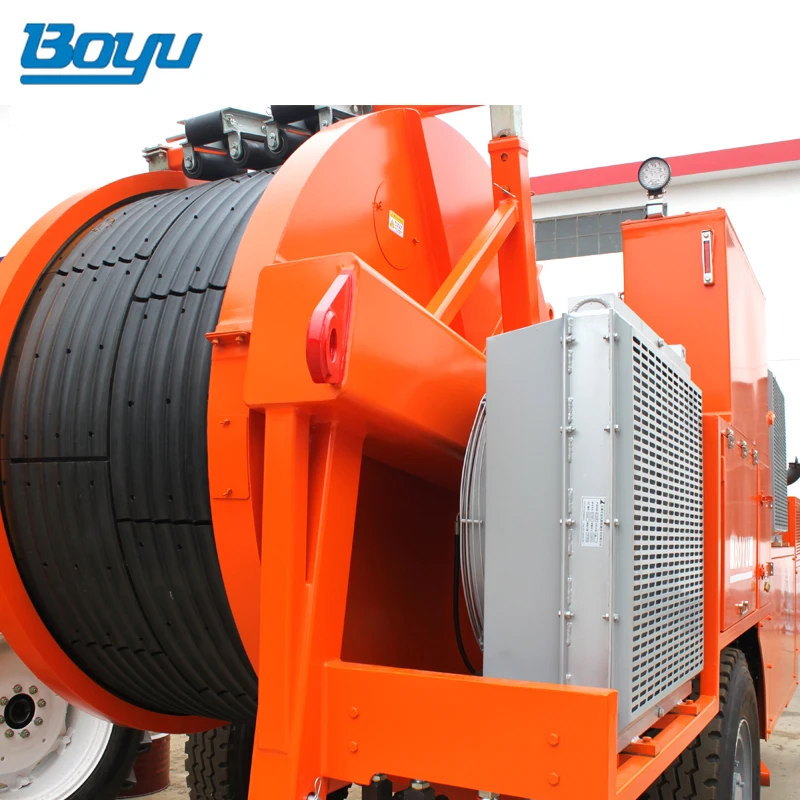

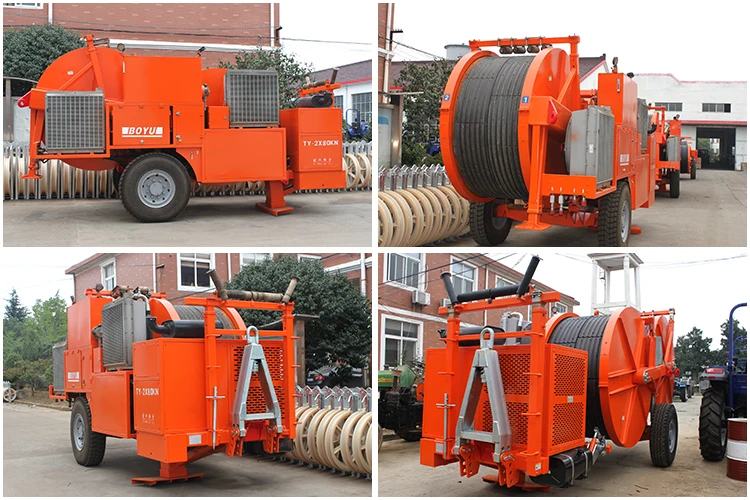

Product Show
Other Models
| Model | Max intermittent tension | Max continuous tension | Speed at max tension | Max speed | Tension at max speed | Max reverse pulling force | Max reverse pulling speed | Diesel | Cooling system | Electrical system |
| kN | kN | km/h | km/h | kN | kN | km/h | kw(hp) | V | ||
| TY1X7.5 | 7.5 | 2.4 | ||||||||
| TY1X20 | 20 | 5 | ||||||||
| TY1X20II | 20 | 4 | ||||||||
| TY1X20III | 20 | 2.5 | 5 | 10 | 15 | 10kw (3600rpm) | Air | |||
| TY1X30D | 30 | 2.5 | 5 | 15 | 20 | 18(25) | 12 | |||
| TY1X30 | 30 | 2.5 | 5 | 15 | 20 | 12(16) | 12 | |||
| TY1X40 | 45 | 40 | 2.5 | 5 | 20 | 35 | 77(103) | Water | 24 | |
| TY1X50 | 50 | 40 | 2.5 | 5 | 25 | 45 | 2.4 | 77(103) | Water | 24 |
| TY1X60 | 70 | 60 | 2.5 | 5 | 35 | 50 | 5 | 77(103) | Water | 24 |
| TY1X60III | 70 | 60 | 2.5 | 5 | 30 | 60 | 2 | 77(103) | Water | 24 |
| TY1X70 | 70 | 60 | 2.5 | 5 | 35 | 50 | 2.4 | 77(103) | Water | 24 |
| TY1X70II | 75 | 70 | 2.5 | 5 | 75 | 2 | 25(34) | Water | 24 | |
| TY1X80 | 100 | 80 | 2.5 | 5 | 40 | 70 | 3 | 97(131) | Water | 24 |
| TY1X80III | 1x90 | 1x80 | 2.5 | 5 | 1x50 | 1x70 | 5 | 77(103) | Water | 24 |
| TY140IV | 1x140 | 1x120 | 2.5 | 5 | 35 | 1x120 | 1.2 | 77(103) | Water | 24 |
| TY2X35 | 2x40/ 1x80 | 2x35/ 1x70 | 2.5 | 5 | 2x20/ 1x40 | 2x30/ 1x60 | 5 | 77(103) | Water | 24 |
| TY2X40 | 2x45/ 1x90 | 2x40/ 1x80 | 2.5 | 5 | 2x20/ 1x40 | 2x35/ 1x70 | 5 | 77(103) | Water | 24 |
| TY2X50 | 2x55/ 1x110 | 2x50/ 1x100 | 2.5 | 5 | 2x25/ 1x50 | 2x45/ 1x90 | 5 | 77(103) | Water | 24 |
| TY2X70 | 2x70/ 1x140 | 2x65/ 1x130 | 2.5 | 5 | 2x25/ 1x50 | 2x60/ 1x120 | 5 | 77(103) | Water | 24 |
| TY2X70IV | 2x70/ 1x140 | 2x65/ 1x130 | 2.5 | 5 | 2x25/ 1x50 | 2x60/ 1x120 | 5 | 77(103) | Water | 24 |
| TY2X80 | 2x100/1x200 | 2x80/1x160 | 2.5 | 5 | 2x40/1x80 | 2x40/1x80 | 3 | 97(130) | Water | 24 |
| TY2X90 | 2x100/ 1x200 | 2x90/ 1x180 | 2.5 | 5 | 2x40/ 1x80 | 2x80/ 1x160 | 2 | 130kw (2500r/min) | Water | 24 |
| TY4X30 | 4x30/2x60 | 4x25/2x50 | 2.5 | 5 | 4x20/2X40 | 4X20/2x40 | 1.25 | 77(103) | Water | 24 |
| TY4X50 | 4x50/ 2x200 | 4x40/ 2x80 | 2.5 | 5 | 4x20/ 2x40 | 4x40/ 2x80 | 1.25 | 77(103) | Water | 24 |
| Model | Bull-wheel diameter | Max conductor diameter | Max optical fiber cable diameter | Groove width | Groove number | Total weight | Overall damension |
| mm | mm | mm | mm | kg | mm | ||
| TY1X7.5 | 1100 | 24 | 21 | 220 | 1 | 850 | 2300*1250*1620 |
| TY1X20 | 1300 | 40 | 21 | 55 | 5 | 1920 | 4080*1930*2300 |
| TY1X20II | 800 | 23 | 45 | 5 | 950 | 2400*1500*1650 | |
| TY1X20III | 800 | 22.5 | 55 | 5 | 1150 | 2500*1500*1700 | |
| TY1X30D | 1300 | 40 | 21 | 60 | 5 | 2400 | 4000*1900*2300 |
| TY1X30 | 1300 | 40 | 21 | 60 | 5 | 2064 | 3700*1950*2150 |
| TY1X40 | 1300 | 40 | 21 | 55 | 5 | 3430 | 4000*2000*2300 |
| TY1X50 | 1300/1500 | 55 | 21 | 68 | 6 | 2400 | 4000*1900*2300 |
| TY1X60 | 1500 | 40 | 65 | 6 | 4800 | 4300*2050*2600 | |
| TY1X60III | 1500/1300 | 55/50 | 18 | 40/35 | 12 | 4000 | 4300*2300*2700 |
| TY1X70 | 1500 | 55 | 21 | 68 | 6 | 3000 | 4500*2200*2300 |
| TY1X70II | 1500 | 40 | 18 | 55 | 10 | 3000 | 4500*2200*2300 |
| TY1X80 | 1850 | 65 | 17 | 68 | 6 | 5200 | 5520*2100*2850 |
| TY1X80III | 1500 | 40 | 3X4 | 6500 | 4700*2300*2700 | ||
| TY140IV | 1500 | 40 | 16 | 10000 | 5500*2280*2700 | ||
| TY2X35 | 1300 | 40 | 2x5 | 4500 | 4300*2250*2700 | ||
| TY2X40 | 1300/1500 | 40 | 2x5 | 6230 | 4300*2250*2700 | ||
| TY2X50 | 1300/1500 | 40 | 2x5 | 6000 | 4700*2300*2700 | ||
| TY2X70 | 1700 | 40 | 2x6 | 7500 | 4700*2300*2700 | ||
| TY2X70IV | 1500 | 40 | 2x8 | 10000 | 5500*2280*2700 | ||
| TY2X80 | 1850 | 48.75 | 2x6 | 10000 | 5520*2280*2850 | ||
| TY2X90 | 1900 | 50 | 2x6 | 7500 | 5400*2300*2700 | ||
| TY4X30 | 1300 | 40 | 4x5 | 11000 | 5900*2300*2500 | ||
| TY4X50 | 1500 | 40 | 4x5 | 13000 | 5900*2300*2700 |
