50l chemical glass reactor Ultrasound Reactor

Product Overview

Description

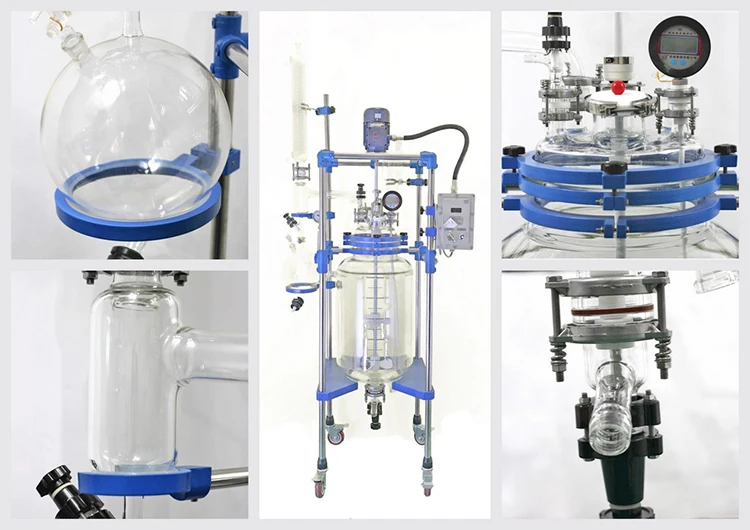

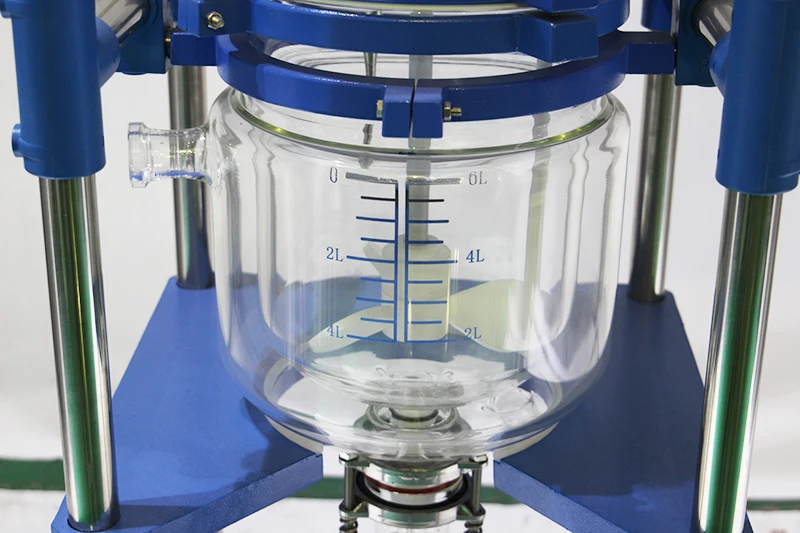

Glass reactor unit has been composed of jacketed glass reactor, coil condenser, water-steam separator, glass collector, stirring driving motor, temperature and pressure measuring meters and electrical control system.

In working process, mixture will be stirred in reactor. At same time, inner space of reactor must be vacuum. When chilling liquid, water and heating medium flows into jacketed layer, mixture will reach chemical reaction conditions. It will start distillation and extraction process.



Glass reactor body	model	FPGR-50
	reactor volume(L)	50
	neck quantity on lid	6
	external diameter of inner vessel (mm)	365
	external diameter of outer vessel (mm)	410
	lid diameter(mm)	265
electrical system	vessel height(mm)	850

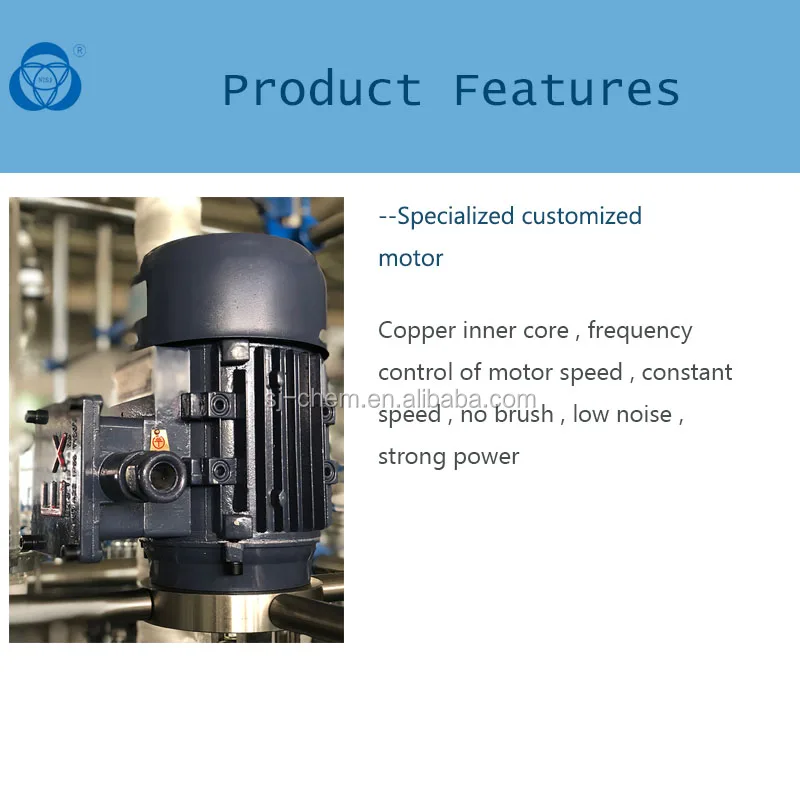

	motor power(w)	180
	rotation speed(rpm)	50-600
	torque(Nm)	2.86
	electrical power(V)	220
vacuum system	vacuum degree (Mpa)	0.098
machine size	L*W*H (mm)	700*500*2,300



FAQ

What are the features of glass reactor work?

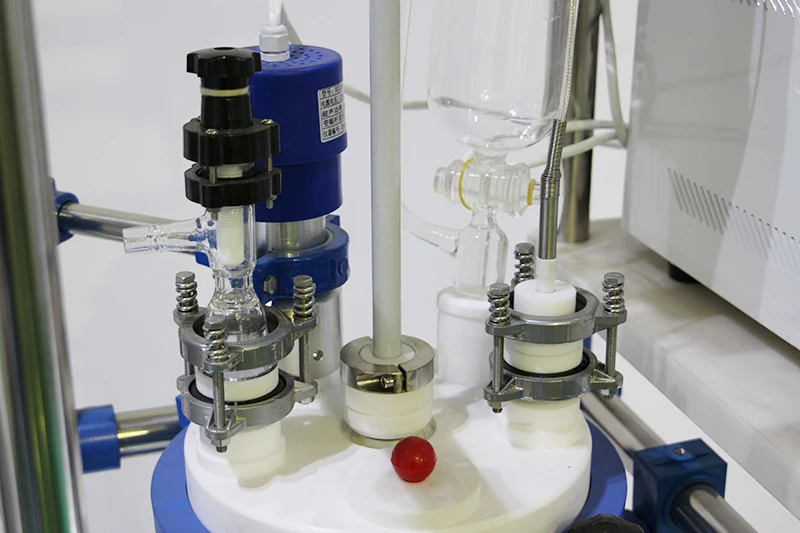

1, Machine has a 304 stainless steel frame and moveable design. There are at least 5 preformed holes on the lid, which can help processing of liquid recycling, flowing in, temperature measuring, liquid adding, etc.

2, Main reactor body is made by G3.3 borosilicate glass. It can support chemical reaction temperature from -120 to 300 centigrade.

3, Glass reactor can work under vacuum and constant pressure. In quiescent state, vacuum rate of its inner space can reach -0.098MPa.

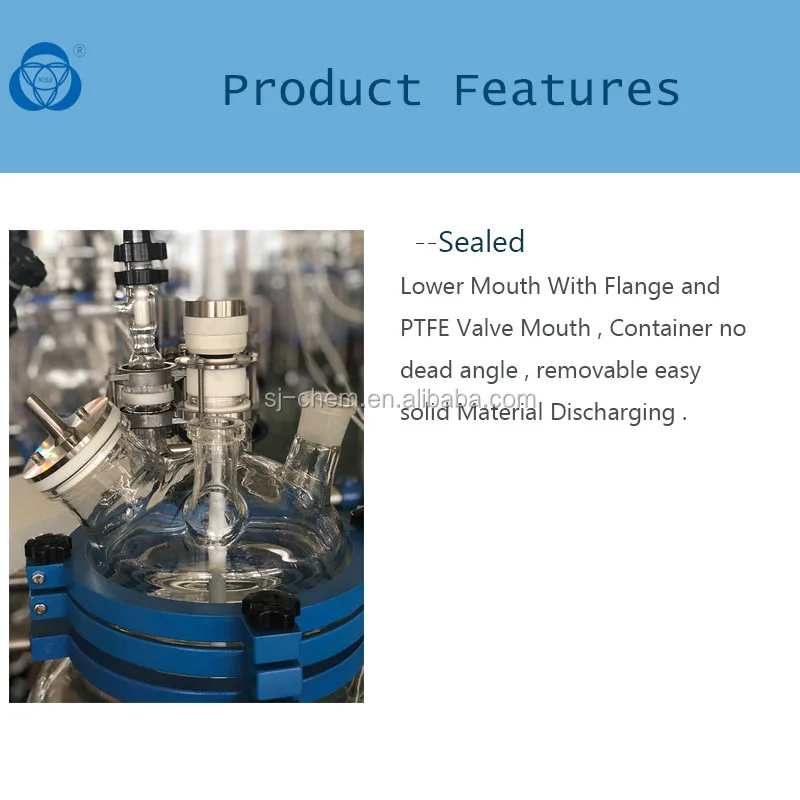

4, Stirring hole of the lid will be sealed by alloy steel mechanical sealing part. Connector is adopted PTFE material. Both of them will guarantee the vacuum rate of reactor inside space.

5, PT100 temperature sensor, which is a high precision temperature measuring tool.

6,Digital display stirring speed control system. It can adjust the stirring speed of stirring paddle.

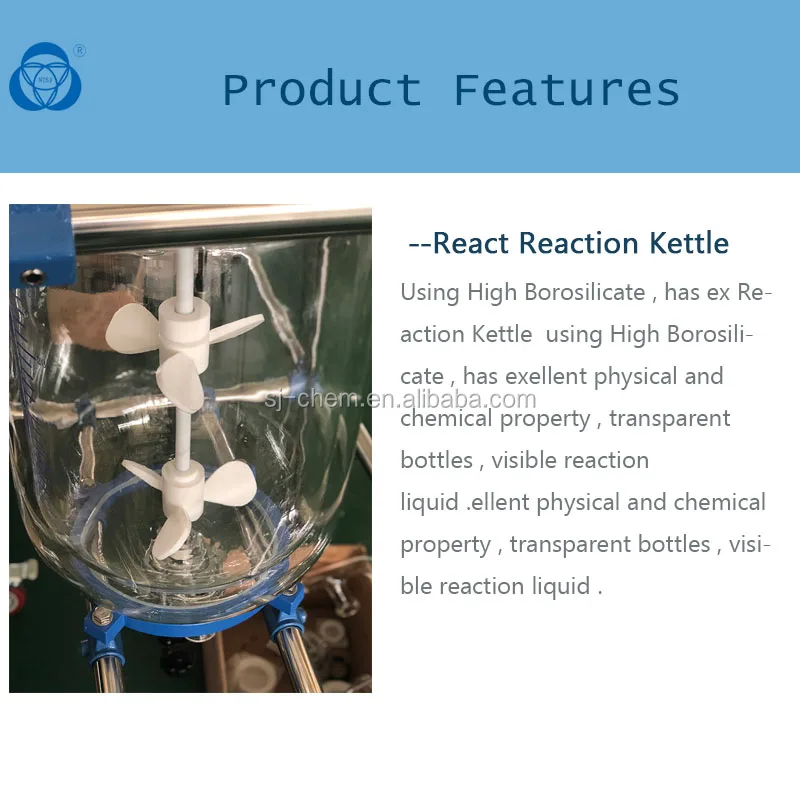

7,Single layer and double layers stirring paddle. It is good for different viscosities and mordant liquid
