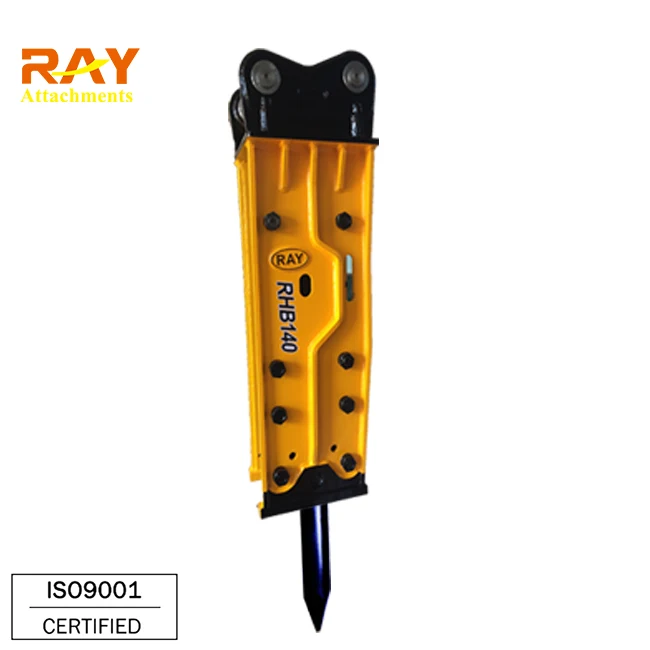

Гидравлический камнедробилка для экскаватора, 20 тонн
- Category: Construction Machinery Attachments >>>
- Supplier: Changzhou Chuangcheng Precision Machinery Co. Ltd.
Share on (62345926222):
Product Overview
Description
20 Ton Excavator Heavy Duty Concrete Breaker Hydraulic Rock Hammer

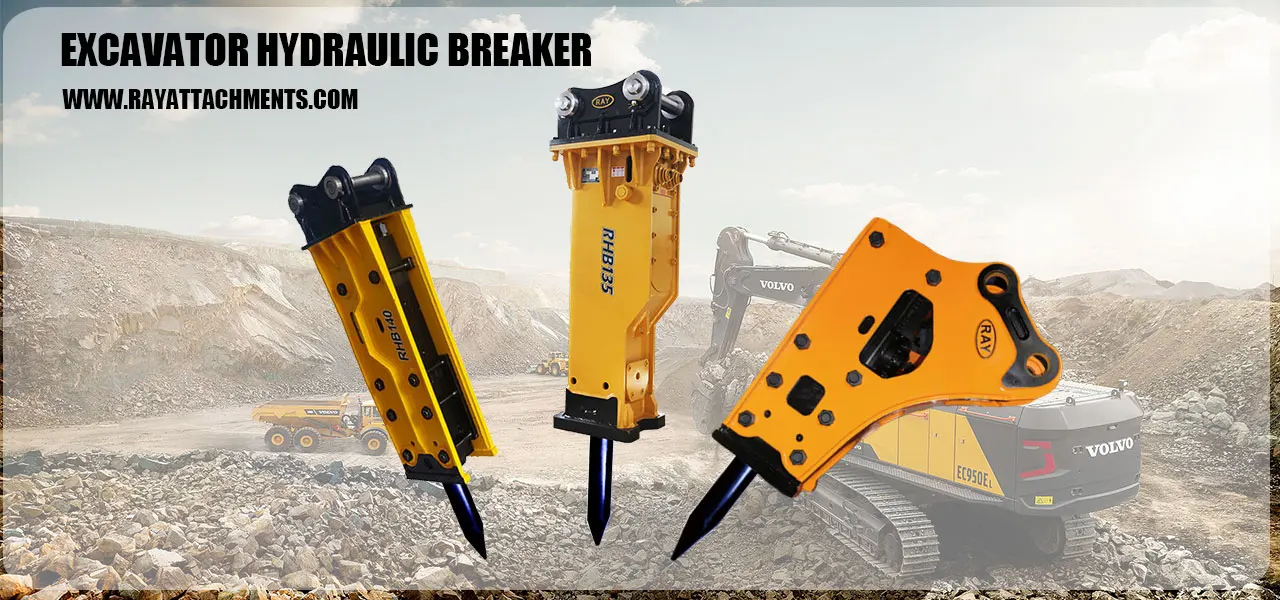

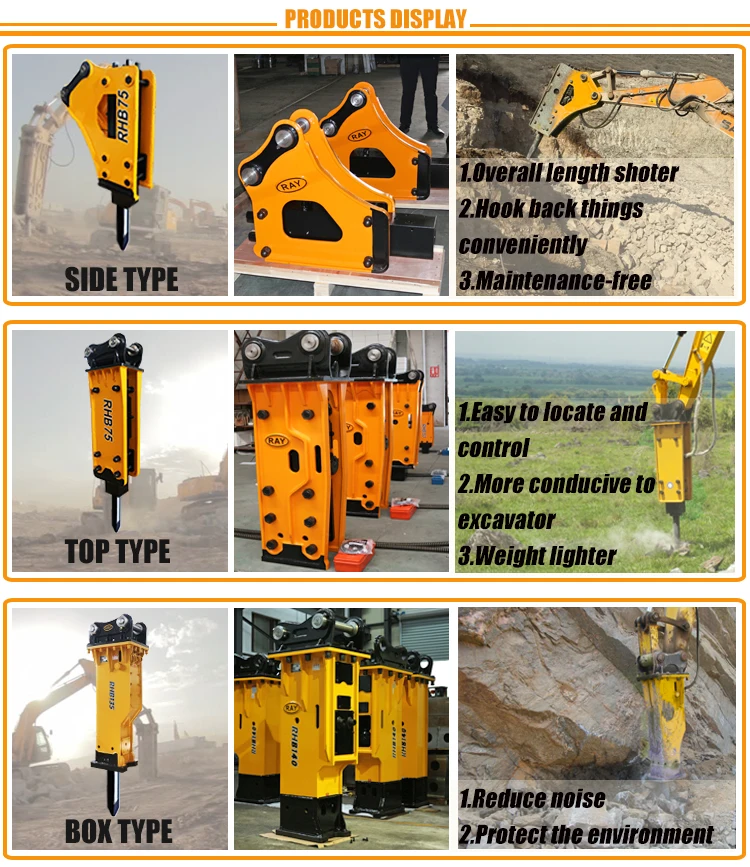

Side Type :
1. Overall length shorter
2. Hook back things conveniently
3.Maintenance-free
2. Hook back things conveniently
3.Maintenance-free
Top Type:
1.Easy to locate and control
2.more conducive to excavate
3.Weight lighter ,the lower risk of broken drill rod
2.more conducive to excavate
3.Weight lighter ,the lower risk of broken drill rod

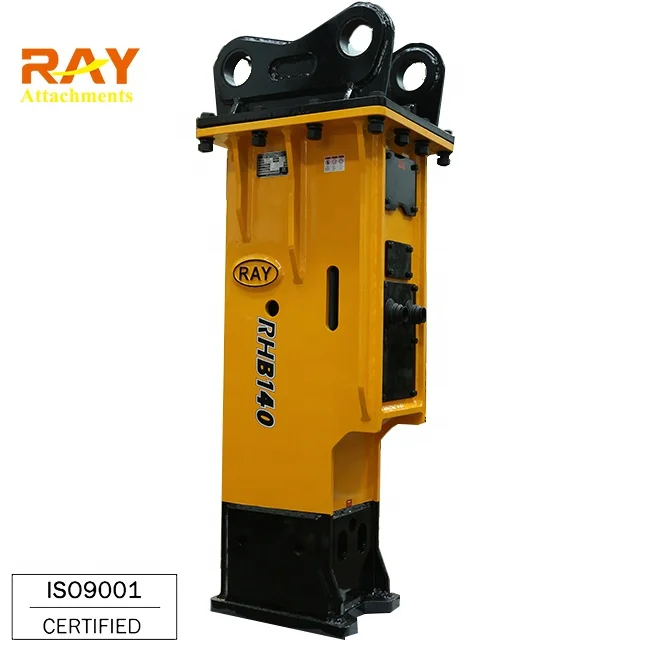

Box /Silence Type:
1.Reduce noise
2.Protect the enviroment
Model | Carrier Weight | Chisel Diameter | Operating Weight | Oil Flow | Operating Pressure | Impact Rate |
Ton | mm | Kg(Side Type) | L/min | Bar | Bpm | |
RHB40 | 0.7-1.3 | 40 | 70 | 15-30 | 90-120 | 800-1400 |
RHB45 | 1.2-3.0 | 45 | 90 | 20-40 | 90-120 | 700-1200 |
RHB53 | 2.5-4.5 | 53 | 120 | 20-50 | 90-120 | 600-1100 |
RHB68 | 4.0-7.0 | 68 | 250 | 40-70 | 110-140 | 500-900 |
RHB75 | 6.0-9.0 | 75 | 380 | 50-90 | 120-150 | 400-800 |
RHB80 | 6.0-9.0 | 80 | 335 | 50-100 | 120-160 | 400-800 |
RHB85 | 7.0-14 | 85 | 510 | 60-100 | 130-160 | 400-800 |
RHB100 | 10-16 | 100 | 765 | 80-110 | 150-170 | 350-700 |
RHB125 | 15-21 | 125 | 1255 | 90-120 | 150-170 | 400-530 |
RHB135 | 18-26 | 135 | 1653 | 130-150 | 160-180 | 400-800 |
RHB140 | 18-26 | 140 | 1770 | 120-180 | 160-180 | 350-500 |
RHB150 | 27-35 | 150 | 2530 | 150-190 | 160-180 | 350-700 |
RHB155 | 28-36 | 155 | 2440 | 180-240 | 170-200 | 300-450 |
RHB165 | 35-45 | 165 | 3013 | 210-280 | 180-210 | 250-380 |
RHB175 | 38-50 | 175 | 3910 | 210-290 | 180-210 | 200-350 |
RHB185 | 45-65 | 185 | 4227 | 220-270 | 180-210 | 250-320 |
If there are any problems, please send us an inquiry or consult online.
Product Advantage:
1.Long warranty period -- 12 months warranty
2.Special material:durable and longer service life.-- 40CrNiMo, 42CrMo, 20CrMo, 20CrNiMoA etc
3.High precision accessories and reduce wear and tear
4.heat treatment and subzero treatment to reduce the deformation and not easy scratched
5.Suitable excavator:DOOSAN, SANY, KOBELCO, CAT, KOMATSU, HITACH, VOLVO, HYUNDAI etc.
2.Special material:durable and longer service life.-- 40CrNiMo, 42CrMo, 20CrMo, 20CrNiMoA etc
3.High precision accessories and reduce wear and tear
4.heat treatment and subzero treatment to reduce the deformation and not easy scratched
5.Suitable excavator:DOOSAN, SANY, KOBELCO, CAT, KOMATSU, HITACH, VOLVO, HYUNDAI etc.

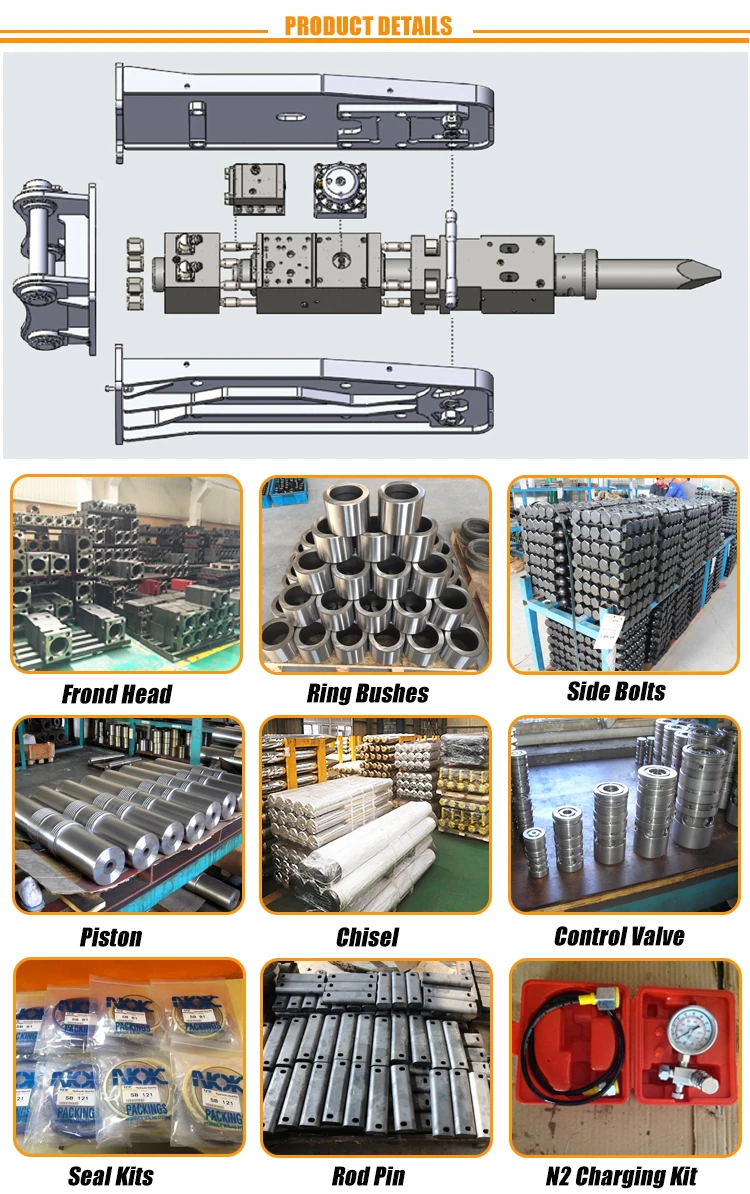

Through bolt: The front head, the cylinder and the back head of the main body are tightly fixed with four through bolts.
Valve: The cylindrical compensates for pressure in the hydraulic circuit piston reciprocation.
Piston: Kinetic energy of the piston is converted into hammering energy after hitting the chisel. The raw
material:20CrNiMoA(best),35CrNiMoA, 40CrNiMoA,and other suppliers use the only GCr15 to decrease the cost.
Main Body: Including Front head, cylinder and back head. Ensure your breaker will be in best performance
Chisel: The specially heat treated chisel is directly applied to break rocks. There are four types for choosing: Moil, Blunt, Flat, Conical Point. The material is 42Crmo.
Ring Bush & Front Cover: Guiding the chisel while they are working. Using 20CrMo steel as raw materials, which are provided by domestic famous manufacturer; forging again and again to make forming, to make internal organization more tight, and increase products’ wear-resistance.
Seal Kit: We can supply both Parker and NOK seal kit which are most famous brand in the bussines line.
Valve: The cylindrical compensates for pressure in the hydraulic circuit piston reciprocation.
Piston: Kinetic energy of the piston is converted into hammering energy after hitting the chisel. The raw
material:20CrNiMoA(best),35CrNiMoA, 40CrNiMoA,and other suppliers use the only GCr15 to decrease the cost.
Main Body: Including Front head, cylinder and back head. Ensure your breaker will be in best performance
Chisel: The specially heat treated chisel is directly applied to break rocks. There are four types for choosing: Moil, Blunt, Flat, Conical Point. The material is 42Crmo.
Ring Bush & Front Cover: Guiding the chisel while they are working. Using 20CrMo steel as raw materials, which are provided by domestic famous manufacturer; forging again and again to make forming, to make internal organization more tight, and increase products’ wear-resistance.
Seal Kit: We can supply both Parker and NOK seal kit which are most famous brand in the bussines line.

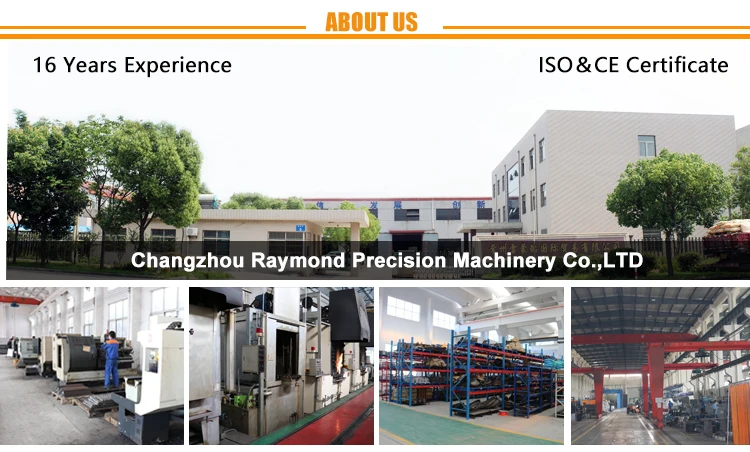

Changzhou Raymond Precision Machinery Co., Ltd is a professional manufacturer which was found in 2002 has a lot of experience in construction machinery attachments producing and serving.Our factory is located in Changzhou City, Jiangsu Province, Near to Shanghai City. Which has large capacity to make various kinds products like hydraulic breaker, earth auger, quick hitch, Vibro ripper,pile breaker and other construction machinery attachments.We are always researching to improve our products’ performance and innovate designing to meet more and more clients’ demands.
Q: Are you a manufacturer?
A: Yes,our factory was established in 2002 and we have our own trading company.
Q: Are you sure your product will fit my excavator?
A: Yes, we are professional about this, you can also tell me your excavator model, and we will check it for you.
Q: Can you provide customers’ design?
A: Sure, we can provide OEM and ODM service.
Q: What’s the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment, depend on your quantity.

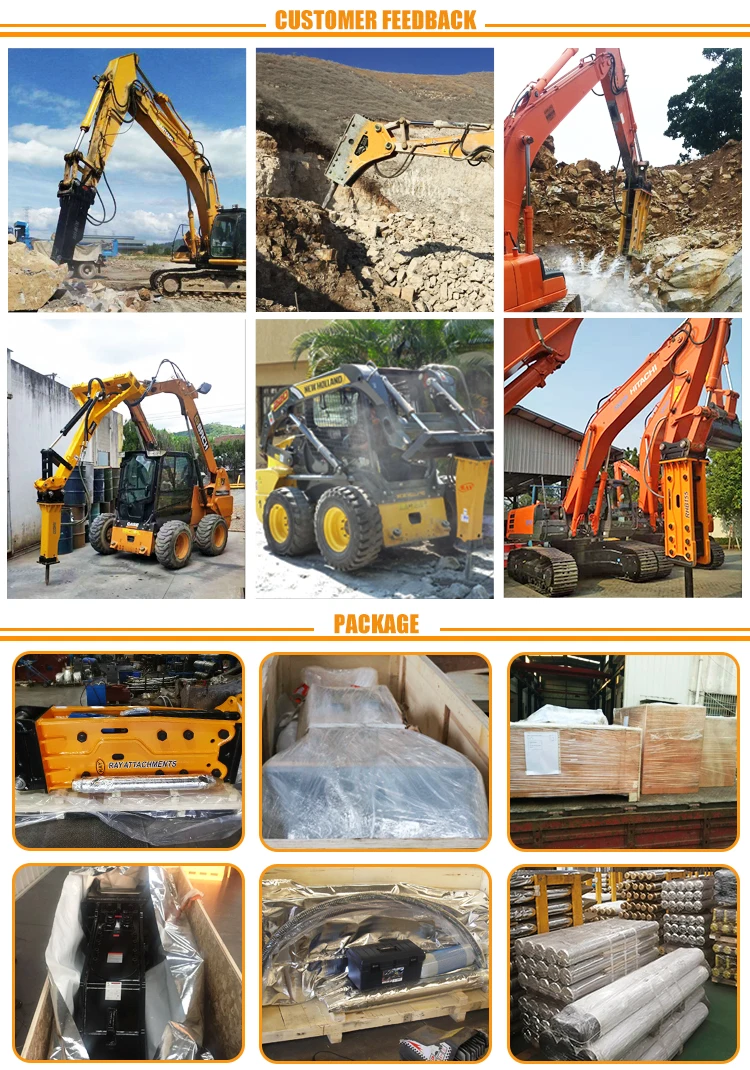

Q: How about the package?
A: Our hydraulic breaker wrapped by stretch film, packed by pallet or polywood case.
Q: Which country have you exported?
A: Vietnam, Saudi Arabia, America, Thailand, New Zealand, Canada, Australia, Peru, Chile, Brazil, Mexico, Iran, South Africa, etc.
A: Yes,our factory was established in 2002 and we have our own trading company.
Q: Are you sure your product will fit my excavator?
A: Yes, we are professional about this, you can also tell me your excavator model, and we will check it for you.
Q: Can you provide customers’ design?
A: Sure, we can provide OEM and ODM service.
Q: What’s the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment, depend on your quantity.
Q: How about the package?
A: Our hydraulic breaker wrapped by stretch film, packed by pallet or polywood case.
Q: Which country have you exported?
A: Vietnam, Saudi Arabia, America, Thailand, New Zealand, Canada, Australia, Peru, Chile, Brazil, Mexico, Iran, South Africa, etc.
