SIM Card to Landline Converter Etross 8848 GSM FCT Fixed Cellular Terminal
- Category: Fixed Wireless Terminals >>>
- Supplier: Shenzhen Etross Telecom Co. Ltd.
Share on (62345967089):
Product Overview
Description
SIM Card to Landline Converter Etross 8848 GSM FCT Fixed Cellular Terminal,
GSM FWT fixed wireless terminal, GSM FCT fixed cellular terminal,
fixed wireless terminals GSM, call termination machine,
GSM landline terminal, phone line replacement,
GSM to analog converter device,
support GSM mobile network,
with SIM card slot+battery+CE certificate,
high quality, stable performance and good price.
Working frequency(optional):
Dual band 900/1800MHz,
or Quad band 850/900/1800/1900MHz.
We also have models with PSTN and fax funtion based on this unit.
And this device supports only 1 SIM card, we have devices support 2/4/8 SIM cards too.
Welcome to contact me if you have interest.
GSM FWT-8848 is a GSM to Analog converter(single port, insert 1 SIM card only),
the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will go out the GSM network.
This device can both receive and make calls.
The main application is connecting the RJ-11 FXS line:
The main application is connecting the RJ-11 FXS line:
to connect ordinary telephone set for voice call;
to connect PBX for call extensions;
to connect billing systems for public phone use;
to connect VoIP FXO gateway to realize VoIP call termination;
to connect alarm system for security purpose, etc.
It is not a VOIP gateway, nor a GSM+VoIP gateway.
It is a GSM Fixed Wireless Terminal that produces an analog FXS phone line.
Features
1) It is a 1 channel GSM fixed wireless terminal which has 2 RJ-11 outputs for extensions;
2) It can connect with ordinary telephone set, PBX , VOIP Gateway, billing meter etc. ;
3) Dialing tone frequency:450hz;
4) Employ Industrial module to make;
5) Can adjust dial interval from 0.5 sec to 9 secs by setting up from telephone set;
6) Can adjust voice volume by setting up from telephone set;
7) SIM card supported (1.8V, 3V);
8) Caller ID display;
9) DTMF dialing;
10) Bell signal;
11) Polarity reversal;
12) The RJ-11 socket which connect the phone or billing system for metering purpose;
13) Antenna socket(SMA);
14) IP presetting;
15) Working Status and Signal Strength by LED indicator;
16) IMEI Change(optional).
17) Back up Li-ion battery 7.2V 1300mAh(optional), standby time: 24hrs, talking time: 2.5hrs.
2) It can connect with ordinary telephone set, PBX , VOIP Gateway, billing meter etc. ;
3) Dialing tone frequency:450hz;
4) Employ Industrial module to make;
5) Can adjust dial interval from 0.5 sec to 9 secs by setting up from telephone set;
6) Can adjust voice volume by setting up from telephone set;
7) SIM card supported (1.8V, 3V);
8) Caller ID display;
9) DTMF dialing;
10) Bell signal;
11) Polarity reversal;
12) The RJ-11 socket which connect the phone or billing system for metering purpose;
13) Antenna socket(SMA);
14) IP presetting;
15) Working Status and Signal Strength by LED indicator;
16) IMEI Change(optional).
17) Back up Li-ion battery 7.2V 1300mAh(optional), standby time: 24hrs, talking time: 2.5hrs.
Technique Specifications
Air interface standard: GSM850/1900Mhz, 900/1800Mhz phase 2+ full band.
Frequency ranges:
A) GSM 850 GSM 1900:
I) Transmission: 869.2 ~ 893.8MHz I) Transmission: 1, 930 ~ 1, 990MHz
Ii) Reception: 824.2 ~ 848.2MHz Ii) Reception: 1, 850 ~ 1, 910MHz
B) GSM 900: GSM 1800:
I) Transmission: 890 ~ 915MHz I) Transmission: 1, 710 ~ 1, 785MHz
Ii) Reception: 935 ~ 960MHz Ii) Reception: 1, 805 ~ 1, 880MHz
Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5db
Sensitivity:<-104DBM
Transmitting power<3W
AC-Adapter interface: Input: AC 110~240VAC 50~60Hz
Output: 12DC 1A.
AC-Adapter type: EU,US,AU,British optional
Frequency ranges:
A) GSM 850 GSM 1900:
I) Transmission: 869.2 ~ 893.8MHz I) Transmission: 1, 930 ~ 1, 990MHz
Ii) Reception: 824.2 ~ 848.2MHz Ii) Reception: 1, 850 ~ 1, 910MHz
B) GSM 900: GSM 1800:
I) Transmission: 890 ~ 915MHz I) Transmission: 1, 710 ~ 1, 785MHz
Ii) Reception: 935 ~ 960MHz Ii) Reception: 1, 805 ~ 1, 880MHz
Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5db
Sensitivity:<-104DBM
Transmitting power<3W
AC-Adapter interface: Input: AC 110~240VAC 50~60Hz
Output: 12DC 1A.
AC-Adapter type: EU,US,AU,British optional

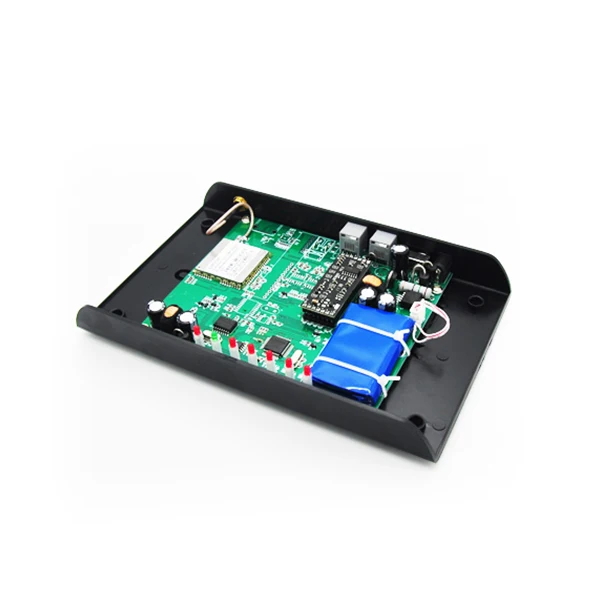

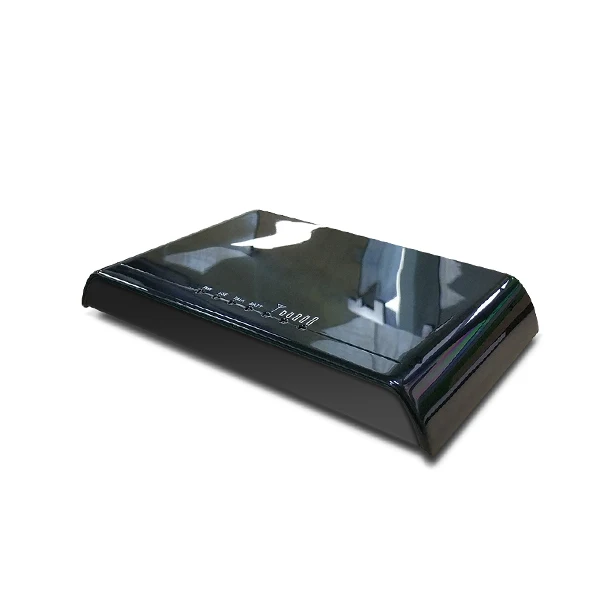

Details Images
Product Packaging
Including:
GSM FWT: 1 piece
Ac-adapter 12V 1A: 1 piece
Antenna with 3m cable: 1 piece
User's Manual: 1 piece
