cctv camera Home Security System Full 1080P H.265 Alarm 4ch NVR CAMERA Kit
- Category: >>>
- Supplier: Shenzhen For U Technology Co. Ltd.
Share on (62345988612):
Product Overview
Description
Product Description
Product Name | Wifi Nvr kit security camera system |
Channels | 4 |
Function | Remote monitoring |
Power | DC 12V |
Key Features:
1.4CH 1080P wifi NVR +4pcs 1080P wifi IP cameras
2.Convenient Installation
3.Plug and play
4.P2P, offer friendly APP
5.Support 1 SATA HDD
6.Wireless transmission stability:2.4G wireless
7.1080P Video
8.Special and separate network for wireless transmission
9.Wifi wild working distance up to 80m,pierce through a wall 30m
10.Quick setup, with built-in multilingual management page.
1.4CH 1080P wifi NVR +4pcs 1080P wifi IP cameras
2.Convenient Installation
3.Plug and play
4.P2P, offer friendly APP
5.Support 1 SATA HDD
6.Wireless transmission stability:2.4G wireless
7.1080P Video
8.Special and separate network for wireless transmission
9.Wifi wild working distance up to 80m,pierce through a wall 30m
10.Quick setup, with built-in multilingual management page.
WiFi NVR Specification | WiFi NVR Specification | |||||||
System | Model | IND-699HE-XMW(Z-4) | ||||||
Main processor | Hi 3536D | |||||||
Operating System | Embedded Linux | |||||||
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |||||||
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation | ||||||
Preview | 1/4 | |||||||
Video input (IP) | 4*1080P | |||||||
Forwarding bandwidth &Access bandwidth | 24Mbps | |||||||
Video compression | H.265+ | |||||||
Display quality | Max 1080P | |||||||
Decode | 4*1080P | |||||||
VR | Unsupport | |||||||
Motion detection | Support(depend on camera) | |||||||
Audio | Audio compression | G.711A | ||||||
Intercom | Unsupport | |||||||
Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing | ||||||
Local payback | 4*1080P | |||||||
Search mode | Search by Time/Calendar/Event/Channel | |||||||
Record storage | HDD、Network | |||||||
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |||||||
External interface | Video output | 1ch VGA，1ch output | ||||||
Audio I/O | 0/0 | |||||||
Alarm I/O | 0/0 | |||||||
Network interface | 1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI | |||||||
USB interface | 2*USB2.0 ports | |||||||
HDD | 1* SATA(Up to 8TB for each disk) | |||||||
ESATA | No | |||||||
Serial interface | No | |||||||
Other | ONVIF | No | ||||||
Power supply | 12V/2A | |||||||
Power Consumption | <10w(Without HDD) | |||||||
Work environment | Temperature:0℃-＋55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp | |||||||
WiFi Camera Specification | Dimension | 254mm*215mm*42mm | ||||||
To configure | Model | ND-699HE-XMW(Z-4) | ||||||
Processor + sensor | HI3516EV100+SC2235P 1/3" Progressive Scan Sensor | |||||||
Low illumination | Color: 0.1 Lux; B/W: 0.01 Lux | |||||||
Effective pixel | 1080P | |||||||
Lens | lens 3.6MM | |||||||
Infrared lamp | 3pcs X ￠10 Lamp beads | |||||||
Infrared distance | 20~30 m | |||||||
Day&nigh | IR cut filter with auto switch | |||||||
General | setting | Saturation, brightness and contrast ; are adjustable through IE browser or client software. | ||||||
Video compression | H.265+ | |||||||
temperature | 10℃-＋60℃ | |||||||
humidity | 10%-90% RH | |||||||
Power supply | DC12V 1A | |||||||
Consumption | MAX 6W | |||||||
Waterproof grade | IP66 | |||||||

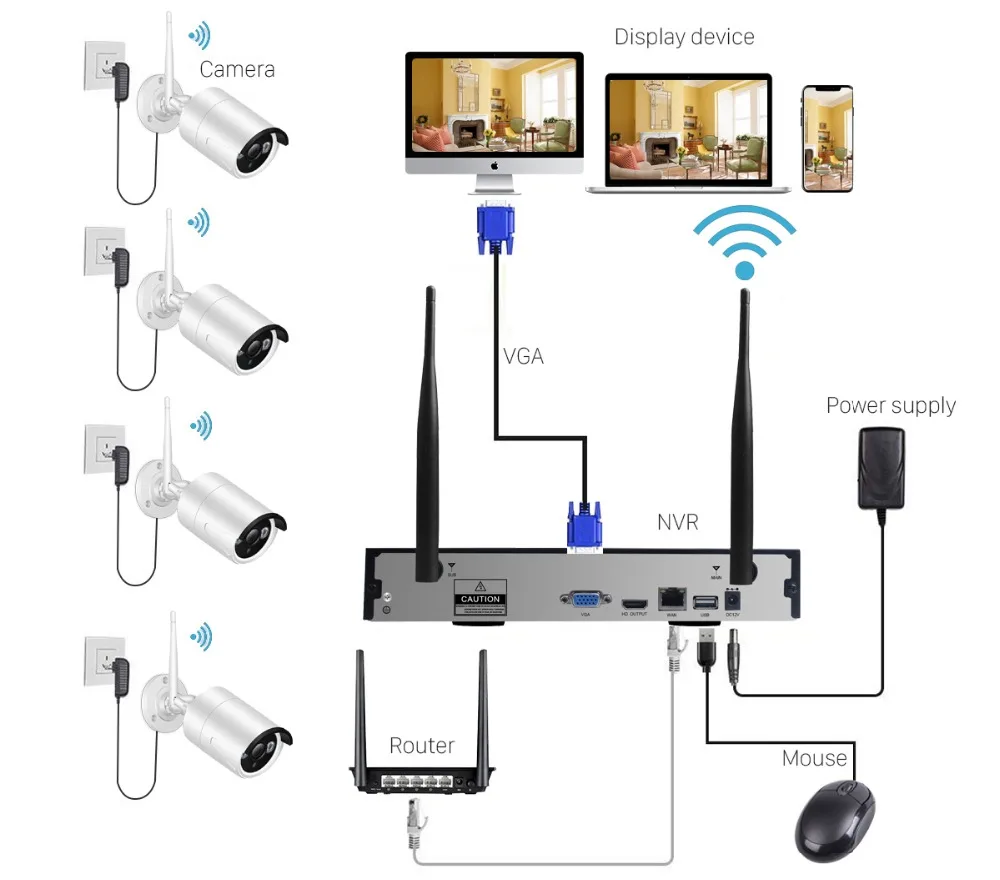

EASY INSTALL AND CONNECT
Real plug and play, super easy installation and configurations. Anyone can operate, no need professional skills. You can build your surveillance system by yourself. Power on camera and NVR, images show on display right away.

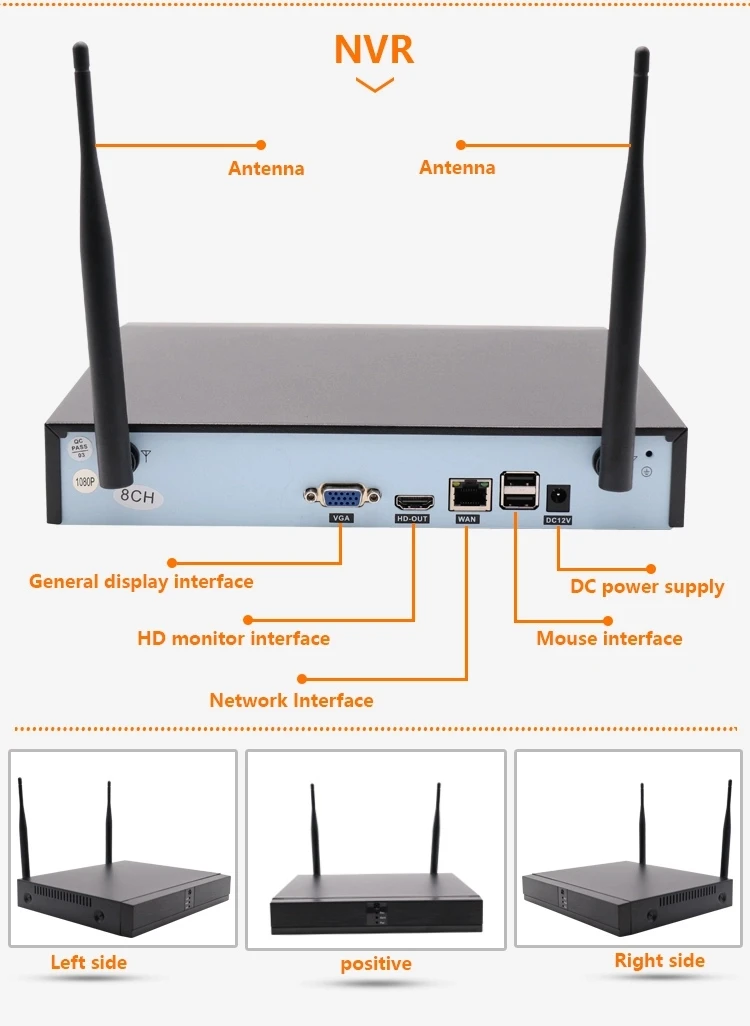

Wireless NVR
* 4channel 1080P wireless Network video recorder

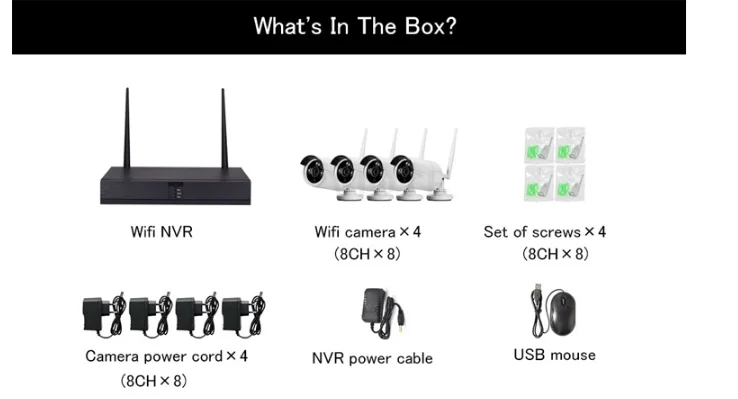

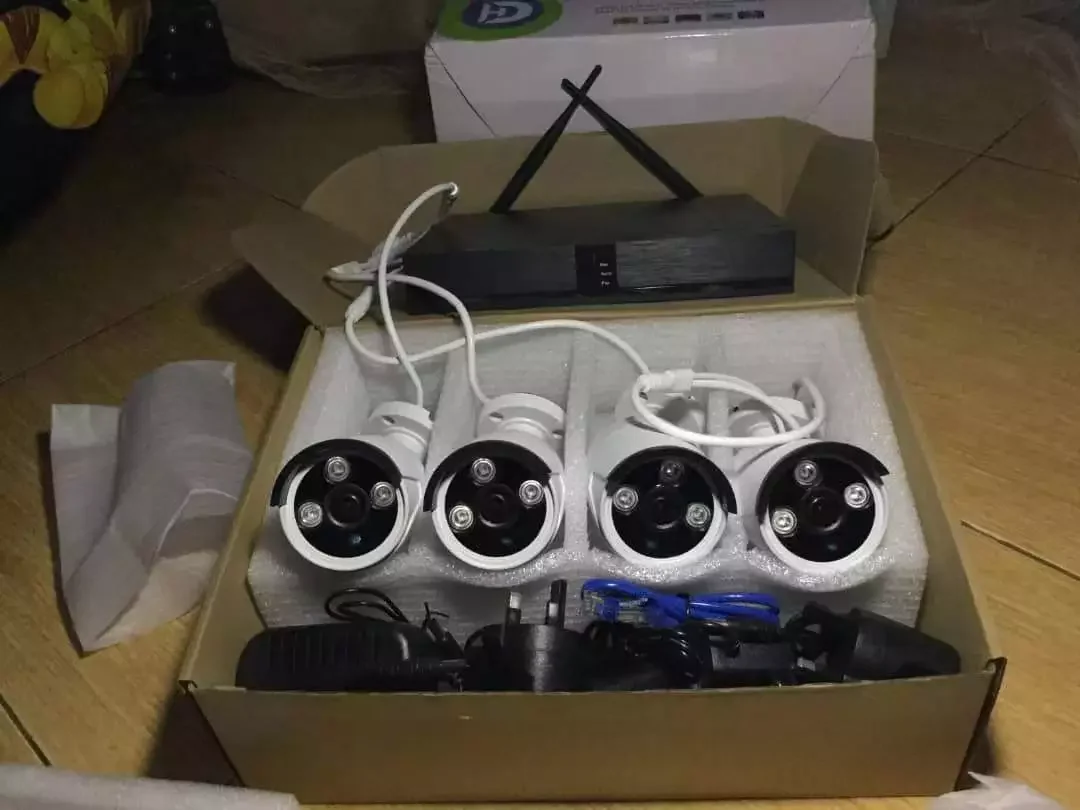

The packing acessories:
* 4CH 1080P WiFi NVR (not HDD) X 1
* WiFi 1080P Cameras X 4
* 1m Network line X1
* DC 12V 2A Power adapter X1
* DC 12V 1A Power adapter X4
* USB Mouse X 1
* User Manual X1
* Screw bag X4
* Built-in WIFI Module with high-performance and high stability
* Automatically connection between NVR and IPC
* Main ports -- 1
*SATA port, up to 4TB, 1* USB2.0 port, 1*VGA,
* Support video preview/recording/playback/USB backup
* Support the mixed use of wireless and wire, support difference scene.
NVR DOES NOT INCLUDE HDD HARD DRIVE
A reference chart for HDD choosing, the recording days are estimated, not precise. The higher video quality the more space it needs.
NVR DOES NOT INCLUDE HDD HARD DRIVE
A reference chart for HDD choosing, the recording days are estimated, not precise. The higher video quality the more space it needs.
The packing acessories:
* 4CH 1080P WiFi NVR (not HDD) X 1
* WiFi 1080P Cameras X 4
* 1m Network line X1
* DC 12V 2A Power adapter X1
* DC 12V 1A Power adapter X4
* USB Mouse X 1
* User Manual X1
* Screw bag X4
Product Usage

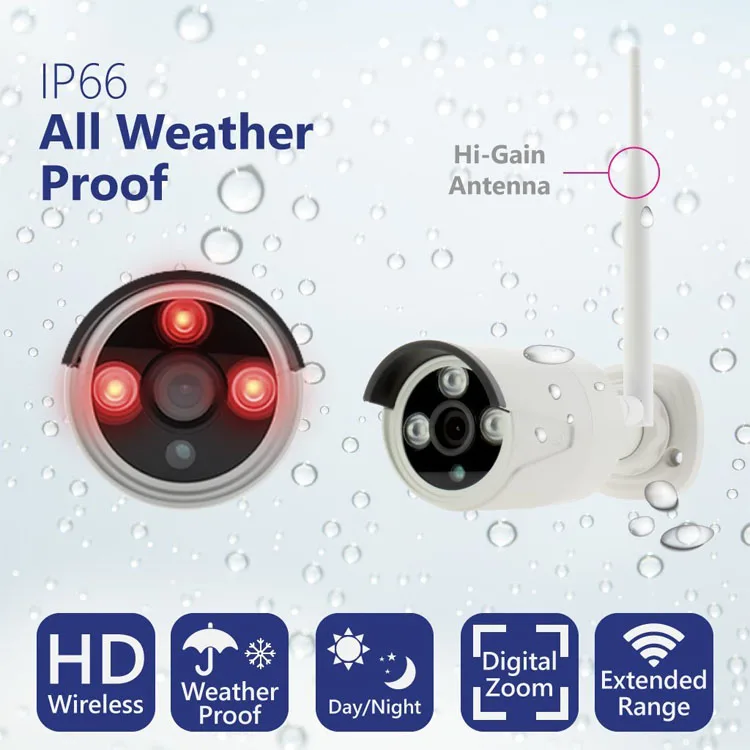

IP66 Super Waterproof Grade and Dustproof,
Durable Outdoor Weatherproof Casing no Matter Windy or Raining.
Install the Cameras Outdoor or Indoor to Keep your Home or Business Safe.
Note：Power adapter is not waterproof
Note：Power adapter is not waterproof
Motion detection:
There are multiple alarm detection and notification methods.
Support Motion Detection,Camera lens was covered Alarm detection method. Support Buzzer,Email and APP push notification methods.
Support Motion Detection,Camera lens was covered Alarm detection method. Support Buzzer,Email and APP push notification methods.
The Wifi signal can penetrate two walls(around 30 meters).and the distance is up to 50 meters( no obstacle).
Full 1080P & Multiple-devices Remote:
It could provide you a super clear image for you.
The security system supports multiple-devices viewing simultaneously.
Download the XMeye app on your mobile (IOS or Android). Once setup, you can enjoy cameras simultaneous viewing on the app. You’ll never miss out on a moment, no matter where you are.
It could provide you a super clear image for you.
The security system supports multiple-devices viewing simultaneously.
Download the XMeye app on your mobile (IOS or Android). Once setup, you can enjoy cameras simultaneous viewing on the app. You’ll never miss out on a moment, no matter where you are.
Company Introduction
Our Services & Strength
We has become a production, marketing, services companies in one entity Our main products are: Smart Home Cameras,Wirelss IP Cameras, outdoor Bullet Cameras, Video Doorbell bell Cameras, CCTV Cameras; battery Cameras, 4G,Solar Cameras.We have 200 employees and 3500 square meters of factory in Shenzhen.There are 12 branches . We provide OEM,ODM custom service for customers all over the world, our products have been exported to many countries, mainly in North America, Europe and Southeast Asia, of course, we attend multi-security exhibitions every year to learn about newer technologies, so we can meet different customsers needs.
Related Products
Packing&Shipping
Package size:
1pcs: 380*310*310 ; 5.3KG
2pcs/CTN:
370*310*570; 11.4KG
