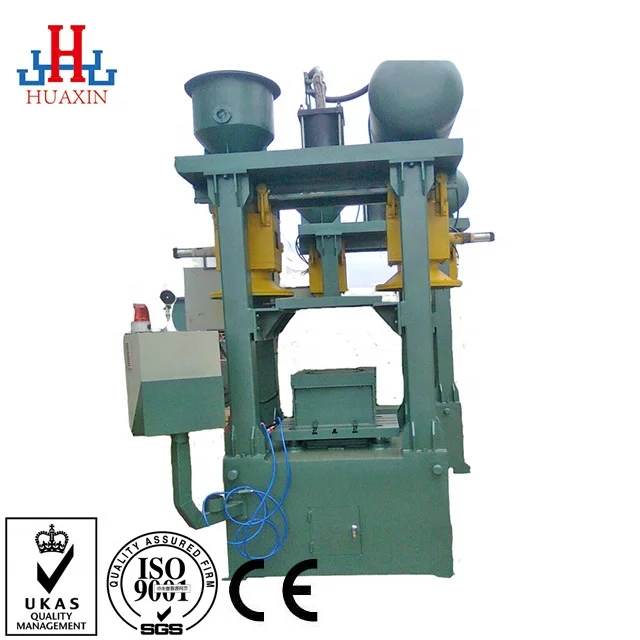

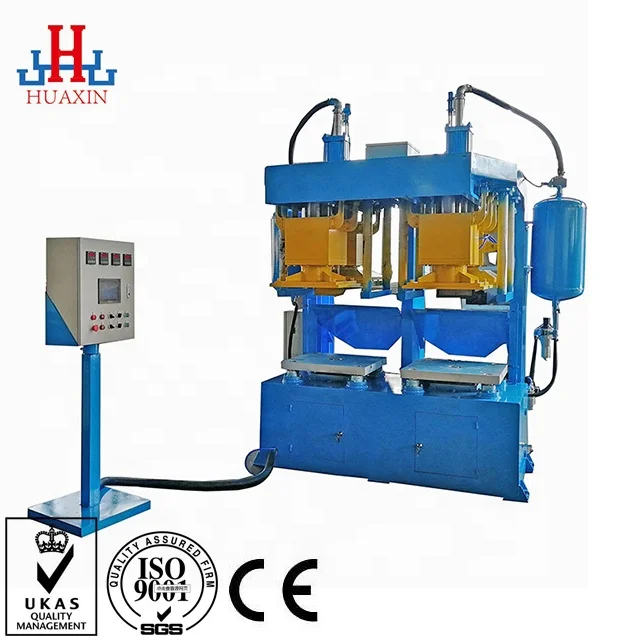

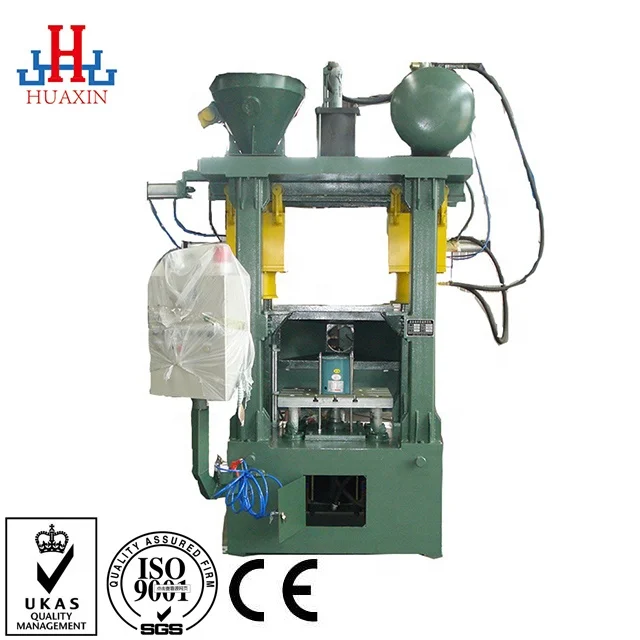

Horizontal Cold Box Sand Core Shooter Machine / Horizontal Parting CO2 Technology Cold Box Core Shooting Machine
- Category: >>>
- Supplier: Qingdao Huaxin Shengye Casting Machinery Co. Ltd.
Share on (62346067685):
Product Overview
Description
Product Description
Qingdao Huaxin Foundry Machine Core Shooter Machine Automatic
1.ZH750 horizontal parting core shooting machine is a new type of automatic high-efficiency cold box core shooting machine for shooting 25kg-30kgs sand cores.
2. An advanced technological method with low operation cost and high production efficiency in the casting Foundry factory.
3. It has the functions of core shooting and core lifting, and is suitable for shooting horizontal parting sand cores, especially brake disc sand cores.
4. Its technological method: sand shooting, triethylamine blowing, pressure core blowing, mold opening, core jacking and other functions are widely used in automobile brake disc sand cores;
5. Horizontal Cold Box Core Shooting Machine With CO2
There are so many kinds of foundry machinery in qingdao huaxin company :
1. Automatic Static Pressure Moulding Line with KW technology
2. Automatic Shell Molding casting Line
3. Furan Resin Sand proudction casting Line
4. Pouring system
5.Sand Preparation
6. Founry Sand Mixer
7.Pneumatic sand moulding machine
8.Core making machine
9.Shell core machine
10.Shot blasting machine
11.V process casting line
12.Foam foam casting line

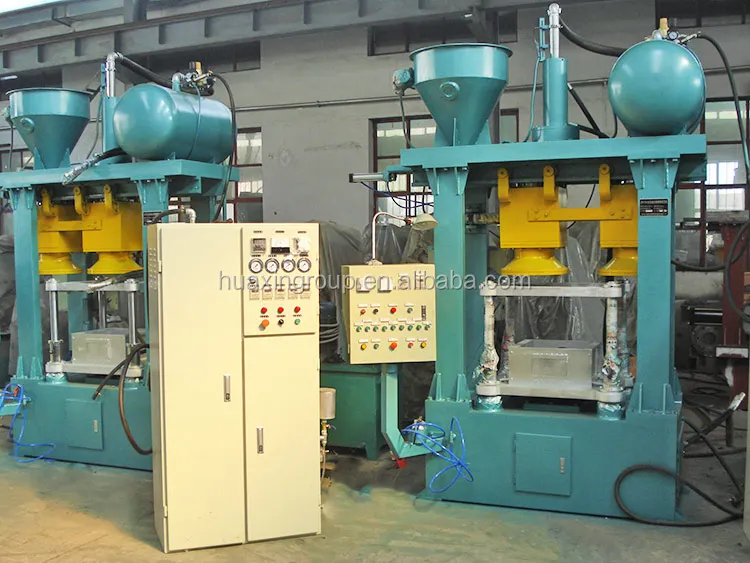

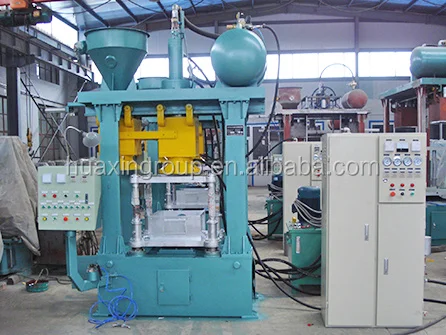

Cold box core shooter machine ZH750

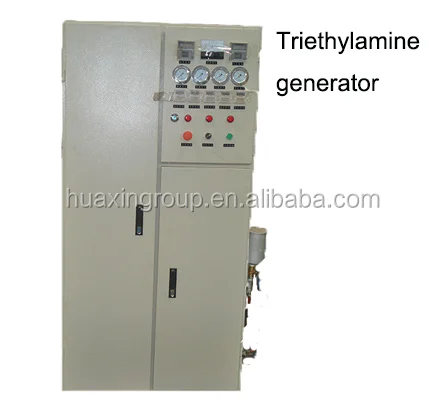

1. The curing system of the cold core machine adopts triethylamine generator, and the main parts adopt Japanese SMC proportional
valve, pneumatic proportional valve SMC and oil-water separator SMC, with explosion-proof heating system.
2. Blowing amine operates according to the process quantitative distribution pressure curve and has perfect process function;
Structure and Function of Core Shooting Machine -Horizontal Cold Box Core Shooting Machine
3. The generator is controlled by PLC, and the touch screen can be used and operated freely according to the process correction
parameters at any time, thus further reducing the production process cost;
4. If ammonia is not used as curing agent, carbon dioxide gas can be directly used.
5. The machine adopts PLC (Omron) text screen program control to realize single-machine manual (mold loading) and one-week
automatic operation with high production efficiency.
Size Information
Size Chart of Foundry sand molding machine
Recommended Foundry machinery (Core shooter machine , shot blasting machine and casting line)
iten no. | ZH750 | ZH8415 | ZH850B | ZH860 | ZH870 | ZH870BF | ZH1080 |
working table size (mm) | 600X600 | 660X680 | 700X500X400 | 700X600X300 | 700X700X400 | 1800X900 | CUSTOM MADE |
SAND CORE WEIGHT | 25-30KG | Core shooting machine for brake disc cold core box | 25-30KG | 30-35KG | 30-35KG | 50KG | CUSTOM MADE |
Production Strength
OUR SERVICES & STRENGTH
1. Qingdao Huaxin Company has more than 20 years of production experience in casting equipment.
2. Semi-automatic pneumatic molding machine, multi-contact molding machine full-automatic static pressure molding production line.
3. There are also core shooting machines, shot blasting machines, sand processing equipment and other casting production lines designed by the company itself.
4. The company has excellent research and development equipment team, mature sales and after-sales service team, and professional service for each user.
2. Semi-automatic pneumatic molding machine, multi-contact molding machine full-automatic static pressure molding production line.
3. There are also core shooting machines, shot blasting machines, sand processing equipment and other casting production lines designed by the company itself.
4. The company has excellent research and development equipment team, mature sales and after-sales service team, and professional service for each user.
Packing&Shipping
Foundry sand casting Jolt squeeze molding machines are packed export standard packing.
Company Introduction
Since its founding in 1998 as Qingdao Huaxin Group, the mission of qingdao huaxin group has been to develop the most innovative solutions possible for the automation of green sand moulding, sand core making machine, sand preparation and shot blasting processes throughout the foundry industry. Continuous technological improvement and innovation have earned nearly 20 intellectual property rights in China. Today, with nearly 5,000 sand moulding machines and shot blasting systems installed around the world, and its sales and service operations are spread all over the world.
Our single focus is, has always been, and will always be the foundry industry.
1.According to different casting foundry equipments , qingdao huaxin company is divided into different professional after-sales teams.
2.The after-sales team of the foundry sand molding machine directly contacted the technical department to instruct the users how to install and use the molding machine.
3.Visit users regularly to learn about their usage.
4.Regular mailing of accessories to users, timely guidance to replace accessories.
