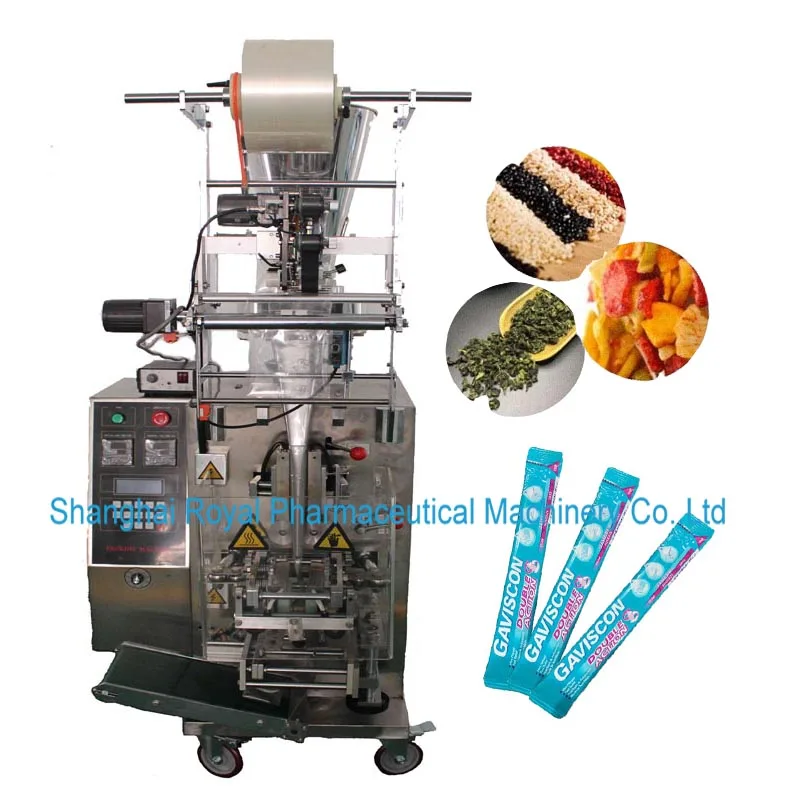

DCK 240Multi function Full Automatic Ground Nuts Peanut Coffee Bean Sunflower Seed Sugar Salt Small Tea Bag Packing Machine

Product Overview

Description

Full Automatic Ground Nuts  Peanut  Coffee Bean  Sunflower Seed Sugar Salt Small Tea Bag Packing Machine



Application:

Our vertical packing machines are well applied in the food, chemical, pharmaceutical, and light industries, including granule packing machine, powder packing machine, liquid packing machine and piece / tablet packing machine to pack such stuff as granule, powder, liquid, paste, tablets or pills into small bags.





Features:

* Bag-making, measuring, filling, sealing, cutting and counting are all finished automatically.

* Either under set length control or photo-electronic color tracing, we set bag length and cut in one step. Time and film saving.

* The temperature is under independent PID control, more suitable for different packing materials.

* The driving system is simple and reliable, and maintenance is easy.





Notes:

l This series pack granuler product apply such as: seasoning, monosodium glutamate, sugar, tea, coffee, pepper, desiccating agents and seeds, etc.

l Optional device: Ribbon printer, gas flushing device, air expeller device, hole punch device, rotate cutter, batch cutter, tear notch device, knocking device on bag former.

l Applicable material should be composite films like: PET / PE, Paper / PE, PET /AL/PE, OPP / PE.







DCK-240 Technical Specification:



Model	DCK-240-1	DCK-240-2
Cutter	Zigzag Cutter	Straight Cutter
Method of Measurement	Cup Type
Range of Measurement	1-80ml
Bag Size	L:30-170mm	L:30-150mm
	W :10-120mm	W :10-120mm
Bag Type	3- sealing / 4-sealing
Packing speed	40-100 bag/min
Power supply	220V/380V or made accordingly
Voltage	50Hz / 60Hz
Machine  Weight	200kg	230kg
Machine  Size  (L*W*H)	625*730*1780mm	625*730*1850mm
Material parts	SS304

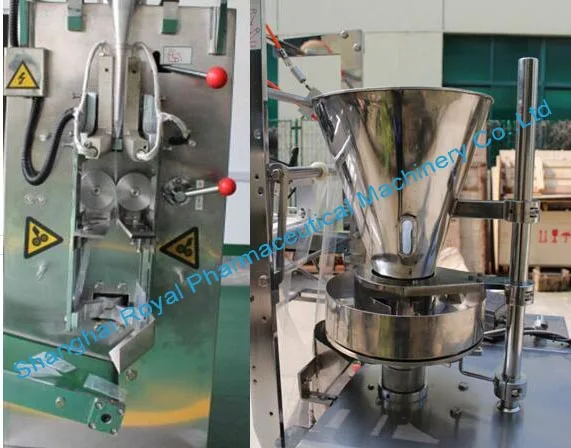

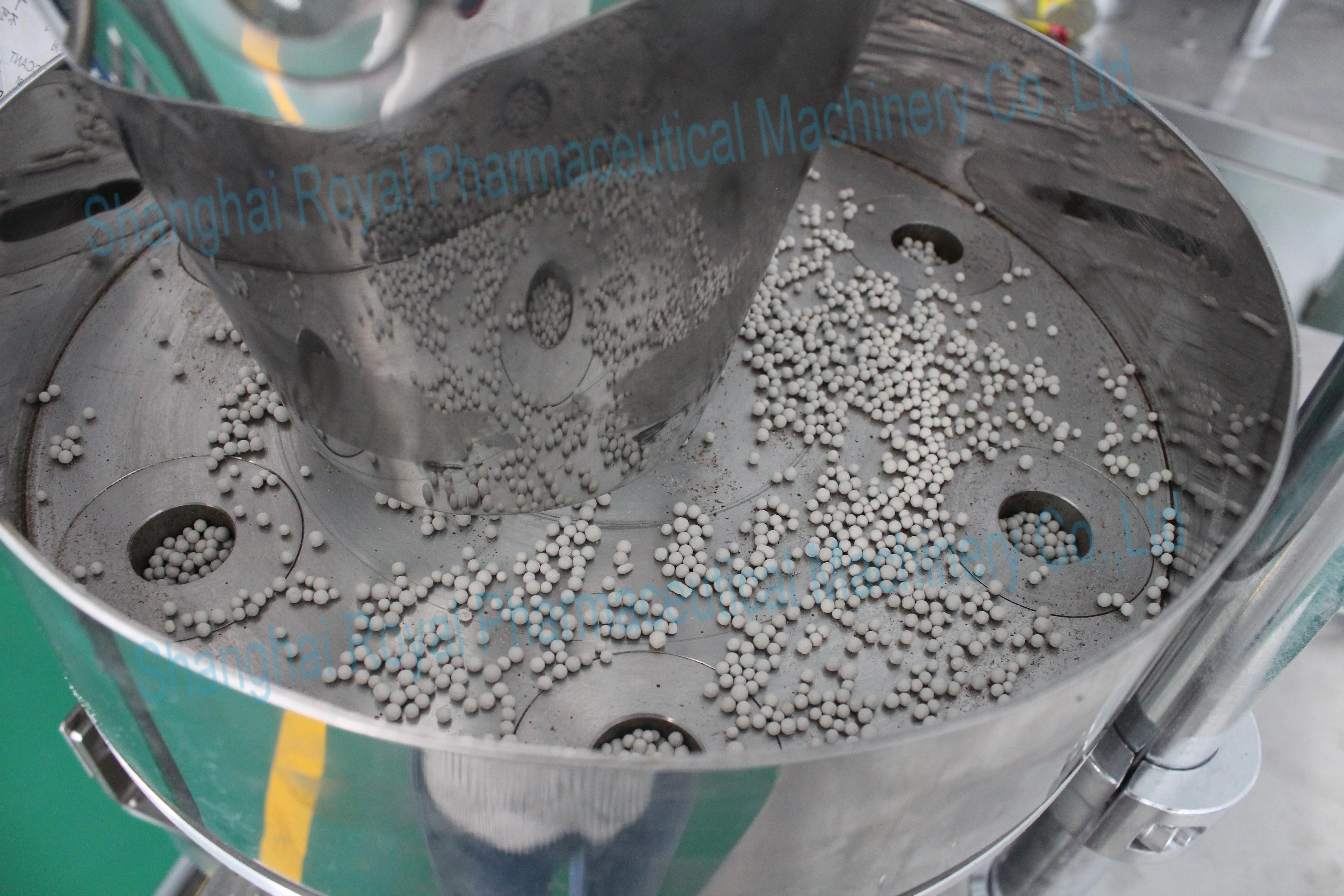

DCK-240 Machine detail more

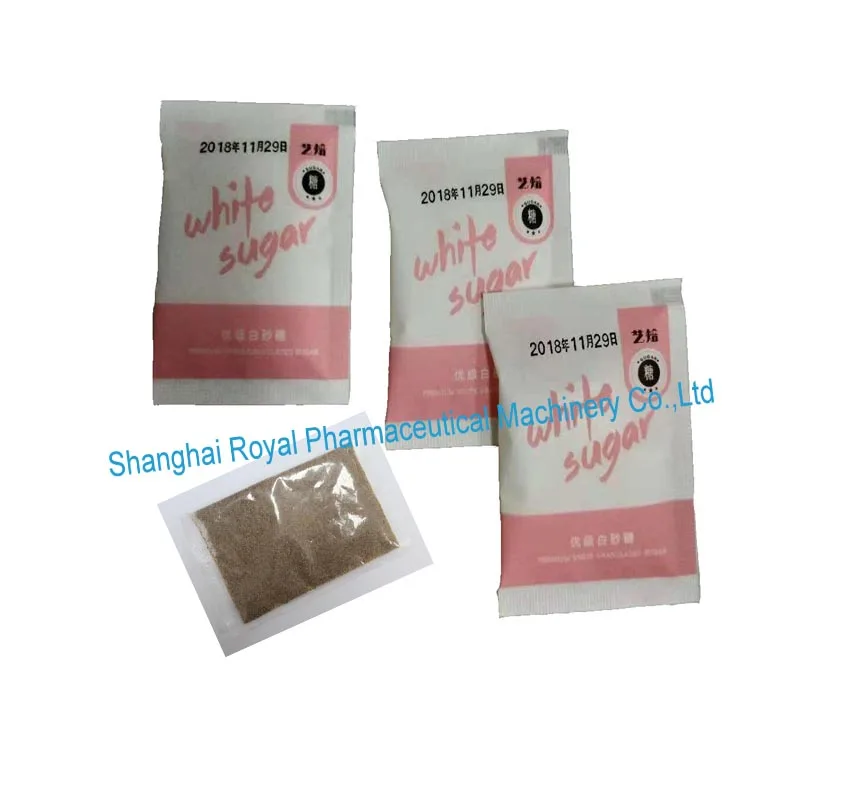

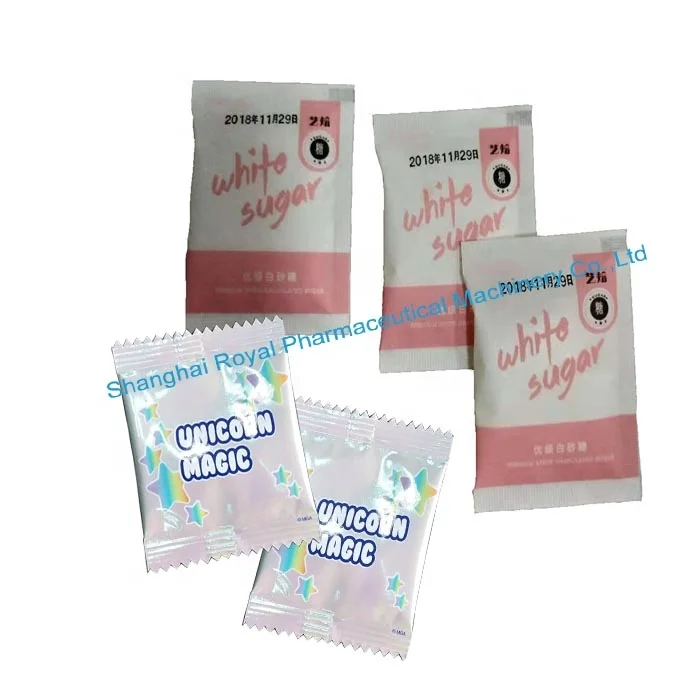

Packing bags type

Other related products:

Granule Packing Machine	Powder Packing Machine	Liquid packing machine
Piece/Tablet Packing Machine	Automatic Triangle Bag Packing Machine	Auto Tea Bag Packing Machine





FAQ

Q1: What price terms you offer?

A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.



Q2: What payment terms you take?

A: We prefer T/T, but other terms also workable for us.



Q3: Will you help with installation and stuff training?

A: Yes, we can send our engineers to your place to guide the installation and train your workers if needed, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD50/day.



Q4: How can I visit and check your company?

A:Our factory is located in Shanghai and Zhejiang Province. Headoffice lay in shanghai, Minhang District. From Pudong International Airport to our office need only 45 minutes. U can take the metro line 5 come to our office directly!





Any other doubts about our machine, please feel easy to contact with us.
