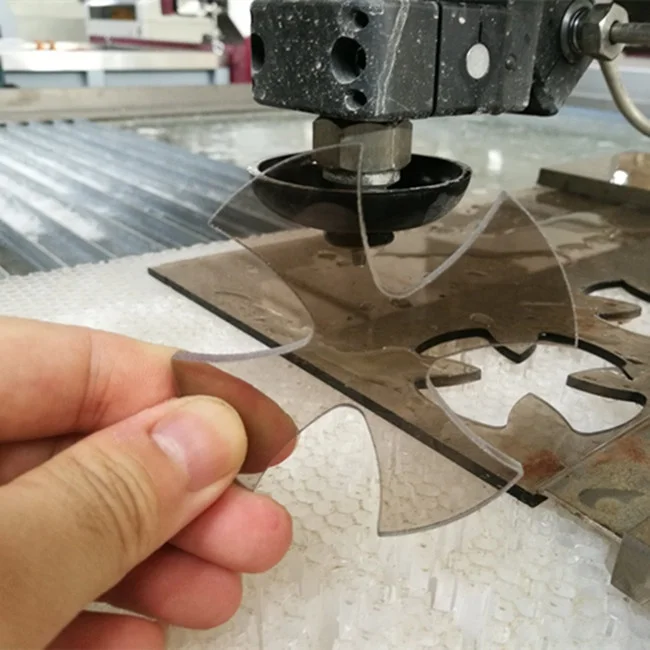

3000mm*8000mm Large Gantry Type Water Jet Cutting Table
- Category: >>>
- Supplier: YC Industry Co. Ltd.
Share on (62346221266):
Product Overview
Description
Product Details

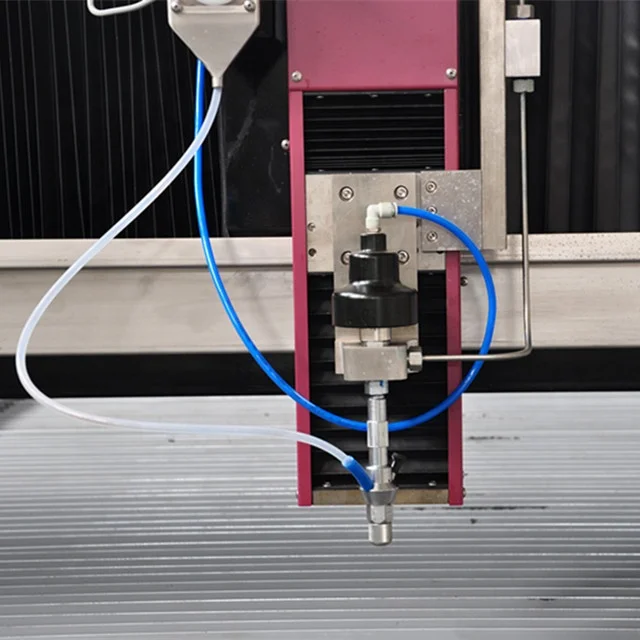

1.Superior precision and stability are guaranteed by the casting beam and base frame of Y-axis.
2.Lathe bed and water tank are detachable, which are designed to reduce the pressure from water with sands and machined parts to
moving parts.
3.The base of Y-axis is overall manufacturing, It’s convenient for disassembly, transportation and assembly.
4.X-axis and Y-axis adopt high-precision ball screw and guide linear rail.
5.The size of cutting table can be customized, such as 3000mm*8000mm, 3500mm*7000mm, 2000mm*12000mm as below, the max size can be
4000mm*12000mm.
Cutting accuracy:+/- 0.1mm
Repeat accuracy:+/- 0.05mm
CNC Water Jet Cutting Machine Parameter(L=Gantry type) | ||||||||||||||
Parameters | Unit | YCWJ-L1010 | YCWJ-L2015 | YCWJ-L3015 | YCWJ-L3020 | YCWJ-L2060 | ||||||||
Efficient Cutting Area | mm | 1000×1000 | 2000×1500 | 3000×1500 | 3000×2000 | 2000×6000 | ||||||||
Axis Travel | X | mm | 1000 | 2000 | 3000 | 3000 | 2000 | |||||||
Y | mm | 1000 | 1500 | 1500 | 2000 | 6000 | ||||||||
Z | mm | 150-180 | 150-180 | 150-180 | 150-180 | 150-180 | ||||||||

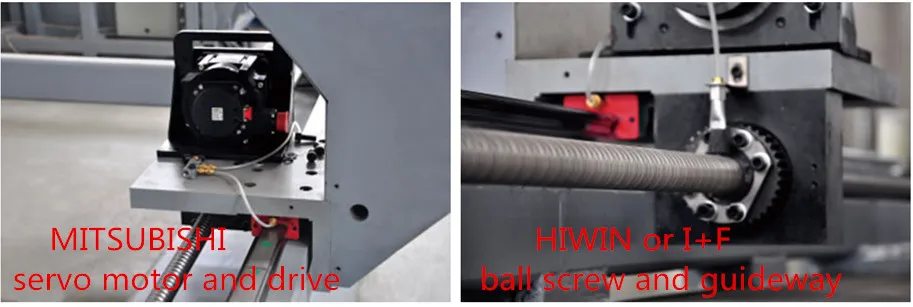

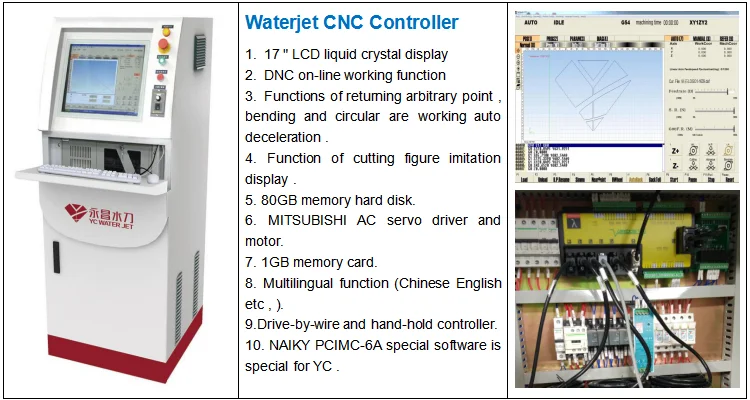

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa | ||||||||||||||
Cutting Accuracy | mm | ±0.1 | ||||||||||||
Positioning Accuracy | mm | ±0.2 | ||||||||||||
X,Y Dry-run Speed | m/min | 0-15 (if need 30m/min speed,we can do as request ) | ||||||||||||
Cutting Speed | m/min | as to detail material and thickness | ||||||||||||
Main Feature:
Control: PLC
Shifting: electro-hydraulic
Control Cooling: cooler/oil heat exchanger
Inlet water filter accuracy: ≤0.45μm
Oil-return filter accuracy: 20 μm
Working temp: 0-50°c
Outlet: UNF 3/8" Cooling in/out-let: NPT1"
Max orifice size: 0.33mm

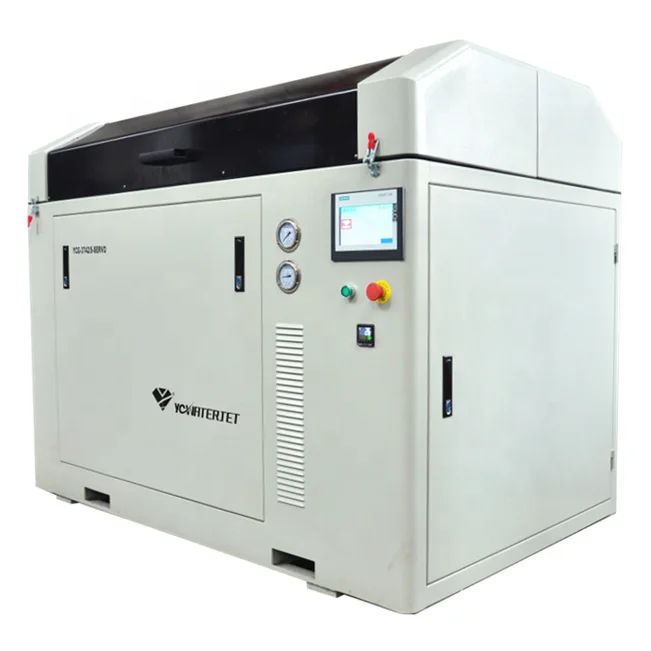

High Pressure Pump | ||||||
Model | YCG-3038 | YCG-3742S | YCG-7542S | |||
Max Pressure | 3800Bar/55,000Psi | 4137Bar/60,000Psi | 4137Bar/60,000Psi | |||
Max Water Flow | 3.7L/min | 3.7L/min | 7.4L/min | |||
Max Orifice/Nozzle | 0.011/0.03 | 0.013/0.04 | 0.016/0.05 | |||
Power | 30KW/40HP | 37KW/50HP | 75KW/100HP | |||

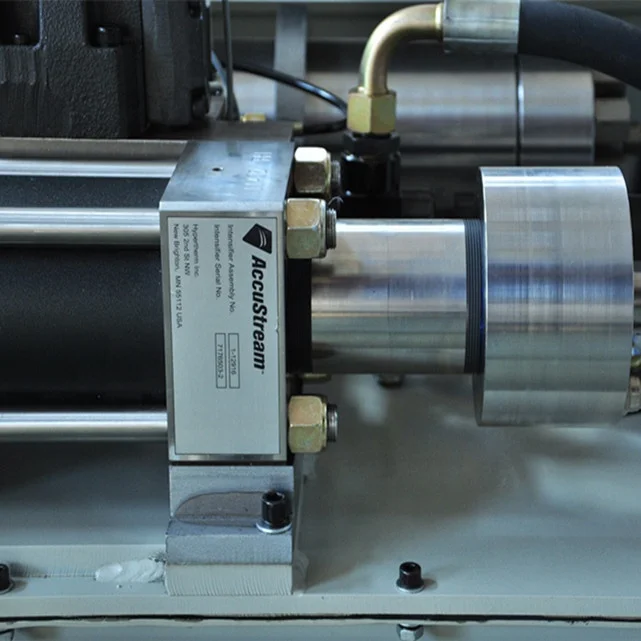

Hypertherm HP Pump
KMT HP Pump
BFT HP Pump
