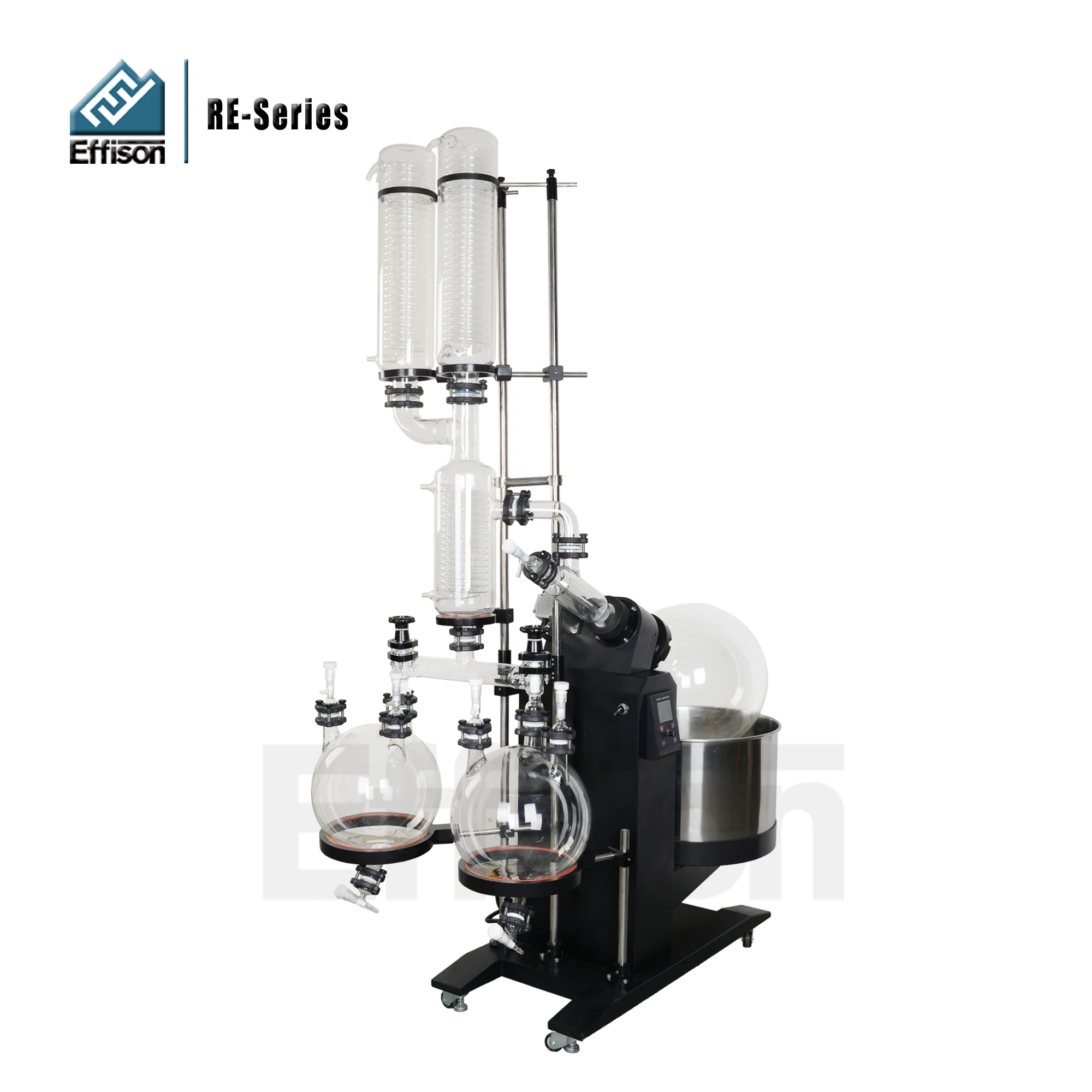

Vacuum 20L Alcohol Distillation Vacuum Rotary Evaporator with Soxhlet Extractor

Product Overview

Description

Vacuum Rotary Extractor 10L Rotovap Solvent Distillation Unit

A 20l rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. The process of rotary evaporation is most often used to separate solvents with low boiling points, such a n-hexane or ethyl acetate, from compounds which are solid at room temperature and pressure. However, careful application also allows for the removal of a solvent from a sample containing a liquid compound, if there is minimal co-evaporation (azeotropic behavior) and a sufficient difference in boiling points at the chosen temperature and reduced pressure.

Specifications of 20l rotary evaporator:

Model	RE-1010	RE-1020	RE-1030	RE-1050
Evaporating Flask	10L	20L	30L	50L
Receiving Flask	5L	10L	20L	20L
Condensering Surface(m2)	0.57	1	1.5	1.5
Motor Power	180W		250W
Rotation Speed	0~120rpm, Adjustable
Evaporating Speed(H2O)	3L/h	5L/h	7L/h	9L/h
Reachable Vacuum Rate	<133Pa(1.33mbar, 1 Torr)
Bath Power	3KW	3Kw	5KW	6KW
Temp.Control Range&Wave	0~99(180)±0.2℃
Discharge	PTFE bottom discharge valve
Sealing Material	PTFE +Viton gaskets sealing
Glass Material	GG-17 High borosilicate glass 3.3
Bath Lift Type	Motor lift
Voltage	Single pahse220V,50/60Hz, Single pahse110V,60Hz
Dimensions(L*W*H)	990*550*1655mm	1165*600*1775mm	1345*770*2140mm	1345*770*2140mm

 Features of 20l rotary evaporator:

·  Solvent-resistant PTFE and Viton gaskets, ensuring long time operation.

·  Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-

    free operation.

·  Downward-condensing vacuum connection design ensures safe vacuum operation.

·  Motorized water bath lifting for precise control.

·  Easy, straight-forward visual operation with digital speed and temperature display.

·  PID temperature controller ensures accurate temperature control is maintained.

·  One year warranty on rotary evaporator except glassware and all sealing gaskets.
