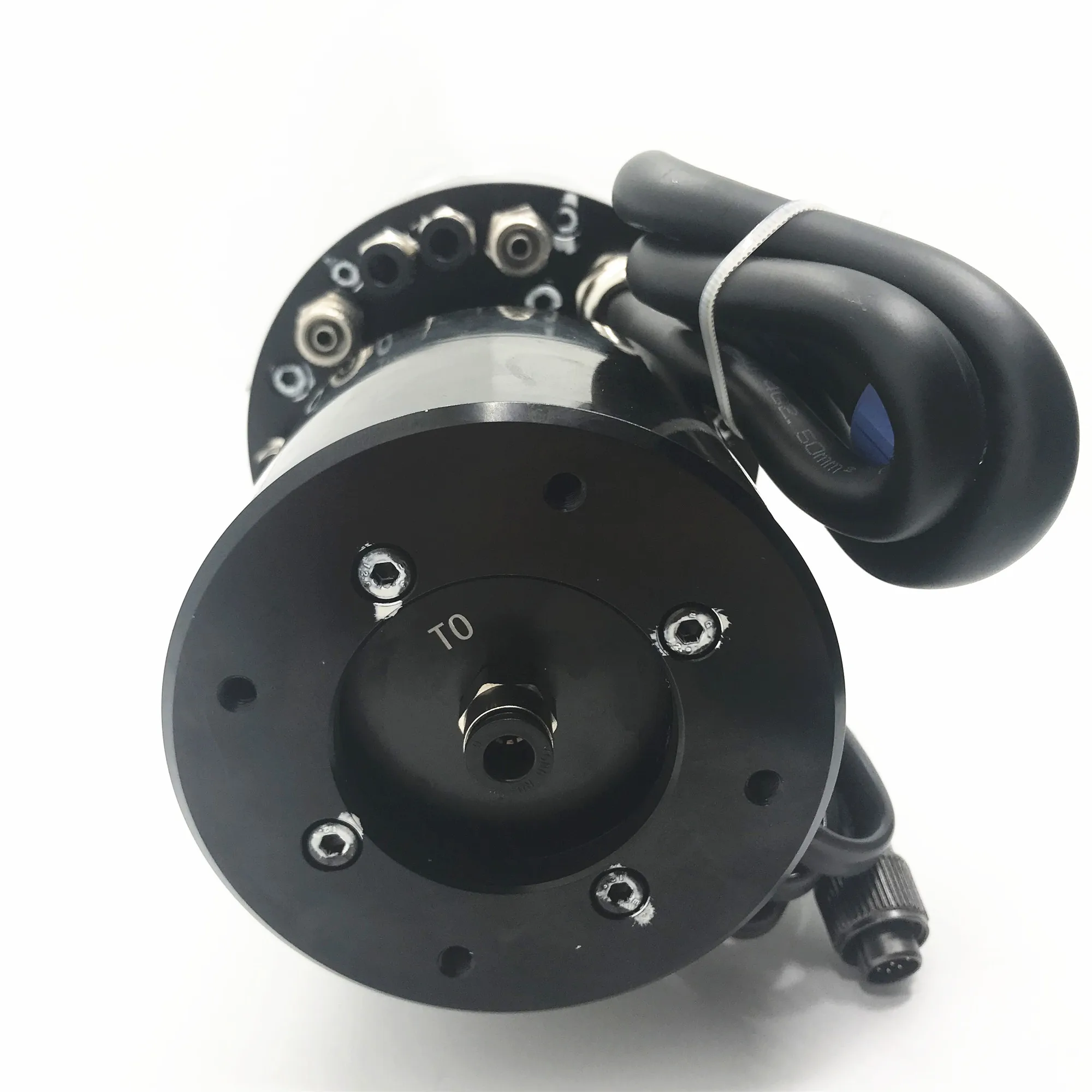

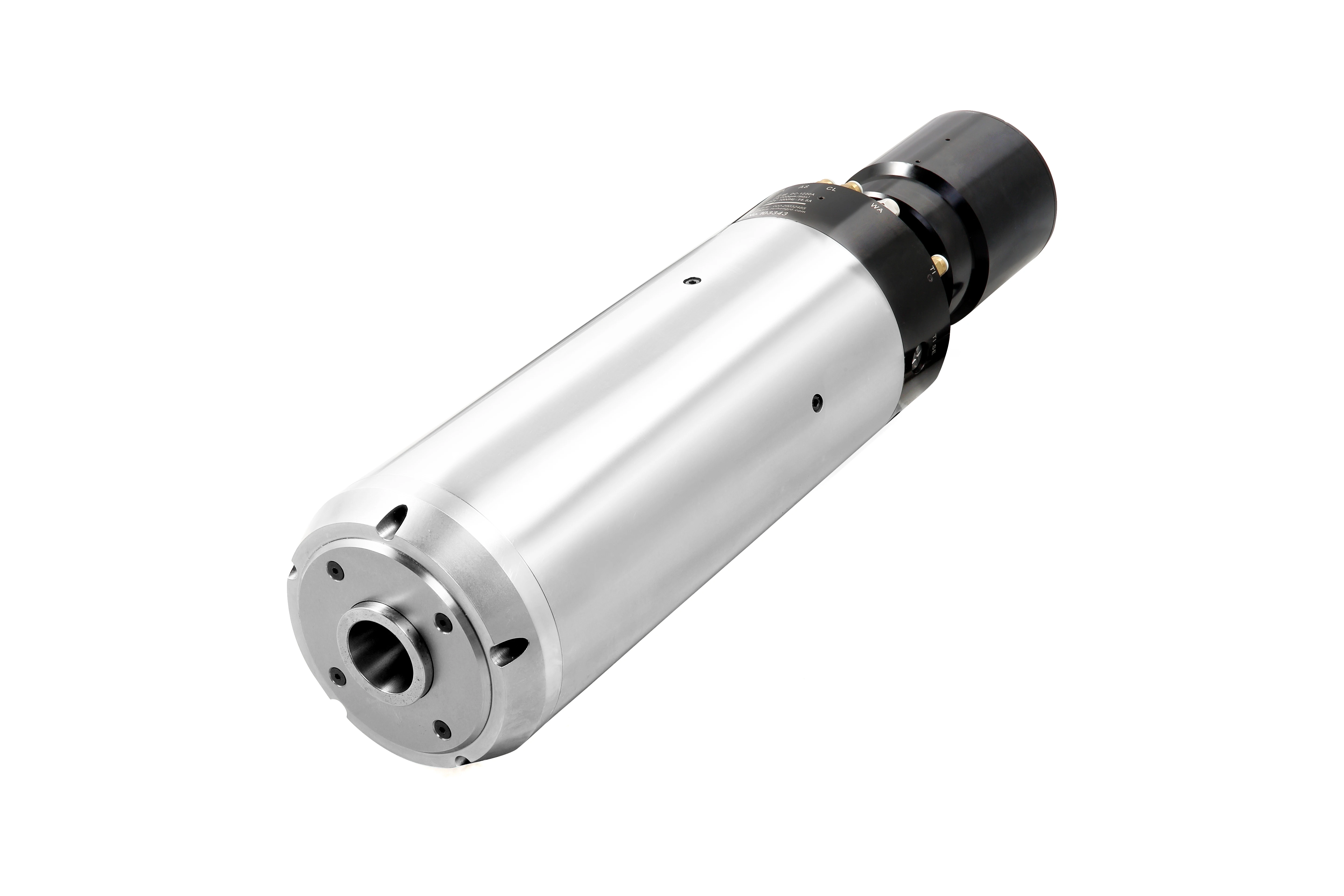

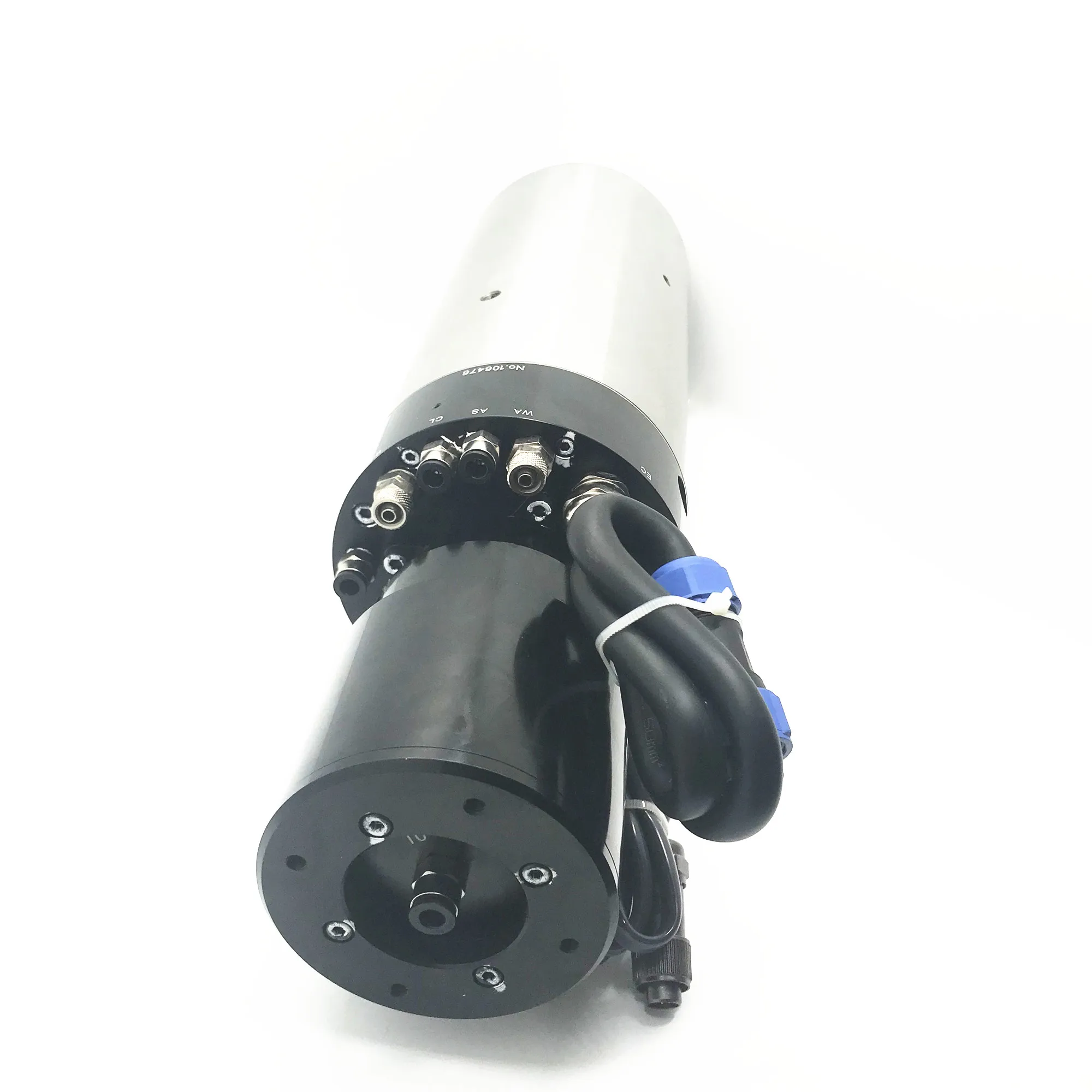

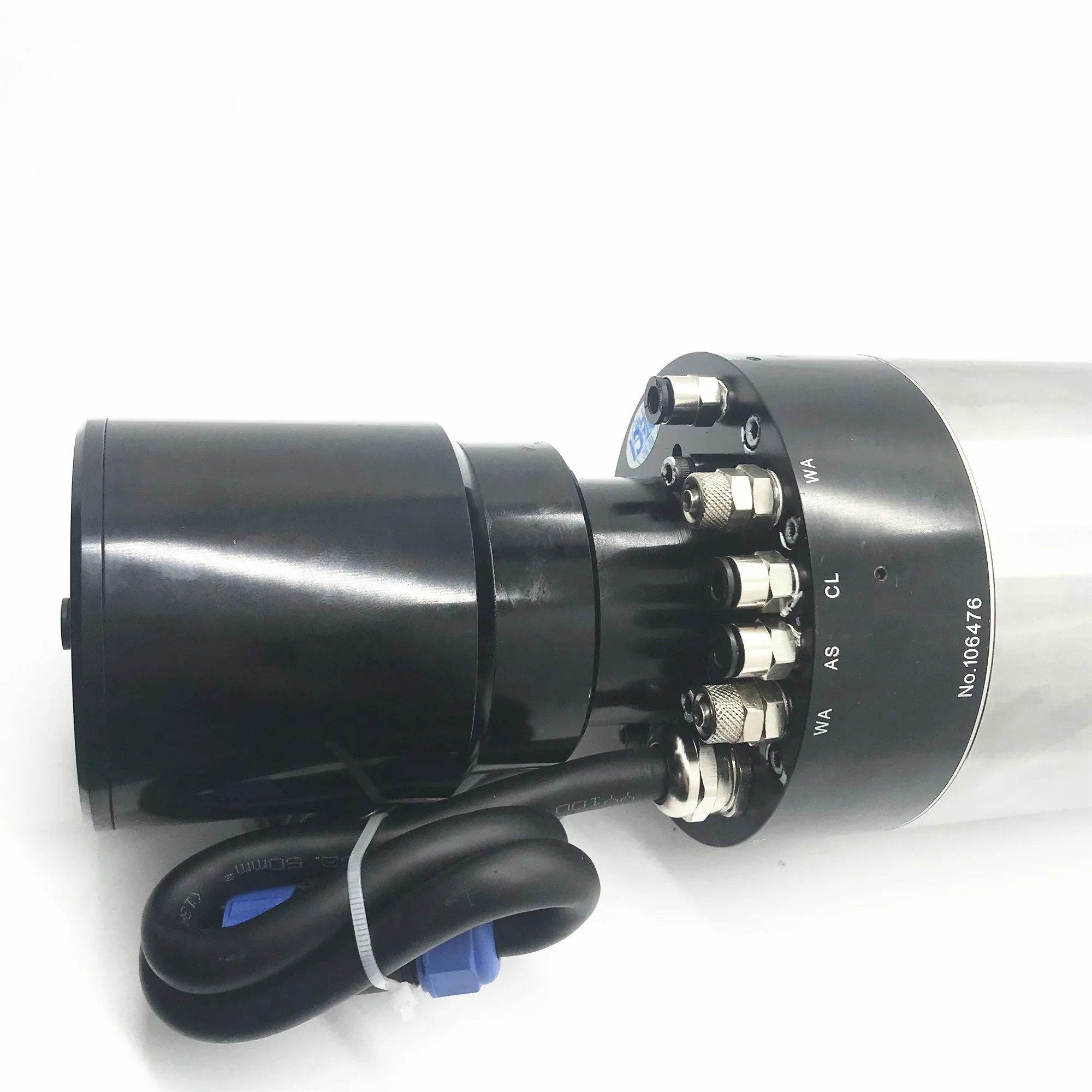

DECI ATC 7.5KW 30000rpm high speed water cooling bt30 spindles motor for CNC router machine tool spindle

Share on (62346278833):


Price:$2,108.00 - $2,288.00

Quantity:


Product Overview

Description



Product Description


This product is a metal cutting high speed electric spindle with a maximum speed of 36000 rpm and a rated power of 7.5 kW. It is suitable for high speed, high precision milling, drilling and tapping of metal and non-metal materials.





DECI spindle Motor Feature


1) Imported bearings with good quality, long working life.


2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.


3) There are water cooling spindle  , air cooling spindle and self cooling spindle for your choose.


4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.











Specificiations

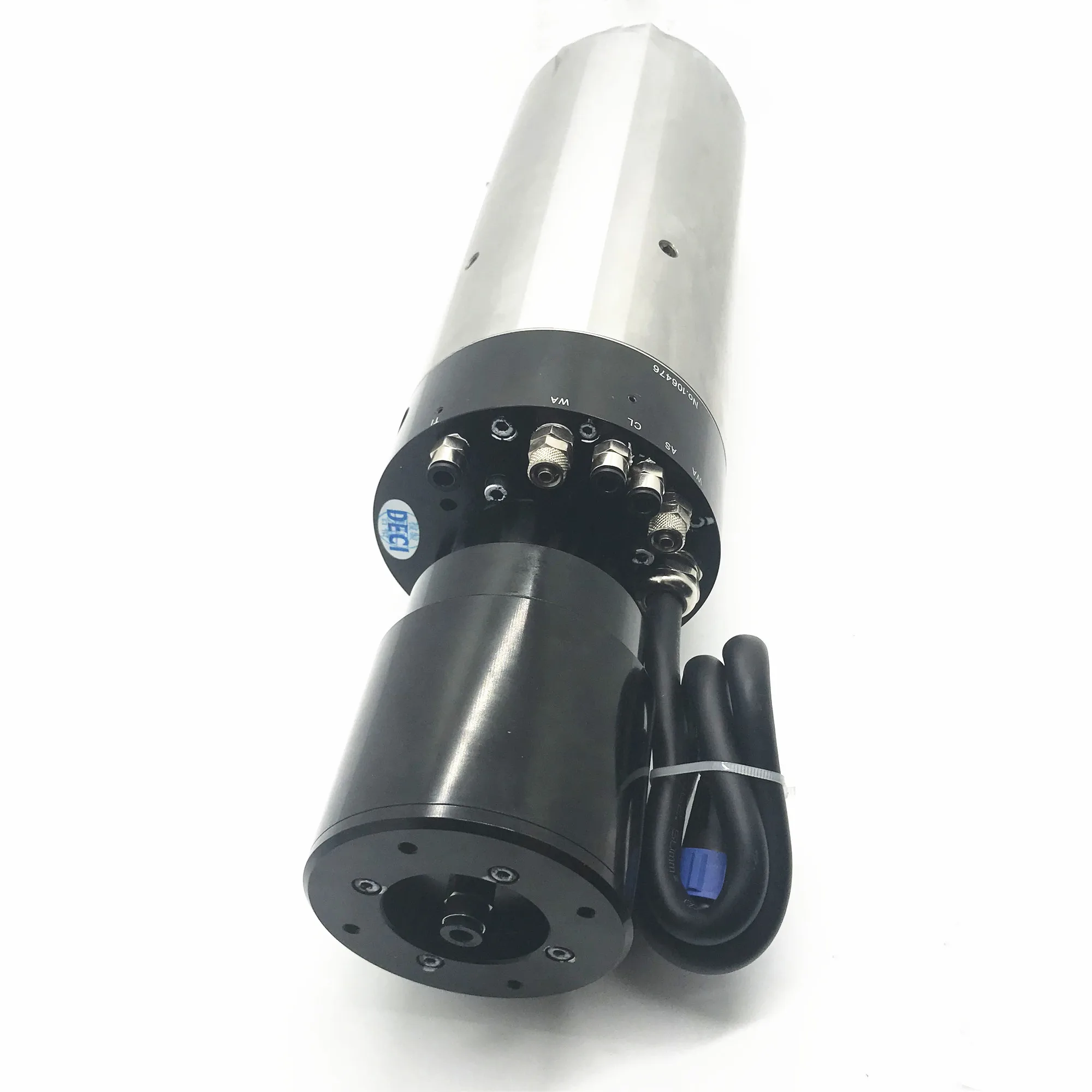

DECI DC-1230C
Parameters

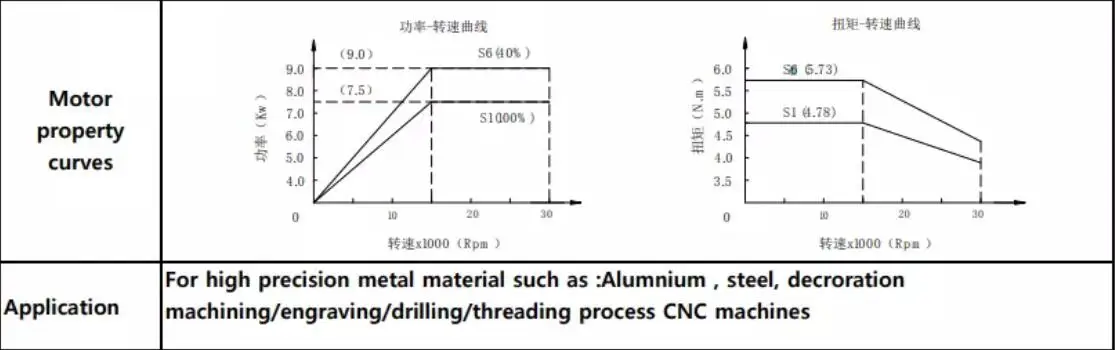

Motor Power:7.5KW Rated voltage: 380v(3~)
 Max rotate speed :30000Rpm/min Max currency:25A
 Max Frequency:1000Hz Torque:5.73N.M

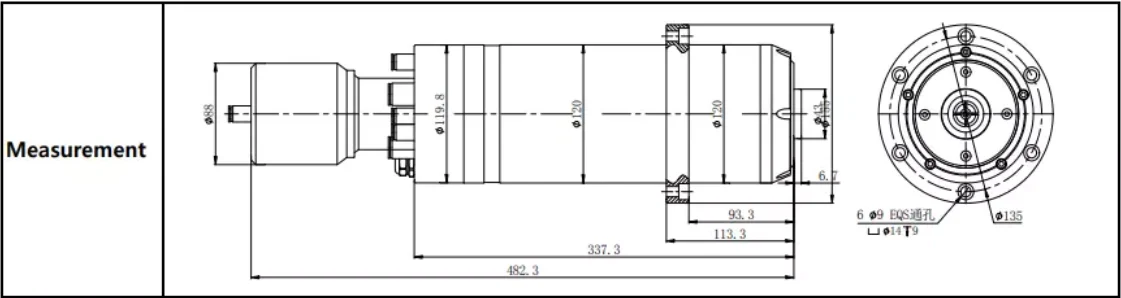

Specification
Shaft-end Cone Run-out: ≤0.001mmTooling Releasing  Air Pressure: 5.6-6.0 Kgf/cm²
 Tooling Exchange Method: ATCAir curtain pressure at front end: 2.5-3.0 Kgf/cm²
 Tooling Pulling Force: 2900Tooling Back Air Pressure:~
 Tooling Connection:BT30 HandleCooling:water air cooling optional
 Encoder:Sine-Cosine 1VPP(Optional)Coolant Pressure:2.5Kgf/cm²
 Approach Switch:PNP OnBearing Lubrication Method:Grease
Balance Level : G1Tooling Instalation Method:FLANGE
Vibration Value: ≤0.8Weight:26kg





Applicable industry







Packaging & Shipping


 .jpg





Why choose us


why choose us.png








Company Profile


profile.png .png





Certifications


.png





FAQ


Q:Are you trading company or manufacturer ?
A: We are the manufacturer of DECI electric spindles.





Q:Do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?


A:we have all the packages. We can get the engineer to program you.



Q:
What's your delivery time?
A:It depends.If your order is standard and in stock,we can deliver immediately. If not,about 7 work days.



Q:Do you provide samples ? is it free or extra ?
A:Sorry, we don't offer samples.

Q:
Which payment method and Express can you accept?


   1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.


   2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.



Q:How do you make our business long-term and good relationship?
A:1. DECI keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
