layher scaffolding system ringlock system quick stage Q235 Steel ringlock scaffolding for Construction
- Category: >>>
- Supplier: Kaiping City Hong Qiang Machinery And Equipment Co. Ltd.
Share on (62346338765):
Product Overview
Description
STEEL LAYER ALLROUND SCAFFOLDING
Application
Used in indoor and outdoor operations, outdoor advertising installation, property maintainance, and all kinds of industrial works

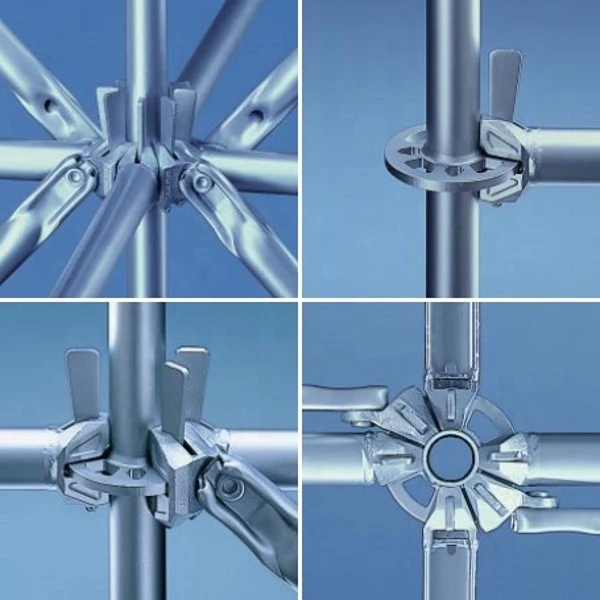

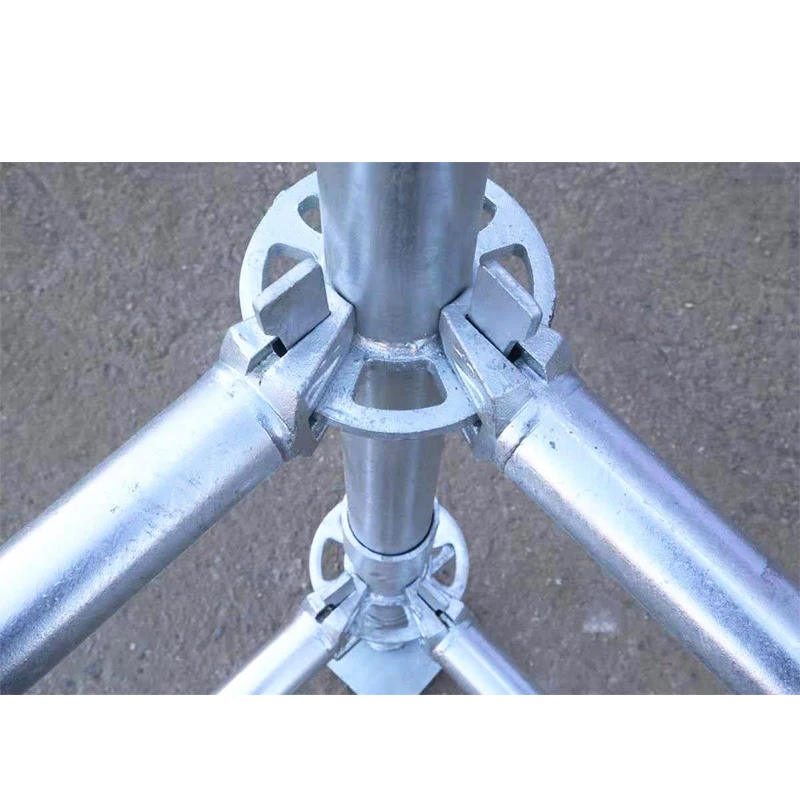

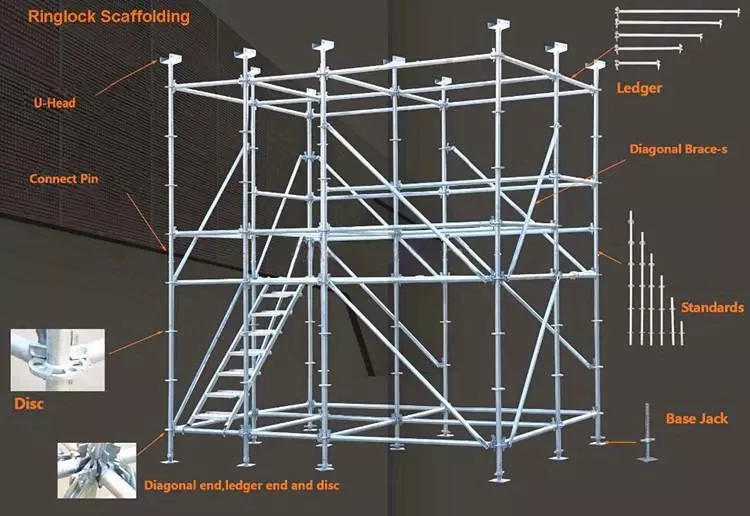

Ringlock system is a modeler system. It is composed of standards, ledgers, diagonal braces, base jack, steel plank, steel stairs, wedge pin etc. 8 rosettes and wedge pins are composed of self-locked structure.
Category | Modular Scaffold System |
Standard Post Material | Q195 Q235 Q345 |
Tubing Diamater | Φ48mm |
Performance | Simple,Flexible,Safety and High Strength |
Welding Compliance | ISO 9001:2008 ISO 3834 |
Product Detail
Item Number | Length(mm) | Diameter(mm) | Tube Thickness(mm) | Surface Treatment |
SSC-R1-2000 | 2000 | 48.3 | 3.25 | Hot dip galvanized/Powder coated |
SSC-R1-1500 | 1500 | |||
SSC-R1-1000 | 1000 | |||
SSC-R1-500 | 500 |
Item Number | Length(mm) | Diameter(mm) | Tube Thickness(mm) | Surface Treatment |
SSC-R2-3000 | 3000 | 48.3 | 3.2 | Hot dip galvanized/Powder coated |
SSC-R2-2500 | 2500 | |||
SSC-R2-2200 | 2200 | |||
SSC-R2-2000 | 2000 | |||
SSC-R2-1500 | 1500 | |||
SSC-R2-1200 | 1200 | |||
SSC-R2-1065 | 1065 | |||
SSC-R2-1000 | 1000 | |||
SSC-R2-750 | 750 |
Item Number | Specification(mm) | Diameter(mm) | Tube Thickness(mm) | Surface Treatment |
SSC-R3-3000*2000 | 3000*2000 | 48.3 | 3.2 | Hot dip galvanized/Powder coated |
SSC-R3-2500*2000 | 2500*2000 | |||
SSC-R3-2000*2000 | 2000*2000 | |||
SSC-R3-1500*2000 | 1500*2000 | |||
SSC-R3-1000*2000 | 1000*2000 | |||
SSC-R3-750*2000 | 750*2000 |
Length(mm) |
1000 |
1200 |
1500 |
2000 |
2500 |
3000 |
Easy to install and fast
Project picture display
Project picture display
