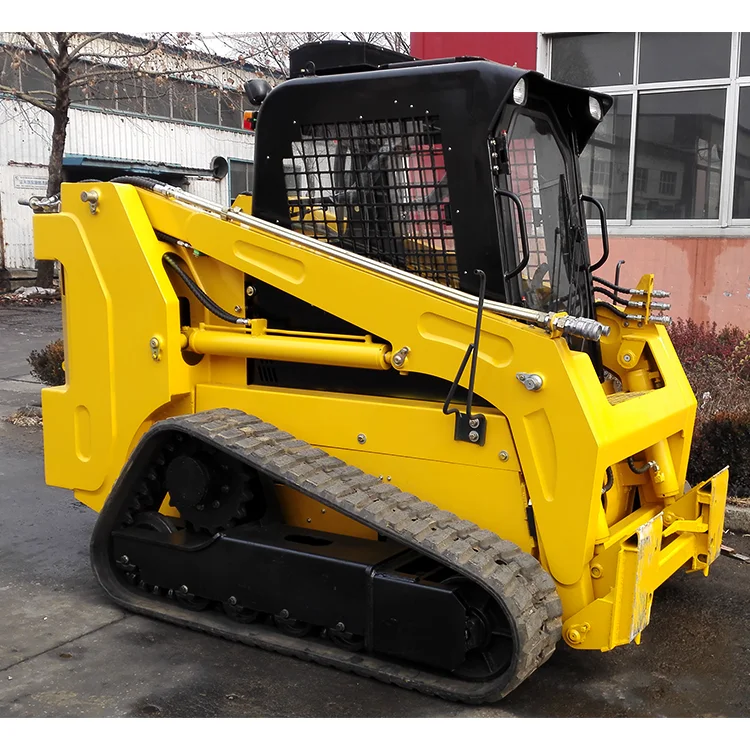

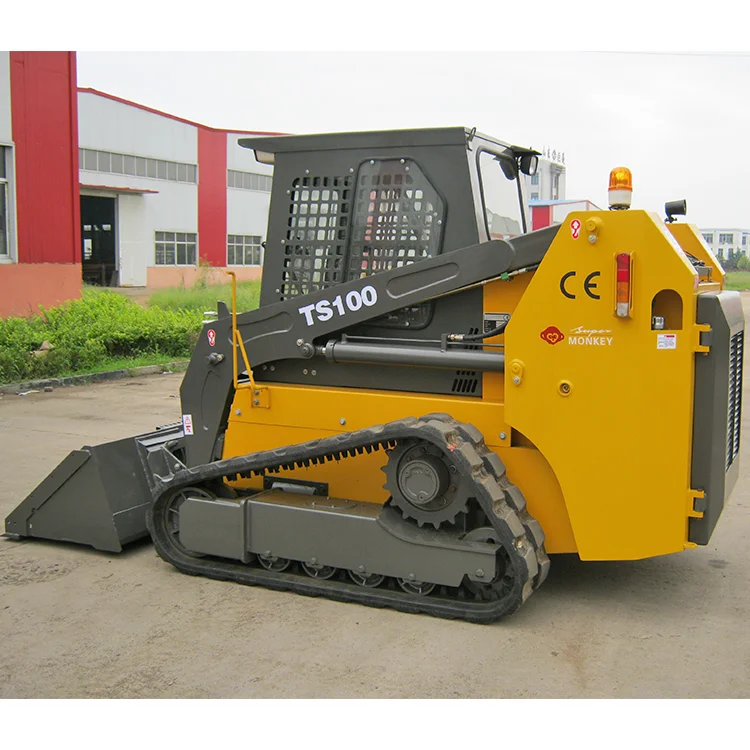

TS100 Skid Steer Loader Spare Parts Mini Rubber Track Front End Skid Steer Loader

Product Overview

Description

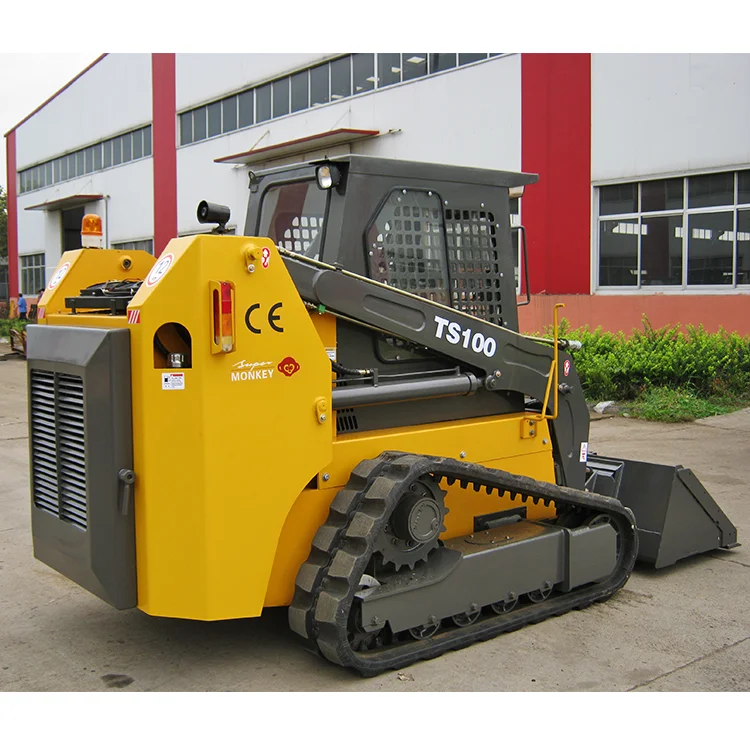

TS100 Skid Steer Loader Spare Parts Mini Rubber Track Front End Skid Steer Loader

 TS -series crawler skid steer loader

parameter

	Model	TS50	TS65	TS75	TS100	TS125
	Operating load (kg)	700	1000	1050	1200	1500
	Max Speed(km/h)	10/15	12/18	12/18	12/18	12/18
	Rated flux (L/min)	60	75	80	88	88
	High Flow Flux (L/min)			120	140	140
	Tire(track) model	300*52.5	320*84	320*84	320*84	450*86
	Rated power (Kw)	36	55	55	74	103
	Fuel tank capacity (L)	50	80	90	90	90
	Self weight bucket (kg)	2800	3800	3800	4500	4800
	Bucket capacity (m3)	0.3	0.5	0.5	0.55	0.6

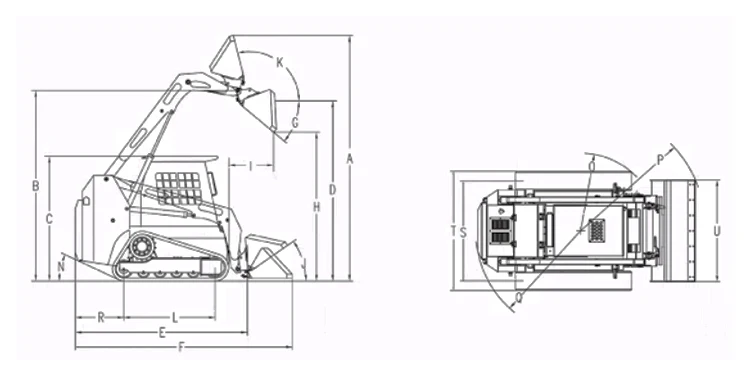

A	Overall operating height (mm)	3350	3480	3480	4070	4070
B	Height to bucket hinge pin (mm)	2770	2900	2900	3150	3150
C	Height to top of cab (mm)	2050	2150	2150	2160	2160
D	Height to bottom of level bucket(mm)	2603	2730	2730	2983	2983
E	Overall length ithout bucket(mm)	2300	2750	2750	3000	3000
F	Overall length with bucket(mm)	2950	3500	3500	3700	3700
G	Dumping angle at maximum height(° )	40	40	40	40	40
H	Dumping height(mm)	2100	2230	2230	2450	2450
I	Dumping reach(mm)	790	715	715	700	700
J	Rollback o bucket on ground(° )	30	30	30	30	30
K	Rollback of bucket at full height(° )	104	104	104	104	104
L	Wheelbase(mm)	1240	1500	1500	1500	1500
M	Ground clearance(mm)	140	200	200	200	200
N	Angle of departure(° )	20	20	20	20	20
O	Front turning radins without bucket(mm)	1064	1298	1298	1365	1365
P	Front tuning radius(mm)	1825	2010	2010	2200	2200
Q	Rear tuning radius(mm)	1264	1714	1714	1742	1742
R	Rear axle to bumper (mm)	594	890	890	938	938
S	Tread width,enterline to centerline (mm)	1102	1462	1462	1654	1654
T	Width (mm)	1402	1782	1782	1994	2124
U	Bucket width (mm)	1500	1830	1830	2030	2160

Changzhou Raymond International Co., Ltd is a professional manufacturer and exporter which was found in 2002 has a lot of experience in construction machinery attachments producing and serving.Our factory is located in Changzhou City, Jiangsu Province, Near to Shanghai City. Which has large capacity to make various kinds products like mini excavator, hydraulic breaker, earth auger, quick hitch, Vibro ripper,pile breaker and other construction machinery attachments.We are always researching to improve our products’ performance and innovate designing to meet more and more clients’ demands.
