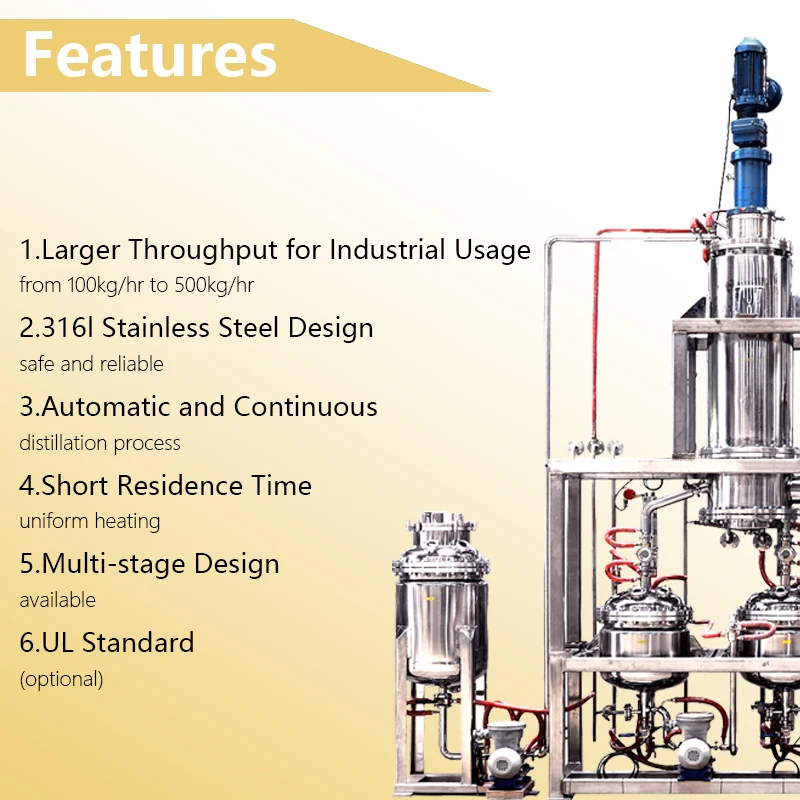

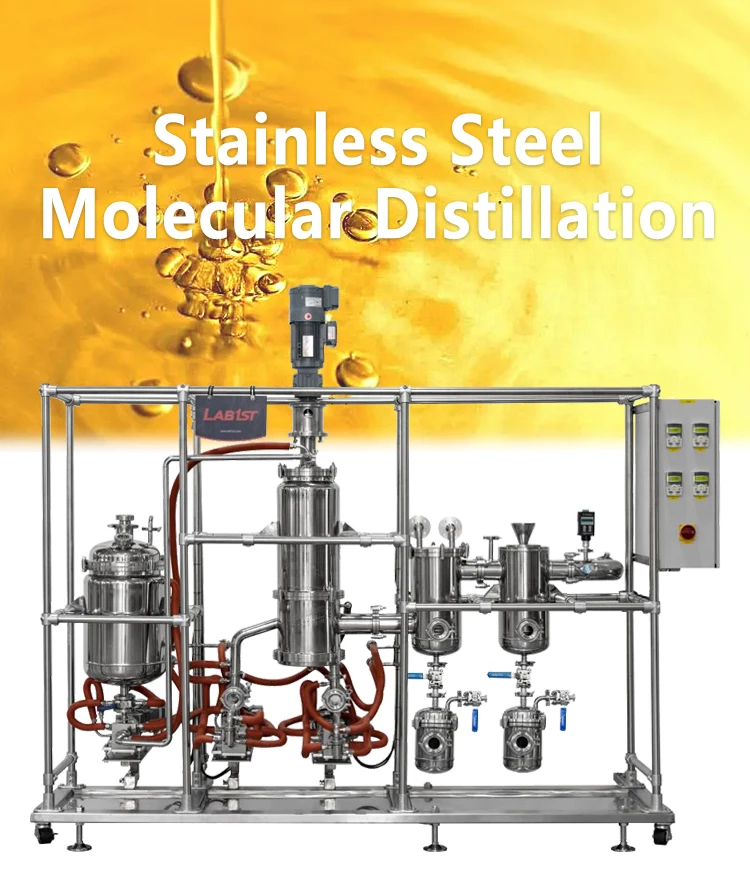

Short range Stainless Steel Rolled Wiped Film Continuous Short Path Molecular Distillation System Equipment Apparatus
- Category: >>>
- Supplier: Labfirst Scientific Instruments (Shanghai) Co. Ltd.
Share on (62346540468):
Product Overview
Description

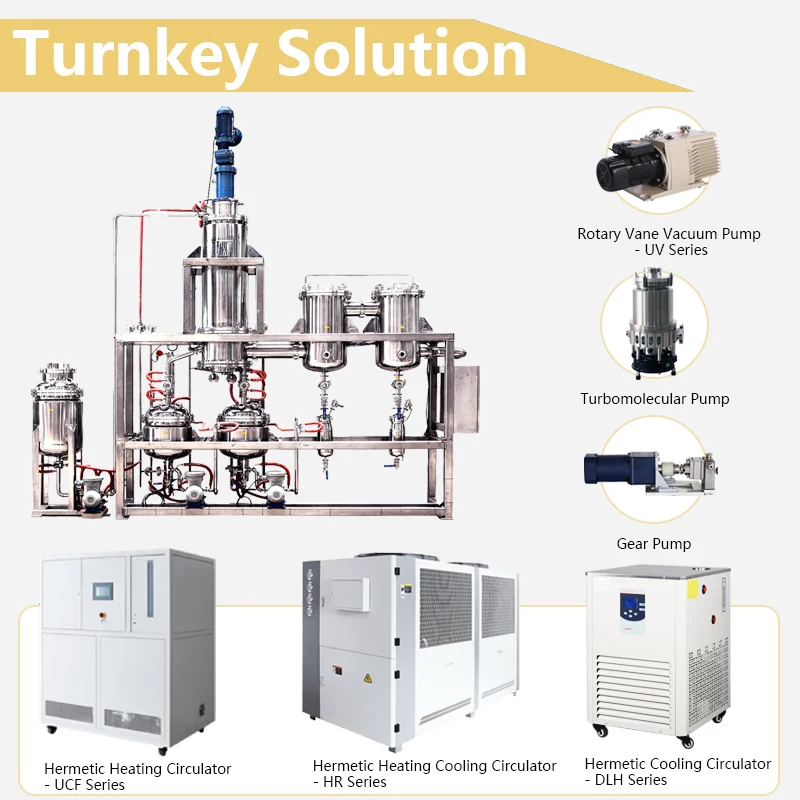

Labfirst Scientific (LAB1ST) Was Founded and Based in Shanghai, Committed to Providing First-class Equipment for Customers in the Chemical and Pharmaceutical Industry. Our Product Lines Range from Laboratory & Pilot Scale to Industrial Scale and Mainly Focus on the Fine Chemicals, Biological Fermentation, Plant Extraction and Other Related Fields, to Provide All Kinds of Equipment and Turnkey Solutions.
Our Team
Our Office
Warehouse in USA
Warehouse in China

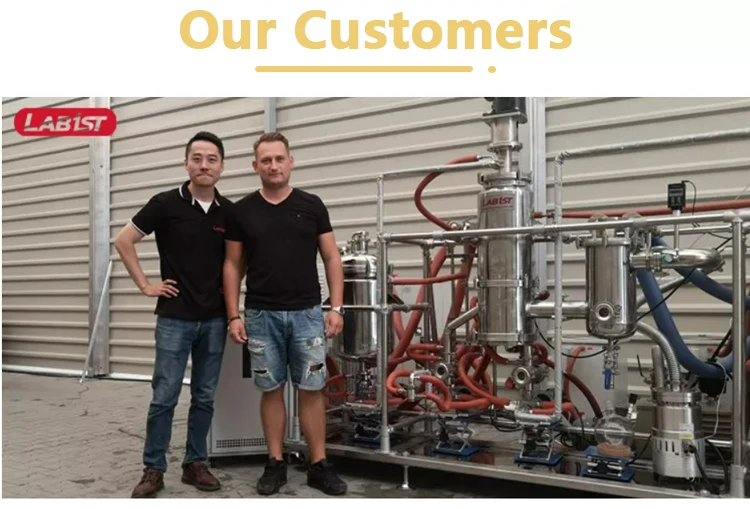

Clients Cases
Products Description
SMD-Pilot Scale | ||||||
Model [L/h] | SMD-01 | SMD-03 | SMD-05 | |||
Feeding Speed | 2~10 | 5~25 | 10~50 | |||
Herb Oil Throughput [L/h] | 3.5~7 | 10~20 | 18~36 | |||
Evaporation Area [㎡] | 0.1 | 0.3 | 0.5 | |||
System Vacuum [Pa] | ≤10Pa(No Load) | |||||
Agitate Motor Speed [rpm] | ≤400 | |||||
Material [Wet Part] | High Borosilicate Glass, PTFE, SUS316L | |||||
Seal Gasket Standard | Food grade fluororubber(options: PTFE) | |||||
Certification | CE(option: UL, ATEX...) | |||||
Wiper Type | Centrifugal scraper(PTFE) | |||||
Agitator Drive | Magnetically coupled drive | |||||
External Condenser | √ | |||||
External Cold Trap | √ | |||||
Feeding Tank [L] | 15 | 30 | 50 | |||
Feeding Pump | Gear pump (one-way valve installed at outlet) | |||||
Heat Preservation | The pump head, conveying pipe and one-way valve are interlayer, which can be insulated by heat conduction oil | |||||
Holding Temperature [℃] | RT~200℃ | |||||
Receiving Flask | —— | —— | —— | |||
Electrical Rquipments | 220,1P [customizable] | |||||
Installation Dimension [mm] | 2350×900×1900 | 2750×900×2200 | 3350×1100×3000 | |||
Package Weight [Kg] | 400kg | 510kg | 955kg | |||
*1. Due to different material properties, the throughput will fluctuate, please subject to test results; *2. Diffusion pump can only be used as a second stage vacuum pump with a first-stage pump. | ||||||
SMD-Industrial | ||||||
Model [L/h] | SMD-10 | SMD-20 | SMD-50 | |||
Feeding Speed | 20~100 | 50~250 | 100~500 | |||
Herb Oil Throughput [L/h] | ~30 | ~75 | ~150 | |||
Evaporation Area [㎡] | 1 | 2 | 5 | |||
System Vacuum [Pa] | ≤10Pa [No Load] | |||||
Agitate Motor Speed [rpm] | ≤400 | |||||
Material [Wet Part] | High Borosilicate Glass, PTFE, SUS316L | |||||
Seal Gasket Standard | Food grade fluororubber [options: PTFE] | |||||
Certification | CE [option: UL, ATEX...] | |||||
Wiper Type | Centrifugal scraper [PTFE] | |||||
Agitator Drive | Magnetically coupled drive | |||||
External Condenser | √ | |||||
External Cold Trap | √ | |||||
Feeding Tank [L] | 100 | 100 | 200 | |||
Feeding Pump | Gear pump [one-way valve installed at outlet] | |||||
Heat Preservation | The pump head, conveying pipe and one-way valve are interlayer, which can be insulated by heat conduction oil | |||||
Holding Temperature [℃] | RT~200℃ | |||||
Receiving Flask | —— | —— | —— | |||
Electrical Rquipments | 220,1P [customizable] | |||||
Installation Dimension [mm] | 3900×1400×3900 | 4200×1550×4650 | 4500×1550×6500 | |||
*1. Due to different material properties, the throughput will fluctuate, please subject to test results; *2. Diffusion pump can only be used as a second stage vacuum pump with a first-stage pump. | ||||||
