Quality assurance 110 drum brake cargo loading bike bicycle electric motor with big loading capacity
Product Description
Whole bike show
Motor
Type
DC brushless
Rated output power
450 watts
Climb capacity
<15°
Controller
Type
9 pipes sine wave brushless controler
PAS(Padel Assist System)
1:01
Over-current protetion
22±1A
Under-voltage protectioon
52.5±0.5V
Batery
Battery type
Lead acid
Capacity
60V12A
Recharge time
3-8hours
Discharge cycles
600 times
Charger
Specification
60V2A
Charging voltage
AC220V-50Hz(AC110V optional)
Charging time
3-8hours
Power consumption percharge
About 0.85 kw.h
Performance
Max speed
30-35km/h
Input voltage
90-240V
Output voltage
60V
Range
50-65km
Loading
150kg
Components
Brakes system
Front&Rear 110 drum brake
Fork
Straight
Whel/rim
17inch;double wall aluminium alloy rims
Tires
Front&Rear 22*2.125inch
Frame materials
Steel
Display
LCD
Certificate
No
Dimensions
L*W*H
165*66*115cm
G.W/N.W
75kg/67kg
Wheelbase
119cm
Package size
With carton160*30*86cm
Container loading
20'GP
47pcs
40'HQ
146pcs

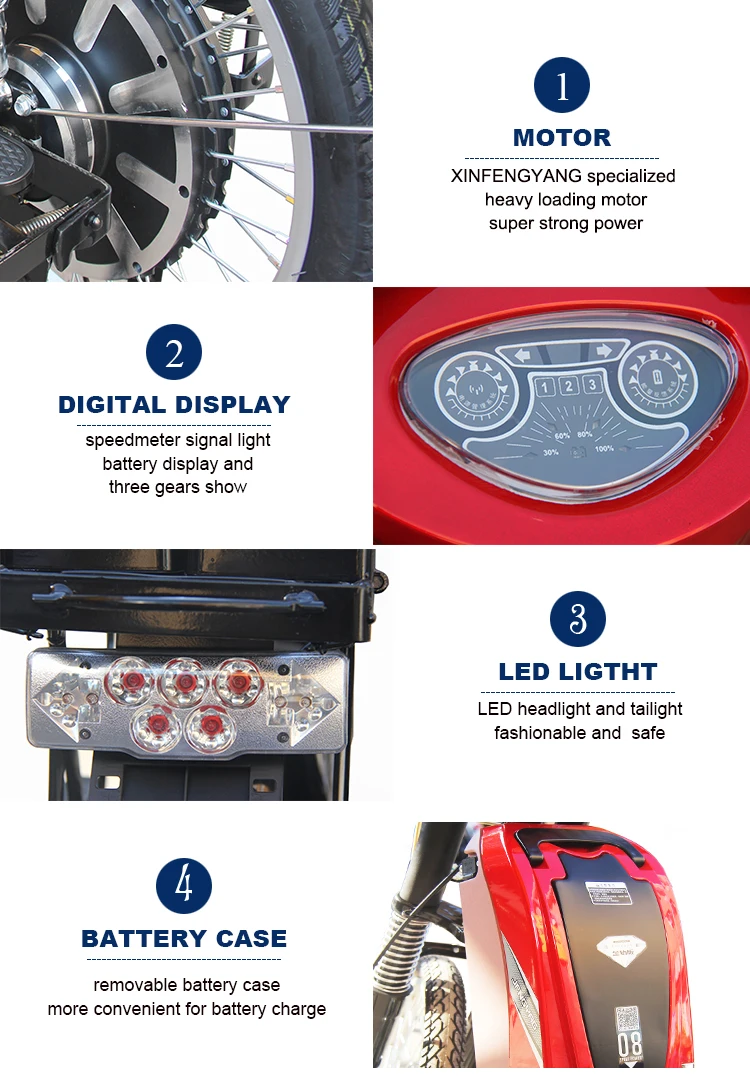

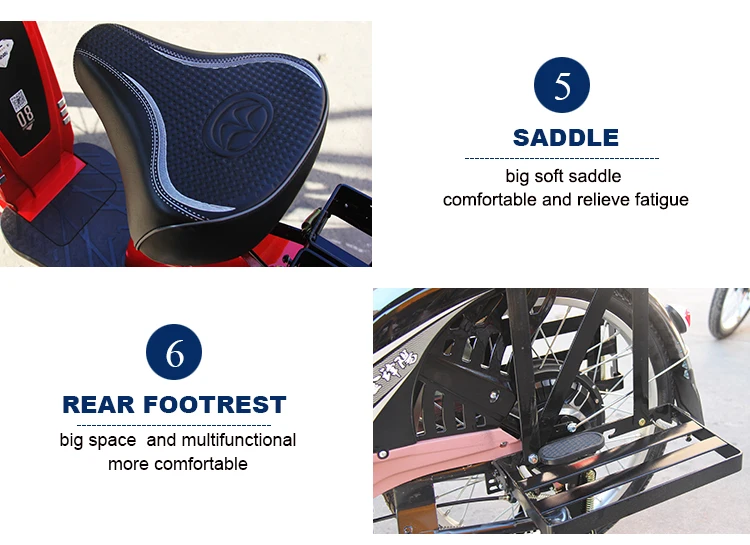

Details show
Packaging & Shipping
1, Loading Quantity
LCL
20GP
40HQ
Quantity
option
47pcs
146pcs
Remarks
option
disassemble basket ,pedals,mirrors
disassemble basket ,pedals ,mirrors
2,Packaging
LCL : wooden packaging
FCL: carton packaging
Company Information
Guanzhou xinfengyang electric bicycle Co., Ltd. is a professional manufacturer of electric bicycle , electric scooter ,electric motorcycle , electric tricycle and special bicycle , a high-tech enterprise with research , development, manufacturing, sales and service.
Located in Guangzhou City - the window of world , there is a complete electric bicycle chain around .
We have experienced workers , one technical production line , independent engineering office , etc.
Products have been sold to many countries in the world , main markets are Latin America , Middle East , Asia, Africa .
OEM is welcome and we can also provide all series parts for our customers so that they can assemble on their own to save their import tax .
