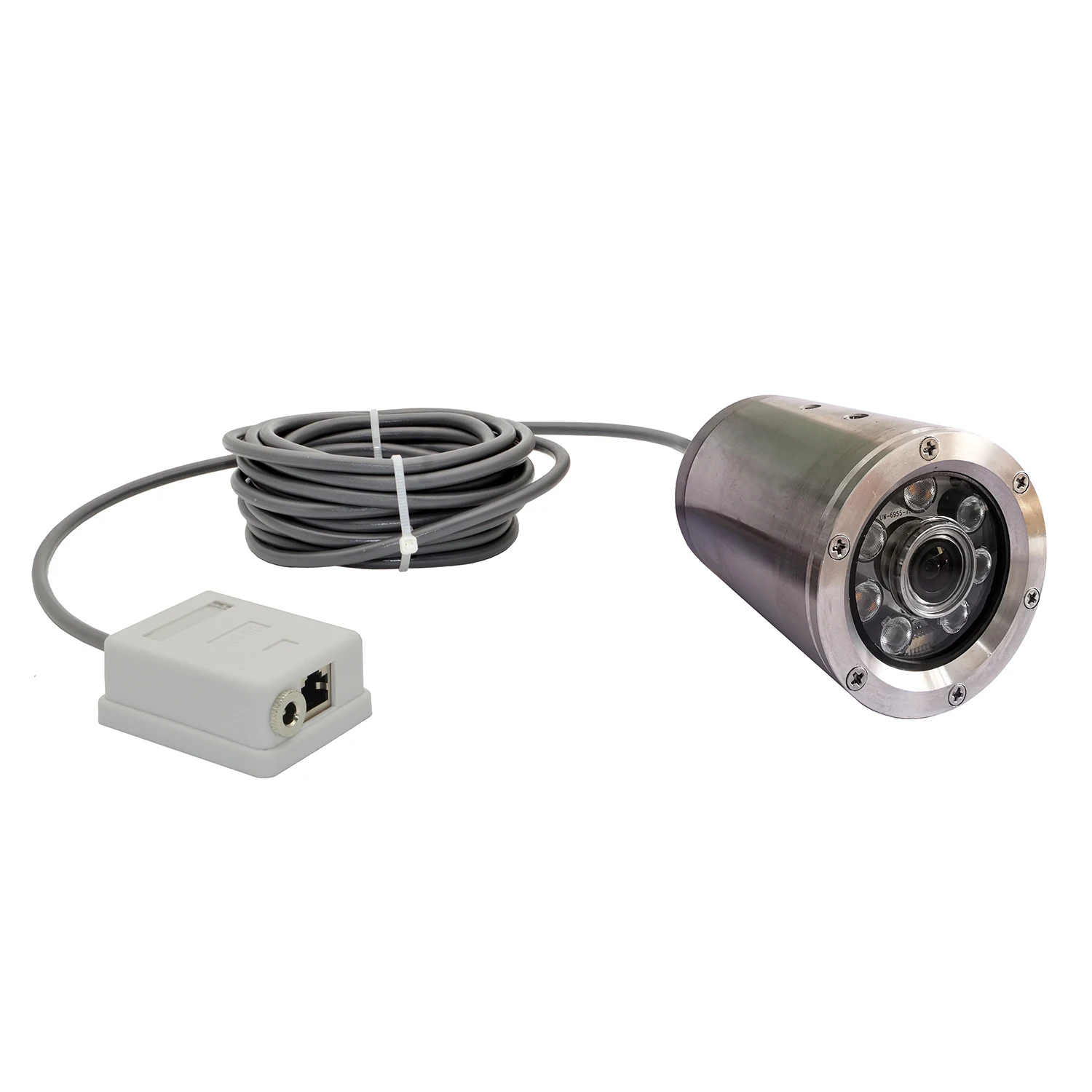

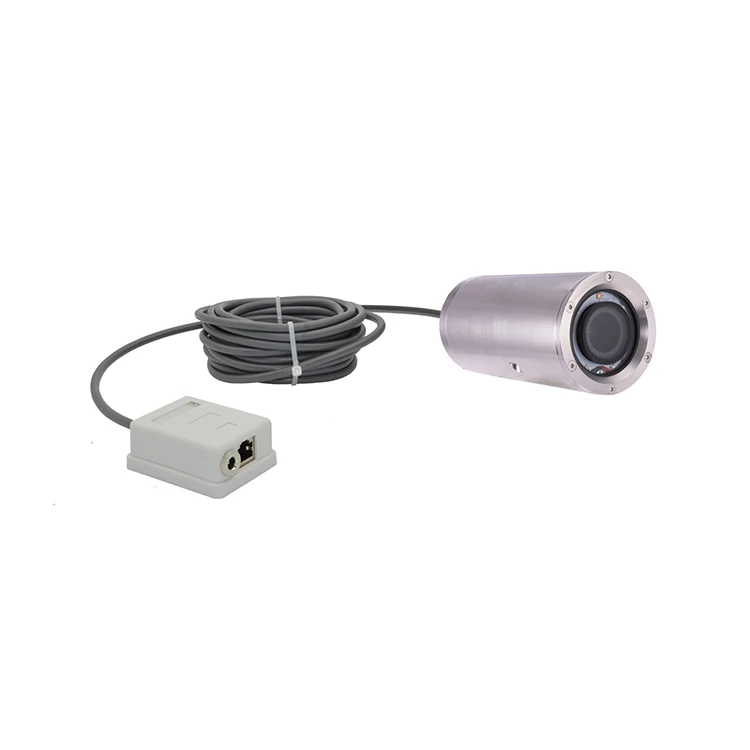

8MP 4K Motorized focus 3.6mm lens IP68 waterproof 316 stainless steel ROV underwater network camera

Model

UW-S8F-4CX10

Price

Line

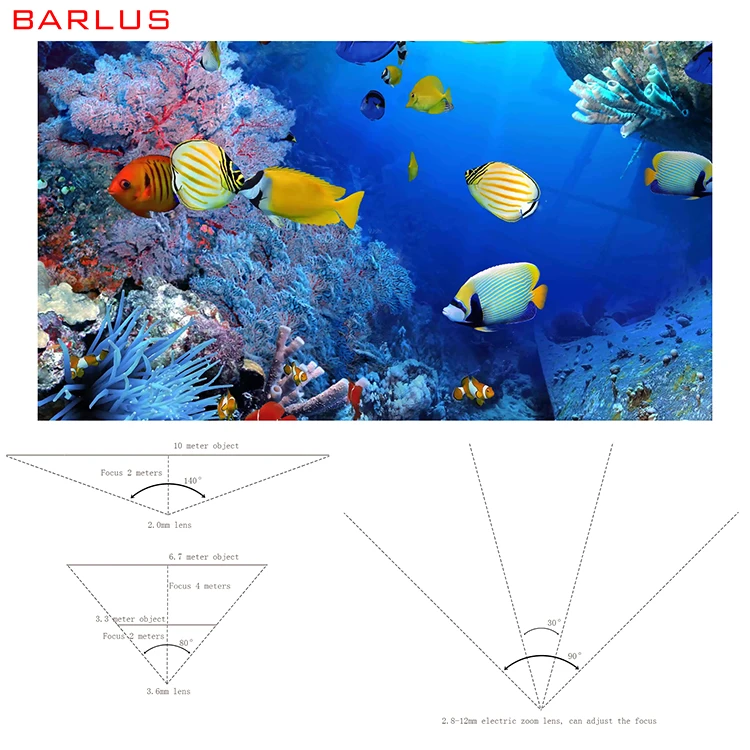

Lens

Motorized focus 3.6mm(H.FOV:95°)

Resolution

8MP  3840*2160P  25fps

5MP 2592×1520P 25FPS

4MP 2590×1920P 25FPS

1/2.5" SONY IMX274

CMOS sensor ,color 0.001Lux F1.2,black/white 0.0001Lux F1.2

Fill light (mobile /

computer / NVR settings)

Light  sensor contorlled  3 white light ,10 level brightness settings

Manual contorlled 3 white light , 10 level brightness settings

Light  sensor contorlled 3 infrared light ,10 level brightness  settings

Manual contorlled 3 infrared light ,10 level  brightness settings

Image color

Two modes: 1: white light - full color; 2: infrared light - automatic color to black;

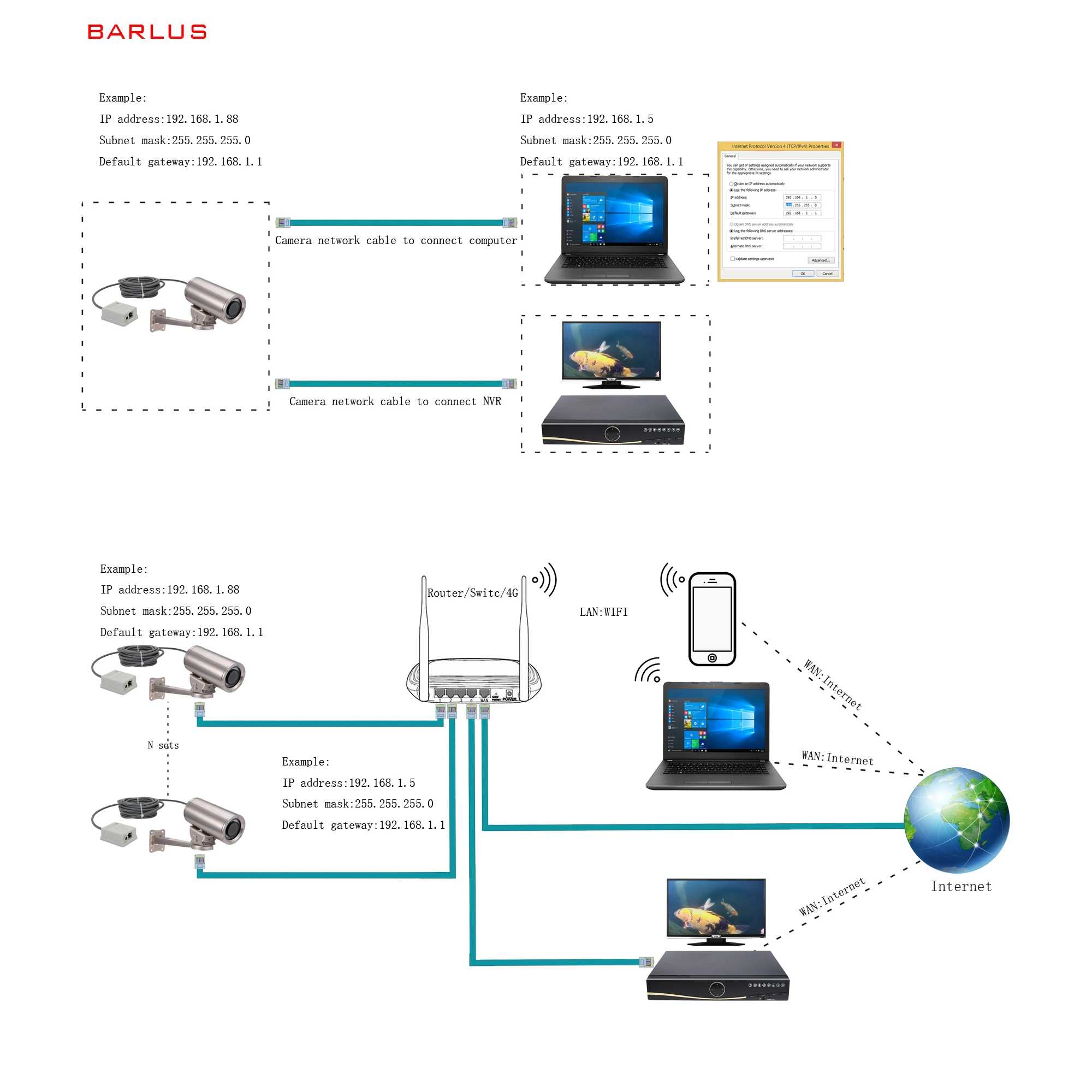

supporting device

Support iOS, Android, computer, NVR.Compatible with hikvision, dahua,

proprietary protocol.

(Only support windows-IE browser for camera internal parameter setting)

supporting agreement

RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ONVIF;SDK Secondary development

Material

316L stainless steel, anti-corrosion

Waterproof level

IP68(permanent Installed under water)

Water pressure resistance

Maximum  500Kpa   (Waterpressure resisitance  50M)

Camera wire

The default length is 10 meters (the longest is no more than 80 meters),

PU material,Diameter 6.7MM.Resistance to 60KG pull,Anti-aging,Anti-friction,

Resistance to seawater corrosion,Special underwater wire.

Use environment

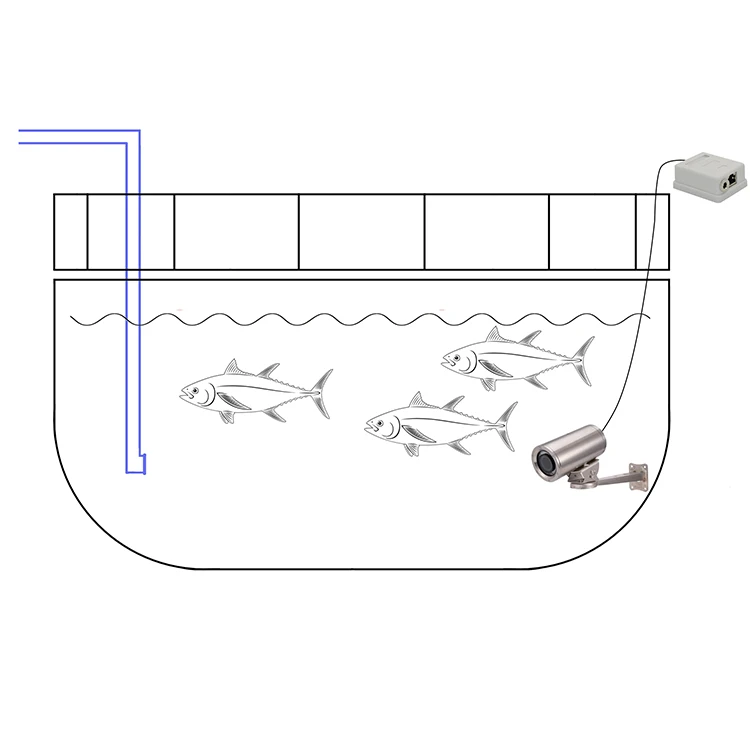

Sea water / fresh water /Underwater,land,Car,Shipborne.

Working humidity

0%-100%

working temperature

-20°~55°

Power Supply

Cable length ≤ 10 meters;3 options:

Default options 1:DC12V/POE 48V-54V IEEE.802.af power input and output pin: 1, 2 (+) / 3, 6 (-);

options 2:DC12-DC28V/AC12-AC28V;

options 3:POE 48V-54V;

Cable length 11-80 meters;2 options:

options 1:DC24V/AC24V;

options 2:POE 48V-54V;

Camera size

70*70*100mm

Weight

2KG

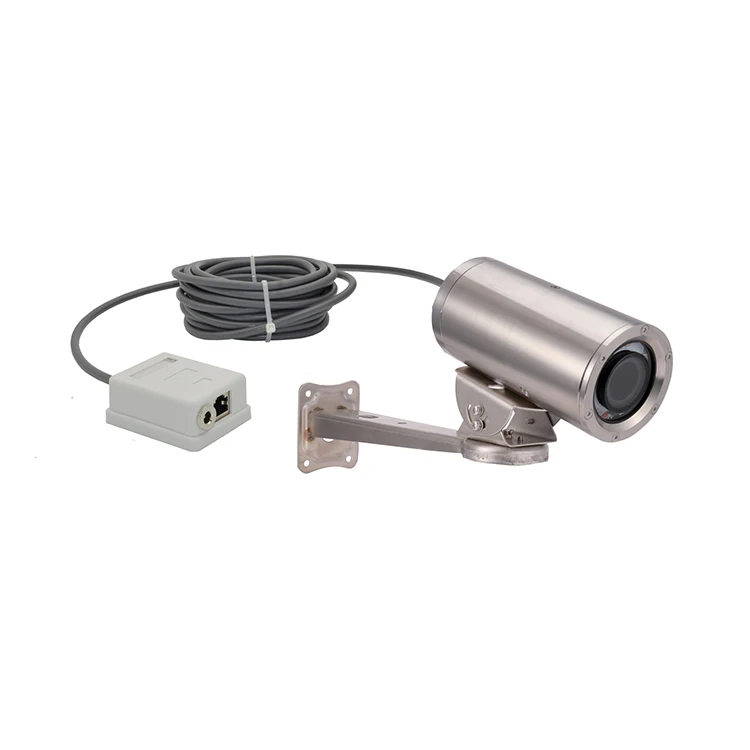

Package

1* camera

1* camera bracket

1*U disk (instruction and software)
