Sinri LED Protective Vent IP67 Breather Air permeable M12 Lighting Vent Plug
- Category: Valves >>>
- Supplier: Huizhou Sinri Technology Company Limited
Share on (62346664873):
Product Overview
Description
Welcome to our store!
If you want to get the Free Sample and know more detail information,
Product Description

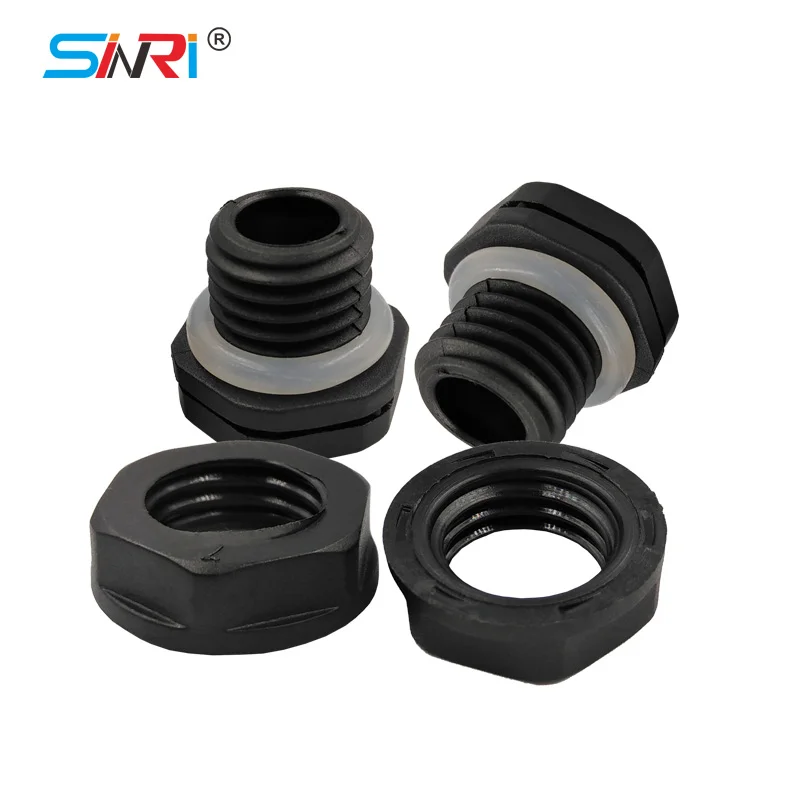

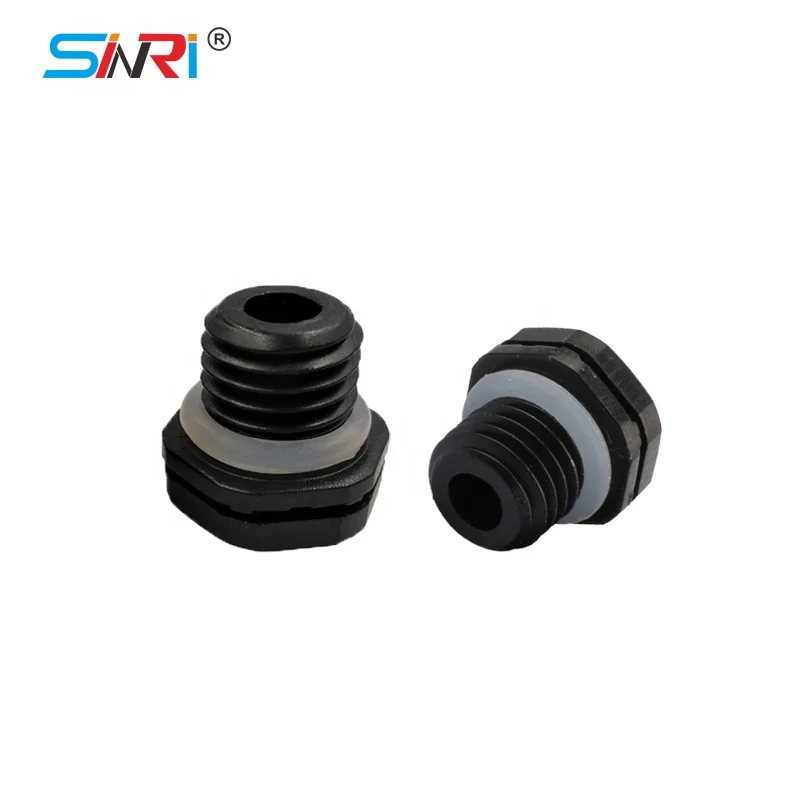

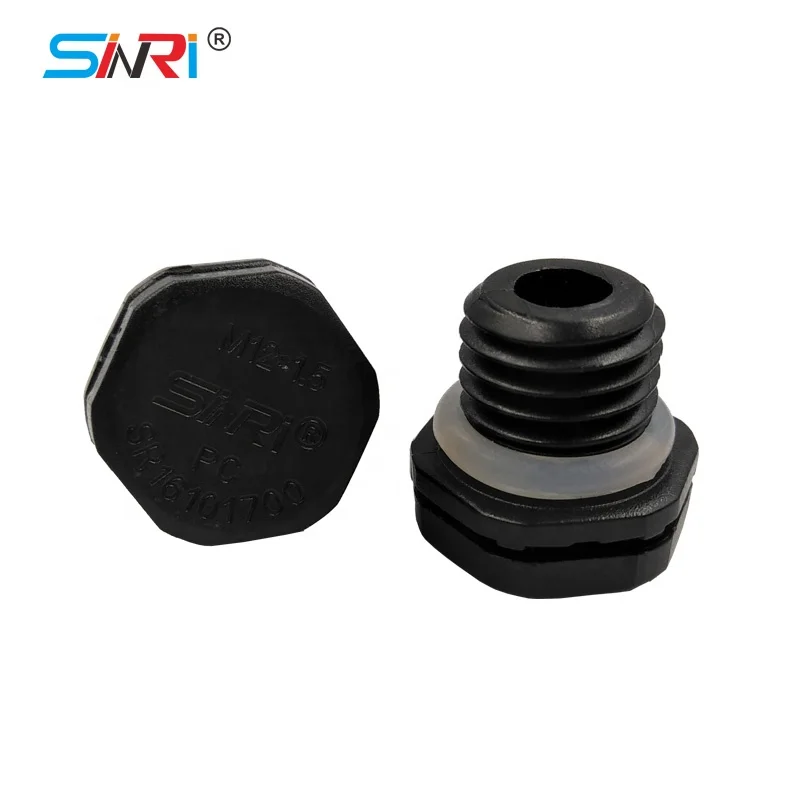

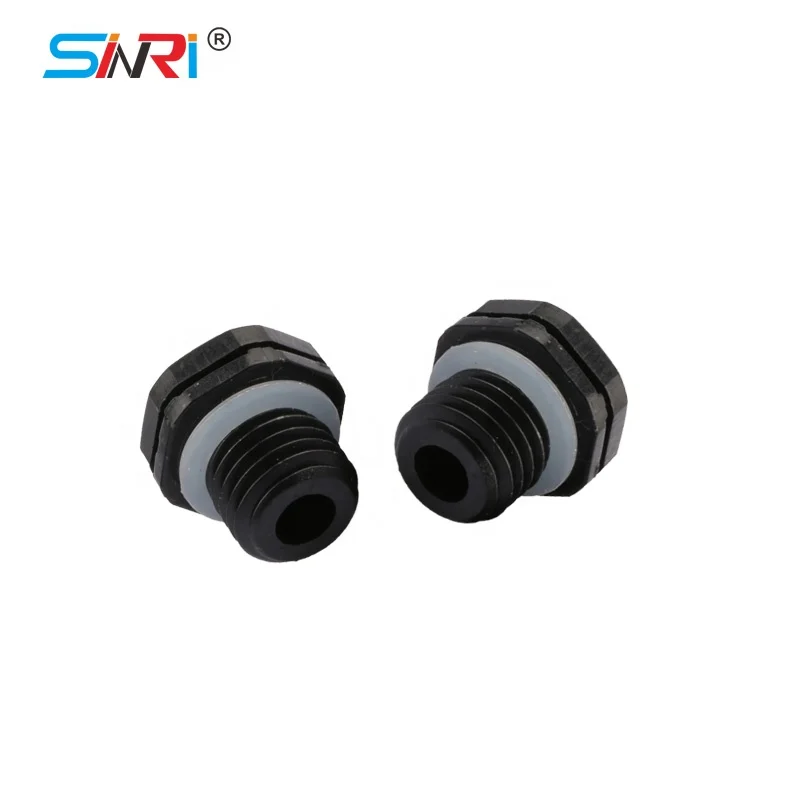

Sinri LED Protective Vent IP67 Breather Air permeable M12 Lighting Vent Plug
ePTFE membrane and integrated membrane are treated with special technological , have good features like water/oil repellent,moisture- and vapor-permeable , chemically inert, non-shedding ,UV-resistant ,temperature-resistant .
Sinri LED Protective Vent IP67 Breather Air permeable M12 Lighting Vent Plug has been widely used in protective automotive electronics unit or control module.
Sinri LED Protective Vent IP67 Breather Air permeable M12 Lighting Vent Plug M12 can rapidly exchange of air in response to pressure changes — in other
words, they allow the enclosure to breathe. By keeping the pressure differentials low, seal fatigue and housing stresses are minimized. The result — improved reliability and extended product life.
words, they allow the enclosure to breathe. By keeping the pressure differentials low, seal fatigue and housing stresses are minimized. The result — improved reliability and extended product life.
Product Name | Sinri protective vent ip67 waterproof air Breather m12 lighting air vent plug |
Membrane | E-PTFE |
Inner Material | pc |
Airflow | ≥800ml/min p=10Kpa |
Color | BLACK |
Water entry pressure | 12Kpa(>1m) |
Temperature range | 40℃—125℃ |
Waterproof Rate | IP67 |

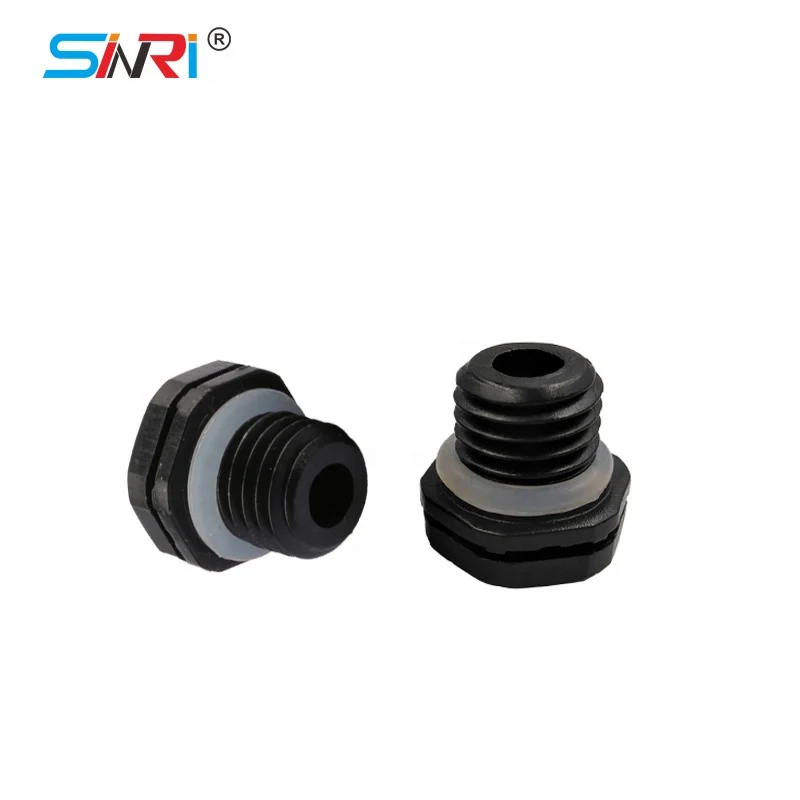

Products Show
Sinri LED Protective Vent IP67 Breather Air permeable M12 Lighting Vent Plug BENEFITS :
Sinri® Protective Vent M12 vent plug can Equalize Pressure
Sinri® Protective Vent waterproof LED vent plug can Prevent Contamination
Sinri® Protective Vent waterproof Breather vent plug can Reduce Condensation
Sinri® E-PTFE membrane IP67 Breather LED vent can Extend service life
Sinri® Protective Vent M12 vent plug can Equalize Pressure
Sinri® Protective Vent waterproof LED vent plug can Prevent Contamination
Sinri® Protective Vent waterproof Breather vent plug can Reduce Condensation
Sinri® E-PTFE membrane IP67 Breather LED vent can Extend service life

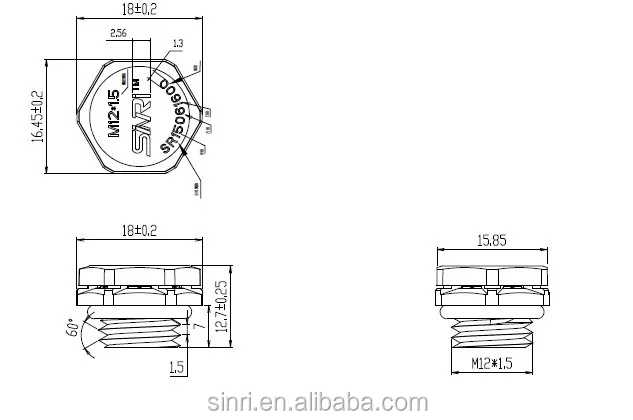

Breather M12 Installation Suggestions
1.Install on a vertical surface which no water or other contaminants;
2.When the housing thickness is ＞3mm,
it is suggested punching M12*1.5mm
threaded hole and use silicone O-ring to
seal the entrance;
When the housing thickness is ≤3mm, it is suggested punching ø12.2± 0.1mm straight hole and lock with nut. Flat silicone ring
would seal the entrance.
3.Mounting torque：0.7N.m(The recommended compression ratio of O-ring is 50%.
1.Install on a vertical surface which no water or other contaminants;
2.When the housing thickness is ＞3mm,
it is suggested punching M12*1.5mm
threaded hole and use silicone O-ring to
seal the entrance;
When the housing thickness is ≤3mm, it is suggested punching ø12.2± 0.1mm straight hole and lock with nut. Flat silicone ring
would seal the entrance.
3.Mounting torque：0.7N.m(The recommended compression ratio of O-ring is 50%.
Packaging&Shipping
Packing Details:
1）500 piece m12 led vent plug packing in PE bags and cartons for the outer packing.
2）Cartons size :Customized or based on actual weight and volume.
1）500 piece m12 led vent plug packing in PE bags and cartons for the outer packing.
2）Cartons size :Customized or based on actual weight and volume.
Shipping Details:
1）By express （3-5 working days）Within 3-7 days upon receipt of the payment.
2）Tell us your requirement about the Shipping by CLICKING HERE, so that we can provide solution to save your budget and meet your need !
1）By express （3-5 working days）Within 3-7 days upon receipt of the payment.
2）Tell us your requirement about the Shipping by CLICKING HERE, so that we can provide solution to save your budget and meet your need !
Product Application
Sinri LED Protective Vent IP67 Breather Air permeable M12 Lighting Vent Plug Typical Application:
• LED light
• Sensors
• Auto components
• Electronic control unit (ECU)
• Electronics & Electrical Appliances •Telecommunication equipment
• Solar equipment
• Protective cases
• All kinds of outdoor enclosures need to be waterproof and venting.
Recommend Products

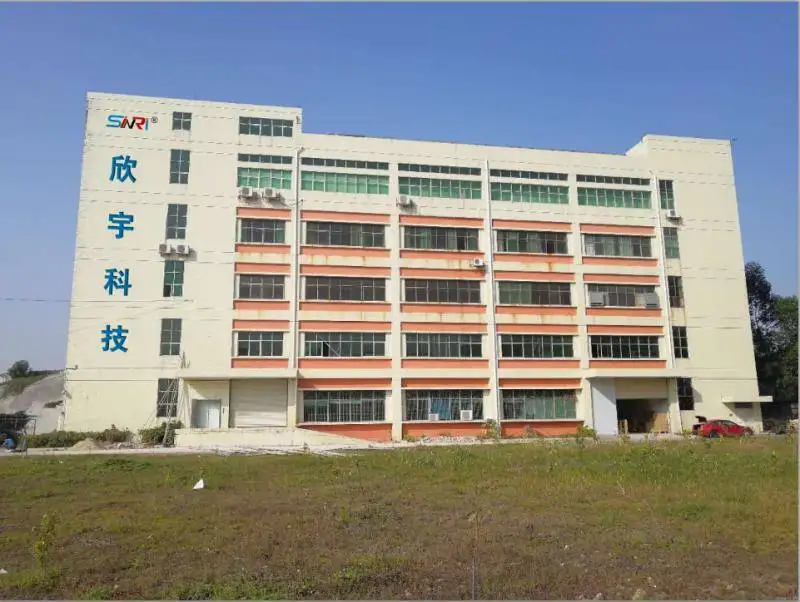

Our Company
Huizhou Sinri Technology Company Limited （ grew out of the factory named “De Xiang”, which has more than 10 years experience in producing molds and protective vent）is manufacturer focused on protective vent development, production and sales.
With professional e-PTFE technology, we have designed and manufactured a large number of products which are waterproof, air permeable, oil-resistant and anti-explosion.
Since founded in 2015, Sinri continuously introducing advanced production technology, realize the automatic production, testing assembly line.And through the ISO90001/ TS16949 system certification.

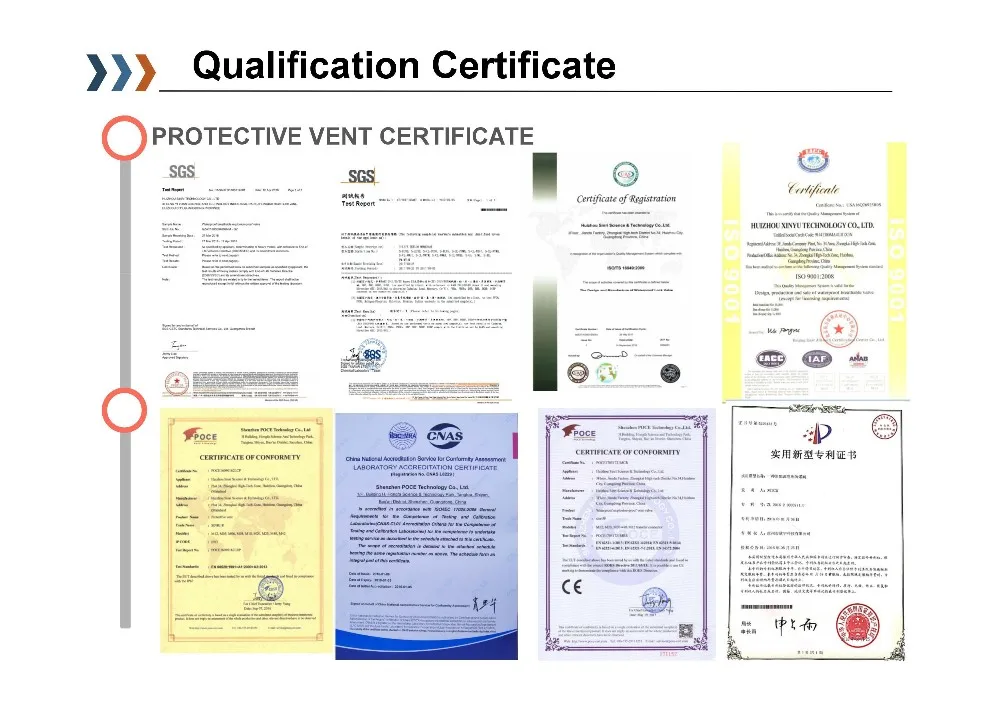

Our certificate
