China Brand Quality Standard Welding Machine HF 300L Vertical Circumferential Seam Welding Equipment

Product Overview

Description

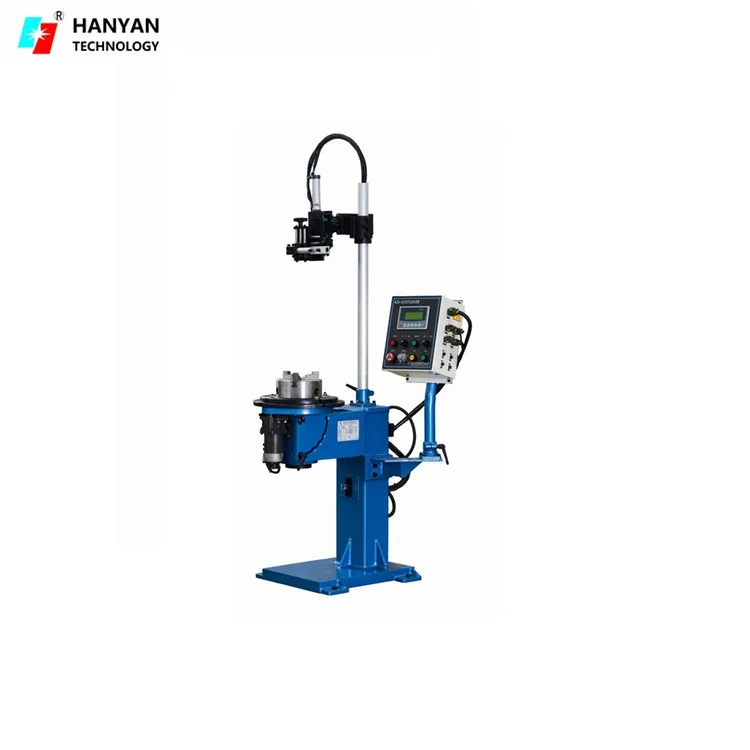

HF-300L Vertical Circumferential Seam Welding Machine

  Application:

    HF-300L  is a kind of general welding equipment for fixing and rotating workpiece, and can be used with different welding sources, easy to constitute an automatic girth welding system with argon arc welding machine (supporting the use of wire feeder), CO₂/MAG/MIG welding machine, plasma welding machine or other welding machines, to improve welding quality and speed, and reduce costs.

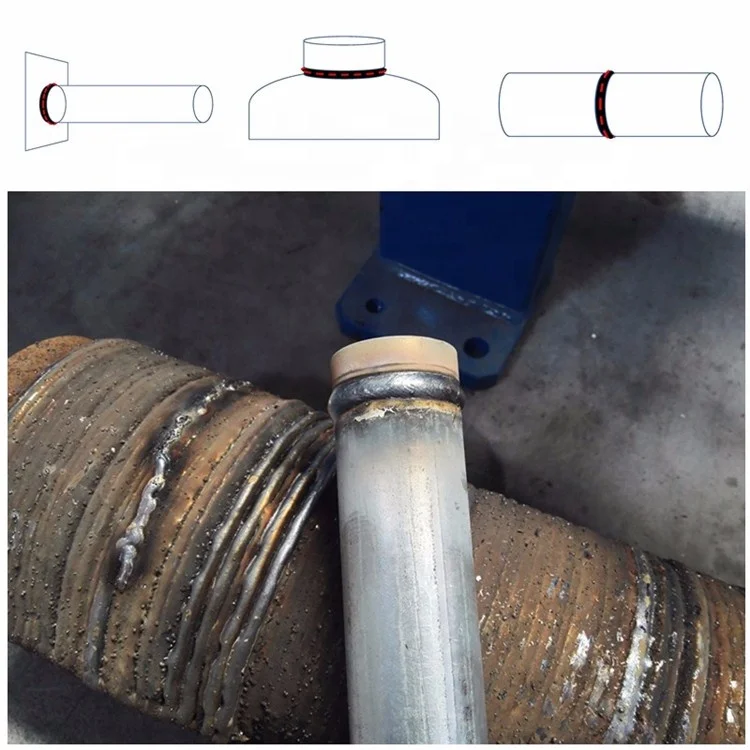

Type of Workpiece: pipes, plates, flanges, etc.

Base Material: carbon steel, stainless steel, aluminum, copper, titanium.



Components:

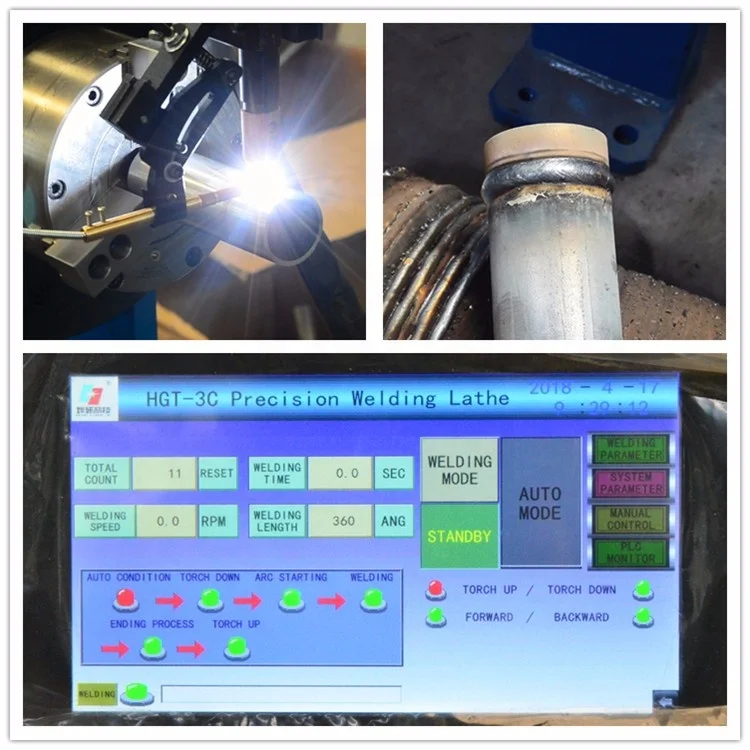

    HF-300L  consists of rotary headstock, rectangular support, pneumatic lifter, 3-D manual adjusting mechanism and centre master controller. Angle of jaw chuck is adjustable (0°/30°/45°/60°/90°), manual 3-jaw chuck on headstock is used to meet more workpiece, advanced PLC control system, humanized operation interface, high degree automation, stable and reliable performance. It’s a combined structure with good mobility, and easy installation.



Welding Process:

Welding Mode: torch fixed, workpiece rotating, weld automatically.

 Welding Method: TIG (supporting the use of wire feeder)/MIG/MAG/PAW.



Technical Parameters



Model	HF-300L
Control power supply	Single phase 50Hz AC 200V
Welding power supply	Three phase 50Hz AC 380V
Workpiece thickness	According to the shape of opening
workpiece diameter	200mm≥φ≥10mm
Headstock rotating speed	1~10 r/ min
Workpiece rotation diameter	≤600mm
Spindle bore	≤50mm
Spindle output torque	≤72N·m
Workpiece weight	≤50Kg
Torch lifting height	100mm
Faceplate height	900 mm (horizontal position)
Jaw chuck adjustable angle	0°/30°/45°/60°/90°







 WE CAN ENGINEER ANY MODEL TO AUTOMATE YOUR CUSTOM APPLICATION, AND SPECIALIZE IN PROVIDING A  CUSTOMER DRIVEN SOLUTION TO YOUR AUTOMATED WELDING NEEDS!!!
