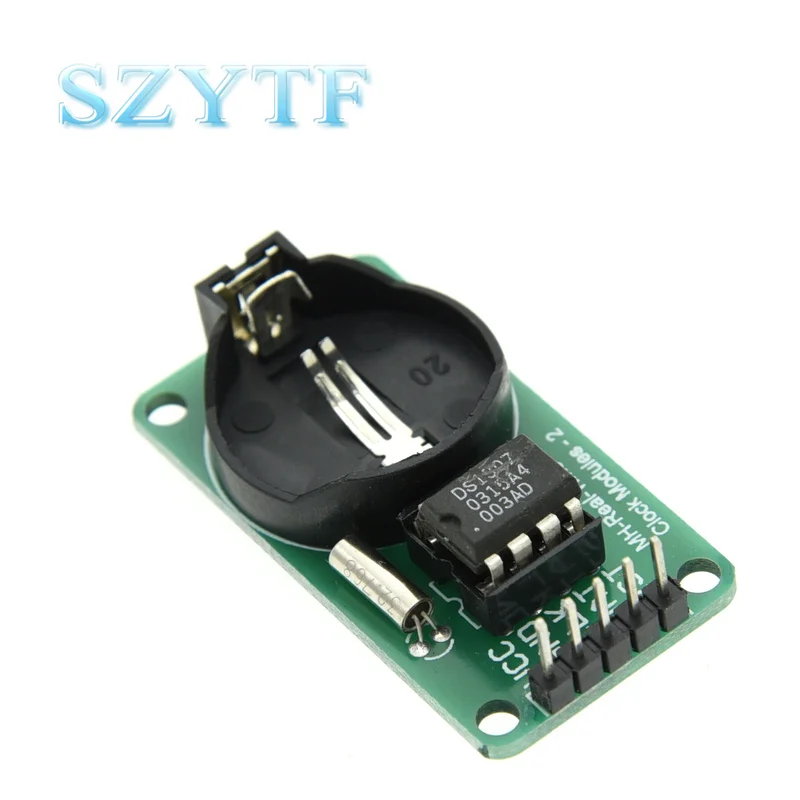

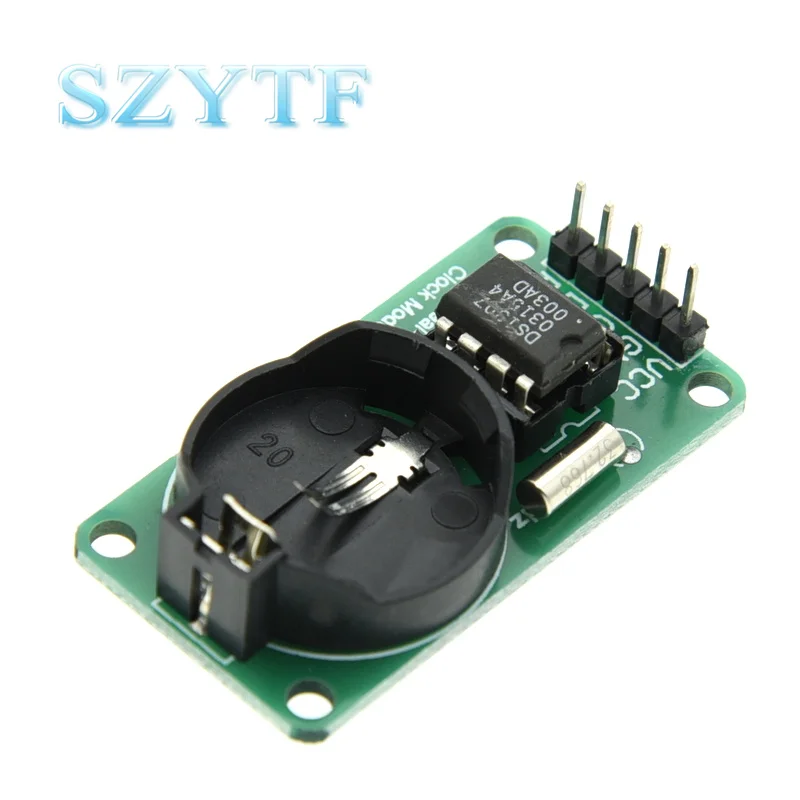

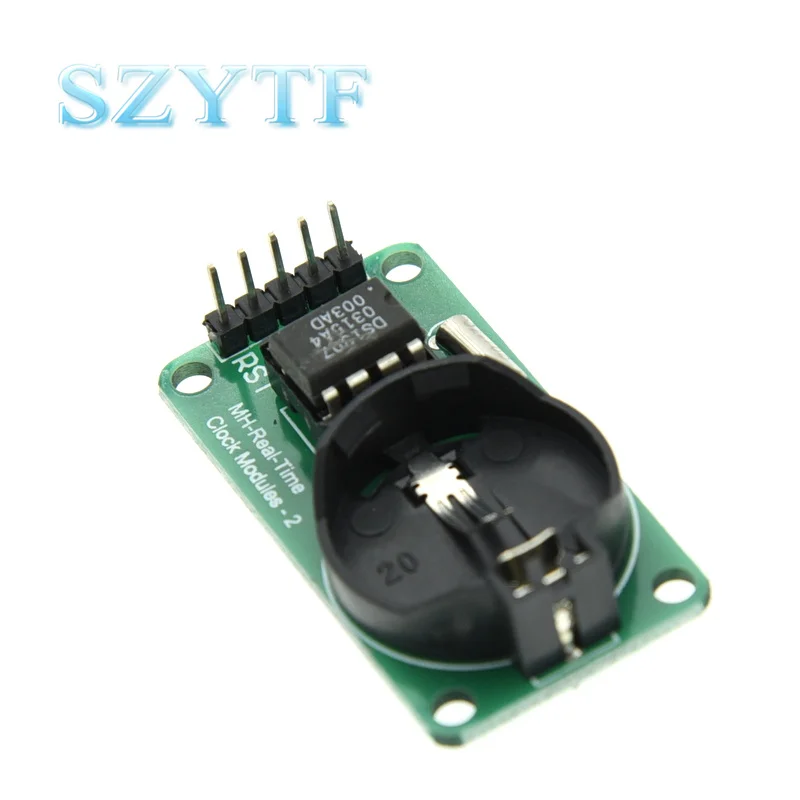

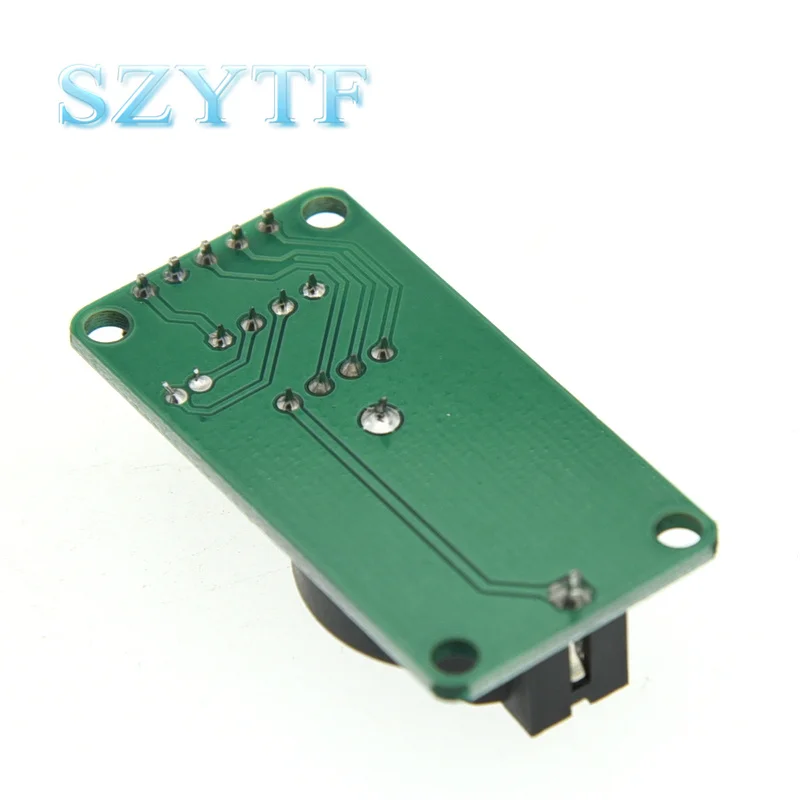

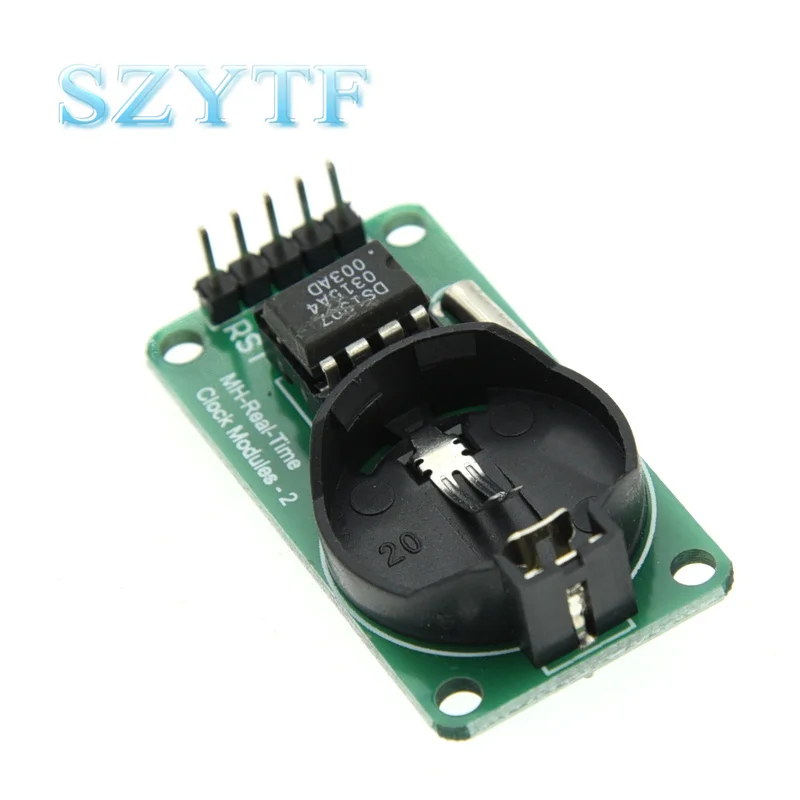

RTC DS1302 Real Time Clock Module For AVR ARM PIC SMD raspberry pi
- Category: >>>
- Supplier: Shenzhen YTF Technology Co. Limited
Share on (62346856910):
Product Overview
Description
Description:
31 x 8 RAM for scratchpad data storage
Serial I/O interface for minimum pin count
Wide Working Voltage: 2.0 ~ 5.5V
Single-byte and multi-byte transmission for clock or RAM data read / write
TTL-compatible (Vcc=5V)
Working Temperature: 0 to +70 Deg C
32.768KHz crystal oscillator
Equipped with a 260mAh CR2032 button battery, not rechargeable
Overall Size: Approx. 44 x 23 x 11mm
Vcc - +5V / 3.3V
GND - GND
CLK - P01
DAT - P02
RST - P00
Package Included:
1pcs X DS1302 Real Clock Module
31 x 8 RAM for scratchpad data storage
Serial I/O interface for minimum pin count
Wide Working Voltage: 2.0 ~ 5.5V
Single-byte and multi-byte transmission for clock or RAM data read / write
TTL-compatible (Vcc=5V)
Working Temperature: 0 to +70 Deg C
32.768KHz crystal oscillator
Equipped with a 260mAh CR2032 button battery, not rechargeable
Overall Size: Approx. 44 x 23 x 11mm
Vcc - +5V / 3.3V
GND - GND
CLK - P01
DAT - P02
RST - P00
Package Included:
1pcs X DS1302 Real Clock Module
