H.265 HD SONY Sensor 2.0MP WDR Board IP Camera Module PCB Manufacturer

Model

TT-IP2M

Camera

Sensor

1/2.9" Progressive Scan CMOS IMX323

DSP

Hi3516CV200

Electronic shutter

1/25s~1/10000s

Minimum illumination

Color 0.1Lux @F1.2

B/W: 0.01Lux @F1.2

Signal to noise ratio

≥50dB(AGC OFF)

Day and night conversion mode

Photosensitive detection / video detection / time detection

Wide dynamic range

≥80dB

Noise Reduction

3D digital noise reduction

Compress Standard

Video compression standard

H.265+/H.265/H.264/MJPEG

H.265 encoding type

Main Profile

Video bit rate

32 Kbps~16Mbps

Audio compression format

G.711a/ G.711u/G.726


Image Setup

Adjustable brightness, contrast, saturation, sharpness, white balance; AWB (automatic white balance), AGC (automatic gain), AE (automatic exposure control), AIC (automatic aperture correction); support privacy zone occlusion; OSD overlay; Image rotation: normal 90 ° / 270 ° automatic, manual or automatic color to black and other switching methods

Maximum image size

1920×1080

Video resolution

Main stream

1080P(1920×1080)/1280×720

Sub stream

D1(704×576)/VGA(640×480)/640×352/QVGA(320×240)

Video frame rate

50Hz: 50fps (1920×1080,1280×720)

60Hz: 60fps (1920×1080,1280×720)

Character overlay

Support

Smart Functions

Smart coding

Support low code rate, low latency, ROI region of interest enhanced encoding, support 4 ROI regions

Smart detection

Support intelligent occlusion detection, intelligent out-of-focus detection

Smart control

Support intelligent control alarm on, alarm off, fault clearing, intelligent noise reduction

Network features

Network protocol

IPv4/IPv6,802.1x,HTTPS, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP

Access standard

Support the latest ONVIF / national standard GB28181 / SDK

Number of supported users

Support up to 8 simultaneous users to log in

Support mobile phone monitoring

Support iPhone, iPad, Android platform

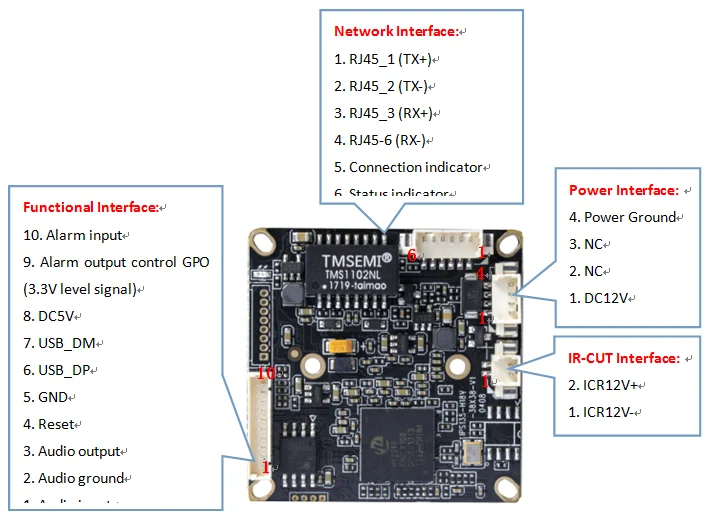

Auxiliary interface

Network Interface

10M/100M adaptive Ethernet port

audio port

1 channel audio input (MIC IN/Line IN); 1 channel audio output interface

Video output

1 channel CVBS composite video output (BNC interface, 1.1Vp-p±10%, RL=75Ω);

USB interface

1 USB interface, support TF card storage expansion (up to 128G)

Alarm interface

1 way low level alarm signal input, Vin<=0.3V; 1 way switch quantity alarm signal output, maximum support DC24V 1A or AC110V 500mA

General purpose interface

1 reset button for one-button recovery

General parameters

powered by

DC 12V

Power consumption

3W(MAX)

size

38 (long) * 38 (wide) * 10 (high) mm (without lens)

IR-CUT pitch

20mm

weight

0.06kg
