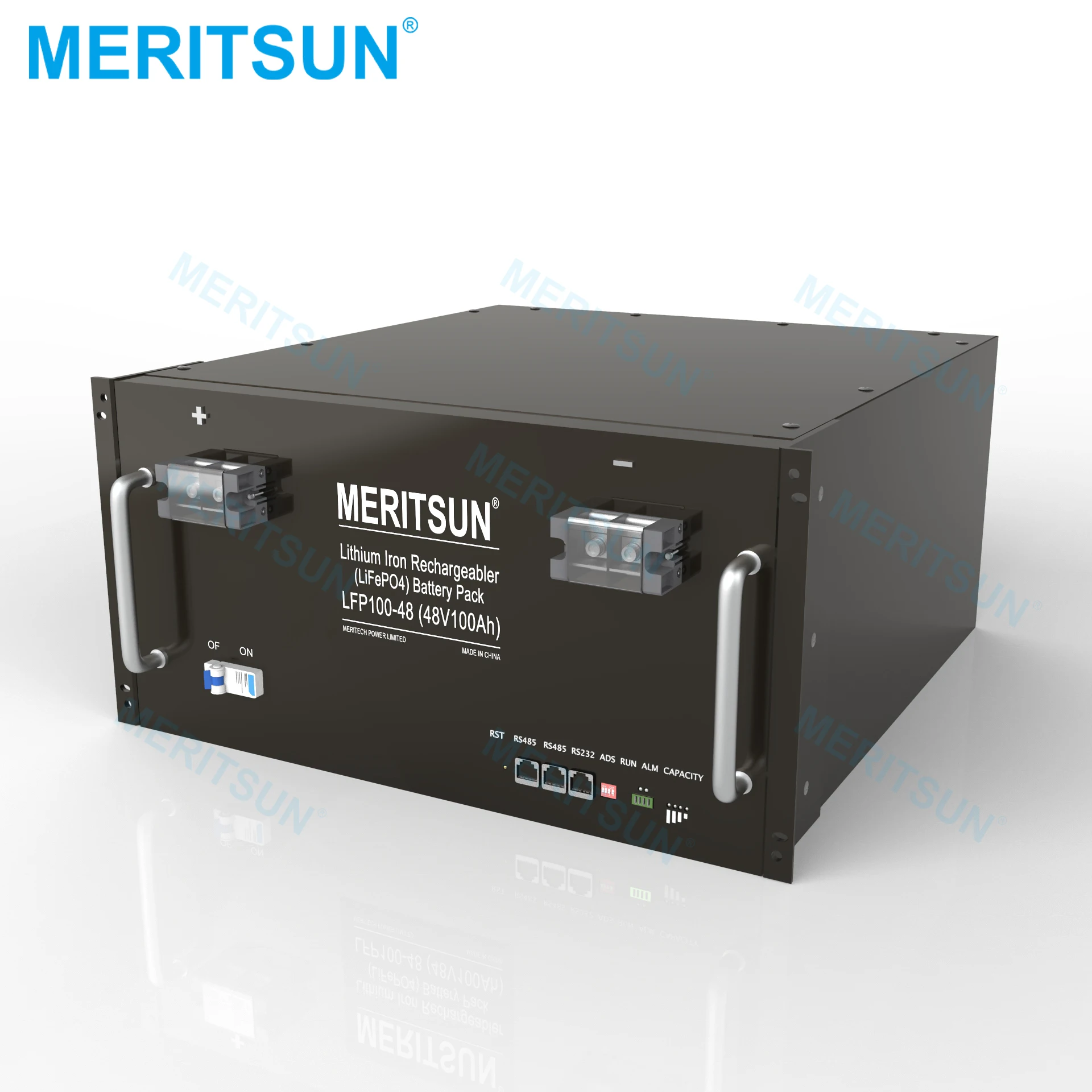

Nominal Capacity Solar Lifep04 Battery 48v 100ah Lihtiom Ion Battery Mit BMS Solar Energy Storage Systems Electric Power Systems
- Category: >>>
- Supplier: Guangzhou Meritech Power Co. Ltd.
Share on (62346933712):
Product Overview
Description
VR
Products Description
Products Specification
Model | LFP50-48 | LFP100-48 | LFP200-48 |
Nominal Voltage(V) | 48 | 48 | 48 |
Nominal Capacity(Ah) | 50 | 100 | 200 |
Usable Capacity(Wh) | 2400 | 4800 | 9600 |
Dimension(mm) | 442*385*132 customizable | 442*410*220 customizable | 442*450*250 customizable |
Weight(Kg) | 29 | 44 | 86 |
Cycle Life | 6000, 90%DOD | 4000~6000 , 25℃ | 4000~6000 , 25℃ |
Communication Port | RS232 .RS485 .CAN | RS232 .RS485 .CAN | RS232 .RS485 .CAN |
Working Temperature ℃ | -20~55 | -20~55 | -20~55 |
Discharge Voltage (V) | 39~40.5 | 40.5-42.5 | 40.5-42.5 |
Charge Voltage(V) | 53.2~54 | 53.2~54 | 53.2~54 |
Internal Impedance(mΩ) | ≤50 | ≤50 | ≤50 |
Charge / Discharge Current (A) | 10 (Recommended) | 20 (Recommended) | 40 (Recommended) |
50 (Max) | 100 (Max) | 100 (Max) | |
Design Life(Years) | 12 | 12 | 12 |
