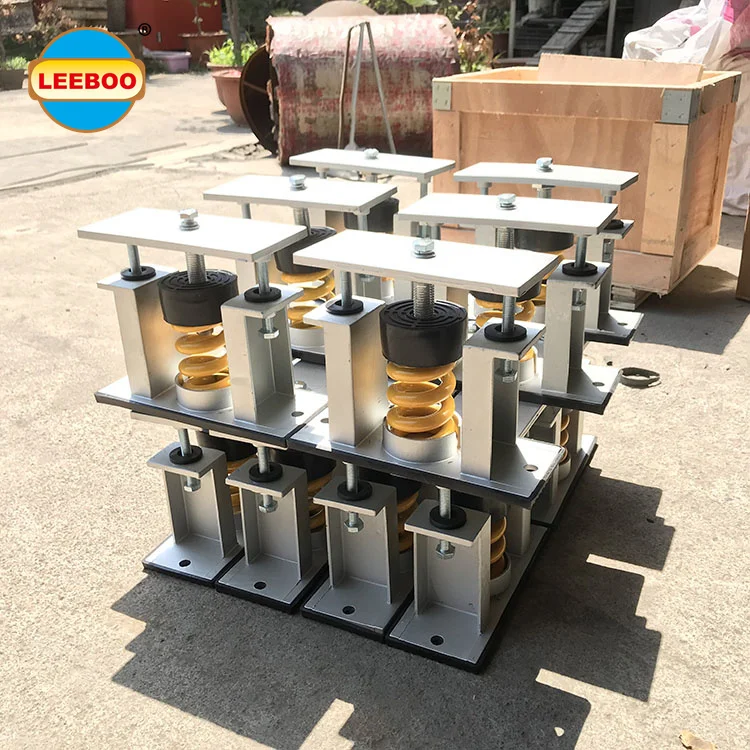

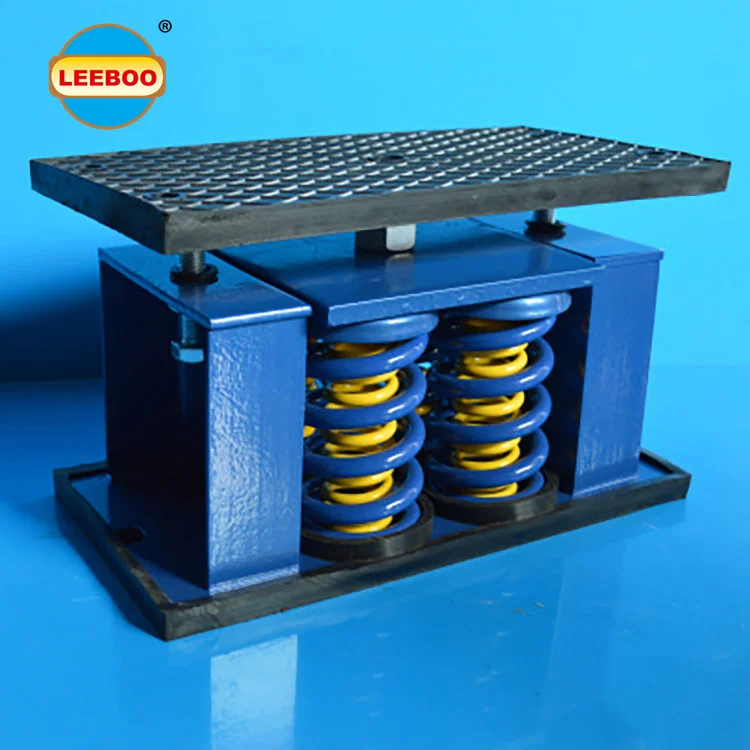

Hvac High strength pump spring vibration isolator floor mount air conditioner Damper elastomeric Anti vibration Mounting Springs

Product Overview

Description

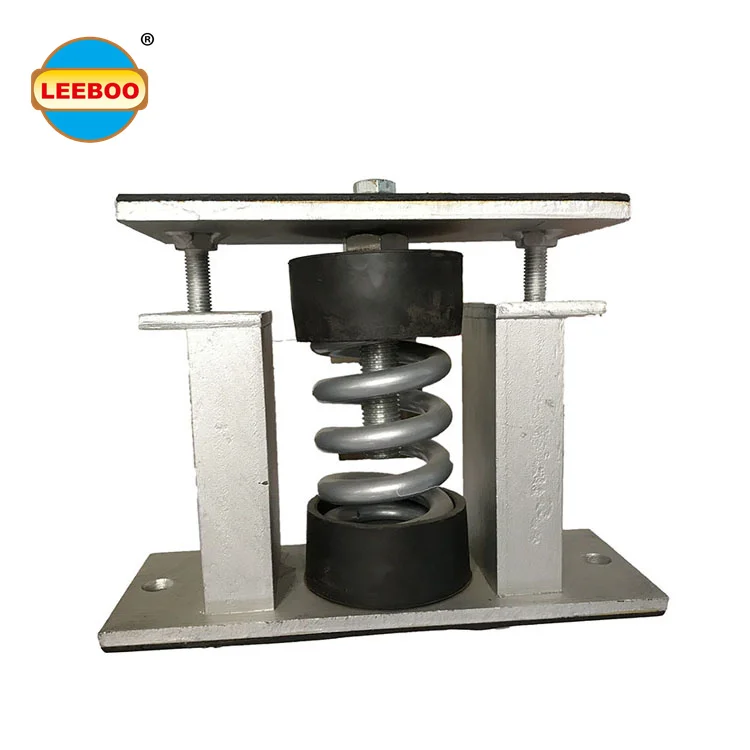

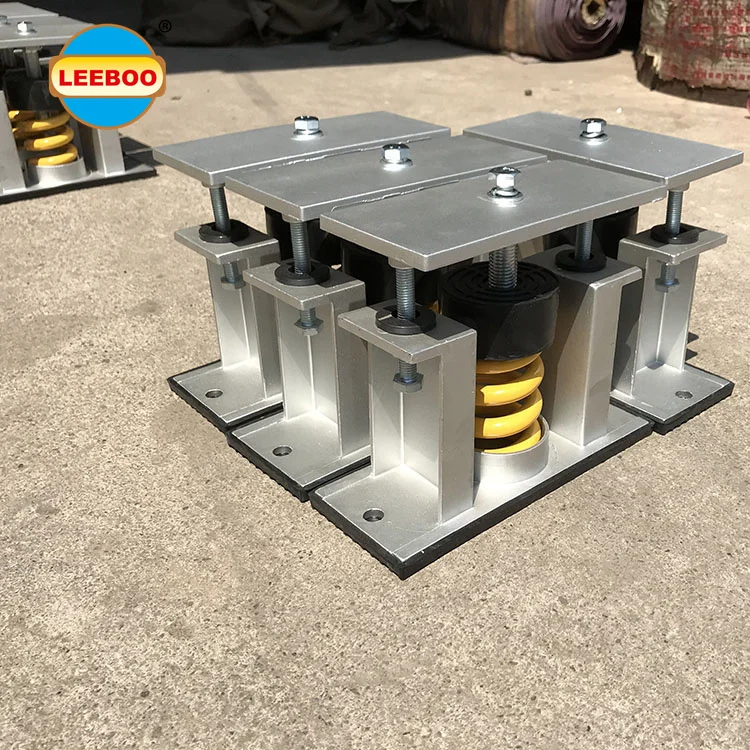

Air Conditioner Vibration Damper Antivibration Mounting Spring

Generator vibration isolators hvac

Generator vibration isolators hvac with the design of the anti slip and anti bolt, enlarged contact area, thus raising the pressure on the stability of the product.

Generator vibration isolators hvac equipped with type M22 height adjustment bolt, the installation is simple and can be adjusted according to the actual needs of the product height. So that the product can better adapt to the different actual installation environment.

This product is composed of multiple groups of springs, which can be customized according to the actual situation of the user's actual use, thus it can meet the different environment of the installation requirements. Generator vibration isolators hvac vibration damper can eliminate the vibration of the mechanical structure to protect and extend the life of the machine.



Generator vibration isolators hvac is composed of multiple groups of springs, which can be customized according to the actual situation of the user's actual use.It mainly used for all kinds of heavy machinery, cooling tower, fire pump, sent to the opening of the fan, etc. with strictly regulated requirements of the construction environment.Xinli as a professional damping spring shock absorber supplier,has cooperated with many customers,and received high praise from customers.



As a 20-year-plus authority in lead-free pipeline equipment manufacturing, XINLI provides Generator vibration isolators hvac with a distinct advantage in lead-free plumbing solutions.

We design, produce and inventory more styles and sizes of spring shock absorbers. We have become known as the "Problem Solvers" when it comes to shock absorber applications.

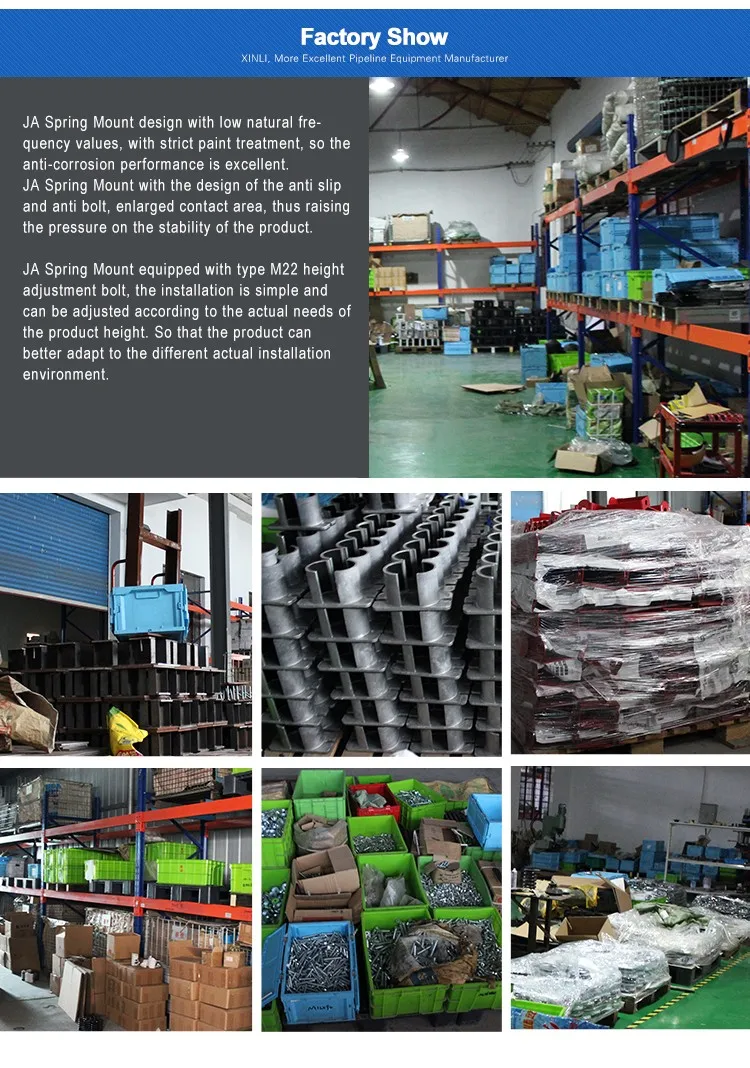

Generator vibration isolators hvac by Xinli pipeline Equipment Company is mainly according to GB standard,DIN,ANSI and other standard manufactured of home and aboard.Poweverful company strength,strong technical force, more than 4000 square meters of workshop,advanced production equipment and testing equipment gradually replace by mechanization, all these greatly improved the production capacity, thus customers with urgent orders can also be perfectly satisfied.

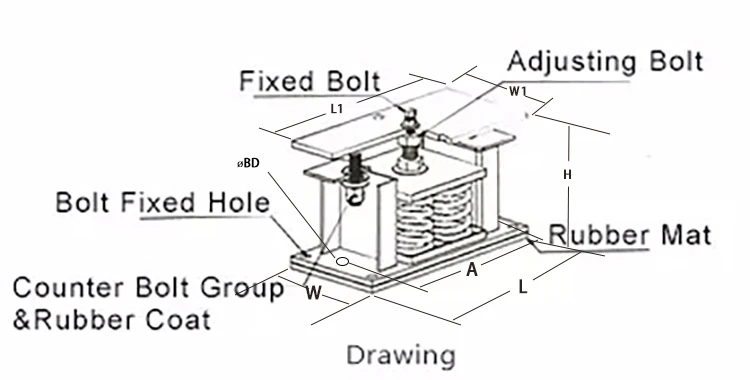

Model	H(mm)	L(mm)	W(mm)	L1(mm)	W1(mm)	A(mm)	B(mm)	Application of Deflection	Fixed Bolt	∅BD
JA-1	200	260	100	225	100	230	0	25	12	14
JA-2	200	235	220	235	120	195	180	25	12	15
JA-4	200	320	200	220	200	290	90	25	12	17
JA-6	200	400	170	400	170	370	140	25	12	18
JA-9	200	420	250	420	250	384	210	25	12	18



Model	KGF Scope Kgs	Elastic Coefficient Kg/mm
JA-1-100	90~105	4
JA-1-150	130~160	6
JA-1-200	160~210	8
JA-1-250	210~260	10
JA-1-300	260~320	12
JA-1-350	320~360	14
JA-1-400	360~430	16
JA-1-450	430~470	18
JA-1-500	470~530	20
JA-1-600	530~650	24
JA-1-700	650~700	28
JA-1-850	700~850	34
JA-1-1000	850~1000	40
JA-2-800	700~850	32
JA-2-900	850~950	36
JA-2-1000	950~1050	40
JA-2-1200	1050~1250	48
JA-2-1400	1250~1400	56
JA-2-1600	1400~1600	68
JA-2-2000	1850~2150	80
JA-4-1400	1300~1450	56
JA-4-1600	1450~1700	64
JA-4-1800	1700~1800	72
JA-4-2000	1800~2000	80
JA-4-2400	2000~2400	96
JA-4-2800	2400~2800	112
JA-4-3200	2800~3200	128
JA-4-4000	3200~4000	160
JA-6-3600	3000~3600	144
JA-6-4200	3600~4200	168
JA-6-5000	4200~5000	200
JA-6-6000	4600~6100	240
JA-9-4600	4200~4600	184
JA-9-5500	4600~5500	220
JA-9-6500	5500~6500	260
JA-9-7500	6500~7500	300
JA-9-9000	7500~9000	360
JA-9-10800	9000~10800	432
