Solid rubber tyre 6.50-10 for
3 3.5 ton forklift antipuncture
Product Description
We produce 3 patterns of 6.50-10 solid tire --TP301,TP304,TP312
Deeper tread pattern provide better wear performance,puncture resistance
For most arduous application
| Size | Rim | Quick assembly | Overall diameter (mm) | Width (mm) | MAX.LOAD(kg) | Other Industrial | ||||||
| Counterbalanced Lift Truck | ||||||||||||
| 10km/h | 16km/h | 25km/h | ||||||||||
| LOAD | ROTATION | LOAD | ROTATION | LOAD | ROTATION | 10km/h | 25km/h | |||||
| 6.50-10 | 5.00 | o | 576 | 162 | 2715 | 2090 | 2485 | 1910 | 2310 | 1775 | 2095 | 1775 |
TP301 Pattern
It has the advantages of high load, wide grounding area, strong seizing force, low rolling resistance, low energy consumption etc.
TP312 PATTERN
Improved traction, Greater tread depth, Low rolling resistance, Very high mileage, Outstanding lateral guidance, Extremely quiet running.
TP304 PATTERN
TP301 TOPOWER FORKLIFT TIRE DIMENSHION
| Size | Rim | Quick assembly | Overall diameter (mm) | Width (mm) | MAX.LOAD(kg) | |||||
| Counterbalanced Lift Truck | ||||||||||
| 10km/h | 16km/h | 25km/h | ||||||||
| LOAD | ROTATION | LOAD | ROTATION | LOAD | ROTATION | |||||
| 4.00-8 | 3.00 | 408 | 100 | 1090 | 840 | 995 | 765 | 925 | 710 | |
| 2.50 | 408 | 100 | 910 | 700 | 830 | 640 | 765 | 590 | ||
| 3.75 | 408 | 100 | 1175 | 905 | 1080 | 830 | 1000 | 770 | ||
| 15x4 1/2-8 | 2.50 | 380 | 110 | 840 | 645 | 765 | 590 | 710 | 545 | |
| 3.00 | o | 380 | 110 | 1005 | 775 | 915 | 705 | 850 | 655 | |
| 3.25 | 380 | 110 | 1090 | 840 | 995 | 765 | 925 | 710 | ||
| 5.00-8 | 3.00 | o | 450 | 122 | 1255 | 965 | 1145 | 880 | 1060 | 815 |
| 3.50 | 450 | 122 | 1465 | 1125 | 1335 | 1025 | 1235 | 950 | ||
| 16×6-8 | 4.33 | o | 408 | 155 | 1545 | 1190 | 1410 | 1085 | 1305 | 1005 |
| 18×7-8 | 4.33 | o | 448 | 160 | 2430 | 1870 | 2215 | 1705 | 2060 | 1585 |
| 18x9-8 | 7.00 | 450 | 210 | 2845 | 2190 | 2600 | 2000 | 2410 | 1855 | |
| 21×8-9 | 6.00 | o | 514 | 180 | 2890 | 2225 | 2645 | 2035 | 2455 | 1890 |
| 23×9-10 | 6.50 | o | 580 | 208 | 3730 | 2870 | 3405 | 2620 | 3160 | 2430 |
| 23x9-12 | 5.00 | 580 | 208 | 3145 | 2420 | 2870 | 2210 | 2665 | 2050 | |
| 27×10-12 | 8.00 | o | 668 | 238 | 4595 | 3535 | 4200 | 3230 | 3900 | 3000 |
| 28x12.5-15 | 9.75 | 695 | 290 | 6200 | 4770 | 5660 | 4355 | 5260 | 4045 | |
| 32x12.1-15 | 9.75 | o | 810 | 302 | 7120 | 5700 | 6880 | 5170 | 6410 | 4820 |
| 200/50-10 | 6.50 | o | 448 | 198 | 2910 | 2240 | 2665 | 2050 | 2470 | 1900 |
| 355/65-15 | 9.75 | o | 810 | 302 | —— | —— | —— | —— | 7800 | 6000 |
| 6.00-9 | 4.00 | o | 521 | 148 | 1975 | 1520 | 1805 | 1390 | 1675 | 1290 |
| 6.50-10 | 5.00 | o | 576 | 162 | 2715 | 2090 | 2485 | 1910 | 2310 | 1775 |
| 6.50-10EC | 5.00 | o | 569 | 152 | 2715 | 2090 | 2485 | 1910 | 2310 | 1775 |
| 7.00-9 | 4.50 | o | 546 | 160 | 2460 | 1885 | 2240 | 1725 | 2080 | 1600 |
| 5.00 | o | 546 | 160 | 2670 | 2055 | 2440 | 1875 | 2260 | 1740 | |
| 7.00-12 | 5.00 | o | 652 | 180 | 3105 | 2390 | 2835 | 2180 | 2635 | 2025 |
| 7.00-12EC | 5.00 | o | 645 | 170 | 3105 | 2390 | 2835 | 2180 | 2635 | 2025 |
| 7.50-15 | 5.50 | 774 | 215 | 3805 | 2925 | 3470 | 2670 | 3225 | 2480 | |
| 6.00 | 774 | 215 | 4145 | 3190 | 3785 | 2910 | 3510 | 2700 | ||
| 6.50 | 774 | 215 | 4400 | 3455 | 4100 | 3155 | 3810 | 2390 | ||
| 7.50-16 | 5.50 | 790 | 205 | 4035 | 3105 | 3685 | 2835 | 3425 | 2635 | |
| 6.00 | 790 | 205 | 4400 | 3385 | 4025 | 3095 | 3730 | 2870 | ||
| 7.50-20 | 6.00 | 935 | 218 | 4735 | 3785 | 4560 | 3425 | 4260 | 3195 | |
| 6.50 | 935 | 218 | 5165 | 4130 | 4985 | 3740 | 4640 | 3480 | ||
| 8.00-16 | 5.50 | 790 | 205 | 4070 | 3130 | 3720 | 2860 | 3450 | 2655 | |
| 28x9-15 | 7.00 | o | 698 | 212 | 4060 | 3125 | 3710 | 2855 | 3445 | 2650 |
| 28x9-15EC | 7.00 | o | 675 | 210 | 4060 | 3125 | 3710 | 2855 | 3445 | 2650 |
| 8.15/65-15 | 7.00 | o | 675 | 216 | 4090 | 3270 | 3945 | 2960 | 3675 | 2755 |
| 8.25-12 | 5.00 | o | 710 | 190 | 3425 | 2635 | 3125 | 2405 | 2905 | 2235 |
| 8.25-15 | 6.50 | o | 790 | 205 | 5085 | 3910 | 4640 | 3570 | 4310 | 3315 |
| 8.25-16 | 6.50 | o | 792 | 204 | 5085 | 3910 | 4640 | 3570 | 4310 | 3315 |
| 250-15 | 7.00 | o | 697 | 228 | 5220 | 4015 | 4770 | 3670 | 4425 | 3405 |
| 7.50 | o | 697 | 228 | 5595 | 4305 | 5110 | 3930 | 4745 | 3650 | |
| 300-15 | 8.00 | o | 803 | 258 | 6895 | 5305 | 6300 | 4845 | 5850 | 4500 |
Company Information

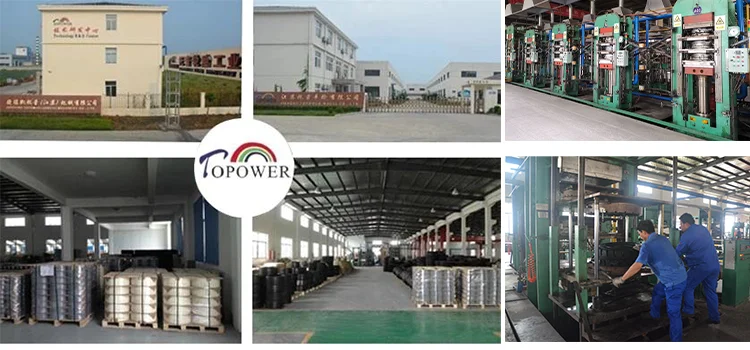

In 2012,Jiangsu Topower Wheel Co.,Ltd was founded in the Yellow Sea Wetland--Yancheng with 28,000 sqm factory which specializes in Industrial Solid Tires, OTR Tires ,Press on Solid Tires, Platform lift wheels, PU Foam Filled Tires, Rubber Spongy Tires and Rubber Rarts .
Topower has advanced technology and equipments with independent research and centre.Topower won the "Quality Trustworthy Enterprises in Jiangsu Province" in 2014 and was identified as "High-tech Enterprises in Jiangsu Province" & "Jiangsu Province Graduate Student Workstations" in 2015.?
As a national high-tech company,one of the China solid tire foremost leader,we have obtained many national tire patents.Furthermore,TOPOWER is the member of International Powered Access Federation(IPAF), China Rubber Industry Association(CRIA) ,Director of Jiangsu Rubber Industry Association,and gained ISO9001,ISO14001,OHSAS 18001 and $2 Million Global Product Quality Liabiltity Insurance.
TOPOWER series products are widely used in coal mines, steel mills,port terminals,construction machinery and other industries,Topower tires are extremely stable, puncture resistant and maintenance-free,which are ideally suitable for forklift trucks, airport vehicles, heavy-duty transport vehicles, aerial work platform and other industrial vehicles.
TOPOWER tires have been exported to more than 60 countries and regions around the world. “Top quality tire, Powerful safeguard ” We here sincerely invite you to visit !
Topower has advanced technology and equipments with independent research and centre.Topower won the "Quality Trustworthy Enterprises in Jiangsu Province" in 2014 and was identified as "High-tech Enterprises in Jiangsu Province" & "Jiangsu Province Graduate Student Workstations" in 2015.?
As a national high-tech company,one of the China solid tire foremost leader,we have obtained many national tire patents.Furthermore,TOPOWER is the member of International Powered Access Federation(IPAF), China Rubber Industry Association(CRIA) ,Director of Jiangsu Rubber Industry Association,and gained ISO9001,ISO14001,OHSAS 18001 and $2 Million Global Product Quality Liabiltity Insurance.
TOPOWER series products are widely used in coal mines, steel mills,port terminals,construction machinery and other industries,Topower tires are extremely stable, puncture resistant and maintenance-free,which are ideally suitable for forklift trucks, airport vehicles, heavy-duty transport vehicles, aerial work platform and other industrial vehicles.
TOPOWER tires have been exported to more than 60 countries and regions around the world. “Top quality tire, Powerful safeguard ” We here sincerely invite you to visit !
